Understanding the intricacies of electrical outlets is crucial for both homeowners and professionals. One of the most commonly used outlets in residential and commercial settings is the 20 Amp Outlet. This type of outlet is designed to handle higher electrical loads compared to standard 15 Amp outlets, making it ideal for powering heavy-duty appliances and tools. In this post, we will delve into the specifics of 20 Amp Outlets, their applications, installation guidelines, and safety considerations.
Understanding 20 Amp Outlets
A 20 Amp Outlet is a type of electrical receptacle designed to handle up to 20 amps of current. This is significantly higher than the standard 15 Amp outlets found in most homes. The increased capacity makes 20 Amp Outlets suitable for powering larger appliances and tools that require more electricity. These outlets are typically used in kitchens, garages, workshops, and other areas where high-power devices are commonly used.

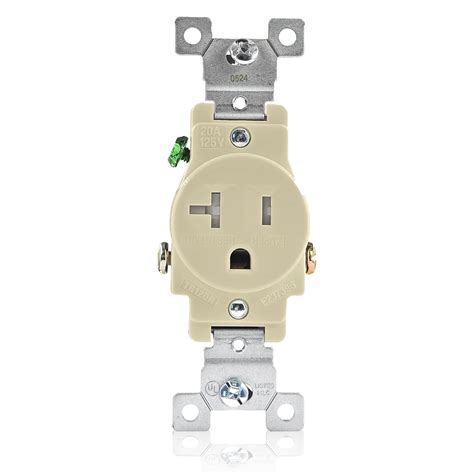

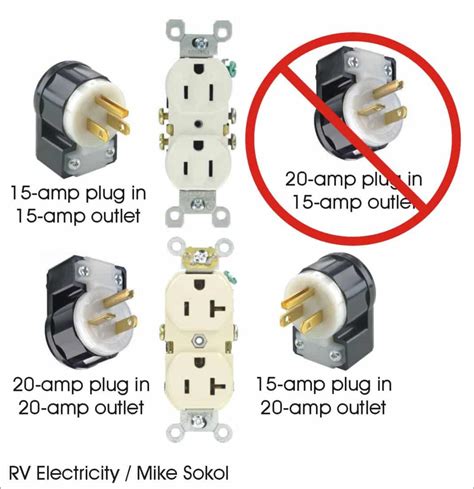

20 Amp Outlets are easily identifiable by their unique design. They have a distinctive T-shaped slot, which is different from the straight slots found in 15 Amp outlets. This design ensures that only 20 Amp plugs can be inserted, preventing the use of incompatible plugs that could cause overheating or electrical fires.
Applications of 20 Amp Outlets
20 Amp Outlets are versatile and can be used in a variety of settings. Here are some common applications:
- Kitchens: In kitchens, 20 Amp Outlets are often used to power large appliances such as refrigerators, dishwashers, and microwaves. These appliances require a steady supply of electricity, and 20 Amp Outlets ensure that they operate safely and efficiently.
- Garages and Workshops: In garages and workshops, 20 Amp Outlets are ideal for powering tools and equipment such as power drills, saws, and compressors. These tools often require more electricity than standard outlets can provide, making 20 Amp Outlets a necessary addition.
- Laundry Rooms: In laundry rooms, 20 Amp Outlets are used to power washing machines and dryers. These appliances can draw a significant amount of electricity, and 20 Amp Outlets ensure that they operate safely and reliably.

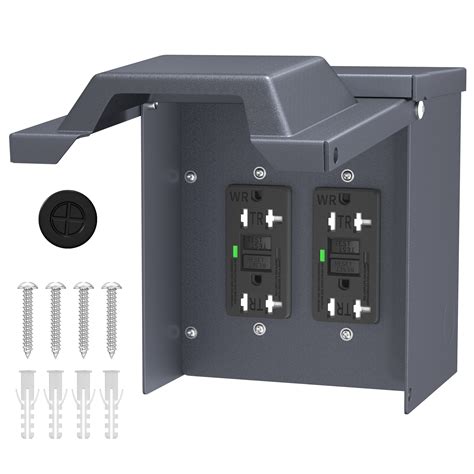

- Outdoor Spaces: In outdoor spaces, 20 Amp Outlets are used to power outdoor lighting, pool pumps, and other outdoor appliances. These outlets are designed to withstand the elements and provide a reliable source of electricity.
Installing 20 Amp Outlets
Installing a 20 Amp Outlet requires careful planning and adherence to electrical codes. Here are the steps to install a 20 Amp Outlet safely and correctly:
- Choose the Right Location: Select a location for the 20 Amp Outlet that is convenient and accessible. Ensure that the location is free from obstructions and complies with local electrical codes.
- Turn Off the Power: Before beginning any electrical work, turn off the power to the circuit at the main electrical panel. Use a voltage tester to ensure that the power is off.
- Run the Wiring: Run a 12-gauge wire from the main electrical panel to the location of the 20 Amp Outlet. Ensure that the wire is properly secured and protected from damage.
- Install the Outlet Box: Install an outlet box at the chosen location. Ensure that the box is securely fastened to the wall or stud.
- Connect the Wires: Connect the wires to the 20 Amp Outlet according to the manufacturer's instructions. Ensure that the connections are tight and secure.
- Mount the Outlet: Mount the 20 Amp Outlet to the outlet box. Ensure that the outlet is securely fastened and level.
- Restore Power: Turn on the power to the circuit at the main electrical panel. Test the 20 Amp Outlet to ensure that it is functioning correctly.
📝 Note: Always follow local electrical codes and regulations when installing 20 Amp Outlets. If you are unsure about any aspect of the installation process, consult a licensed electrician.
Safety Considerations for 20 Amp Outlets
While 20 Amp Outlets are designed to handle higher electrical loads, it is essential to follow safety guidelines to prevent electrical hazards. Here are some important safety considerations:
- Use the Correct Plugs: Ensure that you are using plugs that are rated for 20 Amp Outlets. Using incompatible plugs can cause overheating and electrical fires.
- Avoid Overloading: Do not overload the 20 Amp Outlet by plugging in too many devices. Overloading can cause the outlet to overheat and potentially start a fire.
- Regular Inspections: Regularly inspect 20 Amp Outlets for signs of damage or wear. Look for frayed wires, loose connections, or burnt marks. If you notice any issues, have the outlet repaired or replaced by a licensed electrician.
- Use Ground Fault Circuit Interrupters (GFCIs): In areas where water is present, such as kitchens and bathrooms, use GFCIs to protect against electrical shocks. GFCIs monitor the electrical current and shut off the power if an imbalance is detected.
Comparing 20 Amp Outlets to Other Outlets

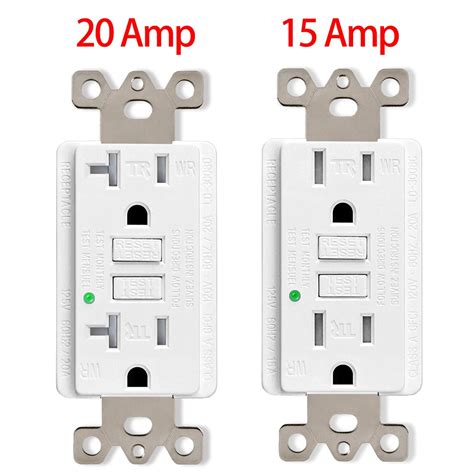

To better understand the role of 20 Amp Outlets, it is helpful to compare them to other types of outlets. Here is a comparison of 20 Amp Outlets to 15 Amp and 30 Amp outlets:
| Type of Outlet | Current Rating | Common Applications | Wire Gauge |
|---|---|---|---|
| 15 Amp Outlet | 15 Amps | Standard household appliances, lighting, and small electronics | 14-gauge wire |
| 20 Amp Outlet | 20 Amps | Kitchens, garages, workshops, laundry rooms, and outdoor spaces | 12-gauge wire |
| 30 Amp Outlet | 30 Amps | Electric ranges, ovens, and other high-power appliances | 10-gauge wire |
As shown in the table, 20 Amp Outlets are designed to handle higher electrical loads than 15 Amp outlets but are not as powerful as 30 Amp outlets. They are ideal for a wide range of applications where standard outlets would be insufficient.
Troubleshooting Common Issues with 20 Amp Outlets
Even with proper installation and maintenance, issues can arise with 20 Amp Outlets. Here are some common problems and their solutions:
- Outlet Not Working: If the 20 Amp Outlet is not working, check the circuit breaker to ensure that it has not tripped. If the breaker is fine, check for loose connections or damaged wires.
- Outlet Overheating: If the 20 Amp Outlet is overheating, it may be due to overloading or a loose connection. Unplug all devices and check for loose wires. If the problem persists, have the outlet inspected by a licensed electrician.
- Outlet Sparking: If the 20 Amp Outlet is sparking, it may be due to a loose connection or damaged wires. Turn off the power and inspect the outlet for signs of damage. If necessary, have the outlet repaired or replaced by a licensed electrician.
- Outlet Not Grounded: If the 20 Amp Outlet is not grounded, it can pose a safety hazard. Ensure that the outlet is properly grounded and that the grounding wire is securely connected.
📝 Note: If you are unsure about any aspect of troubleshooting 20 Amp Outlets, consult a licensed electrician. Electrical work can be dangerous, and it is essential to prioritize safety.
Maintaining 20 Amp Outlets
Maintaining 20 Amp Outlets is crucial for ensuring their longevity and safety. Here are some tips for maintaining 20 Amp Outlets:
- Regular Inspections: Regularly inspect 20 Amp Outlets for signs of damage or wear. Look for frayed wires, loose connections, or burnt marks. If you notice any issues, have the outlet repaired or replaced.
- Keep Outlets Clean: Keep 20 Amp Outlets clean and free from dust and debris. Use a soft cloth to wipe the outlet and remove any dirt or grime.
- Avoid Overloading: Do not overload the 20 Amp Outlet by plugging in too many devices. Overloading can cause the outlet to overheat and potentially start a fire.
- Use Surge Protectors: Use surge protectors to protect your devices from power surges. Surge protectors can help prevent damage to your appliances and extend the life of your 20 Amp Outlets.
📝 Note: Always follow the manufacturer's instructions for maintaining 20 Amp Outlets. If you are unsure about any aspect of maintenance, consult a licensed electrician.
In wrapping up, 20 Amp Outlets are essential for powering high-demand appliances and tools in various settings. Understanding their applications, installation guidelines, and safety considerations is crucial for ensuring their safe and efficient use. By following the tips and guidelines outlined in this post, you can ensure that your 20 Amp Outlets operate safely and reliably, providing a reliable source of electricity for your needs.
