Understanding the intricacies of a 220 Volt Outlet is crucial for anyone dealing with electrical systems, whether for residential, commercial, or industrial purposes. This guide will delve into the specifics of 220 Volt Outlets, their types, applications, safety measures, and installation tips. By the end, you'll have a comprehensive understanding of how to handle and utilize 220 Volt Outlets effectively and safely.
What is a 220 Volt Outlet?
A 220 Volt Outlet is a type of electrical outlet designed to supply power at 220 volts. This is different from the standard 110-volt outlets commonly found in many households. 220 Volt Outlets are typically used for high-power appliances and equipment that require more energy than what a standard outlet can provide. These outlets are essential for running large appliances like electric stoves, dryers, air conditioners, and industrial machinery.

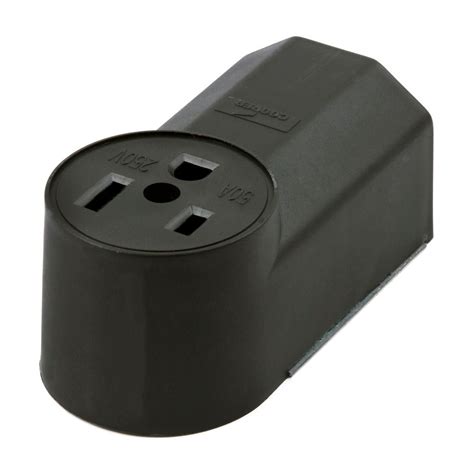

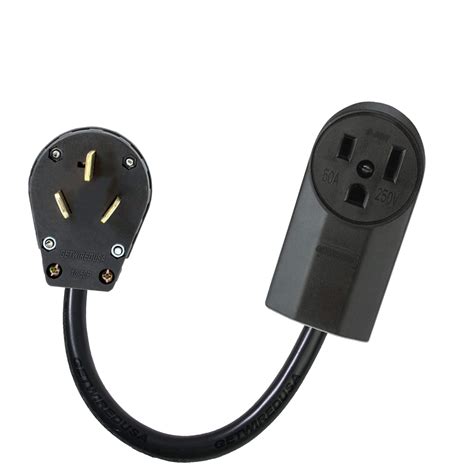

Types of 220 Volt Outlets
There are several types of 220 Volt Outlets, each designed for specific applications. Understanding the differences between these types is crucial for ensuring safety and compatibility with your electrical devices.
Here are the most common types of 220 Volt Outlets:
- NEMA 6-15 Outlet: This is a common type used for high-power appliances like electric ranges and dryers. It has a unique configuration with three prongs, including a grounding pin.
- NEMA 6-20 Outlet: Similar to the NEMA 6-15 but designed for higher current ratings. It is often used in industrial settings.
- NEMA 14-30 Outlet: This type is commonly used for electric dryers and ranges. It has four prongs, including a neutral wire, which is essential for certain appliances.

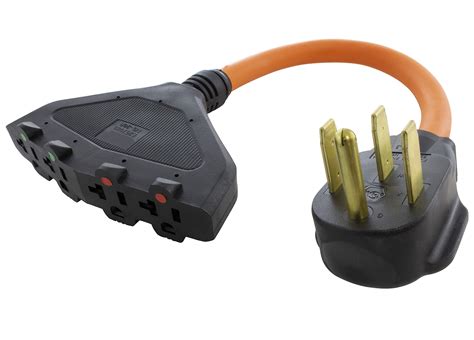

- NEMA 14-50 Outlet: This is a high-capacity outlet often used for electric vehicle charging stations and large appliances. It can handle up to 50 amps.
Applications of 220 Volt Outlets
220 Volt Outlets are used in a variety of settings, from residential homes to industrial facilities. Their high power capacity makes them ideal for running large appliances and machinery. Here are some common applications:
- Residential Use: In homes, 220 Volt Outlets are often found in kitchens for electric stoves and ovens, and in laundry rooms for electric dryers. They may also be used for air conditioning units and water heaters.
- Commercial Use: In commercial settings, 220 Volt Outlets are used for large appliances like refrigerators, freezers, and industrial ovens. They are also used for powering machinery in workshops and factories.
- Industrial Use: In industrial settings, 220 Volt Outlets are essential for running heavy machinery, welding equipment, and other high-power tools. They are designed to handle the high current demands of industrial operations.
Safety Measures for 220 Volt Outlets
Working with 220 Volt Outlets requires strict adherence to safety protocols. The high voltage and current can be dangerous if not handled properly. Here are some essential safety measures to follow:
- Use Appropriate Tools: Always use insulated tools designed for high-voltage work. Avoid using metal tools that can conduct electricity.
- Wear Protective Gear: Use gloves, safety glasses, and other protective gear to shield yourself from potential hazards.
- Turn Off Power: Before working on a 220 Volt Outlet, ensure the power is turned off at the circuit breaker. Use a voltage tester to confirm that the outlet is not live.
- Follow Local Codes: Adhere to local electrical codes and regulations. These codes are designed to ensure safety and compliance with standards.
- Professional Installation: If you are not experienced with electrical work, it is best to hire a licensed electrician to install or repair 220 Volt Outlets.
🔧 Note: Always double-check that the power is off before working on any electrical outlet. Use a voltage tester to confirm that the outlet is not live.
Installing a 220 Volt Outlet
Installing a 220 Volt Outlet involves several steps and requires careful attention to detail. Here is a step-by-step guide to help you through the process:
- Gather Materials: You will need a 220 Volt Outlet, appropriate wiring, a circuit breaker, a voltage tester, and tools like screwdrivers, wire strippers, and pliers.
- Turn Off Power: Locate the main electrical panel and turn off the power to the circuit where you will be working. Use a voltage tester to confirm that the power is off.
- Run Wiring: Run the appropriate gauge wiring from the main panel to the location of the new outlet. Ensure the wiring is properly secured and protected.
- Install Circuit Breaker: In the main panel, install a double-pole circuit breaker rated for the 220 Volt Outlet. Connect the hot wires to the breaker.

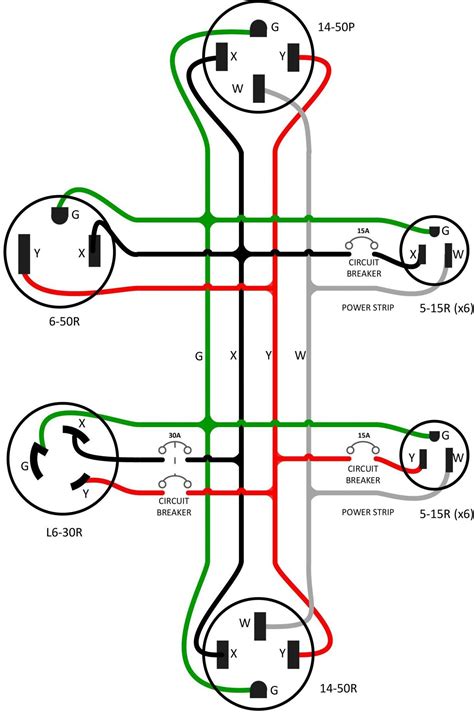

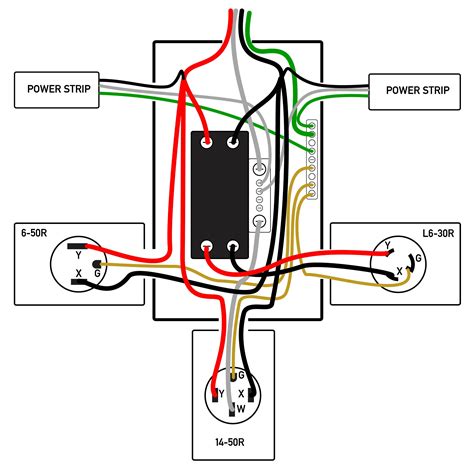

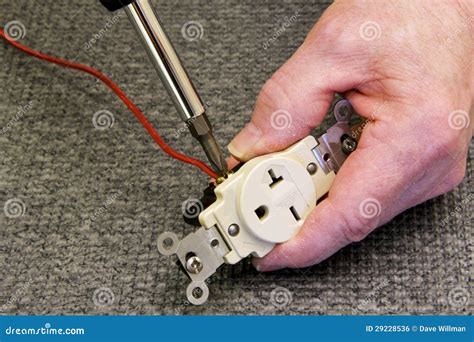

- Connect Wires: At the outlet location, connect the hot wires to the outlet's brass screws, the neutral wire to the silver screw, and the ground wire to the green screw.

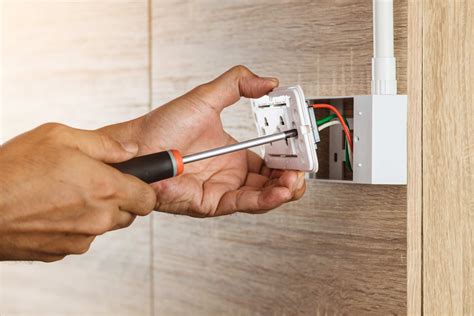

- Secure Outlet: Mount the outlet in the electrical box and secure it with screws. Ensure it is flush with the wall.
- Test Outlet: Turn the power back on and use a voltage tester to confirm that the outlet is receiving power. Plug in a compatible appliance to test its functionality.
⚠️ Note: If you are unsure about any step in the installation process, consult a licensed electrician. Improper installation can lead to electrical hazards and damage to your appliances.
Troubleshooting Common Issues
Even with proper installation, issues can arise with 220 Volt Outlets. Here are some common problems and their solutions:
| Problem | Solution |
|---|---|
| Outlet Not Working | Check the circuit breaker to ensure it is not tripped. Use a voltage tester to confirm that power is reaching the outlet. Inspect the wiring for any loose connections. |
| Outlet Sparking | Turn off the power and inspect the outlet for any signs of damage. Check the wiring for loose or corroded connections. Replace the outlet if necessary. |
| Appliance Not Working | Ensure the appliance is compatible with the 220 Volt Outlet. Check the outlet for proper voltage and current. Inspect the appliance for any internal issues. |
Maintaining 220 Volt Outlets
Maintaining 220 Volt Outlets is essential for ensuring their longevity and safety. Regular inspections and maintenance can prevent potential hazards and extend the life of your outlets. Here are some tips for maintaining 220 Volt Outlets:
- Regular Inspections: Periodically inspect your outlets for any signs of damage, such as cracks, burns, or loose connections. Replace any damaged outlets immediately.
- Cleanliness: Keep the area around the outlets clean and free of debris. Dust and dirt can accumulate and cause overheating.
- Avoid Overloading: Do not overload the outlets with too many appliances. Overloading can cause overheating and potential fires.
- Use Surge Protectors: For sensitive equipment, use surge protectors to safeguard against power surges and voltage fluctuations.
- Professional Maintenance: Have a licensed electrician perform regular maintenance checks on your electrical system, including 220 Volt Outlets.
🔍 Note: Regular maintenance can prevent costly repairs and ensure the safety of your electrical system. Always prioritize safety when working with electrical components.
Understanding Voltage and Current Ratings
When dealing with 220 Volt Outlets, it is crucial to understand voltage and current ratings. These ratings determine the amount of power an outlet can safely handle. Here is a brief overview:
- Voltage: Voltage is the electrical potential difference between two points. A 220 Volt Outlet provides 220 volts of power, which is higher than the standard 110-volt outlets.
- Current: Current is the flow of electrical charge. It is measured in amperes (amps). 220 Volt Outlets can handle higher currents, making them suitable for high-power appliances.
- Power: Power is the product of voltage and current. It is measured in watts. A 220 Volt Outlet can supply more power than a standard outlet, making it ideal for large appliances.
Understanding these ratings is essential for selecting the right outlet for your needs and ensuring the safety of your electrical system.
📊 Note: Always match the voltage and current ratings of your appliances with the outlet to avoid overloading and potential hazards.
Comparing 220 Volt Outlets with Other Voltage Outlets
220 Volt Outlets are just one type of electrical outlet. Understanding how they compare to other voltage outlets can help you make informed decisions about your electrical needs. Here is a comparison:
| Outlet Type | Voltage | Common Uses |
|---|---|---|
| 110 Volt Outlet | 110-120 Volts | Standard household outlets for lamps, TVs, computers, and small appliances. |
| 220 Volt Outlet | 220-240 Volts | High-power appliances like electric stoves, dryers, air conditioners, and industrial machinery. |
| 240 Volt Outlet | 240 Volts | Similar to 220 Volt Outlets, used for high-power appliances and machinery in some regions. |
While 220 Volt Outlets and 240-volt outlets are similar, they may have different configurations and applications depending on the region. Always check the specific requirements for your area.
🌐 Note: Electrical standards can vary by region. Ensure you are using the correct outlet type for your specific needs and local regulations.
Future Trends in Electrical Outlets
The field of electrical outlets is continually evolving, with new technologies and innovations emerging regularly. Here are some future trends to watch for:
- Smart Outlets: Smart outlets with built-in Wi-Fi or Bluetooth connectivity allow for remote control and monitoring of electrical devices. These outlets can be integrated with smart home systems for enhanced convenience and energy efficiency.
- USB Outlets: Outlets with built-in USB ports are becoming increasingly popular. These outlets allow for the charging of mobile devices without the need for adapters, providing a more convenient and streamlined charging solution.
- Solar-Powered Outlets: As renewable energy becomes more prevalent, solar-powered outlets are gaining traction. These outlets can harness solar energy to provide power, reducing reliance on traditional electrical grids.
- High-Efficiency Outlets: Outlets designed for high-efficiency appliances are becoming more common. These outlets are optimized to reduce energy loss and improve overall efficiency, contributing to sustainability efforts.
These trends highlight the ongoing advancements in electrical technology, aiming to improve convenience, efficiency, and sustainability.
🔮 Note: Staying informed about the latest trends in electrical outlets can help you make better decisions for your electrical needs and future-proof your systems.
In wrapping up, 220 Volt Outlets are essential components of modern electrical systems, providing the high power needed for various appliances and machinery. Understanding their types, applications, safety measures, and installation processes is crucial for ensuring safe and effective use. Regular maintenance and adherence to safety protocols are key to preventing hazards and extending the life of your outlets. As technology advances, staying informed about new trends and innovations can help you make the best choices for your electrical needs. By following the guidelines and tips outlined in this guide, you can confidently handle and utilize 220 Volt Outlets for your specific requirements.
