Plumbing systems are the backbone of modern infrastructure, ensuring the smooth flow of water and other fluids in residential, commercial, and industrial settings. One of the critical components in these systems is the 3/4 compression fitting. These fittings play a pivotal role in connecting pipes and ensuring leak-free performance. Understanding the importance, types, installation, and maintenance of 3/4 compression fittings is essential for anyone involved in plumbing or DIY projects.
Understanding 3/4 Compression Fittings
A 3/4 compression fitting is a type of plumbing fitting designed to connect two pipes or tubes without the need for soldering or welding. These fittings are particularly useful in situations where the pipes need to be disconnected frequently or where soldering is not feasible. The term "3/4" refers to the nominal size of the fitting, which is 3/4 inches in diameter.
Compression fittings work by compressing a ferrule (a small metal ring) onto the pipe, creating a tight seal. This mechanism ensures that the fitting can withstand high pressure and prevent leaks. The key components of a 3/4 compression fitting include:
- The body: The main part of the fitting that connects to the pipes.
- The nut: A threaded component that tightens the fitting onto the pipe.

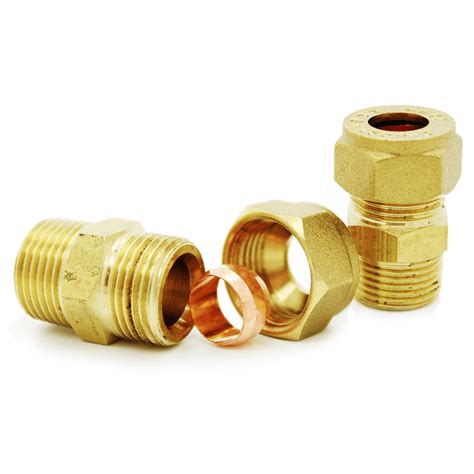

- The ferrule: A small metal ring that compresses onto the pipe to create a seal.
Types of 3/4 Compression Fittings
There are several types of 3/4 compression fittings available, each designed for specific applications. The most common types include:

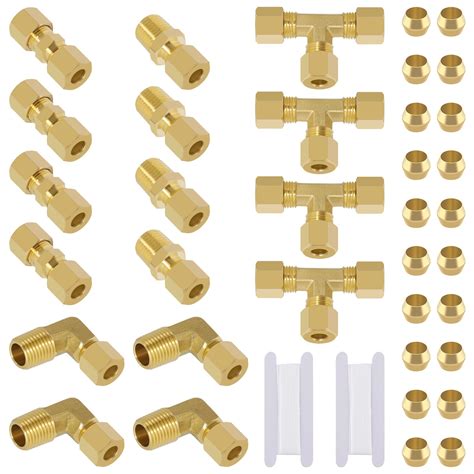

- Straight Compression Fittings: These are used to connect two pipes in a straight line.

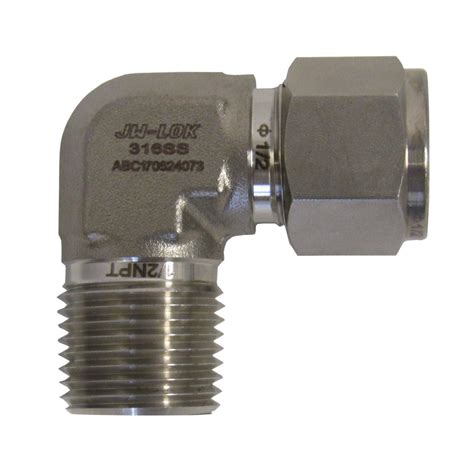

- Elbow Compression Fittings: These are used to change the direction of the pipe by 90 degrees.

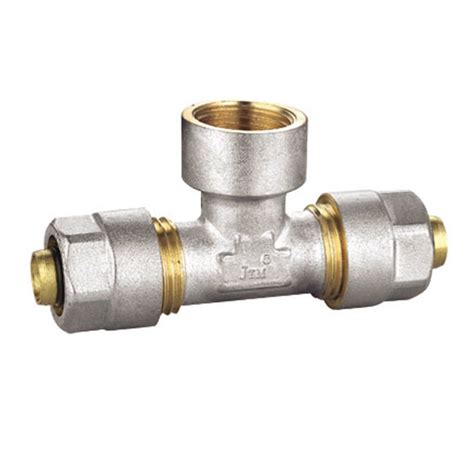

- Tee Compression Fittings: These are used to connect three pipes, allowing for a branch connection.
- Coupling Compression Fittings: These are used to connect two pipes of the same size.
- Reducer Compression Fittings: These are used to connect pipes of different sizes.
Installation of 3/4 Compression Fittings
Installing a 3/4 compression fitting is a straightforward process that can be completed with basic plumbing tools. Here are the steps to install a 3/4 compression fitting:
- Prepare the Pipe: Cut the pipe to the desired length using a pipe cutter. Ensure the cut is clean and square.
- Deburr the Pipe: Remove any burrs or rough edges from the cut end of the pipe using a deburring tool.
- Insert the Ferrule: Slide the ferrule onto the pipe, followed by the nut. Ensure the ferrule is positioned correctly to create a seal.
- Attach the Fitting: Insert the pipe into the fitting body and tighten the nut by hand. Use a wrench to tighten the nut further, but be careful not to overtighten.
- Test the Connection: Once the fitting is installed, test the connection by turning on the water supply and checking for leaks.
🛠️ Note: Always use the correct size of ferrule and nut for the pipe diameter to ensure a proper seal.
Maintenance of 3/4 Compression Fittings
Maintaining 3/4 compression fittings is crucial to ensure their longevity and performance. Regular inspection and maintenance can prevent leaks and other issues. Here are some tips for maintaining 3/4 compression fittings:
- Inspect Regularly: Check the fittings for signs of wear, corrosion, or leaks. Regular inspections can help identify issues before they become major problems.
- Tighten Loose Fittings: If you notice any loose fittings, tighten them using a wrench. Be careful not to overtighten, as this can damage the fitting.
- Replace Damaged Fittings: If a fitting is damaged or corroded, replace it immediately to prevent leaks.
- Use High-Quality Fittings: Invest in high-quality 3/4 compression fittings to ensure durability and reliability.
Common Issues with 3/4 Compression Fittings
While 3/4 compression fittings are generally reliable, they can encounter issues if not installed or maintained properly. Some common issues include:
- Leaks: Leaks can occur if the fitting is not tightened properly or if the ferrule is damaged.
- Corrosion: Corrosion can weaken the fitting and cause leaks over time.
- Overtightening: Overtightening the nut can damage the fitting and cause leaks.
- Incorrect Sizing: Using the wrong size of ferrule or nut can result in a poor seal and leaks.
To address these issues, it is essential to follow the installation and maintenance guidelines carefully. Regular inspections and prompt repairs can help prevent these problems and ensure the longevity of the fittings.
Applications of 3/4 Compression Fittings
3/4 compression fittings are used in a variety of applications, including:
- Residential Plumbing: Used in homes for connecting water supply lines, drain lines, and other plumbing fixtures.
- Commercial Plumbing: Used in commercial buildings for connecting water supply lines, drain lines, and other plumbing fixtures.
- Industrial Plumbing: Used in industrial settings for connecting pipes in manufacturing processes, cooling systems, and other applications.
- HVAC Systems: Used in heating, ventilation, and air conditioning systems for connecting refrigerant lines and other components.
Advantages of 3/4 Compression Fittings
3/4 compression fittings offer several advantages over other types of plumbing fittings. Some of the key advantages include:
- Easy Installation: Compression fittings are easy to install and do not require soldering or welding.
- Reliable Seal: The compression mechanism ensures a tight seal, preventing leaks.
- Versatile: Compression fittings are available in various sizes and types, making them suitable for different applications.
- Durable: High-quality compression fittings are durable and can withstand high pressure and temperature.
- Cost-Effective: Compression fittings are generally more affordable than other types of fittings.
Disadvantages of 3/4 Compression Fittings
While 3/4 compression fittings have many advantages, they also have some disadvantages. Some of the key disadvantages include:
- Limited Flexibility: Compression fittings are not as flexible as other types of fittings, such as flexible hoses.
- Potential for Leaks: If not installed or maintained properly, compression fittings can leak.
- Corrosion: Compression fittings can be susceptible to corrosion, especially in harsh environments.
Choosing the Right 3/4 Compression Fitting
Choosing the right 3/4 compression fitting is crucial for ensuring a reliable and leak-free connection. Here are some factors to consider when selecting a 3/4 compression fitting:
- Material: Choose a fitting made from a material that is compatible with the fluid being transported and the environment in which it will be used.
- Size: Ensure the fitting is the correct size for the pipe diameter.
- Type: Select the appropriate type of fitting for the application, such as straight, elbow, tee, coupling, or reducer.
- Quality: Invest in high-quality fittings from reputable manufacturers to ensure durability and reliability.
By considering these factors, you can choose the right 3/4 compression fitting for your specific needs and ensure a reliable and leak-free connection.
Conclusion
3⁄4 compression fittings are essential components in plumbing systems, providing a reliable and leak-free connection for pipes. Understanding the types, installation, maintenance, and applications of these fittings is crucial for anyone involved in plumbing or DIY projects. By following the guidelines outlined in this post, you can ensure the proper installation and maintenance of 3⁄4 compression fittings, preventing leaks and other issues. Whether you are a professional plumber or a DIY enthusiast, knowing how to work with 3⁄4 compression fittings can help you achieve successful plumbing projects.
