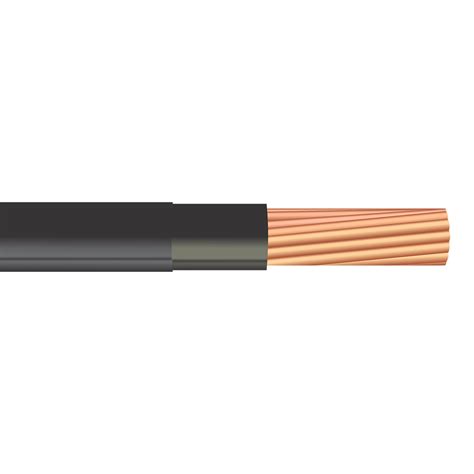

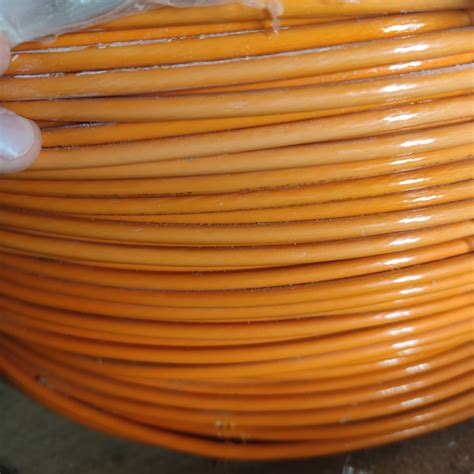

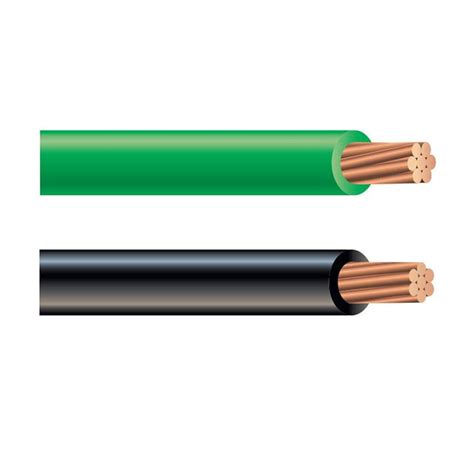

6 Awg Copper Wire

When it comes to electrical wiring, choosing the right type and gauge of wire is crucial for ensuring safety and efficiency. One of the most commonly used types of wire in various electrical applications is 6 AWG copper wire. This wire is known for its durability, conductivity, and versatility, making it a popular choice for both residential and commercial projects. In this post, we will delve into the specifics of 6 AWG copper wire, its applications, benefits, and how to properly use it in your electrical projects.

Table of Contents

Understanding AWG and Copper Wire

Before we dive into the specifics of 6 AWG copper wire, it's important to understand what AWG stands for and why copper is a preferred material for electrical wiring.

AWG, or American Wire Gauge, is a standardized system used to denote the diameter of round, solid, nonferrous, electrically conducting wire. The gauge number indicates the wire's thickness, with lower numbers representing thicker wires. For example, 6 AWG copper wire is thicker than 8 AWG but thinner than 4 AWG.

Copper is widely used in electrical wiring due to its excellent conductivity. It allows for efficient transmission of electrical current with minimal loss, making it ideal for a variety of applications. Additionally, copper is resistant to corrosion and can withstand high temperatures, further enhancing its reliability.

Applications of 6 AWG Copper Wire

6 AWG copper wire is versatile and can be used in a wide range of electrical applications. Some of the most common uses include:

Residential Wiring: Often used for branch circuits, such as those supplying power to outlets, switches, and lighting fixtures.
Commercial Wiring: Suitable for powering larger appliances and equipment in commercial settings.
Automotive Wiring: Used in high-current applications within vehicles, such as battery cables and starter motor wires.
Renewable Energy Systems: Commonly used in solar and wind power systems to connect panels and batteries.
Industrial Applications: Utilized in machinery and equipment that require reliable and efficient power transmission.

Benefits of Using 6 AWG Copper Wire

There are several benefits to using 6 AWG copper wire in your electrical projects:

High Conductivity: Copper's excellent conductivity ensures efficient power transmission with minimal loss.
Durability: Copper wire is resistant to corrosion and can withstand high temperatures, making it durable and long-lasting.
Versatility: Suitable for a wide range of applications, from residential to industrial settings.
Safety: Properly sized wire reduces the risk of overheating and electrical fires, enhancing overall safety.

Selecting the Right 6 AWG Copper Wire

When selecting 6 AWG copper wire for your project, consider the following factors:

Insulation Type: Choose the appropriate insulation based on the environment and application. Common insulation types include PVC, XLPE, and THHN.
Wire Length: Ensure you have enough wire to complete your project without needing to splice or extend it unnecessarily.
Conductor Material: While copper is the standard, ensure the wire is pure copper for optimal conductivity.
Certifications: Look for wires that meet industry standards and certifications, such as UL or CSA, to ensure quality and safety.

Installing 6 AWG Copper Wire

Proper installation of 6 AWG copper wire is essential for ensuring safety and efficiency. Here are the steps to follow:

Plan Your Route: Determine the path the wire will take from the power source to the destination. Ensure there are no obstacles or sharp bends.
Measure and Cut: Measure the required length of wire and cut it using a wire cutter. Ensure the cut is clean and straight.
Strip the Insulation: Use a wire stripper to remove the insulation from the ends of the wire. Be careful not to nick or damage the copper conductor.
Connect to Terminals: Connect the stripped ends to the appropriate terminals or connectors. Ensure a secure and tight connection.
Secure the Wire: Use cable ties, clamps, or staples to secure the wire along its route. Avoid sharp bends or kinks that could damage the wire.
Test the Connection: Use a multimeter to test the continuity and ensure the wire is properly connected and functioning.

🔧 Note: Always follow local electrical codes and regulations when installing electrical wiring. Ensure all connections are secure and properly insulated to prevent short circuits and electrical hazards.

Safety Precautions

Working with electrical wiring requires caution to prevent accidents and injuries. Here are some safety precautions to keep in mind:

Turn Off Power: Always turn off the power at the circuit breaker before working on any electrical wiring.
Use Proper Tools: Use insulated tools designed for electrical work to minimize the risk of shock.
Avoid Water: Keep electrical wiring away from water and moisture to prevent short circuits.
Inspect for Damage: Regularly inspect wires for signs of damage, such as frayed insulation or corrosion, and replace them if necessary.
Follow Codes: Adhere to local electrical codes and regulations to ensure safety and compliance.

Maintenance and Troubleshooting

Regular maintenance and troubleshooting can help extend the lifespan of your 6 AWG copper wire and ensure it continues to function properly. Here are some tips:

Inspect Regularly: Periodically inspect the wire for signs of wear, damage, or corrosion. Replace any damaged sections promptly.
Check Connections: Ensure all connections are secure and free of corrosion. Tighten any loose connections and clean corroded terminals.
Test Continuity: Use a multimeter to test the continuity of the wire. If there is a break or high resistance, locate and repair the issue.
Avoid Overloading: Ensure the wire is not carrying more current than its rated capacity to prevent overheating and potential fires.

🛠️ Note: If you encounter any issues with your electrical wiring that you are unsure how to fix, consult a licensed electrician to avoid potential hazards.

In summary, 6 AWG copper wire is a versatile and reliable choice for a wide range of electrical applications. Its excellent conductivity, durability, and versatility make it a popular choice for both residential and commercial projects. By understanding its applications, benefits, and proper installation techniques, you can ensure safe and efficient electrical wiring in your projects. Regular maintenance and adherence to safety precautions will help extend the lifespan of your wiring and prevent potential hazards.
