60 Amp Breaker

Understanding the role of a 60 Amp Breaker in electrical systems is crucial for ensuring safety and efficiency in both residential and commercial settings. This blog post delves into the specifics of a 60 Amp Breaker, its applications, installation guidelines, and maintenance tips to help you make informed decisions about your electrical infrastructure.

What is a 60 Amp Breaker?

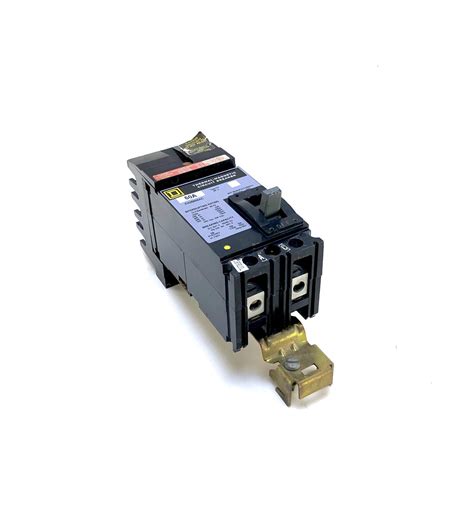

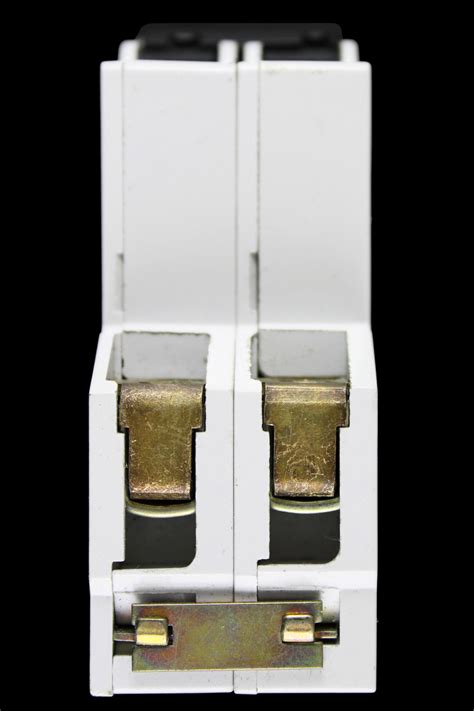

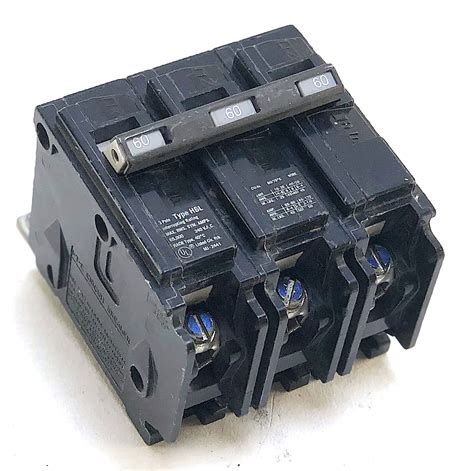

A 60 Amp Breaker is a type of circuit breaker designed to protect electrical circuits from overloads and short circuits. It is rated to handle up to 60 amperes of current, making it suitable for various applications, including large appliances, HVAC systems, and subpanels. The primary function of a 60 Amp Breaker is to interrupt the electrical flow when it detects an overload or short circuit, thereby preventing potential fires and electrical hazards.

Applications of a 60 Amp Breaker

The versatility of a 60 Amp Breaker makes it a popular choice for several applications:

• Large Appliances: Devices like electric ranges, dryers, and water heaters often require a dedicated circuit with a 60 Amp Breaker to ensure they receive adequate power without overloading the system.
• HVAC Systems: Heating, ventilation, and air conditioning units can draw significant power, making a 60 Amp Breaker essential for their safe operation.

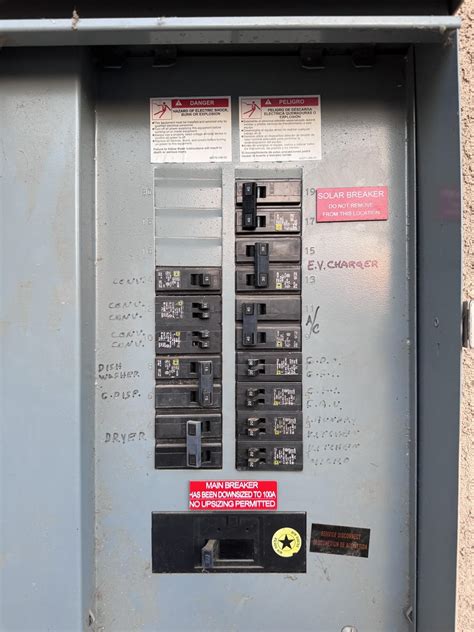

• Subpanels: In larger homes or commercial buildings, subpanels are used to distribute power to different areas. A 60 Amp Breaker can be used to protect these subpanels, ensuring that the main panel is not overloaded.
• Electric Vehicle Charging Stations: With the rise of electric vehicles, many homeowners are installing charging stations that require a dedicated circuit with a 60 Amp Breaker to handle the high power demands.

Installation Guidelines for a 60 Amp Breaker

Installing a 60 Amp Breaker involves several steps and requires a good understanding of electrical systems. Here is a detailed guide to help you through the process:

Tools and Materials Needed

• 60 Amp Breaker
• Wire strippers
• Screwdrivers
• Wire nuts
• Electrical tape
• Non-contact voltage tester

Step-by-Step Installation

Before beginning, ensure that the power to the panel is turned off and that you have the necessary permits and inspections scheduled.

1. Turn Off Power: Locate the main circuit breaker and turn it off to ensure there is no power flowing to the panel.
2. Remove the Panel Cover: Use a screwdriver to remove the cover of the electrical panel, exposing the circuit breakers.
3. Identify the Appropriate Slot: Determine where the new 60 Amp Breaker will be installed. Ensure there is enough space and that it is adjacent to an empty slot.
4. Install the Breaker: Insert the 60 Amp Breaker into the designated slot and secure it by tightening the screws.
5. Connect the Wires: Strip the ends of the wires that will be connected to the breaker. Attach the black (hot) wire to the brass screw and the white (neutral) wire to the silver screw. Use wire nuts to secure the connections and wrap them with electrical tape for added safety.
6. Test the Breaker: Turn the power back on and use a non-contact voltage tester to ensure the breaker is functioning correctly. Flip the breaker on and off to confirm it trips when necessary.
7. Replace the Panel Cover: Once everything is secure and tested, replace the panel cover and tighten the screws.

🛠️ Note: Always follow local electrical codes and regulations. If you are unsure about any part of the installation process, consult a licensed electrician.

Maintenance Tips for a 60 Amp Breaker

Regular maintenance of a 60 Amp Breaker is essential to ensure its longevity and reliability. Here are some tips to keep your breaker in optimal condition:

• Inspect Regularly: Periodically check the breaker for any signs of wear or damage, such as corrosion, loose connections, or burnt marks.
• Test the Breaker: Test the breaker by flipping it on and off to ensure it trips correctly when an overload or short circuit occurs.
• Keep the Panel Clean: Ensure the electrical panel is free from dust and debris, which can interfere with the breaker’s operation.
• Avoid Overloading: Be mindful of the power demands on the circuit and avoid overloading it to prevent frequent tripping of the breaker.

Common Issues with a 60 Amp Breaker

Despite their reliability, 60 Amp Breakers can encounter issues that require attention. Here are some common problems and their potential solutions:

Frequent Tripping

If your 60 Amp Breaker trips frequently, it could be due to:

• Overloaded Circuit: Too many devices or appliances are drawing power from the circuit, causing an overload.
• Short Circuit: A short circuit in the wiring can cause the breaker to trip repeatedly.
• Faulty Appliance: An appliance connected to the circuit may be malfunctioning and drawing excessive power.

No Power

If the 60 Amp Breaker is not providing power, check the following:

• Breaker Position: Ensure the breaker is in the “on” position. If it is off, flip it back on.
• Tripped Breaker: If the breaker has tripped, reset it by flipping it off and then back on.
• Wiring Issues: Inspect the wiring for any loose connections or damage that may be preventing power flow.

Burnt Smell

If you detect a burnt smell coming from the electrical panel, it could indicate:

• Overheating: The breaker or wiring may be overheating due to excessive current flow.
• Short Circuit: A short circuit can cause sparks and a burnt smell.
• Faulty Breaker: The breaker itself may be faulty and need replacement.

🛠️ Note: If you encounter any of these issues, it is best to consult a licensed electrician to diagnose and resolve the problem safely.

Safety Precautions When Working with a 60 Amp Breaker

Working with electrical components, including a 60 Amp Breaker, requires strict adherence to safety protocols. Here are some essential precautions to keep in mind:

• Turn Off Power: Always turn off the power to the electrical panel before working on any circuit breakers.
• Use Proper Tools: Use insulated tools designed for electrical work to minimize the risk of electric shock.
• Wear Protective Gear: Wear appropriate protective gear, including gloves and safety glasses, to protect yourself from potential hazards.
• Follow Codes and Regulations: Ensure that all work complies with local electrical codes and regulations to maintain safety standards.
• Avoid Water: Keep electrical components dry and away from water to prevent short circuits and electrical shocks.

Understanding the Importance of Proper Sizing

Choosing the right size for your circuit breaker is crucial for the safety and efficiency of your electrical system. A 60 Amp Breaker is designed to handle up to 60 amperes of current, but it is essential to ensure that the wiring and other components can also handle this load. Here are some factors to consider when sizing your circuit breaker:

• Wire Gauge: The wire gauge must be appropriate for the current rating of the breaker. For a 60 Amp Breaker, a 6 AWG wire is typically recommended.
• Load Requirements: Calculate the total load on the circuit to ensure it does not exceed the breaker’s rating. This includes all appliances and devices connected to the circuit.
• Future Expansions: Consider any future expansions or additions to the electrical system that may increase the load on the circuit.

Here is a table to help you understand the relationship between wire gauge and ampacity:

🛠️ Note: Always consult with a licensed electrician to ensure proper sizing and installation of your circuit breaker.

Conclusion

A 60 Amp Breaker is a vital component in electrical systems, providing protection against overloads and short circuits. Understanding its applications, installation guidelines, and maintenance requirements is essential for ensuring the safety and efficiency of your electrical infrastructure. By following the tips and precautions outlined in this post, you can effectively manage your 60 Amp Breaker and maintain a reliable electrical system. Regular inspections and adherence to safety protocols will help prevent potential hazards and ensure the longevity of your electrical components.
