Angles And Rotations

Understanding angles and rotations is fundamental in various fields, from computer graphics and animation to robotics and physics. Whether you're a developer working on a 3D game, a designer creating animations, or a scientist studying motion, grasping the concepts of angles and rotations is crucial. This post will delve into the basics of angles and rotations, their applications, and how to implement them in programming.

Table of Contents

Understanding Angles and Rotations

Angles and rotations are essential concepts in mathematics and physics that describe the orientation and movement of objects in space. An angle is a measure of the rotation between two lines or planes, typically expressed in degrees or radians. Rotations, on the other hand, involve changing the orientation of an object around a point, line, or axis.

In two-dimensional space, rotations are relatively straightforward. They involve rotating an object around a fixed point, usually the origin. In three-dimensional space, however, rotations become more complex due to the additional axis of rotation. Understanding these concepts is vital for tasks such as:

Creating realistic animations in 3D software.
Designing user interfaces with smooth transitions.
Developing games with dynamic character movements.
Simulating physical systems in scientific research.

Types of Angles and Rotations

There are several types of angles and rotations, each with its own applications and characteristics. Understanding these types is essential for effectively implementing rotations in various fields.

Degrees vs. Radians

Angles can be measured in degrees or radians. Degrees are more intuitive for humans, as they divide a full circle into 360 equal parts. Radians, however, are the standard unit of angular measurement in mathematics and physics. A full circle is 2π radians, where π (pi) is approximately 3.14159. Radians are often used in programming and scientific calculations because they simplify trigonometric functions.

📝 Note: 1 degree is approximately 0.01745 radians, and 1 radian is approximately 57.2958 degrees.

2D Rotations

In two-dimensional space, rotations are typically around a single point, often the origin (0, 0). The rotation can be represented by an angle, which determines the direction and magnitude of the rotation. The most common 2D rotation is around the z-axis, which is perpendicular to the plane of the screen.

2D rotations are used in various applications, such as:

Rotating images or graphics in image editing software.
Creating smooth transitions in user interfaces.
Animating characters in 2D games.

3D Rotations

In three-dimensional space, rotations are more complex due to the additional axis of rotation. An object can rotate around the x-axis, y-axis, or z-axis, or any combination of these axes. 3D rotations are often represented using Euler angles, which specify the rotation around each axis.

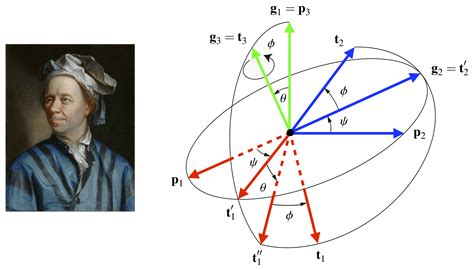

Euler angles are a set of three angles that describe the orientation of a rigid body in 3D space. They are commonly used in computer graphics, robotics, and aerospace engineering. However, Euler angles can suffer from gimbal lock, a situation where one degree of freedom is lost, making it impossible to rotate around a particular axis.

📝 Note: Gimbal lock occurs when two of the rotation axes become aligned, causing a loss of one degree of freedom.

To avoid gimbal lock, quaternions are often used to represent 3D rotations. Quaternions are a mathematical construct that can represent rotations in 3D space without the limitations of Euler angles. They are widely used in computer graphics, animation, and virtual reality.

Applications of Angles and Rotations

Angles and rotations have a wide range of applications in various fields. Understanding how to implement and manipulate rotations is essential for creating realistic and dynamic content.

Computer Graphics and Animation

In computer graphics and animation, rotations are used to create smooth and realistic movements. Whether it's a character walking, a car turning, or a camera panning, rotations are essential for bringing scenes to life. Animators and graphic designers use software like Blender, Maya, and 3ds Max to create complex animations involving rotations.

For example, in a 3D game, a character's movement can be controlled using rotations. The character's orientation can be adjusted based on the player's input, allowing for smooth and natural movements. Similarly, in an animated film, rotations are used to create realistic character movements and camera angles.

Robotics

In robotics, rotations are crucial for controlling the movement of robotic arms, wheels, and other components. Robots often need to perform precise rotations to interact with their environment, such as picking up objects, navigating obstacles, or performing tasks. Robotics engineers use angles and rotations to program the movements of robots, ensuring they can perform their tasks accurately and efficiently.

For instance, a robotic arm might need to rotate around multiple axes to reach a specific point in space. The arm's joints can be controlled using rotations, allowing it to move in a precise and controlled manner. Similarly, a mobile robot might need to rotate its wheels to navigate around obstacles or change direction.

Physics and Engineering

In physics and engineering, rotations are used to study the motion of objects and systems. Whether it's the rotation of a planet, the movement of a machine, or the behavior of a fluid, understanding rotations is essential for analyzing and predicting physical phenomena. Engineers and scientists use angles and rotations to model and simulate physical systems, helping them design and optimize machines, structures, and processes.

For example, in aerospace engineering, rotations are used to study the motion of aircraft and spacecraft. The orientation of an aircraft can be controlled using rotations, allowing it to maneuver in flight. Similarly, in mechanical engineering, rotations are used to design and analyze machines, ensuring they operate smoothly and efficiently.

Implementing Angles and Rotations in Programming

Implementing angles and rotations in programming involves using mathematical functions and libraries to manipulate the orientation of objects. Whether you're working with 2D or 3D graphics, understanding how to implement rotations is essential for creating dynamic and interactive content.

2D Rotations in JavaScript

In JavaScript, 2D rotations can be implemented using the canvas API. The canvas API provides a set of methods for drawing and manipulating graphics on a web page. To rotate an object, you can use the rotate method, which takes an angle in radians as an argument.

Here's an example of how to rotate an object in JavaScript:

Code

In this example, a blue rectangle is drawn on the canvas. The canvas is then rotated 45 degrees around its center, and a red rectangle is drawn on top of the blue rectangle. The result is a red rectangle that appears to be rotated 45 degrees relative to the blue rectangle.

📝 Note: The translate method is used to move the canvas's origin to the center of the rectangle before rotating it. This ensures that the rectangle rotates around its center rather than the top-left corner.

3D Rotations in Three.js

In Three.js, a popular JavaScript library for 3D graphics, rotations can be implemented using the Object3D class. The Object3D class provides methods for rotating objects around the x, y, and z axes. To rotate an object, you can use the rotateX, rotateY, and rotateZ methods, which take an angle in radians as an argument.

Here's an example of how to rotate a 3D object in Three.js:

Code

In this example, a 3D cube is created and added to the scene. The cube is then rotated around the x, y, and z axes using the rotateX, rotateY, and rotateZ methods. The animate function is called repeatedly to update the cube's rotation and render the scene.

📝 Note: The requestAnimationFrame function is used to create a smooth animation loop. It calls the animate function before the next repaint, ensuring that the animation runs smoothly.

3D Rotations in Unity

In Unity, a popular game development platform, rotations can be implemented using the Transform component. The Transform component provides methods for rotating objects around the x, y, and z axes. To rotate an object, you can use the Rotate method, which takes an angle in degrees as an argument.

Here's an example of how to rotate a 3D object in Unity using C#:

Code

Code
`using UnityEngine; public class RotateObject : MonoBehaviour { public float rotationSpeed = 100f; void Update() { // Rotate the object around the y-axis transform.Rotate(Vector3.up * rotationSpeed * Time.deltaTime); } }`


                    using UnityEngine;

                    public class RotateObject : MonoBehaviour
                    {
                        public float rotationSpeed = 100f;

                        void Update()
                        {
                            // Rotate the object around the y-axis
                            transform.Rotate(Vector3.up * rotationSpeed * Time.deltaTime);
                        }
                    }

In this example, a script is attached to a 3D object in Unity. The script uses the Rotate method to rotate the object around the y-axis. The rotationSpeed variable determines the speed of the rotation, and Time.deltaTime ensures that the rotation is frame-rate independent.

📝 Note: The Vector3.up vector represents the y-axis in Unity. You can use Vector3.right and Vector3.forward to rotate around the x-axis and z-axis, respectively.

Final Thoughts

Understanding angles and rotations is essential for creating dynamic and interactive content in various fields. Whether you’re working with 2D or 3D graphics, robotics, or physics, grasping the concepts of angles and rotations is crucial for implementing realistic and smooth movements. By using mathematical functions and libraries, you can manipulate the orientation of objects, creating engaging and immersive experiences. From rotating images in image editing software to animating characters in 3D games, the applications of angles and rotations are vast and varied. By mastering these concepts, you can unlock new possibilities in your projects and bring your ideas to life.
