Electrical wiring is a critical aspect of any construction or renovation project. One of the most commonly used types of wiring is Awg Wire 14, which stands for American Wire Gauge 14. This type of wire is versatile and suitable for a variety of applications, making it a staple in both residential and commercial settings. Understanding the specifications, uses, and installation guidelines for Awg Wire 14 can help ensure that your electrical projects are safe and efficient.
Understanding Awg Wire 14
Awg Wire 14 is a type of electrical wire that has a diameter of approximately 1.628 millimeters. It is commonly used for general-purpose wiring in residential and light commercial applications. The gauge number refers to the thickness of the wire, with lower numbers indicating thicker wires. Awg Wire 14 is thicker than Awg Wire 16 but thinner than Awg Wire 12, making it suitable for medium-duty electrical tasks.
Specifications of Awg Wire 14
To fully understand the capabilities and limitations of Awg Wire 14, it's essential to know its specifications:
- Diameter: Approximately 1.628 millimeters
- Current Rating: Typically rated for 15 amps
- Voltage Rating: Usually 600 volts
- Insulation: Commonly insulated with PVC (Polyvinyl Chloride) or other durable materials
- Applications: Suitable for lighting circuits, small appliances, and general-purpose wiring
Common Uses of Awg Wire 14
Awg Wire 14 is widely used in various electrical applications due to its versatility and reliability. Some of the most common uses include:
- Lighting Circuits: Ideal for wiring light fixtures and switches in residential settings.
- Small Appliances: Suitable for powering small appliances such as lamps, fans, and other low-power devices.
- General-Purpose Wiring: Often used in residential and light commercial wiring for various electrical needs.
- Extension Cords: Can be used to create extension cords for temporary power needs.
Installation Guidelines for Awg Wire 14
Proper installation of Awg Wire 14 is crucial for ensuring safety and efficiency. Here are some key steps and guidelines to follow:
Materials Needed
- Awg Wire 14
- Wire strippers
- Wire cutters
- Screwdrivers
- Electrical tape
- Wire nuts
- Electrical box
Steps for Installation
1. Plan Your Wiring Layout: Determine the path of the wire from the power source to the destination. Ensure that the wire is routed through safe and accessible areas.
2. Measure and Cut the Wire: Measure the required length of Awg Wire 14 and cut it using wire cutters. Make sure to leave enough slack for connections and future adjustments.
3. Strip the Wire: Use wire strippers to remove about ½ inch of insulation from both ends of the wire. Be careful not to nick the conductors.
4. Connect the Wire: Twist the exposed conductors together and secure them with wire nuts. Ensure that the connections are tight and secure.
5. Secure the Wire: Use electrical tape to wrap the connections and secure them in place. This helps prevent short circuits and ensures a safe connection.
6. Install in Electrical Box: Place the connected wires into an electrical box and secure them with screws. Ensure that the box is properly grounded and mounted securely.
7. Test the Circuit: Turn on the power and test the circuit to ensure that it is functioning correctly. Use a voltage tester to check for proper voltage and continuity.
🔧 Note: Always follow local electrical codes and regulations when installing electrical wiring. If you are unsure about any aspect of the installation, consult a licensed electrician.
Safety Precautions
Working with electrical wiring can be dangerous if proper precautions are not taken. Here are some safety tips to keep in mind:
- Turn Off Power: Always turn off the power at the circuit breaker before working on any electrical wiring.
- Use Proper Tools: Use insulated tools designed for electrical work to minimize the risk of shock.
- Avoid Overloading: Do not overload circuits with too many devices or appliances. Awg Wire 14 is rated for 15 amps, so ensure that the total load does not exceed this limit.
- Inspect Wiring: Regularly inspect wiring for signs of damage, such as frayed insulation or exposed conductors. Replace any damaged wiring immediately.
- Grounding: Ensure that all electrical boxes and outlets are properly grounded to prevent electrical shocks.
Comparing Awg Wire 14 with Other Gauges

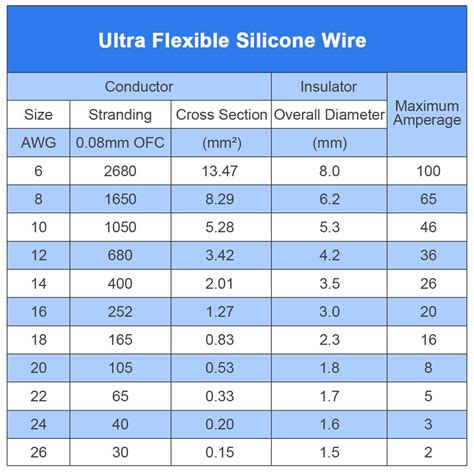

Understanding how Awg Wire 14 compares to other gauges can help you choose the right wire for your specific needs. Here is a comparison table:
| Wire Gauge | Diameter (mm) | Current Rating (Amps) | Common Uses |
|---|---|---|---|
| Awg Wire 12 | 2.053 | 20 | Heavy-duty appliances, larger lighting circuits |
| Awg Wire 14 | 1.628 | 15 | Lighting circuits, small appliances, general-purpose wiring |
| Awg Wire 16 | 1.291 | 10 | Lighting fixtures, low-power devices |
| Awg Wire 18 | 1.024 | 8 | Low-voltage applications, small electronics |
Conclusion
Awg Wire 14 is a versatile and reliable choice for a wide range of electrical applications. Its specifications, including a diameter of approximately 1.628 millimeters and a current rating of 15 amps, make it suitable for lighting circuits, small appliances, and general-purpose wiring. Proper installation and safety precautions are essential to ensure that your electrical projects are safe and efficient. By understanding the uses, specifications, and installation guidelines for Awg Wire 14, you can confidently tackle your electrical wiring needs.
