Carry Propagate Adder

In the realm of digital electronics, the efficiency and speed of arithmetic operations are paramount. One of the fundamental components in this domain is the Carry Propagate Adder (CPA), a crucial element in the design of digital circuits. This adder is widely used in processors and other digital systems to perform binary addition. Understanding the Carry Propagate Adder is essential for anyone delving into the intricacies of digital design and computer architecture.

Table of Contents

Understanding the Carry Propagate Adder

A Carry Propagate Adder is a type of binary adder that computes the sum of two binary numbers by propagating the carry bit from one stage to the next. This adder is designed to handle the addition of two n-bit binary numbers, producing an n-bit sum and a carry-out bit. The Carry Propagate Adder is composed of multiple full adders, each responsible for adding a single bit of the input numbers along with the carry bit from the previous stage.

Basic Structure of a Carry Propagate Adder

The basic structure of a Carry Propagate Adder consists of several full adders connected in a chain. Each full adder takes three inputs: two bits from the input numbers and a carry bit from the previous stage. It produces two outputs: the sum bit and the carry bit, which is then passed to the next stage. The process continues until all bits are added, resulting in the final sum and carry-out bit.

Here is a simplified representation of a 4-bit Carry Propagate Adder:

Bit Position	Input A	Input B	Carry In	Sum	Carry Out
0	A0	B0	Cin	S0	Cout0
1	A1	B1	Cout0	S1	Cout1
2	A2	B2	Cout1	S2	Cout2
3	A3	B3	Cout2	S3	Cout3

In this table, each row represents a full adder stage. The carry-out from one stage becomes the carry-in for the next stage, ensuring that the carry is propagated correctly through the adder.

How a Carry Propagate Adder Works

The operation of a Carry Propagate Adder can be broken down into several steps:

Input Reception: The adder receives two n-bit binary numbers as inputs, along with an initial carry-in bit (usually 0).
Bitwise Addition: Each full adder performs a bitwise addition of the corresponding bits from the input numbers and the carry-in bit. The sum bit is calculated using the XOR operation, while the carry-out bit is determined using the AND and OR operations.
Carry Propagation: The carry-out bit from each full adder is passed to the next stage as the carry-in bit. This process continues until all bits are added.
Output Generation: The final sum is generated by combining the sum bits from all full adders. The carry-out bit from the last stage is also produced as an output.

For example, consider the addition of two 4-bit binary numbers, 1010 and 0111, using a Carry Propagate Adder:

Step 1: Input Reception

Input A: 1010

Input B: 0111

Carry-In: 0

Step 2: Bitwise Addition

Full Adder 0: A0 = 0, B0 = 1, Cin = 0 → S0 = 1, Cout0 = 0

Full Adder 1: A1 = 1, B1 = 1, Cin = 0 → S1 = 0, Cout1 = 1

Full Adder 2: A2 = 0, B2 = 1, Cin = 1 → S2 = 1, Cout2 = 1

Full Adder 3: A3 = 1, B3 = 0, Cin = 1 → S3 = 0, Cout3 = 1

Step 3: Carry Propagation

The carry-out bits are propagated as follows: Cout0 → Cin1, Cout1 → Cin2, Cout2 → Cin3.

Step 4: Output Generation

Final Sum: 10001

Carry-Out: 1

Thus, the addition of 1010 and 0111 results in 10001 with a carry-out of 1.

💡 Note: The carry-out bit from the last stage is often used in multi-bit addition operations to handle overflow.

Advantages and Disadvantages of Carry Propagate Adder

The Carry Propagate Adder has several advantages and disadvantages that make it suitable for certain applications but not others.

Advantages

Simplicity: The design of a Carry Propagate Adder is straightforward, making it easy to implement and understand.
Efficiency: For small bit widths, the Carry Propagate Adder is efficient in terms of both speed and power consumption.
Versatility: It can be used in a variety of applications, including arithmetic logic units (ALUs) and digital signal processing (DSP) systems.

Disadvantages

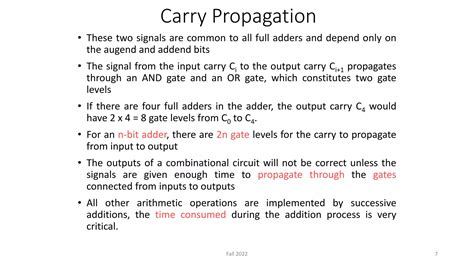

Propagation Delay: The carry bit must propagate through all stages, which can introduce significant delay in larger bit widths. This makes the Carry Propagate Adder less suitable for high-speed applications.
Scalability: As the bit width increases, the delay and power consumption of the Carry Propagate Adder also increase, making it less scalable for very large bit widths.

Applications of Carry Propagate Adder

The Carry Propagate Adder is widely used in various digital systems and applications. Some of the key areas where it is commonly employed include:

Arithmetic Logic Units (ALUs): ALUs in processors use Carry Propagate Adders to perform addition and subtraction operations.
Digital Signal Processing (DSP): DSP systems often require fast and efficient addition operations, making the Carry Propagate Adder a suitable choice.
Cryptography: In cryptographic algorithms, addition operations are frequently performed, and the Carry Propagate Adder can be used to implement these operations efficiently.
Microcontrollers: Microcontrollers use Carry Propagate Adders in their arithmetic units to perform basic arithmetic operations.

In addition to these applications, the Carry Propagate Adder is also used in educational settings to teach the fundamentals of digital design and computer architecture.

Alternative Adders

While the Carry Propagate Adder is a fundamental component in digital design, there are alternative adders that address some of its limitations. These include:

Carry Lookahead Adder (CLA): The CLA reduces the propagation delay by calculating the carry bits in advance using lookahead logic. This makes it faster than the Carry Propagate Adder for larger bit widths.
Carry Select Adder (CSA): The CSA uses multiple Carry Propagate Adders in parallel and selects the correct result based on the carry-in bit. This approach reduces the critical path delay and improves speed.
Kogge-Stone Adder: This adder uses a parallel prefix approach to calculate the carry bits, making it very fast but more complex to implement.

Each of these alternative adders has its own advantages and disadvantages, and the choice of adder depends on the specific requirements of the application.

💡 Note: The selection of an adder type should consider factors such as speed, power consumption, and complexity.

In conclusion, the Carry Propagate Adder is a fundamental component in digital electronics, essential for performing binary addition operations. Its simplicity and efficiency make it suitable for various applications, although its propagation delay can be a limitation for high-speed operations. Understanding the Carry Propagate Adder and its alternatives is crucial for anyone involved in digital design and computer architecture. By leveraging the strengths of different adder types, designers can optimize their systems for specific requirements, ensuring efficient and reliable performance.
