Class 3 Lever

Understanding the mechanics of levers is fundamental to grasping many principles in physics and engineering. Among the three classes of levers, the Class 3 Lever stands out due to its unique configuration and widespread applications. This type of lever is characterized by the effort being applied between the fulcrum and the load, making it distinct from Class 1 and Class 2 levers. In this post, we will delve into the intricacies of Class 3 Levers, exploring their structure, mechanical advantage, and real-world applications.

Table of Contents

Understanding the Structure of a Class 3 Lever

A Class 3 Lever consists of three main components: the fulcrum, the load, and the effort. The fulcrum is the pivot point around which the lever rotates. The load is the resistance or weight that the lever is designed to move. The effort is the force applied to the lever to overcome the load. In a Class 3 Lever, the effort is applied between the fulcrum and the load. This configuration is crucial for understanding how the lever operates and its mechanical advantage.

To visualize this, consider a simple example: a pair of tweezers. The fulcrum is the point where the two arms of the tweezers are joined. The load is the object being picked up, and the effort is the force applied by the fingers to close the tweezers. The effort is applied between the fulcrum and the load, making it a perfect example of a Class 3 Lever.

Mechanical Advantage of a Class 3 Lever

The mechanical advantage of a lever is the ratio of the load to the effort required to move it. For a Class 3 Lever, the mechanical advantage is always less than 1. This means that the effort required to move the load is greater than the load itself. This might seem counterintuitive, but it is essential for understanding the trade-offs involved in using a Class 3 Lever.

The mechanical advantage (MA) can be calculated using the formula:

MA = Load / Effort

Since the effort is applied between the fulcrum and the load, the distance from the fulcrum to the effort is shorter than the distance from the fulcrum to the load. This results in a mechanical advantage less than 1. However, the primary advantage of a Class 3 Lever is not in amplifying force but in amplifying speed and distance. This makes it ideal for tasks that require precise control and movement over short distances.

Real-World Applications of Class 3 Levers

Class 3 Levers are ubiquitous in everyday life and various industries. Their ability to amplify speed and distance makes them indispensable in many applications. Here are some common examples:

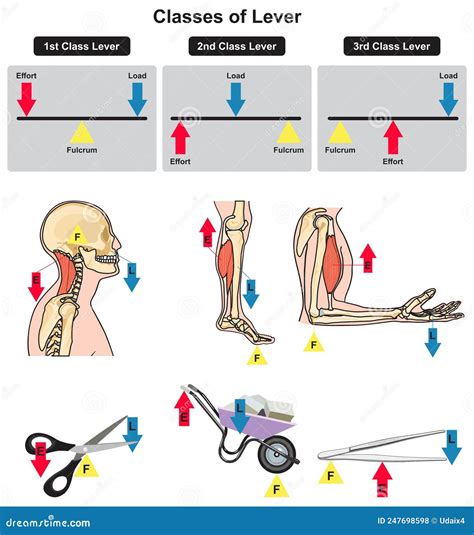

Human Arm: The human arm is a natural example of a Class 3 Lever. The elbow acts as the fulcrum, the biceps muscle provides the effort, and the weight of the object being lifted is the load. The arm is designed to move objects quickly and precisely over short distances.
Fishing Rod: A fishing rod is another classic example. The handle of the rod acts as the fulcrum, the effort is applied by the angler's hand, and the load is the fish being reeled in. The rod amplifies the speed and distance of the movement, making it easier to cast the line and reel in the catch.
Tweezers and Forceps: These tools are essential in medical and laboratory settings. The fulcrum is the pivot point, the effort is applied by the fingers, and the load is the object being manipulated. The precise control and movement provided by these tools are crucial for delicate tasks.
Shovel: When used to lift and move soil or other materials, a shovel acts as a Class 3 Lever. The fulcrum is the point where the shovel blade meets the ground, the effort is applied by the hands, and the load is the soil being moved. The shovel amplifies the speed and distance of the movement, making it easier to lift and throw the soil.

Advantages and Disadvantages of Class 3 Levers

Like any mechanical system, Class 3 Levers have their advantages and disadvantages. Understanding these can help in determining the best applications for this type of lever.

Advantages

Precision and Control: Class 3 Levers offer precise control and movement over short distances, making them ideal for tasks that require fine adjustments.
Speed and Distance Amplification: They amplify speed and distance, which is beneficial for tasks that require quick and efficient movement.
Versatility: Class 3 Levers are used in a wide range of applications, from everyday tools to complex machinery.

Disadvantages

Mechanical Advantage Less Than 1: The mechanical advantage is always less than 1, meaning more effort is required to move the load compared to the load itself.
Limited Force Amplification: They are not suitable for tasks that require significant force amplification, as they are designed for speed and distance rather than force.

💡 Note: While Class 3 Levers are not ideal for tasks requiring significant force amplification, their precision and control make them invaluable in many applications.

Design Considerations for Class 3 Levers

When designing a Class 3 Lever, several factors must be considered to ensure optimal performance and efficiency. These include the materials used, the dimensions of the lever, and the placement of the fulcrum, load, and effort.

Materials: The choice of materials is crucial for the durability and performance of the lever. Common materials include metals like steel and aluminum, as well as composites and plastics. The material should be strong enough to withstand the applied forces and resistant to wear and tear.

Dimensions: The dimensions of the lever, including its length and width, affect its mechanical properties. A longer lever can amplify speed and distance more effectively, but it may also be more prone to bending and breaking. The width of the lever should be sufficient to distribute the applied forces evenly and prevent deformation.

Placement of Components: The placement of the fulcrum, load, and effort is critical for the lever's performance. The fulcrum should be positioned to provide the desired mechanical advantage, while the load and effort should be placed to optimize speed and distance amplification. The distance between the fulcrum and the effort should be shorter than the distance between the fulcrum and the load to achieve a mechanical advantage less than 1.

In addition to these factors, it is essential to consider the specific requirements of the application. For example, in medical tools, precision and control are paramount, while in construction tools, durability and strength are more critical. By carefully considering these factors, designers can create Class 3 Levers that meet the specific needs of their applications.

💡 Note: Proper design and material selection are crucial for the performance and longevity of Class 3 Levers. Always consider the specific requirements of the application when designing a lever.

Examples of Class 3 Levers in Action

To better understand the practical applications of Class 3 Levers, let's examine a few examples in detail.

Human Arm

The human arm is a natural example of a Class 3 Lever. The elbow acts as the fulcrum, the biceps muscle provides the effort, and the weight of the object being lifted is the load. The arm is designed to move objects quickly and precisely over short distances. This configuration allows for fine motor control and the ability to perform delicate tasks.

When lifting an object, the biceps muscle contracts, applying force to the forearm. The forearm rotates around the elbow, lifting the object. The mechanical advantage of the arm is less than 1, meaning more effort is required to lift the object compared to its weight. However, the arm's ability to amplify speed and distance makes it ideal for tasks that require precise control and movement.

Fishing Rod

A fishing rod is another classic example of a Class 3 Lever. The handle of the rod acts as the fulcrum, the effort is applied by the angler's hand, and the load is the fish being reeled in. The rod amplifies the speed and distance of the movement, making it easier to cast the line and reel in the catch.

When casting, the angler applies force to the rod, causing it to bend and store energy. As the rod straightens, it releases the stored energy, propelling the line forward. The mechanical advantage of the rod is less than 1, meaning more effort is required to cast the line compared to the weight of the lure. However, the rod's ability to amplify speed and distance makes it ideal for casting over long distances.

Tweezers and Forceps

Tweezers and forceps are essential tools in medical and laboratory settings. The fulcrum is the pivot point, the effort is applied by the fingers, and the load is the object being manipulated. The precise control and movement provided by these tools are crucial for delicate tasks.

When using tweezers, the user applies force to the handles, causing the tips to close. The mechanical advantage of the tweezers is less than 1, meaning more effort is required to close the tips compared to the weight of the object being manipulated. However, the tweezers' ability to amplify speed and distance makes them ideal for tasks that require fine motor control and precision.

Shovel

When used to lift and move soil or other materials, a shovel acts as a Class 3 Lever. The fulcrum is the point where the shovel blade meets the ground, the effort is applied by the hands, and the load is the soil being moved. The shovel amplifies the speed and distance of the movement, making it easier to lift and throw the soil.

When lifting soil, the user applies force to the handle, causing the blade to rotate around the fulcrum. The mechanical advantage of the shovel is less than 1, meaning more effort is required to lift the soil compared to its weight. However, the shovel's ability to amplify speed and distance makes it ideal for tasks that require quick and efficient movement of materials.

💡 Note: The examples above illustrate the versatility and practical applications of Class 3 Levers in various industries and everyday life.

Conclusion

Class 3 Levers are a fundamental concept in mechanics, characterized by the effort being applied between the fulcrum and the load. Their unique configuration results in a mechanical advantage less than 1, making them ideal for tasks that require precise control and movement over short distances. From the human arm to fishing rods and tweezers, Class 3 Levers are ubiquitous in everyday life and various industries. Understanding their structure, mechanical advantage, and real-world applications is crucial for appreciating their significance in engineering and physics. By carefully considering design factors and specific application requirements, designers can create Class 3 Levers that meet the needs of their intended use, ensuring optimal performance and efficiency.
