Compound Light Microscope Parts

The compound light microscope is an essential tool in scientific research and education, allowing users to observe specimens in intricate detail. Understanding the various compound light microscope parts and their functions is crucial for effective use and maintenance of the instrument. This guide will delve into the key components, their roles, and how to properly use and care for a compound light microscope.

Understanding the Compound Light Microscope

A compound light microscope uses a combination of lenses to magnify images of small objects. The term "compound" refers to the use of multiple lenses, which work together to produce a highly magnified image. This type of microscope is widely used in biology, medicine, and materials science for examining specimens that are too small to be seen with the naked eye.

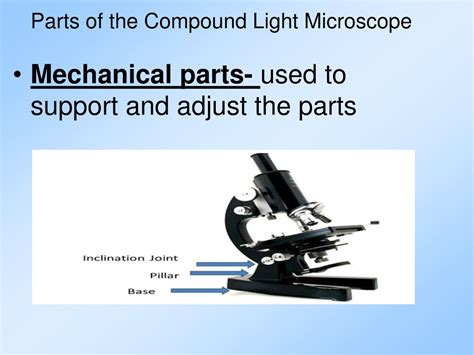

Key Compound Light Microscope Parts

The compound light microscope consists of several essential parts, each playing a critical role in the functioning of the instrument. Below is a detailed overview of the key components:

Eyepiece (Ocular Lens)

The eyepiece, also known as the ocular lens, is the lens at the top of the microscope that you look through. It typically has a magnification power of 10x or 15x. The eyepiece works in conjunction with the objective lenses to produce the final magnified image.

Objective Lenses

The objective lenses are located near the specimen and are responsible for the initial magnification of the image. Most compound light microscopes come with three or four objective lenses, each with a different magnification power. Common objective lenses include:

4x (scanning objective)
10x (low-power objective)
40x (high-power objective)
100x (oil immersion objective)

These lenses are often color-coded for easy identification. The 100x objective lens requires the use of immersion oil to achieve the highest resolution.

Stage

The stage is the flat platform where the specimen slide is placed. It is usually equipped with clips to hold the slide in place. The stage can be moved horizontally and vertically to position the specimen under the objective lenses. Some microscopes also have a mechanical stage with knobs for precise control.

Stage Clips

Stage clips are used to secure the specimen slide in place on the stage. They ensure that the slide does not move during observation, which is crucial for maintaining a clear and stable image.

Illuminator (Light Source)

The illuminator is the light source that provides illumination for viewing the specimen. It is usually located at the base of the microscope and can be adjusted for brightness. The illuminator can be a mirror reflecting external light or an electric light source.

Diaphragm (Iris)

The diaphragm, also known as the iris, is located below the stage and controls the amount of light that reaches the specimen. Adjusting the diaphragm can enhance the contrast and clarity of the image. Most microscopes have a rotating disk with different-sized apertures for this purpose.

Condenser Lens

The condenser lens is positioned below the stage and focuses light onto the specimen. It works in conjunction with the diaphragm to optimize the illumination and resolution of the image. The condenser can be adjusted vertically to achieve the best focus.

Coarse and Fine Adjustment Knobs

The coarse and fine adjustment knobs are used to focus the microscope. The coarse adjustment knob moves the stage up and down in large increments, while the fine adjustment knob makes smaller, more precise movements. These knobs are essential for achieving a clear and sharp image.

Arm

The arm is the part of the microscope that connects the base to the tube. It provides support and stability to the instrument and is used to carry the microscope. The arm should be held with one hand when moving the microscope to ensure safety.

Base

The base is the bottom part of the microscope that provides stability and support. It houses the illuminator and other components. The base should be placed on a flat, stable surface to ensure optimal performance.

Tube

The tube, also known as the body tube, connects the eyepiece to the objective lenses. It houses the prism that directs the light path from the objective lenses to the eyepiece. The tube should be kept clean and free of dust to maintain image clarity.

Revolving Nosepiece (Turret)

The revolving nosepiece, or turret, holds the objective lenses and can be rotated to change the magnification. It allows for quick and easy switching between different objective lenses without having to realign the microscope.

Mechanical Stage

A mechanical stage is an optional feature that provides precise control over the movement of the specimen slide. It consists of two knobs that move the stage horizontally and vertically, allowing for fine adjustments to the position of the specimen.

Aperture

The aperture is the opening in the diaphragm that controls the amount of light passing through the specimen. Adjusting the aperture size can enhance the contrast and resolution of the image. A smaller aperture reduces the amount of light but increases contrast, while a larger aperture allows more light but may reduce contrast.

Stage Control

Stage control refers to the mechanisms that allow for the movement of the stage. This can include manual knobs or mechanical stages with precise control knobs. Proper stage control is essential for positioning the specimen accurately under the objective lenses.

Immersion Oil

Immersion oil is used with the 100x objective lens to achieve the highest resolution. The oil has the same refractive index as glass, which reduces the loss of light and improves image clarity. When using immersion oil, a drop is placed on the slide, and the objective lens is lowered into the oil.

Rack Stop

The rack stop is a safety feature that prevents the stage from being raised too high and damaging the objective lenses. It ensures that the stage stops at a safe distance from the lenses, protecting both the microscope and the specimen.

On/Off Switch

The on/off switch controls the power to the illuminator. It is usually located on the base of the microscope and allows for easy control of the light source.

Using a Compound Light Microscope

To effectively use a compound light microscope, follow these steps:

Prepare the Specimen: Place the specimen on a clean microscope slide and cover it with a coverslip. Ensure the specimen is thin enough to allow light to pass through.
Position the Slide: Secure the slide on the stage using the stage clips. Position the slide so that the specimen is centered under the lowest power objective lens (4x).
Adjust the Light: Turn on the illuminator and adjust the diaphragm to control the amount of light. Use the coarse adjustment knob to lower the stage until the objective lens is close to the slide.
Focus the Image: Use the coarse adjustment knob to bring the specimen into focus. Once the image is roughly focused, switch to the fine adjustment knob for a clearer image.
Change Magnification: Rotate the revolving nosepiece to switch to a higher power objective lens. Refocus the image using the fine adjustment knob. Repeat this process for higher magnifications.
Observe and Record: Observe the specimen through the eyepiece and record your observations. Adjust the diaphragm and light intensity as needed to enhance the image.
Clean Up: After use, clean the microscope lenses with lens paper and a suitable cleaning solution. Store the microscope in a safe place to prevent damage.

🔍 Note: Always start with the lowest power objective lens and gradually increase the magnification to avoid damaging the specimen or the microscope.

Maintaining a Compound Light Microscope

Proper maintenance of a compound light microscope is essential for ensuring its longevity and optimal performance. Here are some key maintenance tips:

Clean the Lenses: Regularly clean the eyepiece and objective lenses with lens paper and a suitable cleaning solution. Avoid using tissues or cloth that can scratch the lenses.
Store Properly: Store the microscope in a clean, dry place away from direct sunlight and dust. Cover the microscope with a dust cover when not in use.
Handle with Care: Always handle the microscope with care, especially the objective lenses and the stage. Avoid dropping or bumping the microscope to prevent damage.
Check for Alignment: Periodically check the alignment of the microscope to ensure that the optical components are properly aligned. Misalignment can affect image quality.
Inspect for Damage: Regularly inspect the microscope for any signs of damage, such as cracks or scratches on the lenses. Address any issues promptly to prevent further damage.

🛠️ Note: Always follow the manufacturer's guidelines for cleaning and maintaining the microscope to avoid voiding the warranty.

Troubleshooting Common Issues

Even with proper care, issues can arise when using a compound light microscope. Here are some common problems and their solutions:

Blurry Image: If the image is blurry, check the focus using the coarse and fine adjustment knobs. Ensure that the specimen is properly positioned under the objective lens.
Dim Image: If the image is too dim, adjust the diaphragm to increase the amount of light. Also, check the illuminator to ensure it is functioning properly.
Overly Bright Image: If the image is too bright, adjust the diaphragm to reduce the amount of light. This can help improve contrast and clarity.
Dirty Lenses: If the lenses are dirty, clean them with lens paper and a suitable cleaning solution. Dirty lenses can significantly affect image quality.
Misaligned Components: If the image is distorted or unclear, check for misalignment of the optical components. Realign the microscope according to the manufacturer's instructions.

⚠️ Note: If you encounter persistent issues, consult the manufacturer's manual or seek professional assistance.

In conclusion, understanding the various compound light microscope parts and their functions is crucial for effective use and maintenance of the instrument. By following proper usage and maintenance procedures, you can ensure that your compound light microscope provides clear and accurate images for years to come. Regular cleaning, proper storage, and careful handling are essential for maintaining the microscope’s performance and longevity. Whether you are a student, researcher, or educator, mastering the use of a compound light microscope will enhance your ability to explore the microscopic world with precision and clarity.
