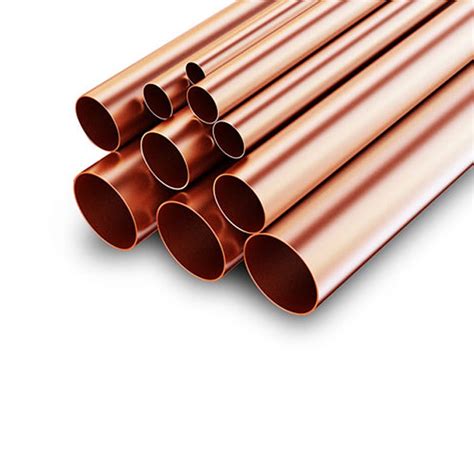

Copper tubing is a versatile and widely used material in various industries, including plumbing, HVAC, and refrigeration. Understanding copper tubing dimensions is crucial for ensuring proper installation and functionality. This guide will delve into the different types of copper tubing, their dimensions, and applications, providing a comprehensive overview for professionals and DIY enthusiasts alike.
Types of Copper Tubing
Copper tubing comes in several types, each designed for specific applications. The most common types are:
- Type K
- Type L
- Type M
Each type has distinct copper tubing dimensions and uses, making it essential to choose the right one for your project.
Type K Copper Tubing
Type K copper tubing is the thickest and strongest of the three types. It is primarily used for underground water service lines and other high-pressure applications. The thicker walls of Type K tubing provide excellent durability and resistance to corrosion.
Copper tubing dimensions for Type K include:
| Nominal Size (inches) | Outside Diameter (inches) | Wall Thickness (inches) |
|---|---|---|
| 1/2 | 0.875 | 0.049 |
| 3/4 | 1.050 | 0.065 |
| 1 | 1.315 | 0.083 |
Type K tubing is ideal for applications where high pressure and durability are required. Its robust construction makes it suitable for underground installations and other demanding environments.
Type L Copper Tubing
Type L copper tubing is the most commonly used type in residential and commercial plumbing. It offers a good balance between strength and flexibility, making it suitable for a wide range of applications. Type L tubing is often used for water supply lines, both above and below ground.
Copper tubing dimensions for Type L include:
| Nominal Size (inches) | Outside Diameter (inches) | Wall Thickness (inches) |
|---|---|---|
| 1/2 | 0.875 | 0.040 |
| 3/4 | 1.050 | 0.045 |
| 1 | 1.315 | 0.050 |
Type L tubing is versatile and can be used in various plumbing systems, including hot and cold water supply lines. Its medium wall thickness provides adequate strength while allowing for easier bending and installation.
Type M Copper Tubing
Type M copper tubing has the thinnest walls among the three types, making it the most flexible and easiest to bend. It is commonly used in low-pressure applications, such as drain, waste, and vent (DWV) systems. Type M tubing is also suitable for residential water supply lines where the water pressure is relatively low.
Copper tubing dimensions for Type M include:
| Nominal Size (inches) | Outside Diameter (inches) | Wall Thickness (inches) |
|---|---|---|
| 1/2 | 0.875 | 0.028 |
| 3/4 | 1.050 | 0.032 |
| 1 | 1.315 | 0.035 |
Type M tubing is ideal for applications where flexibility and ease of installation are prioritized. Its thin walls make it suitable for low-pressure systems, but it may not be suitable for high-pressure or underground installations.
🔍 Note: Always check local building codes and regulations before selecting copper tubing for your project. Different regions may have specific requirements for copper tubing dimensions and types.
Applications of Copper Tubing
Copper tubing is used in a variety of applications due to its durability, corrosion resistance, and excellent thermal conductivity. Some of the most common applications include:
- Plumbing Systems: Copper tubing is widely used in residential and commercial plumbing for water supply lines, both hot and cold.
- HVAC Systems: Copper tubing is essential in heating, ventilation, and air conditioning systems for refrigerant lines and heat exchangers.
- Refrigeration: Copper tubing is used in refrigeration systems for transporting refrigerants and ensuring efficient cooling.
- Gas Lines: Copper tubing can be used for natural gas and propane lines, providing a safe and reliable conduit for gas distribution.
- Industrial Applications: Copper tubing is used in various industrial processes for transporting liquids and gases, as well as in heat exchangers and other equipment.
Understanding the specific requirements of your application will help you choose the right type and copper tubing dimensions for your project.
Installation Tips for Copper Tubing
Proper installation of copper tubing is crucial for ensuring its longevity and performance. Here are some tips for installing copper tubing:
- Measure and Cut: Accurately measure the length of tubing needed and cut it using a tubing cutter. Ensure the cut is clean and square to avoid leaks.
- Deburring: After cutting, deburr the inside of the tubing to remove any burrs or sharp edges that could obstruct flow or damage fittings.
- Bending: Use a tubing bender to create bends in the tubing. This tool helps maintain the correct copper tubing dimensions and prevents kinking or collapsing.
- Fitting: Use appropriate fittings and connectors to join sections of tubing. Ensure that fittings are compatible with the copper tubing dimensions and type you are using.
- Soldering: Solder joints to secure fittings and connectors. Use flux and solder designed for copper tubing to ensure a strong, leak-free connection.
- Testing: After installation, test the system for leaks by pressurizing it with water or air. Check all joints and connections for any signs of leakage.
🛠️ Note: Always follow manufacturer guidelines and local building codes when installing copper tubing. Proper installation techniques are essential for ensuring the safety and reliability of your system.
Maintenance and Care of Copper Tubing
Copper tubing is known for its durability and low maintenance requirements. However, proper care and maintenance can extend its lifespan and ensure optimal performance. Here are some tips for maintaining copper tubing:
- Regular Inspections: Periodically inspect copper tubing for signs of corrosion, leaks, or damage. Address any issues promptly to prevent further deterioration.
- Cleaning: Clean copper tubing regularly to remove any buildup of minerals or debris. Use a mild cleaning solution and a soft brush to avoid damaging the tubing.
- Protective Coatings: Apply protective coatings to copper tubing to prevent corrosion and extend its lifespan. Choose coatings that are compatible with the specific application and environment.
- Avoiding Chemicals: Avoid exposing copper tubing to harsh chemicals or acids, as these can cause corrosion and damage the tubing.
- Proper Support: Ensure that copper tubing is properly supported and secured to prevent sagging or bending, which can lead to leaks or other issues.
By following these maintenance tips, you can ensure that your copper tubing remains in good condition and continues to perform reliably.
Copper tubing is a versatile and reliable material for a wide range of applications. Understanding copper tubing dimensions and the different types available is essential for selecting the right tubing for your project. Whether you are working on a plumbing system, HVAC installation, or industrial application, choosing the correct copper tubing will ensure optimal performance and longevity. Proper installation and maintenance are also crucial for maximizing the benefits of copper tubing and avoiding potential issues. By following the guidelines and tips outlined in this guide, you can successfully incorporate copper tubing into your projects and enjoy its many advantages.
