In the realm of networking, the efficient management of data transmission is paramount. One of the fundamental protocols that ensure smooth communication between devices is CSMA and CD. This protocol, which stands for Carrier Sense Multiple Access with Collision Detection, is widely used in Ethernet networks to manage access to the shared medium. Understanding CSMA and CD is crucial for anyone involved in network administration, as it forms the backbone of many modern networking solutions.

Table of Contents

Understanding CSMA and CD

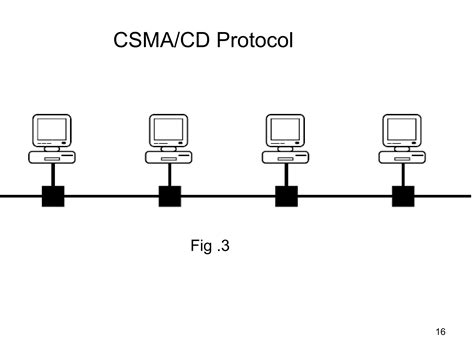

CSMA and CD is a media access control method used most notably in Ethernet networks. It operates on the principle of carrier sensing, where devices listen to the network before transmitting data. If the network is idle, the device can transmit its data. However, if a collision is detected (i.e., two devices transmit simultaneously), CSMA and CD handles the collision by sending a jam signal to all devices, which then wait for a random amount of time before attempting to retransmit.

How CSMA and CD Works

To grasp the intricacies of CSMA and CD, it's essential to break down its operation into several key steps:

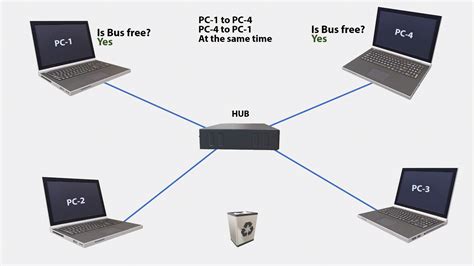

Carrier Sense: Before transmitting data, a device listens to the network to check if it is idle. If the network is busy, the device waits until it becomes idle.
Transmission: Once the network is idle, the device begins transmitting its data.
Collision Detection: During transmission, the device continuously monitors the network for any signs of a collision. If a collision is detected, the device sends a jam signal to all other devices on the network.
Backoff Algorithm: After detecting a collision, all devices involved in the collision wait for a random amount of time before attempting to retransmit. This random wait time helps to reduce the likelihood of another collision.

This process ensures that data transmission is managed efficiently, minimizing collisions and maximizing the use of the network's bandwidth.

Key Components of CSMA and CD

Several key components work together to make CSMA and CD effective:

Carrier Sense Mechanism: This mechanism allows devices to detect whether the network is idle or busy. It is crucial for preventing collisions before they occur.
Collision Detection: This component monitors the network during transmission to detect any collisions. If a collision is detected, it triggers the jam signal.
Jam Signal: A short signal sent by the transmitting device to inform all other devices on the network that a collision has occurred. This signal ensures that all devices are aware of the collision and can take appropriate action.
Backoff Algorithm: This algorithm determines the random wait time for devices after a collision. It helps to spread out the retransmission attempts, reducing the likelihood of another collision.

These components work in tandem to ensure that CSMA and CD operates smoothly and efficiently.

Advantages of CSMA and CD

CSMA and CD offers several advantages that make it a popular choice for Ethernet networks:

Efficient Use of Bandwidth: By managing access to the shared medium, CSMA and CD ensures that the network's bandwidth is used efficiently.
Reduced Collisions: The carrier sense and collision detection mechanisms help to minimize collisions, ensuring smoother data transmission.
Scalability: CSMA and CD can be scaled to accommodate a large number of devices on the network, making it suitable for both small and large networks.
Simplicity: The protocol is relatively simple to implement, making it accessible for a wide range of networking applications.

These advantages make CSMA and CD a reliable and efficient choice for managing data transmission in Ethernet networks.

Challenges and Limitations

Despite its advantages, CSMA and CD also faces several challenges and limitations:

Hidden Node Problem: This occurs when two devices are out of range of each other but within range of a third device. If both devices transmit simultaneously, a collision can occur at the third device, which cannot detect the collision.
Exposed Node Problem: This happens when a device incorrectly defers transmission because it senses a carrier from another device that is not within its range. This can lead to inefficient use of the network's bandwidth.
Latency: The random backoff algorithm can introduce latency, especially in networks with high traffic. This can affect the performance of time-sensitive applications.

These challenges highlight the need for careful network design and management to ensure optimal performance.

🔍 Note: Implementing CSMA and CD in wireless networks is more complex due to the hidden node and exposed node problems. Wireless networks often use additional protocols, such as RTS/CTS (Request to Send/Clear to Send), to mitigate these issues.

CSMA and CD in Wireless Networks

While CSMA and CD is primarily used in wired Ethernet networks, its principles are also applied in wireless networks. However, the wireless environment presents unique challenges that require additional mechanisms. One such mechanism is CSMA and CA (Collision Avoidance), which is used in Wi-Fi networks.

CSMA and CA operates similarly to CSMA and CD, but with some key differences:

Collision Avoidance: Instead of detecting collisions after they occur, CSMA and CA aims to avoid them altogether. Devices send a Request to Send (RTS) frame to the intended recipient, which responds with a Clear to Send (CTS) frame if the channel is clear.
ACK Frames: After successful data transmission, the recipient sends an Acknowledgment (ACK) frame to confirm receipt. If the sender does not receive an ACK frame within a specified time, it assumes a collision has occurred and retransmits the data.

These mechanisms help to mitigate the hidden node and exposed node problems, making CSMA and CA more suitable for wireless environments.

CSMA and CD vs. CSMA and CA

Understanding the differences between CSMA and CD and CSMA and CA is crucial for network administrators. Here is a comparison of the two protocols:

Feature	CSMA and CD	CSMA and CA
Primary Use	Wired Ethernet networks	Wireless networks (Wi-Fi)
Collision Handling	Detects collisions after they occur	Avoids collisions before they occur
Mechanisms	Carrier sense, collision detection, jam signal, backoff algorithm	RTS/CTS frames, ACK frames
Latency	Can introduce latency due to random backoff	Generally lower latency due to collision avoidance

This comparison highlights the strengths and weaknesses of each protocol, helping network administrators choose the right one for their specific needs.

Implementation of CSMA and CD

Implementing CSMA and CD in a network involves several steps. Here is a detailed guide to help you set up CSMA and CD in an Ethernet network:

Network Design: Plan your network topology, ensuring that all devices are within range of each other to minimize the hidden node problem.
Device Configuration: Configure each device to use CSMA and CD. This typically involves setting the appropriate media access control (MAC) protocol in the device's network settings.
Collision Detection Settings: Adjust the collision detection settings to optimize performance. This may include setting the appropriate backoff algorithm and jam signal parameters.
Testing and Monitoring: Test the network to ensure that CSMA and CD is functioning correctly. Monitor the network for collisions and adjust settings as needed to minimize them.

By following these steps, you can successfully implement CSMA and CD in your Ethernet network, ensuring efficient data transmission and minimal collisions.

🛠️ Note: Regularly monitor your network for performance issues and adjust CSMA and CD settings as needed. Network conditions can change over time, and periodic tuning can help maintain optimal performance.

Future of CSMA and CD

As networking technologies continue to evolve, the role of CSMA and CD is also changing. While it remains a cornerstone of Ethernet networks, new protocols and technologies are emerging that offer improved performance and efficiency. For example, CSMA and CA is becoming more prevalent in wireless networks, offering better collision avoidance mechanisms.

However, CSMA and CD is likely to remain relevant for many years to come, especially in wired Ethernet networks. Its simplicity and effectiveness make it a reliable choice for managing data transmission in a wide range of applications.

In conclusion, CSMA and CD is a fundamental protocol that plays a crucial role in modern networking. Its efficient management of data transmission, coupled with its simplicity and scalability, makes it an essential tool for network administrators. By understanding the principles of CSMA and CD and its implementation, you can ensure that your network operates smoothly and efficiently, minimizing collisions and maximizing bandwidth usage. As networking technologies continue to evolve, CSMA and CD will remain a key component, adapting to new challenges and opportunities in the ever-changing landscape of data communication.
