Dark Field Microscopy

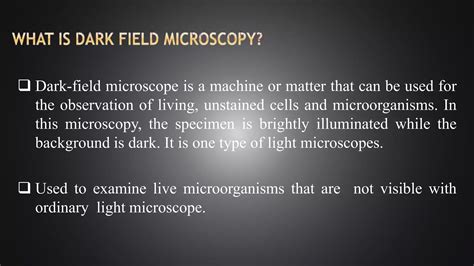

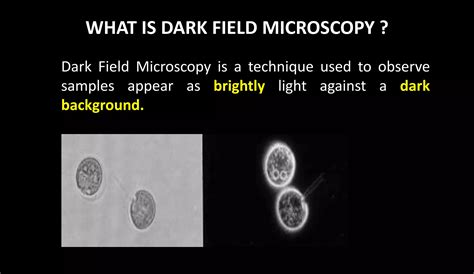

Dark Field Microscopy is a powerful imaging technique that has revolutionized the way scientists and researchers observe and study microscopic specimens. Unlike traditional bright-field microscopy, which illuminates the entire specimen, Dark Field Microscopy uses oblique lighting to highlight the edges and surfaces of specimens, making them appear bright against a dark background. This technique is particularly useful for observing live, unstained specimens, as it enhances contrast and reveals details that might otherwise go unnoticed.

Understanding Dark Field Microscopy

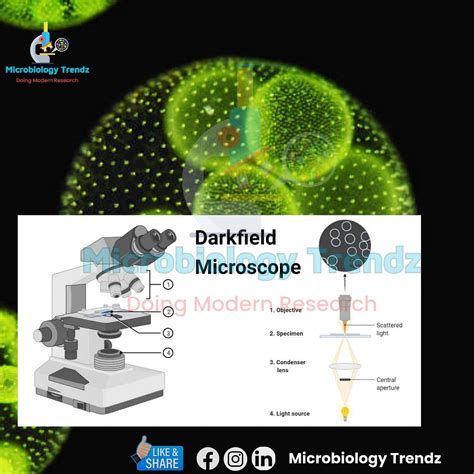

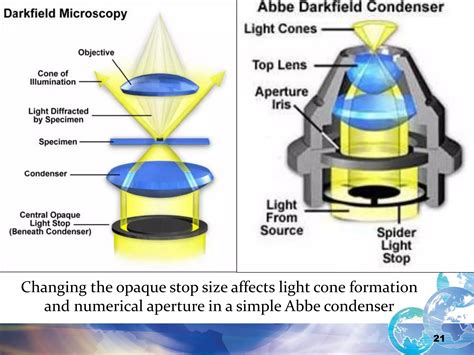

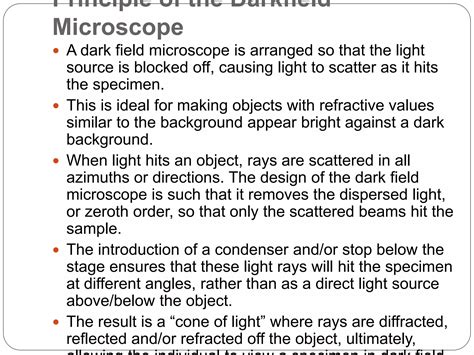

Dark Field Microscopy is based on the principle of illuminating the specimen with light that is scattered or reflected off its surfaces. This scattered light is then collected by the objective lens, creating a bright image of the specimen against a dark background. The key components of a Dark Field Microscope include:

• A light source that emits oblique light.
• A condenser with a special stop to block direct light.
• An objective lens that collects the scattered light.
• A dark field stop that ensures only scattered light reaches the specimen.

By using these components, Dark Field Microscopy can achieve high contrast and resolution, making it an invaluable tool for various applications.

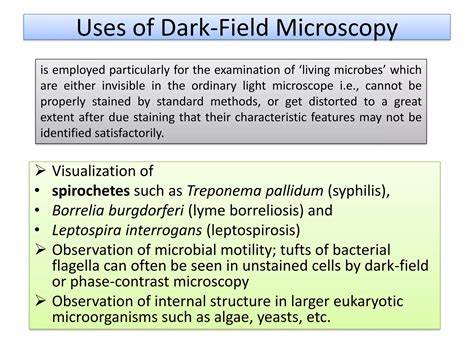

Applications of Dark Field Microscopy

Dark Field Microscopy has a wide range of applications across different fields of science and industry. Some of the most notable applications include:

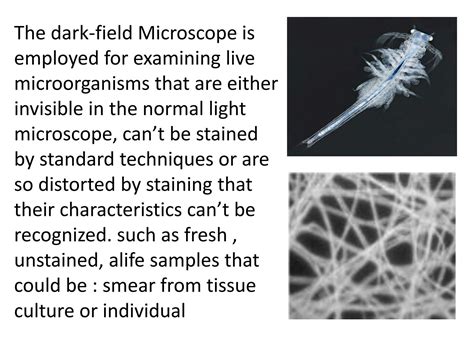

• Biological Research: Dark Field Microscopy is extensively used in biological research to study live cells, bacteria, and other microorganisms. It allows researchers to observe the dynamic processes within cells without the need for staining, which can alter the specimen's natural state.
• Material Science: In material science, Dark Field Microscopy is used to examine the surface characteristics of materials, such as metals, ceramics, and polymers. It helps in identifying defects, cracks, and other surface irregularities that can affect the material's performance.
• Forensic Science: Forensic scientists use Dark Field Microscopy to analyze trace evidence, such as fibers, hairs, and particles. The high contrast and resolution of Dark Field Microscopy make it easier to identify and compare these microscopic specimens.
• Industrial Quality Control: In industrial settings, Dark Field Microscopy is used for quality control purposes. It helps in detecting surface defects in products, ensuring that they meet the required standards before they are released to the market.

These applications highlight the versatility and importance of Dark Field Microscopy in various scientific and industrial fields.

Setting Up a Dark Field Microscope

Setting up a Dark Field Microscope involves several steps to ensure optimal performance. Here is a detailed guide to help you set up your Dark Field Microscope:

Step 1: Prepare the Microscope

Begin by placing the microscope on a stable, flat surface. Ensure that the light source is properly aligned and that the condenser is in the correct position. Adjust the condenser height to match the thickness of your specimen slide.

Step 2: Install the Dark Field Stop

Insert the dark field stop into the condenser. The dark field stop is a crucial component that blocks direct light, allowing only oblique light to reach the specimen. Ensure that the stop is securely in place and properly aligned.

Step 3: Align the Light Source

Adjust the light source to emit oblique light. This can be done by tilting the light source or using a special condenser designed for Dark Field Microscopy. The goal is to create a cone of light that illuminates the specimen from the sides, rather than from above.

Step 4: Focus the Microscope

Place your specimen slide on the stage and secure it with the stage clips. Use the coarse focus knob to bring the specimen into rough focus. Then, switch to the fine focus knob to achieve a sharp image. Adjust the condenser height if necessary to optimize the contrast and resolution.

Step 5: Observe the Specimen

Once the microscope is properly set up, you can begin observing your specimen. Use the eyepieces to view the specimen, and adjust the focus and lighting as needed to achieve the best possible image. Dark Field Microscopy will highlight the edges and surfaces of the specimen, making it appear bright against a dark background.

🔍 Note: It is important to ensure that the dark field stop is properly aligned and that the light source is emitting oblique light. Any misalignment can result in a poor-quality image and reduced contrast.

Advantages and Limitations of Dark Field Microscopy

Dark Field Microscopy offers several advantages over traditional bright-field microscopy, but it also has its limitations. Understanding these aspects can help you determine when to use Dark Field Microscopy and when to consider alternative techniques.

Advantages

• High Contrast: Dark Field Microscopy provides high contrast, making it easier to observe details that might be missed with bright-field microscopy.
• Live Specimen Observation: This technique allows for the observation of live, unstained specimens, preserving their natural state.
• Surface Detail: Dark Field Microscopy is excellent for revealing surface details and irregularities, making it useful for material science and forensic applications.

Limitations

• Limited Depth of Field: Dark Field Microscopy has a limited depth of field, which can make it challenging to observe thick specimens.
• Complex Setup: Setting up a Dark Field Microscope can be more complex than setting up a bright-field microscope, requiring careful alignment of the light source and dark field stop.
• Artifacts: The technique can sometimes produce artifacts, such as glare or halos, which can interfere with the interpretation of the image.

Despite these limitations, Dark Field Microscopy remains a valuable tool for many applications, offering unique advantages that make it a preferred choice in certain scenarios.

Comparing Dark Field Microscopy with Other Techniques

To fully appreciate the benefits of Dark Field Microscopy, it is helpful to compare it with other microscopy techniques. Here is a comparison of Dark Field Microscopy with some commonly used techniques:

Each of these techniques has its own strengths and weaknesses, and the choice of technique depends on the specific requirements of the application.

Future Trends in Dark Field Microscopy

Dark Field Microscopy continues to evolve, driven by advancements in technology and increasing demand for high-resolution imaging. Some of the future trends in Dark Field Microscopy include:

• Advanced Imaging Techniques: The integration of advanced imaging techniques, such as confocal microscopy and super-resolution microscopy, with Dark Field Microscopy can enhance resolution and depth of field.
• Automated Systems: The development of automated Dark Field Microscopy systems can streamline the imaging process, reducing the need for manual adjustments and improving consistency.
• AI and Machine Learning: The use of artificial intelligence and machine learning algorithms can enhance image analysis, enabling more accurate and efficient interpretation of Dark Field Microscopy images.
• Portable Devices: The creation of portable Dark Field Microscopy devices can make this technique more accessible for fieldwork and remote applications.

These trends highlight the ongoing innovation in Dark Field Microscopy, ensuring that it remains a valuable tool for scientific and industrial applications.

Dark Field Microscopy is a versatile and powerful imaging technique that offers unique advantages for observing microscopic specimens. Its ability to provide high contrast and reveal surface details makes it an invaluable tool for biological research, material science, forensic science, and industrial quality control. By understanding the principles, applications, and limitations of Dark Field Microscopy, researchers and scientists can leverage this technique to gain deeper insights into the microscopic world.
