Define Electrostatic Field

Electrostatic fields are a fundamental concept in physics, particularly in the study of electricity and magnetism. They are crucial for understanding how charged particles interact with each other and how electrical forces are transmitted through space. This blog post will delve into the intricacies of electrostatic fields, explaining what they are, how they are defined, and their applications in various fields.

What is an Electrostatic Field?

An electrostatic field is a region of space where a charged particle experiences a force due to the presence of other charged particles. It is a vector field that describes the electric force per unit charge at any point in space. The concept of an electrostatic field is essential for understanding the behavior of charged particles and the forces they exert on each other.

Define Electrostatic Field

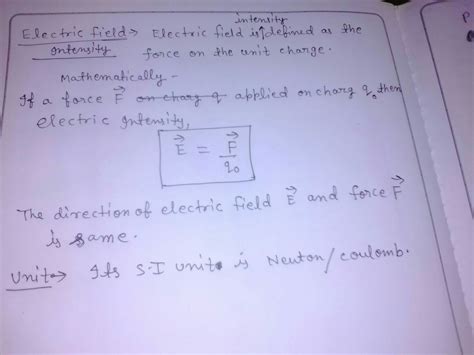

To define electrostatic field, we need to understand the basic principles of electrostatics. An electrostatic field is created by stationary charges. The field strength at any point in space is determined by the charge distribution and the distance from the charges. The electric field (E) at a point is defined as the force (F) per unit charge (q) that would be experienced by a test charge placed at that point:

E = F/q

Coulomb’s Law and Electrostatic Fields

Coulomb’s Law is the foundation for understanding electrostatic fields. It states that the force between two point charges is directly proportional to the product of their charges and inversely proportional to the square of the distance between them. Mathematically, it is expressed as:

F = k * (q1 * q2) / r^2

where:

F is the force between the charges
k is Coulomb’s constant (approximately 8.99 x 10^9 N m^2/C^2)
q1 and q2 are the magnitudes of the charges
r is the distance between the charges

Using Coulomb’s Law, we can derive the electric field created by a point charge. For a point charge q, the electric field E at a distance r is given by:

E = k * q / r^2

Electric Field Lines

Electric field lines are a visual representation of the electric field. They provide a way to understand the direction and strength of the field. Key properties of electric field lines include:

They originate from positive charges and terminate on negative charges.
The number of lines per unit area is proportional to the field strength.
They never cross each other.
They are perpendicular to the surface of a conductor.

Electric field lines help in visualizing how the electric field behaves in different configurations of charges. For example, the field lines between two opposite charges are straight and directed from the positive to the negative charge, while the field lines around a single charge are radial and symmetric.

Superposition Principle

The superposition principle states that the total electric field at a point is the vector sum of the electric fields due to individual charges. This principle is crucial for calculating the electric field in complex charge distributions. For n charges, the total electric field E at a point is given by:

E = E1 + E2 + … + En

where E1, E2, …, En are the electric fields due to individual charges.

Applications of Electrostatic Fields

Electrostatic fields have numerous applications in various fields, including:

Electronics: Electrostatic fields are used in the design and operation of electronic devices such as capacitors, transistors, and integrated circuits.
Medical Imaging: Techniques like X-ray and MRI use electrostatic fields to create images of the body’s internal structures.
Industrial Processes: Electrostatic precipitation is used to remove particles from exhaust gases in industrial processes.
Aerospace: Electrostatic fields are used in the design of spacecraft and satellites for communication and navigation.

Electrostatic Field Calculations

Calculating electrostatic fields involves applying the principles of Coulomb’s Law and the superposition principle. Here are some common scenarios and their calculations:

Point Charge

For a point charge q, the electric field E at a distance r is:

E = k * q / r^2

Dipole

A dipole consists of two equal and opposite charges separated by a small distance. The electric field due to a dipole at a point on its axis is given by:

E = 2k * p / r^3

where p is the dipole moment (p = q * d, where d is the distance between the charges).

Continuous Charge Distribution

For a continuous charge distribution, the electric field is calculated by integrating the contributions from infinitesimal charge elements. The electric field E at a point due to a continuous charge distribution is given by:

E = ∫ (k * dq / r^2) * r̂

where dq is the infinitesimal charge element and r̂ is the unit vector in the direction from the charge element to the point.

💡 Note: When calculating electric fields, it is important to consider the symmetry of the charge distribution to simplify the calculations.

Electrostatic Shielding

Electrostatic shielding is the phenomenon where a conductor placed in an electric field redistributes the charges on its surface to cancel out the field inside the conductor. This principle is used in various applications, such as:

Faraday Cages: These are enclosures made of conductive material that block external electric fields, protecting sensitive equipment from electromagnetic interference.
Electrostatic Discharge (ESD) Protection: Conductive materials are used to dissipate static charges and prevent damage to electronic components.

Electrostatic Potential

The electrostatic potential (V) at a point is the amount of work done per unit charge to bring a test charge from infinity to that point. It is related to the electric field by:

E = -∇V

where ∇ is the gradient operator. The electrostatic potential due to a point charge q at a distance r is given by:

V = k * q / r

Gauss’s Law

Gauss’s Law relates the electric flux through a closed surface to the charge enclosed by that surface. It is expressed as:

Φ = ∮ E · dA = q_enclosed / ε₀

where:

Φ is the electric flux
E is the electric field
dA is the area element

q_enclosed

ε₀ is the permittivity of free space (approximately 8.85 x 10^-12 C^2/N m^2)

Gauss’s Law is particularly useful for calculating electric fields in situations with high symmetry, such as spherical, cylindrical, or planar charge distributions.

💡 Note: Gauss's Law is a powerful tool for simplifying electric field calculations in symmetric charge distributions.

Electrostatic Field in Conductors

In conductors, electrostatic fields behave differently due to the free movement of charges. Key properties include:

The electric field inside a conductor is zero in electrostatic equilibrium.
Any excess charge on a conductor resides on its surface.
The electric field just outside a conductor is perpendicular to the surface.

These properties are crucial for understanding the behavior of conductors in electrostatic fields and are used in various applications, such as electrostatic shielding and the design of electronic devices.

Electrostatic Field in Dielectrics

Dielectrics are insulating materials that can be polarized by an electric field. When a dielectric is placed in an electric field, the molecules align with the field, creating an induced electric field that opposes the applied field. The net electric field inside the dielectric is given by:

E_net = E_applied - E_induced

where E_induced is the induced electric field due to the polarization of the dielectric. The dielectric constant (κ) of a material is a measure of its ability to reduce the electric field inside it. It is defined as:

κ = E_applied / E_net

Electrostatic Field in Capacitors

Capacitors are devices that store electrical energy in an electric field. They consist of two conductors separated by a dielectric material. The capacitance © of a capacitor is defined as the ratio of the charge (Q) on one of the conductors to the potential difference (V) between the conductors:

C = Q / V

The electric field between the plates of a parallel-plate capacitor is given by:

E = V / d

where d is the distance between the plates. The capacitance of a parallel-plate capacitor is given by:

C = ε₀ * A / d

where A is the area of the plates.

💡 Note: The capacitance of a capacitor can be increased by using a dielectric material with a high dielectric constant.

Electrostatic Field in Biological Systems

Electrostatic fields play a crucial role in biological systems. For example, the electric field generated by the heart’s activity is used in electrocardiography (ECG) to monitor heart function. Similarly, the electric field generated by the brain’s activity is used in electroencephalography (EEG) to study brain function. Electrostatic interactions are also important in molecular biology, where they govern the behavior of charged molecules such as DNA and proteins.

Electrostatic Field in Atmospheric Phenomena

Electrostatic fields are involved in various atmospheric phenomena, such as lightning and thunderstorms. Lightning is a massive electrostatic discharge that occurs when the electric field between a cloud and the ground becomes sufficiently strong to ionize the air and create a conductive path. Thunderstorms are characterized by the presence of strong electric fields that can cause lightning strikes and other electrostatic phenomena.

Electrostatic Field in Industrial Applications

Electrostatic fields have numerous industrial applications, including:

Electrostatic Painting: Electrostatic painting uses charged particles to apply paint evenly to surfaces, ensuring a uniform coating.
Electrostatic Precipitators: These devices use electrostatic fields to remove particles from exhaust gases, improving air quality and reducing pollution.
Electrostatic Separation: This process uses electrostatic fields to separate different materials based on their electrical properties, such as in the recycling of plastics.

Electrostatic Field in Everyday Life

Electrostatic fields are present in many everyday phenomena, such as:

Static Electricity: Static electricity is the buildup of electric charges on the surface of objects, which can cause sparks and shocks.
Photocopiers and Printers: These devices use electrostatic fields to transfer toner onto paper, creating printed images.
Touch Screens: Touch screens use electrostatic fields to detect the presence and location of a finger or stylus, enabling interactive displays.

Understanding electrostatic fields is essential for appreciating the underlying principles of these everyday technologies.

Electrostatic fields are a fundamental concept in physics with wide-ranging applications. From the design of electronic devices to the study of biological systems, electrostatic fields play a crucial role in various fields. By understanding the principles of electrostatic fields, we can gain insights into the behavior of charged particles and the forces they exert on each other. This knowledge is essential for advancing technology and improving our understanding of the natural world.
