Understanding the concept of Define Resistance Electrical is fundamental for anyone working with electrical circuits. Electrical resistance is a measure of the opposition to the flow of electric current in a circuit. This property is crucial for designing and analyzing electrical systems, as it directly affects the performance and efficiency of various components. In this post, we will delve into the basics of electrical resistance, its importance, how to measure it, and its applications in different fields.
What is Electrical Resistance?
Electrical resistance is a property of a material that opposes the flow of electric current. It is measured in ohms (Ω), named after the German physicist Georg Simon Ohm. The resistance of a conductor depends on several factors, including its length, cross-sectional area, and the material it is made of. The relationship between these factors is described by Ohm's Law, which states that the current (I) flowing through a conductor is directly proportional to the voltage (V) applied across it, and inversely proportional to the resistance (R). Mathematically, this is expressed as:
V = IR
Where:
- V is the voltage in volts (V)
- I is the current in amperes (A)
- R is the resistance in ohms (Ω)

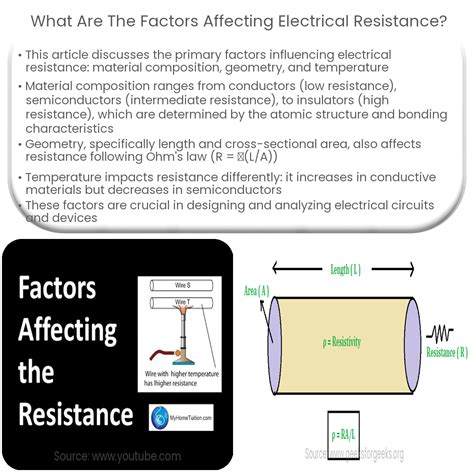

Factors Affecting Electrical Resistance
Several factors influence the electrical resistance of a material:

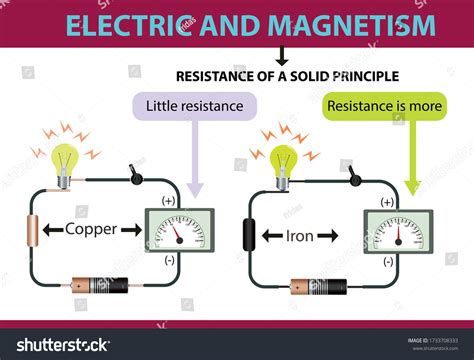

- Material Type: Different materials have different resistivities. For example, copper has a lower resistivity than iron, making it a better conductor.
- Length: The longer the conductor, the higher the resistance. This is because electrons have to travel a greater distance, encountering more obstacles.
- Cross-Sectional Area: A thicker conductor has lower resistance because there are more pathways for electrons to flow through.
- Temperature: The resistance of most materials increases with temperature. This is due to the increased vibration of atoms, which hinders the flow of electrons.
How to Measure Electrical Resistance
Measuring electrical resistance is a common task in electronics and electrical engineering. The most straightforward way to measure resistance is by using an ohmmeter, a device specifically designed for this purpose. Here are the steps to measure resistance using an ohmmeter:
- Turn off the power to the circuit to ensure safety.
- Set the ohmmeter to the appropriate range. Most multimeters have multiple ranges for measuring resistance, such as 200Ω, 2kΩ, 20kΩ, and 200kΩ.
- Connect the probes of the ohmmeter to the two points in the circuit where you want to measure the resistance.
- Read the resistance value displayed on the ohmmeter.
🔧 Note: Always ensure that the circuit is de-energized before measuring resistance to avoid damaging the ohmmeter or causing a short circuit.
Applications of Electrical Resistance
Electrical resistance plays a crucial role in various applications, from simple household appliances to complex industrial systems. Some of the key applications include:
- Resistors in Circuits: Resistors are used to control the flow of current in circuits. They are essential components in voltage dividers, current limiters, and biasing networks.

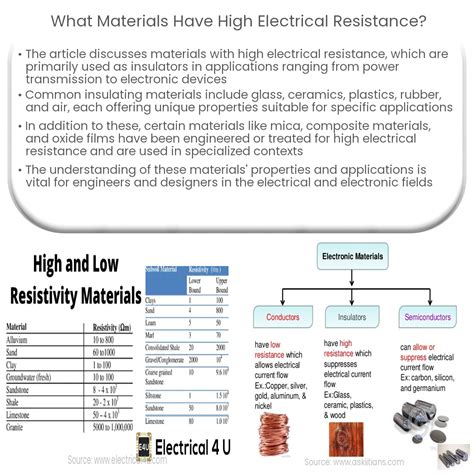

- Heating Elements: Materials with high resistance, such as nichrome, are used in heating elements like toasters, electric stoves, and space heaters. The resistance converts electrical energy into heat.
- Sensors and Transducers: Resistance changes with temperature, pressure, and other environmental factors, making it useful in sensors and transducers. For example, thermistors change resistance with temperature, making them ideal for temperature sensing.
- Electrical Safety: Fuses and circuit breakers use the principle of resistance to protect electrical systems from overloads and short circuits. When the current exceeds a safe level, the resistance in the fuse or circuit breaker increases, breaking the circuit and preventing damage.
Types of Resistors
Resistors come in various types, each designed for specific applications. Some of the most common types include:
- Fixed Resistors: These have a fixed resistance value and are used in circuits where the resistance does not need to be adjusted. Examples include carbon film resistors and metal film resistors.
- Variable Resistors: These allow for adjustment of the resistance value. Examples include potentiometers and rheostats.
- Specialty Resistors: These are designed for specific applications, such as high-power resistors for heating elements or precision resistors for calibration equipment.
Resistance in Series and Parallel Circuits
Understanding how resistance behaves in series and parallel circuits is essential for designing and analyzing electrical systems. In a series circuit, the total resistance is the sum of the individual resistances. In a parallel circuit, the total resistance is calculated using the reciprocal of the sum of the reciprocals of the individual resistances.
For a series circuit:
Rtotal = R1 + R2 + R3 + ... + Rn

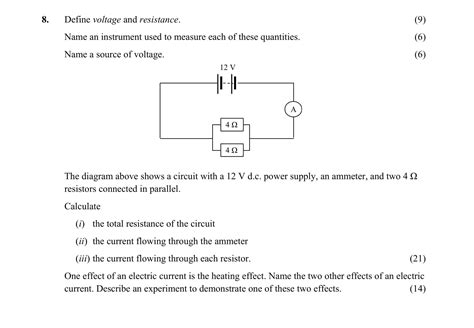

For a parallel circuit:
1/Rtotal = 1/R1 + 1/R2 + 1/R3 + ... + 1/Rn
Here is a table summarizing the formulas for series and parallel circuits:
| Circuit Type | Formula |
|---|---|
| Series | Rtotal = R1 + R2 + R3 + ... + Rn |
| Parallel | 1/Rtotal = 1/R1 + 1/R2 + 1/R3 + ... + 1/Rn |
Resistance and Power Dissipation
When current flows through a resistor, electrical energy is converted into heat. The power dissipated by a resistor can be calculated using the formula:
P = I2R
Where:
- P is the power in watts (W)
- I is the current in amperes (A)
- R is the resistance in ohms (Ω)
Power dissipation is an important consideration in circuit design, as excessive heat can damage components and reduce the lifespan of the circuit. Proper heat management techniques, such as using heat sinks and adequate ventilation, are essential to ensure reliable operation.
🔧 Note: Always ensure that the power rating of the resistor is sufficient for the application to prevent overheating and potential failure.
In addition to the power dissipation formula, the power can also be calculated using the voltage and resistance:
P = V2/R
Where:
- V is the voltage in volts (V)
- R is the resistance in ohms (Ω)
This formula is particularly useful when the voltage across the resistor is known.
Understanding the concept of Define Resistance Electrical is crucial for anyone working with electrical circuits. It is a fundamental property that affects the performance and efficiency of various components. By grasping the basics of resistance, its measurement, and its applications, you can design and analyze electrical systems more effectively. Whether you are a hobbyist, a student, or a professional engineer, a solid understanding of electrical resistance will serve you well in your endeavors.
