When it comes to DIY projects, home repairs, or professional construction, understanding the different types of screw heads is crucial. Screw heads come in various shapes and sizes, each designed for specific purposes and tools. Knowing the differences between these screw heads can save time, prevent damage to materials, and ensure a secure and durable finish. This guide will walk you through the most common types of screw heads, their uses, and the tools required to drive them.
Understanding Different Screw Heads

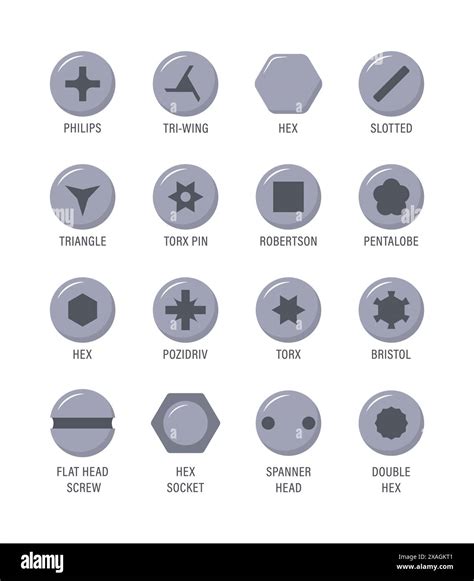

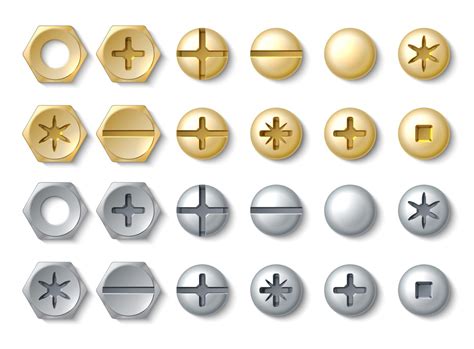

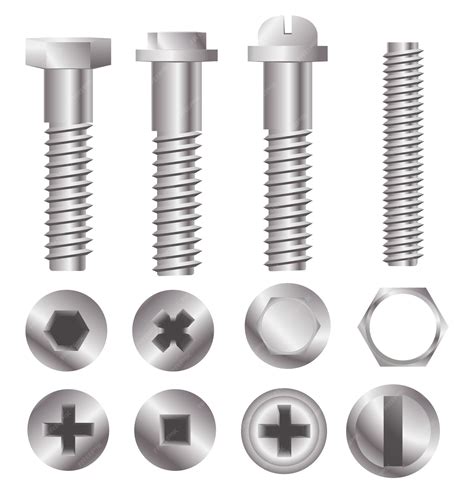

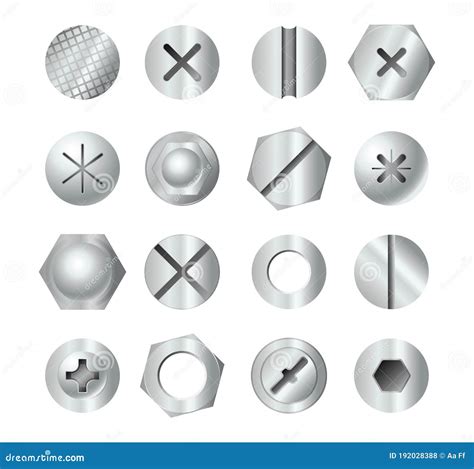

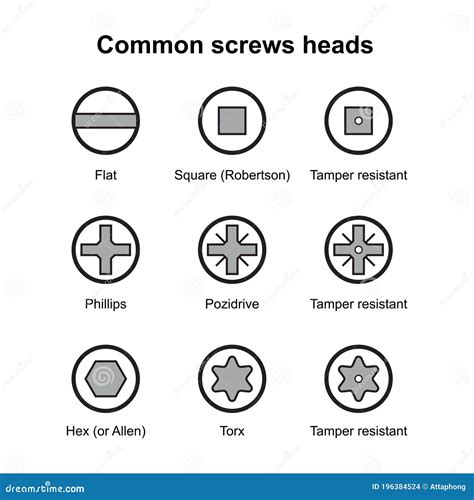

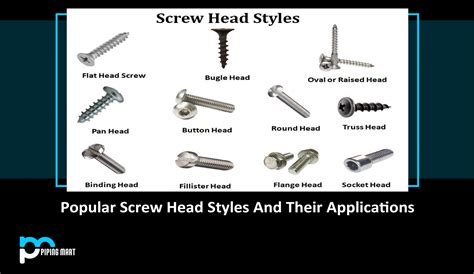

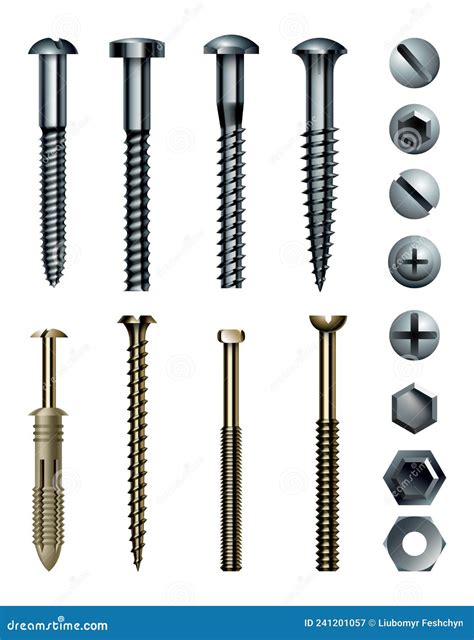

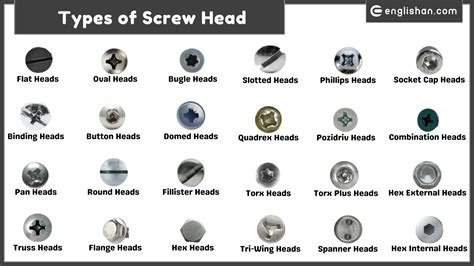

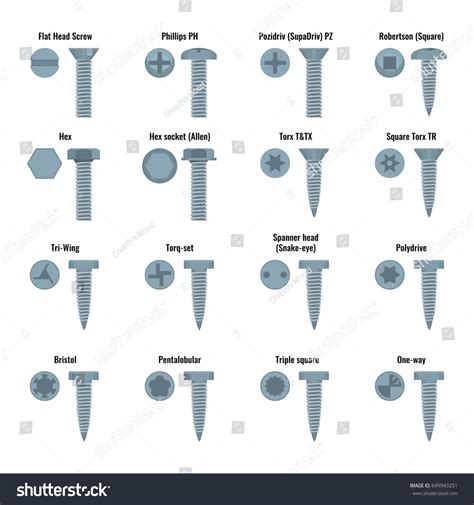

Screw heads are the top part of a screw that interacts with the driving tool. The design of the screw head determines the type of tool needed to drive the screw and the level of torque that can be applied. Here are the most common types of screw heads you will encounter:
Slotted Screw Heads
Slotted screw heads, also known as flathead or flat screws, have a single slot across the top. These are one of the oldest and most basic types of screw heads. They are driven using a standard flathead screwdriver. Slotted screws are commonly used in applications where the screw head will be hidden, such as in furniture or cabinetry.
However, slotted screws have some drawbacks. The single slot can easily strip, making it difficult to remove or tighten the screw. Additionally, the flathead design does not provide a secure grip, which can lead to over-tightening and damage to the material.
Phillips Screw Heads
Phillips screw heads feature a cross-shaped slot and are driven using a Phillips screwdriver. These screws are widely used in various applications, from electronics to construction. The cross-shaped design allows for better torque application and reduces the risk of stripping compared to slotted screws.
Phillips screws come in different sizes, denoted by numbers such as #0, #1, #2, and so on. The size indicates the screw's head diameter and the corresponding screwdriver size needed. It's important to use the correct size screwdriver to avoid damaging the screw head.
Pozidriv Screw Heads
Pozidriv screw heads are similar to Phillips screws but have an additional set of ribs at the bottom of the cross slot. This design provides a more secure grip and reduces the risk of cam-out, where the screwdriver slips out of the slot. Pozidriv screws are commonly used in automotive and electronic applications where precision and reliability are crucial.
Pozidriv screws require a Pozidriv screwdriver, which has a slightly different tip design to engage the additional ribs. Using a Phillips screwdriver on a Pozidriv screw can cause damage to the screw head and the material.
Torx Screw Heads
Torx screw heads have a star-shaped recess and are driven using a Torx screwdriver. These screws are known for their high torque capabilities and are commonly used in automotive, aerospace, and electronic applications. The star-shaped design provides a secure grip and reduces the risk of stripping or cam-out.
Torx screws come in various sizes, denoted by the letter "T" followed by a number, such as T10, T20, T25, etc. The size indicates the diameter of the screw head and the corresponding screwdriver size needed. It's essential to use the correct size Torx screwdriver to avoid damaging the screw head.
Hex Screw Heads
Hex screw heads, also known as Allen screws or hex bolts, have a hexagonal recess and are driven using a hex key or Allen wrench. These screws are commonly used in applications where a low-profile head is required, such as in furniture, bicycles, and machinery. The hexagonal design provides a secure grip and allows for high torque application.
Hex screws come in various sizes, denoted by the letter "A" followed by a number, such as A1, A2, A3, etc. The size indicates the diameter of the screw head and the corresponding hex key size needed. It is important to use the correct size hex key to avoid damaging the screw head.
Square Screw Heads
Square screw heads, also known as Robertson screws, have a square-shaped recess and are driven using a square-tip screwdriver. These screws are commonly used in woodworking and construction applications. The square design provides a secure grip and reduces the risk of cam-out. Additionally, square screws can be driven more easily by hand, making them a popular choice for DIY projects.
Square screws come in various sizes, denoted by the letter "S" followed by a number, such as S1, S2, S3, etc. The size indicates the diameter of the screw head and the corresponding square-tip screwdriver size needed. It's important to use the correct size square-tip screwdriver to avoid damaging the screw head.
Tri-Wing Screw Heads
Tri-wing screw heads have a unique three-lobed design and are driven using a tri-wing screwdriver. These screws are commonly used in electronic devices, particularly in gaming consoles and other consumer electronics. The tri-wing design provides a secure grip and reduces the risk of tampering, making it a popular choice for manufacturers looking to prevent unauthorized access.
Tri-wing screws come in various sizes, denoted by the letter "TW" followed by a number, such as TW1, TW2, TW3, etc. The size indicates the diameter of the screw head and the corresponding tri-wing screwdriver size needed. It's important to use the correct size tri-wing screwdriver to avoid damaging the screw head.
Security Screw Heads
Security screw heads are designed to prevent tampering and unauthorized access. These screws have unique designs that require specialized tools to drive. Some common types of security screws include:
- One-Way Screws: These screws have a unique design that allows them to be driven in one direction but not removed. They are commonly used in applications where tampering is a concern, such as in public restrooms or vending machines.
- Tamper-Proof Screws: These screws have a unique design that requires a specialized tool to drive. They are commonly used in applications where security is a concern, such as in electronic devices or machinery.
- Security Torx Screws: These screws have a star-shaped recess with additional pins or notches that require a specialized Torx screwdriver to drive. They are commonly used in applications where high security is required, such as in automotive or aerospace applications.
Security screws come in various sizes and designs, and it's important to use the correct tool to drive them. Attempting to use a standard screwdriver on a security screw can cause damage to the screw head and the material.
Choosing the Right Screw Head for Your Project
When selecting the right screw head for your project, consider the following factors:
- Application: Different applications require different types of screw heads. For example, slotted screws are commonly used in furniture and cabinetry, while Phillips screws are widely used in construction and electronics.
- Torque Requirements: Some applications require high torque, such as in automotive or aerospace applications. In these cases, screw heads like Torx or hex screws are a better choice.
- Security Needs: If security is a concern, consider using security screw heads that require specialized tools to drive.
- Tool Availability: Ensure that you have the correct tool to drive the screw head you choose. Using the wrong tool can cause damage to the screw head and the material.
By considering these factors, you can select the right screw head for your project and ensure a secure and durable finish.
Tools for Driving Different Screw Heads
Each type of screw head requires a specific tool to drive it effectively. Here is a list of the most common tools used for driving different screw heads:
| Screw Head Type | Tool Required | Notes |
|---|---|---|
| Slotted | Flathead Screwdriver | Available in various sizes and tip widths |
| Phillips | Phillips Screwdriver | Available in various sizes (e.g., #0, #1, #2) |
| Pozidriv | Pozidriv Screwdriver | Has additional ribs for better grip |
| Torx | Torx Screwdriver | Available in various sizes (e.g., T10, T20, T25) |
| Hex | Hex Key (Allen Wrench) | Available in various sizes (e.g., A1, A2, A3) |
| Square | Square-Tip Screwdriver | Available in various sizes (e.g., S1, S2, S3) |
| Tri-Wing | Tri-Wing Screwdriver | Available in various sizes (e.g., TW1, TW2, TW3) |
| Security | Specialized Tool | Depends on the specific security screw design |
It's essential to use the correct tool for the screw head you are working with. Using the wrong tool can cause damage to the screw head, the material, and the tool itself. Always ensure that you have the appropriate tool before starting your project.
🛠️ Note: Some screwdrivers come with interchangeable bits, allowing you to use a single screwdriver for multiple types of screw heads. This can be a convenient and cost-effective solution for DIY projects and home repairs.
Tips for Working with Different Screw Heads
Working with different screw heads can be challenging, especially if you are new to DIY projects or home repairs. Here are some tips to help you work with different screw heads effectively:
- Use the Correct Tool: Always use the correct tool for the screw head you are working with. Using the wrong tool can cause damage to the screw head and the material.
- Apply the Right Amount of Pressure: Applying too much pressure can strip the screw head or damage the material. Start with light pressure and gradually increase as needed.
- Avoid Over-Tightening: Over-tightening can cause the screw to strip or damage the material. Use a torque wrench or follow the manufacturer's recommendations for the correct torque settings.
- Lubricate the Screw: Applying a small amount of lubricant to the screw can help reduce friction and make it easier to drive. This is especially useful when working with metal screws or in high-torque applications.
- Use a Magnetic Screwdriver: A magnetic screwdriver can help hold the screw in place, making it easier to drive, especially in hard-to-reach areas.
- Practice on Scrap Material: If you are new to working with a particular type of screw head, practice on scrap material before starting your project. This can help you get a feel for the tool and the screw head.
By following these tips, you can work with different screw heads more effectively and achieve a secure and durable finish.
🛠️ Note: Always wear safety glasses and gloves when working with screws and screwdrivers to protect your eyes and hands from injury.
In conclusion, understanding the different types of screw heads and the tools required to drive them is essential for any DIY project, home repair, or professional construction task. By knowing the differences between slotted, Phillips, Pozidriv, Torx, hex, square, tri-wing, and security screw heads, you can select the right screw for your project and ensure a secure and durable finish. Always use the correct tool for the screw head you are working with, and follow the tips provided to work with different screw heads effectively. With the right knowledge and tools, you can tackle any project with confidence and achieve professional results.
