Electrical safety is a paramount concern in any electrical system, and one of the critical components ensuring this safety is the Electrical Earth Wire. This wire plays a crucial role in protecting both equipment and individuals from electrical hazards. Understanding the importance, types, and proper installation of the Electrical Earth Wire is essential for anyone involved in electrical work.
Understanding the Electrical Earth Wire

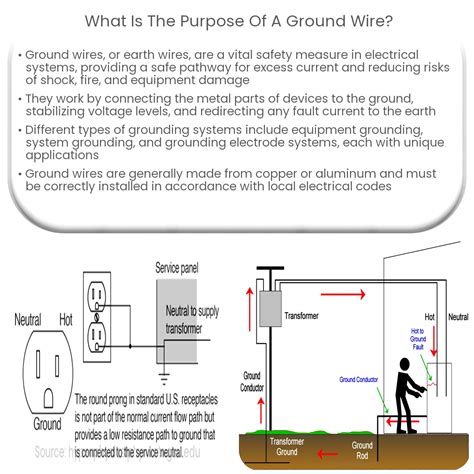

The Electrical Earth Wire, also known as the ground wire, is a safety measure designed to provide a low-resistance path to the earth. This wire helps to dissipate electrical faults, preventing the buildup of dangerous voltages that could lead to electrical shocks or fires. The primary function of the Electrical Earth Wire is to ensure that any fault current is safely directed to the ground, thereby protecting the electrical system and the people using it.
Types of Electrical Earth Wires
There are several types of Electrical Earth Wires, each suited for different applications and environments. The choice of wire depends on factors such as the current rating, environmental conditions, and the specific requirements of the electrical system.
- Copper Earth Wire: Copper is the most commonly used material for Electrical Earth Wires due to its excellent conductivity and resistance to corrosion. Copper wires are suitable for a wide range of applications, from residential to industrial settings.
- Aluminum Earth Wire: Aluminum is a cost-effective alternative to copper. It is lighter and less expensive but has lower conductivity. Aluminum wires are often used in overhead power lines and large-scale industrial applications.
- Galvanized Steel Earth Wire: Galvanized steel wires are coated with zinc to protect against corrosion. They are commonly used in outdoor and underground applications where exposure to moisture and soil is a concern.
Importance of Proper Installation
Proper installation of the Electrical Earth Wire is crucial for ensuring its effectiveness. Incorrect installation can lead to faulty grounding, which can be as dangerous as having no grounding at all. Here are some key steps to ensure proper installation:
- Select the Right Wire: Choose an Electrical Earth Wire that matches the current rating and environmental conditions of your electrical system.

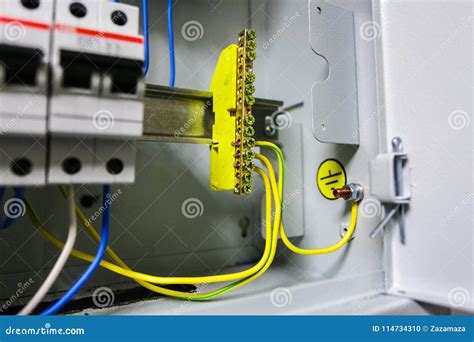

- Connect to the Main Earthing Terminal: Ensure that the Earth Wire is connected to the main earthing terminal of the electrical system. This terminal should be securely grounded to the earth.

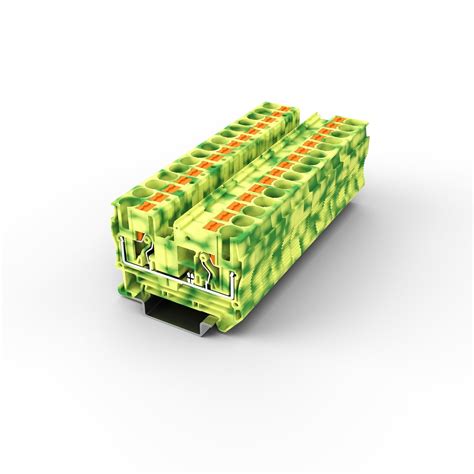

- Use Appropriate Connectors: Use high-quality connectors and clamps to secure the Earth Wire. Poor connections can lead to high resistance and ineffective grounding.
- Avoid Sharp Bends: Sharp bends in the Earth Wire can increase resistance and reduce its effectiveness. Ensure that the wire is laid out smoothly with gentle curves.
- Regular Inspection: Periodically inspect the Earth Wire for any signs of damage or corrosion. Replace any damaged sections immediately to maintain the integrity of the grounding system.
🔧 Note: Always follow local electrical codes and regulations when installing or maintaining Electrical Earth Wires. Improper installation can lead to serious safety hazards.
Common Mistakes to Avoid
Even with the best intentions, mistakes can occur during the installation of Electrical Earth Wires. Here are some common errors to avoid:
- Using Inadequate Wire Size: Ensure that the Earth Wire is sized appropriately for the current it needs to carry. An undersized wire can overheat and fail.
- Poor Connections: Loose or corroded connections can increase resistance and reduce the effectiveness of the grounding system. Always use high-quality connectors and ensure tight connections.
- Ignoring Environmental Factors: Consider the environmental conditions where the Earth Wire will be installed. For example, outdoor installations may require corrosion-resistant materials.
- Neglecting Regular Maintenance: Regular inspection and maintenance are essential to ensure the continued effectiveness of the Electrical Earth Wire. Neglecting this can lead to hidden faults that go unnoticed until a serious issue occurs.
Testing the Electrical Earth Wire
Regular testing of the Electrical Earth Wire is essential to ensure that it is functioning correctly. There are several methods to test the integrity of the grounding system:
- Continuity Test: Use a multimeter to check the continuity of the Earth Wire. A good connection should show a low resistance reading.
- Earth Resistance Test: This test measures the resistance between the Earth Wire and the actual earth. A low resistance reading indicates a good grounding system.
- Insulation Resistance Test: This test checks the insulation of the Earth Wire to ensure it is not damaged or degraded. A high resistance reading indicates good insulation.
🔍 Note: Always follow safety protocols when testing Electrical Earth Wires. Ensure that the power is turned off and that you are using appropriate personal protective equipment (PPE).
Best Practices for Electrical Earth Wire Maintenance
Maintaining the Electrical Earth Wire is as important as its installation. Regular maintenance ensures that the grounding system remains effective and reliable. Here are some best practices for maintaining Electrical Earth Wires:
- Regular Inspections: Conduct regular visual inspections to check for any signs of damage, corrosion, or wear. Replace any damaged sections immediately.
- Cleaning: Keep the Earth Wire and its connections clean and free from dirt and debris. Use appropriate cleaning solutions to remove any corrosion.
- Tightening Connections: Periodically check and tighten all connections to ensure they remain secure. Loose connections can increase resistance and reduce the effectiveness of the grounding system.
- Documentation: Keep detailed records of all inspections, tests, and maintenance activities. This documentation can be useful for troubleshooting and ensuring compliance with regulations.
Environmental Considerations
The environment in which the Electrical Earth Wire is installed can significantly impact its performance and lifespan. Here are some environmental factors to consider:
- Moisture: Exposure to moisture can lead to corrosion and degradation of the Earth Wire. Use corrosion-resistant materials and ensure proper sealing of connections.
- Temperature: Extreme temperatures can affect the conductivity and flexibility of the Earth Wire. Choose materials that are suitable for the expected temperature range.
- Chemical Exposure: Certain chemicals can corrode or degrade the Earth Wire. Avoid installing the wire in areas with high chemical exposure or use materials that are resistant to the specific chemicals.
- Mechanical Stress: Mechanical stress, such as vibration or physical impact, can damage the Earth Wire. Ensure that the wire is properly secured and protected from mechanical stress.
🌱 Note: Always consider the specific environmental conditions of your installation site when selecting and installing Electrical Earth Wires. Proper environmental management can extend the lifespan and effectiveness of the grounding system.
Regulations and Standards
Electrical Earth Wires are subject to various regulations and standards to ensure safety and reliability. Familiarizing yourself with these regulations is essential for compliance and safety. Some key regulations and standards include:
- National Electrical Code (NEC): The NEC provides guidelines for the installation and maintenance of Electrical Earth Wires in the United States. It covers wire sizing, connection methods, and testing procedures.
- International Electrotechnical Commission (IEC): The IEC standards provide global guidelines for electrical safety, including the installation and testing of Electrical Earth Wires.
- Local Regulations: Always check local electrical codes and regulations, as they may have specific requirements that differ from national or international standards.
Case Studies
Understanding the practical applications of Electrical Earth Wires can provide valuable insights into their importance and effectiveness. Here are a few case studies highlighting the role of Electrical Earth Wires in different scenarios:
Residential Electrical Systems
In residential settings, the Electrical Earth Wire is crucial for protecting household appliances and occupants from electrical hazards. Proper grounding ensures that any fault current is safely directed to the earth, preventing electrical shocks and fires. Regular inspections and maintenance of the Earth Wire can help identify and address potential issues before they become serious problems.
Industrial Electrical Systems
In industrial settings, the Electrical Earth Wire plays a critical role in protecting heavy machinery and equipment from electrical faults. Industrial environments often have higher current ratings and more complex electrical systems, making proper grounding even more important. Regular testing and maintenance of the Earth Wire can help ensure the reliability and safety of the electrical system.
Outdoor Electrical Installations
Outdoor electrical installations, such as street lighting and power lines, are exposed to various environmental factors that can affect the performance of the Electrical Earth Wire. Corrosion-resistant materials and proper sealing of connections are essential for ensuring the longevity and effectiveness of the grounding system. Regular inspections and maintenance can help identify and address any issues related to environmental exposure.
Conclusion
The Electrical Earth Wire is a vital component of any electrical system, providing essential protection against electrical hazards. Understanding the types, proper installation, and maintenance of Electrical Earth Wires is crucial for ensuring the safety and reliability of electrical systems. By following best practices and adhering to regulations, you can ensure that your Electrical Earth Wire remains effective and reliable, protecting both equipment and individuals from electrical faults. Regular inspections, testing, and maintenance are key to maintaining the integrity of the grounding system and preventing potential hazards.
