Electrical junction boxes are essential components in any electrical wiring system. They provide a safe and organized space for connecting and protecting electrical wires. One of the critical aspects of selecting the right junction box is understanding the various Electrical Junction Box Sizes available. This guide will walk you through the different sizes, their applications, and how to choose the right one for your project.
Understanding Electrical Junction Box Sizes
Electrical junction boxes come in a variety of sizes, each designed to accommodate different numbers and types of wires. The size of the junction box is typically measured in cubic inches, which indicates the volume of space available inside the box. This measurement is crucial because it determines how many wires and devices can safely fit inside without overcrowding.
Standard Electrical Junction Box Sizes
Here are some of the most common Electrical Junction Box Sizes and their typical uses:
| Size (Cubic Inches) | Dimensions (Inches) | Typical Use |
|---|---|---|
| 18 | 2.75 x 1.75 x 2.75 | Single switch or outlet |
| 27 | 3.5 x 2.75 x 2.75 | Double switch or outlet |
| 37 | 4 x 2.75 x 2.75 | Triple switch or outlet |
| 57 | 4.5 x 3.5 x 2.75 | Large devices or multiple switches/outlets |
These sizes are just a starting point. Depending on the specific requirements of your project, you might need a custom-sized junction box.
Factors to Consider When Choosing Electrical Junction Box Sizes
Selecting the right Electrical Junction Box Size involves considering several factors to ensure safety and compliance with electrical codes. Here are some key points to keep in mind:
- Number of Wires: The more wires you need to connect, the larger the junction box should be. Overcrowding a junction box can lead to overheating and potential fire hazards.
- Type of Wires: Different types of wires have different space requirements. For example, armored cable (BX) takes up more space than non-metallic sheathed cable (NM).
- Devices and Fixtures: The size of the junction box should also accommodate the devices and fixtures you plan to install, such as switches, outlets, and light fixtures.
- Code Compliance: Always refer to local electrical codes and regulations. The National Electrical Code (NEC) provides guidelines on the minimum size requirements for junction boxes based on the number and type of wires and devices.
For example, if you are installing a single switch, an 18 cubic inch box might be sufficient. However, if you are installing a double switch and need to accommodate multiple wires, you might need a 27 cubic inch box or larger.
🔧 Note: Always double-check the specifications of the devices and wires you are using to ensure they fit within the chosen junction box size.
Special Considerations for Electrical Junction Box Sizes
In addition to the standard sizes, there are special considerations for certain types of installations. These include:
- Remodeling Boxes: These are designed to be installed in finished walls and ceilings. They often have a larger flange to cover the hole and provide a neat finish.

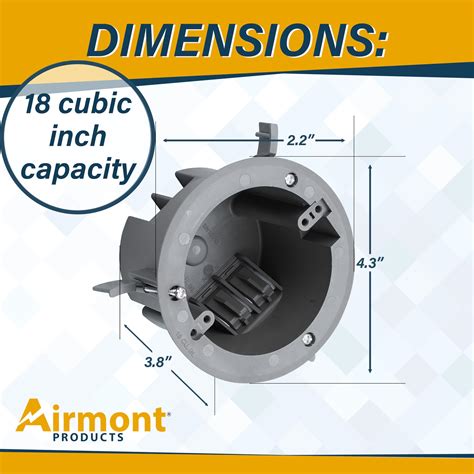

- Old Work Boxes: These are used for retrofitting electrical installations in existing walls. They have clips or wings that allow them to be secured to the drywall without the need for a stud.
- New Work Boxes: These are installed during the construction phase before the walls are finished. They are typically nailed or screwed to the studs.

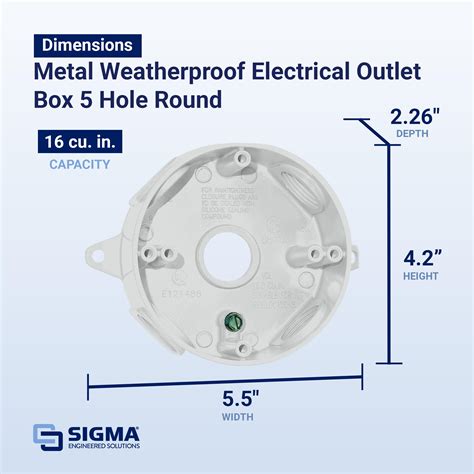

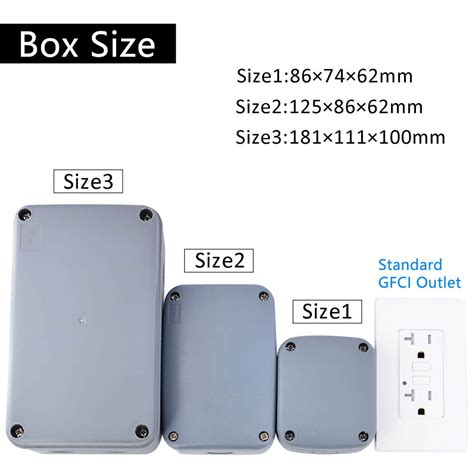

- Weatherproof Boxes: These are designed for outdoor use and are sealed to protect against moisture and other environmental factors.
Each of these types of junction boxes comes in various sizes to accommodate different wiring needs. It's essential to choose the right type and size based on your specific installation requirements.
Installation Tips for Electrical Junction Boxes
Proper installation of electrical junction boxes is crucial for safety and functionality. Here are some tips to ensure a successful installation:
- Plan Ahead: Before you start, plan the layout of your wiring and determine the locations of your junction boxes. This will help you avoid mistakes and ensure that everything fits correctly.
- Use the Right Tools: Have the necessary tools on hand, including a drill, screwdriver, wire strippers, and a level. This will make the installation process smoother and more efficient.
- Follow Safety Guidelines: Always turn off the power at the circuit breaker before working on any electrical components. Use a non-contact voltage tester to ensure the wires are not live.
- Secure the Box: Make sure the junction box is securely fastened to the wall or ceiling. This will prevent it from moving or falling out over time.
- Connect Wires Properly: Strip the wires to the correct length and connect them to the devices or fixtures according to the manufacturer's instructions. Use wire nuts to secure the connections and ensure they are tight.
By following these tips, you can ensure that your electrical junction boxes are installed correctly and safely.
🔧 Note: If you are unsure about any aspect of the installation process, consult a licensed electrician to avoid potential hazards.
Common Mistakes to Avoid with Electrical Junction Box Sizes
When working with Electrical Junction Box Sizes, it's easy to make mistakes that can compromise the safety and functionality of your electrical system. Here are some common pitfalls to avoid:
- Overcrowding: Filling a junction box with too many wires can lead to overheating and potential fire hazards. Always ensure there is enough space for all the wires and devices.
- Incorrect Box Size: Using a junction box that is too small for the number of wires and devices can cause problems. Always measure and calculate the required size before installation.
- Improper Mounting: If the junction box is not securely mounted, it can move or fall out over time, leading to loose connections and potential hazards.
- Ignoring Code Requirements: Always follow local electrical codes and regulations. Ignoring these guidelines can result in unsafe installations and potential legal issues.
By being aware of these common mistakes, you can ensure a safe and effective installation of your electrical junction boxes.
🔧 Note: Regularly inspect your electrical junction boxes to ensure they remain in good condition and are not overcrowded.
Conclusion
Choosing the right Electrical Junction Box Sizes is a critical aspect of any electrical wiring project. By understanding the different sizes available, considering the factors that influence your choice, and following proper installation techniques, you can ensure a safe and efficient electrical system. Always prioritize safety and compliance with electrical codes to avoid potential hazards and ensure the longevity of your installation.
