Understanding electricity wiring colours is crucial for anyone involved in electrical work, whether you're a professional electrician or a DIY enthusiast. Proper identification of wires ensures safety and prevents electrical hazards. This guide will walk you through the basics of electricity wiring colours, their significance, and how to use them correctly.
Understanding Electricity Wiring Colours
Electricity wiring colours are standardized to help identify the function of each wire in an electrical circuit. Different countries have different standards, but the most common colours used in residential and commercial wiring include:
- Live (Hot) Wire: Typically red or brown.
- Neutral Wire: Usually blue or black.
- Earth (Ground) Wire: Often green or green/yellow.
These colours are essential for ensuring that electrical systems are installed and maintained safely. Misidentifying wires can lead to short circuits, electrical shocks, and even fires.
Common Electricity Wiring Colours and Their Functions
Let's delve into the specific functions of each wire colour:
Live (Hot) Wire
The live wire, also known as the hot wire, carries the electrical current from the power source to the device or outlet. In many countries, the live wire is coloured red or brown. It is crucial to handle this wire with care, as it is the wire that can cause electrical shocks if touched while the power is on.
Neutral Wire
The neutral wire completes the circuit by providing a return path for the electrical current. It is usually coloured blue or black. The neutral wire is generally considered safe to touch, but it should still be handled with caution, especially in high-voltage systems.
Earth (Ground) Wire
The earth wire, or ground wire, provides a safe path for electrical current to flow to the ground in case of a fault. This wire is typically green or green/yellow. The earth wire is essential for protecting against electrical shocks and preventing fires.
International Standards for Electricity Wiring Colours
While the colours mentioned above are commonly used, it's important to note that different countries have their own standards. Here are some examples:
| Country/Region | Live Wire | Neutral Wire | Earth Wire |
|---|---|---|---|
| United Kingdom | Brown | Blue | Green/Yellow |
| United States | Black, Red, or Blue | White | Green or Green/Yellow |

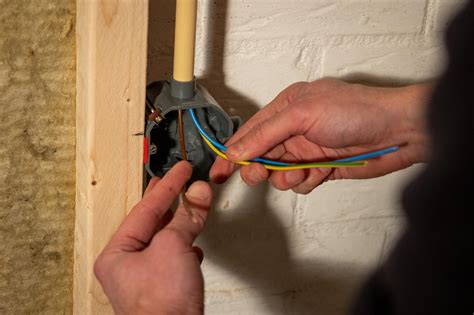

| Australia | Brown | Light Blue | Green/Yellow |
| Europe | Brown | Blue | Green/Yellow |
Always refer to the local electrical codes and standards when working with electricity wiring colours to ensure compliance and safety.
Safety Precautions When Working with Electricity Wiring Colours
Working with electrical wires can be dangerous if proper precautions are not taken. Here are some essential safety tips:
- Always turn off the power at the circuit breaker before working on any electrical wiring.
- Use insulated tools to handle wires and avoid direct contact with live wires.
- Wear appropriate personal protective equipment (PPE), including gloves and safety glasses.
- Ensure that the work area is well-lit and free from clutter.
- Double-check all connections and ensure that wires are securely fastened.
By following these precautions, you can minimize the risk of electrical hazards and ensure a safe working environment.
🛑 Note: Never attempt electrical work if you are not trained or experienced. Always consult a licensed electrician for complex tasks.
Identifying Electricity Wiring Colours in Older Wiring Systems
In older buildings, you might encounter wiring systems that use different colours or even uncoloured wires. In such cases, it's essential to use a multimeter or other testing equipment to identify the function of each wire. Here are some steps to follow:
- Turn off the power at the circuit breaker.
- Use a multimeter to test each wire. The live wire will show a voltage reading when the power is on, while the neutral wire will show a lower or no voltage reading.
- The earth wire can be identified by its connection to the grounding system.
If you are unsure about the wiring in an older system, it is best to consult a professional electrician.
🛑 Note: Older wiring systems may not comply with current safety standards. Consider upgrading the wiring if necessary.
Troubleshooting Common Issues with Electricity Wiring Colours
Even with proper identification and installation, issues can arise with electrical wiring. Here are some common problems and how to troubleshoot them:
Short Circuits
A short circuit occurs when a live wire comes into contact with a neutral or earth wire, creating a low-resistance path for the current. This can cause overheating, sparks, and even fires. To troubleshoot a short circuit:
- Turn off the power at the circuit breaker.
- Inspect the wiring for any signs of damage or exposed wires.
- Check for loose connections and tighten them if necessary.
- Replace any damaged wires or components.
Overloaded Circuits
An overloaded circuit occurs when too many devices are connected to a single circuit, causing it to draw more current than it can handle. This can lead to tripped breakers or blown fuses. To troubleshoot an overloaded circuit:
- Turn off the power at the circuit breaker.
- Identify the devices connected to the circuit and reduce the load by unplugging some of them.
- Consider adding additional circuits or outlets to distribute the load more evenly.
Faulty Outlets or Switches
Faulty outlets or switches can be caused by loose connections, damaged wires, or worn-out components. To troubleshoot faulty outlets or switches:
- Turn off the power at the circuit breaker.
- Inspect the outlet or switch for any signs of damage or wear.
- Check the connections and tighten them if necessary.
- Replace any damaged components.
If you are unsure about troubleshooting electrical issues, it is best to consult a professional electrician.
🛑 Note: Always prioritize safety when working with electrical systems. If you are not confident in your abilities, seek professional help.
Conclusion
Understanding electricity wiring colours is fundamental for anyone working with electrical systems. By knowing the functions of each wire and following safety precautions, you can ensure that your electrical work is safe and compliant with local standards. Whether you are a professional electrician or a DIY enthusiast, always prioritize safety and seek professional help when needed. Proper identification and handling of electricity wiring colours will help prevent electrical hazards and ensure the longevity of your electrical systems.
