Fire hydrants are critical components of urban infrastructure, providing a reliable water source for firefighting and other emergency situations. Understanding the various fire hydrant parts and their functions is essential for maintenance, repair, and ensuring the overall efficiency of the system. This post delves into the anatomy of fire hydrants, highlighting key components and their roles.

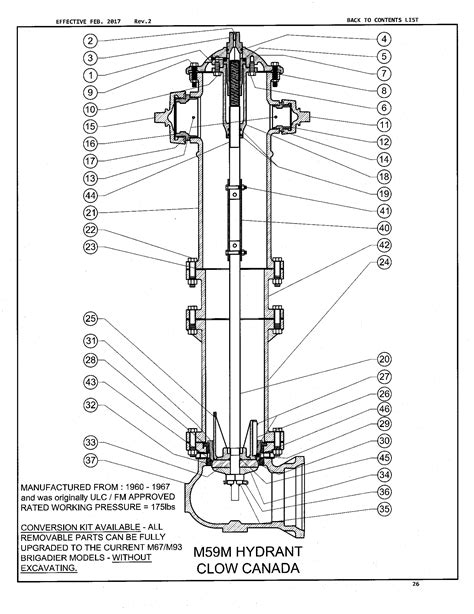

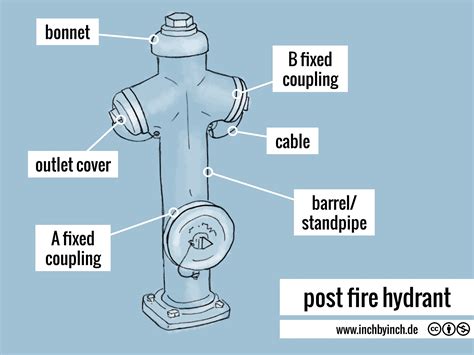

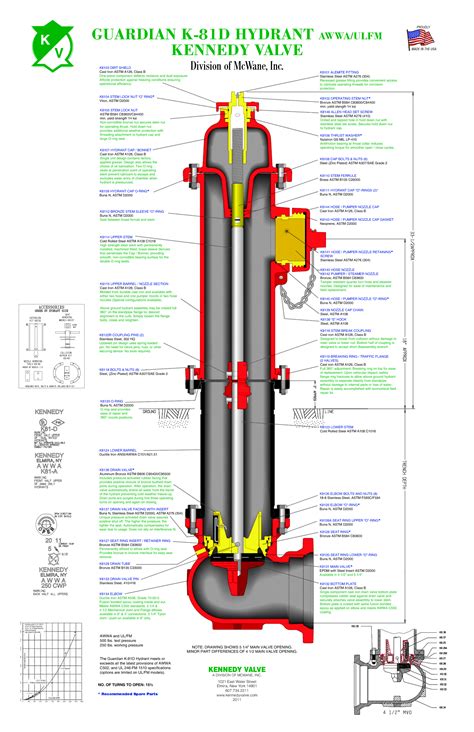

Understanding Fire Hydrant Parts
Fire hydrants are composed of several key components, each playing a crucial role in the hydrant's operation. Familiarizing yourself with these parts can help in identifying issues and performing necessary maintenance.
Barrel
The barrel is the main body of the fire hydrant, typically made of cast iron or ductile iron. It houses the internal mechanisms and connects to the water supply. The barrel is designed to withstand high water pressure and external impacts, ensuring durability and reliability.
Bonnet
The bonnet is the top part of the fire hydrant, which covers the internal mechanisms and protects them from environmental elements. It is usually made of cast iron and is secured to the barrel with bolts. The bonnet also serves as a mounting point for the hydrant's operating nut and cap.
Operating Nut
The operating nut is a critical component that allows firefighters to open and close the hydrant. It is located on top of the bonnet and is turned using a special wrench. When the nut is turned, it activates the internal mechanism that controls the water flow.
Steamer Connection
The steamer connection is a smaller outlet on the hydrant used for high-pressure water supply. It is typically located near the top of the hydrant and is connected to a smaller hose. This connection is essential for supplying water to fire engines and other equipment that require high-pressure water.
Pumper Connection
The pumper connection is the primary outlet on the fire hydrant, designed to supply large volumes of water at lower pressure. It is usually located below the steamer connection and is connected to a larger hose. This connection is crucial for firefighting operations that require a steady and substantial water supply.
Drain Valve
The drain valve is a small valve located at the base of the hydrant. It is used to drain water from the hydrant after use, preventing freezing and corrosion. The drain valve is essential for maintaining the hydrant's functionality, especially in cold climates.
Hydrant Cap
The hydrant cap is a protective cover that fits over the operating nut and steamer connection. It prevents debris and contaminants from entering the hydrant and protects the internal mechanisms from damage. The cap is usually made of cast iron or plastic and is secured with a chain or cable.
Breakaway Coupling
The breakaway coupling is a safety feature designed to disconnect the hydrant from the water supply in case of an impact or accident. It is located between the hydrant and the water main and is designed to break away at a specific pressure, preventing damage to the hydrant and water supply system.
Hydrant Valve
The hydrant valve is the internal mechanism that controls the water flow. It is operated by the operating nut and can be opened or closed to regulate the water supply. The valve is typically made of brass or bronze and is designed to withstand high water pressure and corrosion.
Hydrant Stem
The hydrant stem is a vertical shaft that connects the operating nut to the hydrant valve. It is turned by the operating nut and activates the valve to control the water flow. The stem is usually made of brass or bronze and is designed to be durable and corrosion-resistant.
Hydrant Seal
The hydrant seal is a rubber or plastic gasket that prevents water from leaking around the hydrant valve. It is located between the valve and the barrel and ensures a tight seal when the valve is closed. The seal is essential for maintaining the hydrant's efficiency and preventing water waste.
Hydrant Paint
The color of the hydrant paint indicates the flow rate of the hydrant. Different colors are used to signify different flow rates, helping firefighters quickly identify the appropriate hydrant for their needs. Common colors include red, yellow, green, and blue, each representing a specific flow rate range.
Hydrant Signage
Hydrant signage provides important information about the hydrant, such as its flow rate, pressure, and any special instructions. The signage is usually located near the hydrant and is designed to be easily visible and readable. It is essential for firefighters to quickly access this information during emergencies.
Hydrant Maintenance
Maintaining fire hydrants is crucial for ensuring their reliability and efficiency. Regular inspections and maintenance can help identify and address issues before they become major problems. Key maintenance tasks include:
- Inspecting the hydrant for signs of damage or corrosion.
- Checking the operating nut and stem for proper functioning.
- Testing the hydrant valve to ensure it opens and closes correctly.
- Inspecting the hydrant seal for leaks or wear.
- Checking the hydrant cap and drain valve for proper functioning.
- Ensuring the hydrant paint and signage are visible and accurate.
Regular maintenance helps extend the lifespan of fire hydrants and ensures they are ready for use in emergencies.
🔧 Note: Always follow local regulations and guidelines when performing maintenance on fire hydrants. Ensure that all necessary permits and inspections are completed before any work is done.
Common Issues with Fire Hydrant Parts
Despite regular maintenance, fire hydrants can still experience issues. Some common problems include:
- Corrosion of the barrel, bonnet, or other metal parts.
- Leaks around the hydrant valve or seal.
- Malfunctioning operating nut or stem.
- Damaged or missing hydrant cap.
- Clogged or damaged drain valve.
- Inaccurate or missing hydrant signage.
Addressing these issues promptly can prevent more significant problems and ensure the hydrant's reliability.
🛠️ Note: If you encounter any issues with fire hydrant parts, it is essential to contact a professional for repair or replacement. Attempting to fix the hydrant yourself can lead to further damage or safety hazards.
Fire Hydrant Parts Table
| Part Name | Function | Material |
|---|---|---|
| Barrel | Houses internal mechanisms and connects to water supply | Cast iron or ductile iron |
| Bonnet | Covers and protects internal mechanisms | Cast iron |
| Operating Nut | Controls water flow | Brass or bronze |
| Steamer Connection | Supplies high-pressure water | Brass or bronze |
| Pumper Connection | Supplies large volumes of water at lower pressure | Brass or bronze |
| Drain Valve | Drains water from the hydrant | Brass or bronze |
| Hydrant Cap | Protects internal mechanisms from debris | Cast iron or plastic |
| Breakaway Coupling | Disconnects hydrant from water supply in case of impact | Brass or bronze |
| Hydrant Valve | Controls water flow | Brass or bronze |
| Hydrant Stem | Connects operating nut to hydrant valve | Brass or bronze |
| Hydrant Seal | Prevents water leaks around the valve | Rubber or plastic |
| Hydrant Paint | Indicates flow rate | Various colors |
| Hydrant Signage | Provides important information about the hydrant | Various materials |
Understanding the various fire hydrant parts and their functions is essential for maintaining the reliability and efficiency of these critical components. Regular inspections and maintenance can help identify and address issues, ensuring that fire hydrants are ready for use in emergencies.
Fire hydrants play a vital role in urban infrastructure, providing a reliable water source for firefighting and other emergency situations. By familiarizing yourself with the key components and their functions, you can better understand the importance of regular maintenance and the impact of proper care on the overall efficiency of the system.
In summary, fire hydrants are composed of several key components, each playing a crucial role in the hydrant’s operation. Familiarizing yourself with these parts can help in identifying issues and performing necessary maintenance. Regular inspections and maintenance can help extend the lifespan of fire hydrants and ensure they are ready for use in emergencies. Understanding the various fire hydrant parts and their functions is essential for maintaining the reliability and efficiency of these critical components.
