Flow Meter Coriolis Principle

In the realm of industrial process measurement, the Flow Meter Coriolis Principle stands out as a highly accurate and reliable method for determining the mass flow rate of fluids. This principle leverages the Coriolis effect, a phenomenon that occurs when a fluid flows through a vibrating tube, causing a phase shift that can be measured to determine the flow rate. Understanding the Flow Meter Coriolis Principle is crucial for industries that require precise flow measurement, such as oil and gas, chemical processing, and food and beverage production.

Table of Contents

Understanding the Coriolis Principle

The Coriolis effect is named after the French mathematician Gaspard-Gustave de Coriolis, who described it in the 19th century. In the context of flow measurement, the Coriolis effect manifests when a fluid flows through a vibrating tube. The vibration causes the tube to twist slightly, resulting in a phase shift between the inlet and outlet of the tube. This phase shift is directly proportional to the mass flow rate of the fluid.

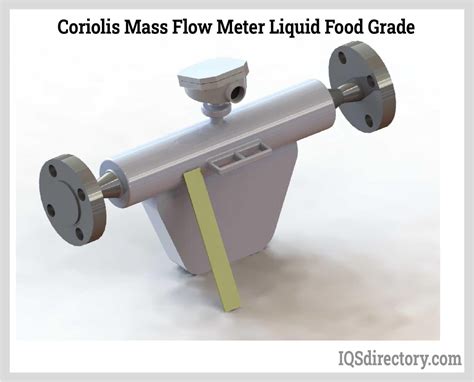

How Coriolis Flow Meters Work

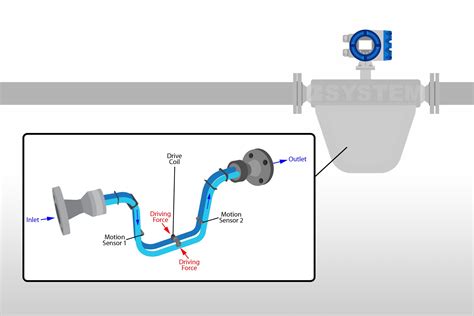

Coriolis flow meters operate on the principle of measuring the phase shift caused by the Coriolis effect. Here’s a step-by-step breakdown of how these meters function:

The fluid enters the flow meter through an inlet tube.
The tube is vibrated at its natural frequency using an actuator, typically an electromagnetic coil.
As the fluid flows through the vibrating tube, it experiences the Coriolis effect, causing a twisting motion.
Sensors at the inlet and outlet of the tube detect the phase shift between the two points.
The phase shift is measured and converted into a mass flow rate using a microprocessor.

Advantages of Coriolis Flow Meters

Coriolis flow meters offer several advantages that make them a preferred choice for many industrial applications:

High Accuracy: Coriolis flow meters provide highly accurate measurements, often within 0.1% of the actual flow rate.
Direct Mass Flow Measurement: Unlike other flow meters that measure volumetric flow, Coriolis meters directly measure mass flow, which is crucial for applications where density varies.
Versatility: These meters can handle a wide range of fluids, including liquids, gases, and slurries.
Low Maintenance: Coriolis flow meters have no moving parts in contact with the fluid, reducing the need for maintenance and calibration.
Compact Design: Their compact size makes them suitable for installations where space is limited.

Applications of Coriolis Flow Meters

Coriolis flow meters are used in various industries due to their precision and reliability. Some of the key applications include:

Oil and Gas: Measuring the flow of crude oil, natural gas, and refined products.
Chemical Processing: Monitoring the flow of chemicals in production processes.
Food and Beverage: Ensuring accurate dosing and mixing of ingredients.
Pharmaceuticals: Precise measurement of active ingredients and solvents.
Water Treatment: Monitoring the flow of water and chemicals in treatment processes.

Types of Coriolis Flow Meters

Coriolis flow meters come in various designs to suit different applications. The most common types include:

Straight-Tube Design: Features a single straight tube that vibrates. This design is simple and easy to manufacture but may not be suitable for high-viscosity fluids.
U-Tube Design: Consists of a U-shaped tube that vibrates. This design is more compact and can handle a wider range of fluids, including high-viscosity liquids.
Omega-Tube Design: Similar to the U-tube design but with a more complex shape that provides better sensitivity and accuracy.

Installation and Maintenance

Proper installation and maintenance are crucial for the accurate operation of Coriolis flow meters. Here are some key considerations:

Installation: Ensure the flow meter is installed in a straight section of the pipeline to avoid turbulence. Use appropriate supports to minimize vibration and ensure proper alignment.
Maintenance: Regularly inspect the flow meter for any signs of wear or damage. Clean the sensors and tubes as needed to maintain accuracy.
Calibration: Periodically calibrate the flow meter to ensure it remains accurate. This can be done using a known flow rate or by comparing it to another calibrated flow meter.

🔧 Note: Always follow the manufacturer's guidelines for installation, maintenance, and calibration to ensure optimal performance.

Factors Affecting Accuracy

Several factors can affect the accuracy of Coriolis flow meters. Understanding these factors can help in optimizing their performance:

Fluid Properties: The density, viscosity, and temperature of the fluid can impact the accuracy of the measurement.
Flow Rate: Very low or very high flow rates can affect the sensitivity of the meter.
Vibration: External vibrations can interfere with the measurement, leading to inaccuracies.
Temperature Changes: Significant temperature changes can affect the vibration frequency of the tube, impacting the measurement.

Comparison with Other Flow Meters

Coriolis flow meters are often compared with other types of flow meters, such as differential pressure, turbine, and electromagnetic flow meters. Here’s a comparison to highlight the strengths and weaknesses of each:

Type of Flow Meter	Measurement Principle	Accuracy	Advantages	Disadvantages
Coriolis	Coriolis Effect	High (0.1%)	Direct mass flow measurement, versatile, low maintenance	Expensive, sensitive to vibration
Differential Pressure	Pressure Drop	Moderate (1-2%)	Simple, robust, low cost	Indirect measurement, affected by fluid properties
Turbine	Rotational Speed	High (0.25%)	High accuracy, suitable for clean fluids	Mechanical wear, not suitable for viscous fluids
Electromagnetic	Faraday's Law	High (0.5%)	No moving parts, suitable for conductive fluids	Not suitable for non-conductive fluids, affected by magnetic fields

Future Trends in Coriolis Flow Measurement

The technology behind Coriolis flow meters continues to evolve, driven by advancements in sensor technology, data analytics, and digital communication. Some of the emerging trends include:

Wireless Communication: Integration with wireless communication protocols for remote monitoring and control.
IoT Integration: Connecting Coriolis flow meters to the Internet of Things (IoT) for real-time data analysis and predictive maintenance.
Advanced Materials: Use of advanced materials for the vibrating tubes to improve durability and sensitivity.
Enhanced Software: Development of sophisticated software algorithms for better data processing and accuracy.

Coriolis flow meters have revolutionized the way industries measure fluid flow, offering unparalleled accuracy and reliability. By understanding the Flow Meter Coriolis Principle and its applications, industries can optimize their processes, improve efficiency, and ensure compliance with regulatory standards. The future of Coriolis flow measurement looks promising, with ongoing innovations set to enhance its capabilities further.
