Ftp Server Port

Understanding the intricacies of an FTP server port is crucial for anyone involved in network administration or file transfer management. FTP, or File Transfer Protocol, is a standard network protocol used for the transfer of files from one host to another over a TCP-based network, such as the Internet. The FTP server port is a critical component in this process, facilitating the communication between the client and the server. This blog post will delve into the details of the FTP server port, its significance, configuration, and best practices for securing it.

Understanding FTP Server Ports

FTP operates on two primary ports: the control port and the data port. The control port is used for sending commands from the client to the server, while the data port is used for transferring the actual data files. By default, the FTP control port is port 21, and the data port is port 20. However, these ports can be configured to use different values depending on the server's setup and security requirements.

Types of FTP Connections

There are two main types of FTP connections: active and passive. Understanding these types is essential for configuring the FTP server port correctly.

Active FTP

In an active FTP connection, the client opens a random port (N > 1023) and sends a PORT command to the server, informing it of this port. The server then initiates a connection back to the client on this port to transfer data. This method requires that the client's firewall allows incoming connections on the specified port.

Passive FTP

In a passive FTP connection, the client initiates both the control and data connections. The server opens a random port (P > 1023) and sends this port number to the client using the PASV command. The client then connects to this port to transfer data. This method is generally more firewall-friendly, as it only requires outgoing connections from the client.

Configuring FTP Server Ports

Configuring the FTP server port involves several steps, depending on the FTP server software being used. Below are general steps for configuring the FTP server port:

Step 1: Choose the FTP Server Software

Select an FTP server software that suits your needs. Popular options include vsftpd, ProFTPD, and FileZilla Server. Each software has its own configuration files and methods for setting up the FTP server port.

Step 2: Edit the Configuration File

Locate the configuration file for your FTP server software. This file typically contains settings for the control and data ports. For example, in vsftpd, the configuration file is usually located at /etc/vsftpd.conf.

Step 3: Set the Control Port

Modify the configuration file to set the control port. For vsftpd, you can add or edit the following line:

listen_port=21

This sets the control port to the default value of 21. You can change this to any other port number if needed.

Step 4: Set the Data Port

For passive mode, you need to configure the range of ports that the server will use for data transfer. In vsftpd, you can add the following lines to the configuration file:

pasv_enable=YES
pasv_min_port=40000
pasv_max_port=40100

This sets the passive mode to enabled and specifies a range of ports (40000 to 40100) for data transfer.

Step 5: Restart the FTP Server

After making the necessary changes to the configuration file, restart the FTP server to apply the new settings. For vsftpd, you can use the following command:

sudo systemctl restart vsftpd

🔒 Note: Ensure that the firewall allows traffic on the specified FTP server ports. You may need to add rules to your firewall configuration to permit incoming and outgoing connections on these ports.

Securing the FTP Server Port

Securing the FTP server port is essential to protect against unauthorized access and data breaches. Here are some best practices for securing the FTP server port:

Use Strong Authentication

Ensure that strong passwords are used for FTP accounts. Consider implementing two-factor authentication (2FA) for an added layer of security.

Enable Encryption

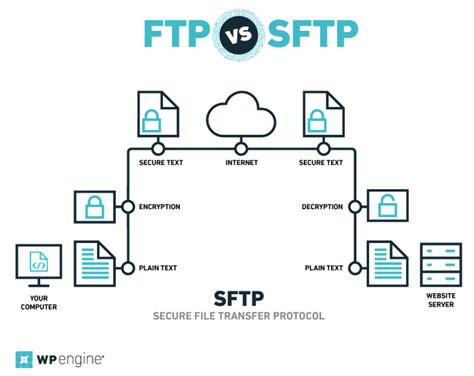

Use FTP over SSL/TLS (FTPS) or SFTP (SSH File Transfer Protocol) to encrypt data transfers. This prevents eavesdropping and man-in-the-middle attacks.

Limit Access

Restrict access to the FTP server by configuring firewall rules and access control lists (ACLs). Only allow connections from trusted IP addresses.

Regularly Update Software

Keep the FTP server software up to date with the latest security patches and updates. This helps protect against known vulnerabilities.

Monitor Activity

Regularly monitor FTP server activity for any suspicious behavior. Use logging and monitoring tools to detect and respond to potential security threats.

Troubleshooting FTP Server Port Issues

If you encounter issues with the FTP server port, here are some common troubleshooting steps:

Check Firewall Settings

Ensure that the firewall allows traffic on the specified FTP server ports. Verify that both the control and data ports are open and accessible.

Verify Configuration Files

Double-check the configuration files for any errors or misconfigurations. Ensure that the control and data ports are correctly set.

Test Connectivity

Use tools like telnet or nc (netcat) to test connectivity to the FTP server port. For example, you can use the following command to test port 21:

telnet your_server_ip 21

If the connection is successful, you should see a response from the FTP server.

Check Logs

Review the FTP server logs for any error messages or warnings. The logs can provide valuable information for diagnosing and resolving issues.

Here is a table summarizing the default FTP server ports and their purposes:

By understanding and properly configuring the FTP server port, you can ensure efficient and secure file transfers. Regular monitoring and updates will help maintain the security and reliability of your FTP server.

In conclusion, the FTP server port plays a vital role in facilitating file transfers between clients and servers. By configuring the control and data ports correctly, implementing strong security measures, and regularly monitoring the server, you can ensure a smooth and secure file transfer process. Whether you are using active or passive FTP, understanding the intricacies of the FTP server port is essential for effective network management.
