The Hoop Stress Equation is a fundamental concept in the field of mechanical engineering and materials science, particularly in the design and analysis of cylindrical pressure vessels. Understanding this equation is crucial for ensuring the safety and reliability of structures that operate under internal or external pressure, such as pipes, tanks, and boilers. This blog post will delve into the intricacies of the Hoop Stress Equation, its derivation, applications, and practical considerations.
Understanding Hoop Stress
Hoop stress, also known as circumferential stress, is the stress exerted circumferentially (along the circumference) in a cylindrical vessel due to internal or external pressure. This type of stress is particularly important in the design of pressure vessels because it directly affects the structural integrity of the vessel. The Hoop Stress Equation helps engineers calculate the stress in the walls of a cylindrical vessel, ensuring that the material can withstand the applied pressure without failing.
The Hoop Stress Equation
The Hoop Stress Equation is derived from the principles of static equilibrium and the theory of elasticity. For a thin-walled cylindrical pressure vessel, the hoop stress (σh) can be calculated using the following formula:
📝 Note: The formula assumes that the thickness of the cylinder wall is much smaller than its radius.
σh = (P * r) / t
Where:
- σh is the hoop stress
- P is the internal pressure
- r is the radius of the cylinder
- t is the thickness of the cylinder wall
Derivation of the Hoop Stress Equation
The derivation of the Hoop Stress Equation involves applying the principles of static equilibrium to a cylindrical pressure vessel. Consider a thin-walled cylinder of radius r and wall thickness t subjected to an internal pressure P. The forces acting on the cylinder can be analyzed by considering a section of the cylinder.
For a cylindrical section of length L, the internal pressure P exerts a force on the end caps of the cylinder. This force is balanced by the hoop stress in the walls of the cylinder. The force due to internal pressure is given by:
F = P * A
Where A is the area of the end cap, which is πr2. Therefore, the force is:
F = P * πr2
This force is resisted by the hoop stress in the walls of the cylinder. The hoop stress acts circumferentially and can be considered as a tensile stress in the circumferential direction. The total force due to hoop stress is given by:
Fh = σh * Ah
Where Ah is the cross-sectional area of the cylinder wall, which is 2πrt (since the wall thickness t is much smaller than the radius r). Therefore, the force due to hoop stress is:
Fh = σh * 2πrt
For static equilibrium, the force due to internal pressure must be equal to the force due to hoop stress:
P * πr2 = σh * 2πrt
Solving for σh, we get:
σh = (P * r) / t
Applications of the Hoop Stress Equation
The Hoop Stress Equation has wide-ranging applications in various industries where pressure vessels are used. Some of the key applications include:
- Pipelines and Pipes: In the oil and gas industry, pipelines are subjected to high internal pressures. The Hoop Stress Equation is used to design pipelines that can withstand these pressures without failing.
- Pressure Vessels: Pressure vessels such as tanks, boilers, and reactors are designed using the Hoop Stress Equation to ensure they can safely contain the internal pressure.
- Automotive and Aerospace: In the automotive and aerospace industries, components such as fuel tanks and hydraulic systems are designed using the Hoop Stress Equation to ensure they can withstand the operating pressures.
- Chemical and Petrochemical Industries: Chemical reactors and storage tanks are designed using the Hoop Stress Equation to ensure they can safely contain corrosive and high-pressure chemicals.
Practical Considerations
While the Hoop Stress Equation provides a straightforward method for calculating hoop stress, there are several practical considerations that engineers must take into account:
- Material Properties: The material used for the pressure vessel must have sufficient strength and ductility to withstand the hoop stress. Common materials include steel, stainless steel, and composite materials.
- Corrosion and Erosion: The internal and external surfaces of the pressure vessel may be subjected to corrosion and erosion, which can reduce the effective wall thickness and increase the hoop stress. Proper corrosion protection measures must be implemented.
- Temperature Effects: High temperatures can affect the mechanical properties of the material, reducing its strength and increasing the risk of failure. Temperature effects must be considered in the design and analysis of pressure vessels.
- Welding and Fabrication: The fabrication process, including welding, can introduce residual stresses and defects that can affect the performance of the pressure vessel. Proper welding techniques and quality control measures must be implemented.
Example Calculation
To illustrate the use of the Hoop Stress Equation, consider a thin-walled cylindrical pressure vessel with the following specifications:
| Parameter | Value |
|---|---|
| Internal Pressure (P) | 5 MPa |
| Radius (r) | 1 m |
| Wall Thickness (t) | 0.02 m |
Using the Hoop Stress Equation, the hoop stress can be calculated as follows:
σh = (P * r) / t
σh = (5 MPa * 1 m) / 0.02 m
σh = 250 MPa
Therefore, the hoop stress in the walls of the pressure vessel is 250 MPa.
📝 Note: This calculation assumes that the material of the pressure vessel can withstand the calculated hoop stress. Additional factors such as material properties, corrosion, and temperature effects must be considered in the final design.
In this example, the calculated hoop stress is 250 MPa. Engineers must ensure that the material selected for the pressure vessel has a yield strength greater than 250 MPa to prevent failure. Additionally, safety factors are typically applied to account for uncertainties and variations in material properties and operating conditions.
Advanced Considerations
While the Hoop Stress Equation provides a basic framework for calculating hoop stress in thin-walled cylindrical pressure vessels, there are more advanced considerations that engineers must take into account for complex geometries and loading conditions. Some of these considerations include:

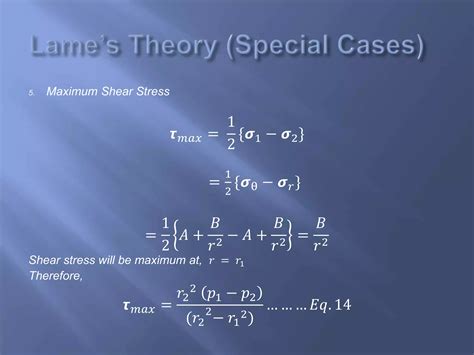

- Thick-Walled Cylinders: For thick-walled cylinders, the Hoop Stress Equation must be modified to account for the variation in stress across the wall thickness. The Lame equations are used to calculate the hoop stress in thick-walled cylinders.
- Non-Circular Cross-Sections: For pressure vessels with non-circular cross-sections, such as elliptical or rectangular vessels, the Hoop Stress Equation must be modified to account for the geometry of the vessel.
- Dynamic Loading: For pressure vessels subjected to dynamic loading, such as pulsating pressure or vibration, the Hoop Stress Equation must be modified to account for the dynamic effects.
- Composite Materials: For pressure vessels made from composite materials, the Hoop Stress Equation must be modified to account for the anisotropic properties of the material.
These advanced considerations require a more detailed analysis and may involve the use of finite element analysis (FEA) software to accurately model the stress distribution in the pressure vessel.
In conclusion, the Hoop Stress Equation is a fundamental tool in the design and analysis of cylindrical pressure vessels. It provides a straightforward method for calculating the hoop stress in thin-walled cylinders and is widely used in various industries. However, engineers must consider practical factors such as material properties, corrosion, temperature effects, and fabrication processes to ensure the safety and reliability of pressure vessels. Additionally, advanced considerations such as thick-walled cylinders, non-circular cross-sections, dynamic loading, and composite materials may require more detailed analysis and the use of specialized software. By understanding and applying the Hoop Stress Equation, engineers can design pressure vessels that are safe, reliable, and efficient.
