Horizontal Axis Wind Mill

Harnessing the power of wind has been a human endeavor for centuries, evolving from simple windmills to sophisticated Horizontal Axis Wind Mill (HAWM) systems. These modern wind turbines have revolutionized the way we generate clean, renewable energy. This post delves into the intricacies of Horizontal Axis Wind Mills, their components, working principles, advantages, and environmental impact.

Table of Contents

Understanding Horizontal Axis Wind Mills

A Horizontal Axis Wind Mill is a type of wind turbine where the main rotor shaft is set horizontally, parallel to the wind. This design is the most common and widely used in wind farms around the world. The basic principle involves converting the kinetic energy of the wind into mechanical energy, which is then transformed into electrical energy.

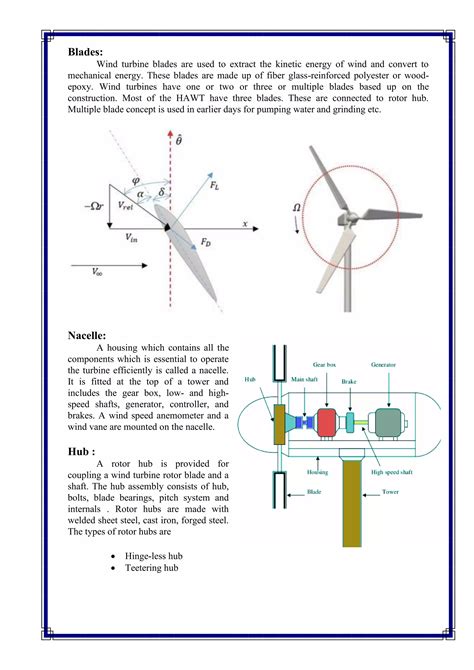

Components of a Horizontal Axis Wind Mill

The primary components of a Horizontal Axis Wind Mill include:

Blades: These capture the wind's energy and rotate the rotor.
Rotor: The assembly that includes the blades and the hub, which is connected to the main shaft.
Main Shaft: Transmits the rotational energy from the rotor to the gearbox.
Gearbox: Increases the rotational speed from the low-speed shaft to the high-speed shaft.
Generator: Converts the mechanical energy into electrical energy.
Nacelle: Houses the gearbox, generator, and other components.
Tower: Supports the nacelle and rotor, elevating them to capture stronger and more consistent winds.

Working Principle of Horizontal Axis Wind Mills

The operation of a Horizontal Axis Wind Mill can be broken down into several key steps:

Wind Capture: The blades capture the wind's kinetic energy, causing the rotor to turn.
Mechanical Energy Conversion: The rotor's rotation is transmitted through the main shaft to the gearbox.
Speed Increase: The gearbox increases the rotational speed, which is then transferred to the generator.
Electrical Energy Generation: The generator converts the mechanical energy into electrical energy, which is then fed into the power grid.

💡 Note: The efficiency of a Horizontal Axis Wind Mill depends on various factors, including wind speed, blade design, and the overall mechanical efficiency of the system.

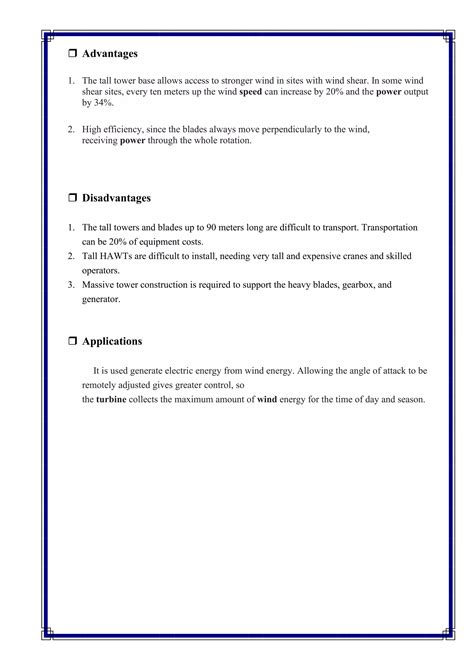

Advantages of Horizontal Axis Wind Mills

Horizontal Axis Wind Mills offer several advantages that make them a preferred choice for wind energy generation:

High Efficiency: Modern HAWMs can achieve high efficiency rates, converting a significant portion of the wind's kinetic energy into electrical energy.
Scalability: These wind turbines can be scaled up or down depending on the energy requirements and available land.
Reliability: With advancements in technology, HAWMs have become more reliable and require less maintenance.
Environmental Benefits: They produce clean energy with minimal environmental impact, reducing reliance on fossil fuels.

Environmental Impact of Horizontal Axis Wind Mills

While Horizontal Axis Wind Mills are a clean source of energy, they do have some environmental considerations:

Noise Pollution: The operation of wind turbines can generate noise, which may affect nearby residents.
Wildlife Impact: Birds and bats can be affected by the rotating blades, although modern designs and placement strategies aim to minimize this impact.
Visual Impact: Large wind farms can alter the landscape, which may be a concern for some communities.

Despite these challenges, the overall environmental benefits of Horizontal Axis Wind Mills make them a crucial component of sustainable energy strategies.

Types of Horizontal Axis Wind Mills

Horizontal Axis Wind Mills can be categorized based on their design and application:

Upwind Turbines: These turbines have the rotor facing the wind, with the blades positioned in front of the tower. This design is common in many modern wind farms.
Downwind Turbines: In this design, the rotor is positioned downstream of the tower, allowing the wind to pass through the blades after hitting the tower. This can reduce the structural load on the tower but may increase turbulence.

Each type has its own advantages and is chosen based on specific site conditions and energy requirements.

Applications of Horizontal Axis Wind Mills

Horizontal Axis Wind Mills are used in a variety of applications, from small-scale residential use to large-scale commercial wind farms. Some key applications include:

Residential Use: Small Horizontal Axis Wind Mills can be installed in residential areas to provide electricity for homes.

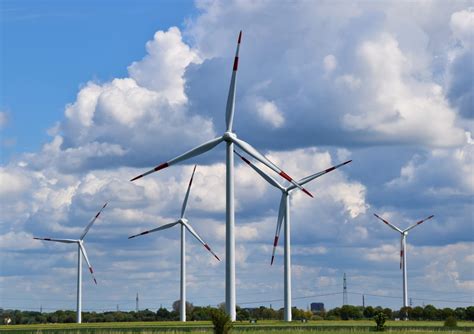

Commercial Wind Farms: Large-scale wind farms consisting of multiple HAWMs generate significant amounts of electricity for the grid.
Offshore Wind Farms: These are installed in bodies of water, taking advantage of stronger and more consistent winds.
Hybrid Systems: Combining Horizontal Axis Wind Mills with other renewable energy sources like solar panels can provide a more stable and reliable energy supply.

Maintenance and Lifespan of Horizontal Axis Wind Mills

Regular maintenance is crucial for the longevity and efficiency of Horizontal Axis Wind Mills. Key maintenance tasks include:

Routine Inspections: Regular checks of the blades, gearbox, and other components to ensure they are in good working condition.
Lubrication: Ensuring all moving parts are properly lubricated to reduce wear and tear.
Electrical System Checks: Verifying the integrity of the electrical components to prevent failures.

The lifespan of a well-maintained Horizontal Axis Wind Mill can exceed 20 years, making them a long-term investment in renewable energy.

💡 Note: Proper maintenance schedules and protocols should be followed to maximize the lifespan and efficiency of the wind turbine.

Future Trends in Horizontal Axis Wind Mill Technology

The future of Horizontal Axis Wind Mill technology is promising, with several advancements on the horizon:

Advanced Materials: The use of lighter and stronger materials for blades and other components can improve efficiency and reduce costs.
Smart Grid Integration: Enhanced integration with smart grids can optimize energy distribution and storage.
Artificial Intelligence: AI can be used to predict maintenance needs and optimize turbine performance.
Offshore Innovations: Advances in offshore wind technology, including floating turbines, can tap into stronger and more consistent winds.

These innovations are set to make Horizontal Axis Wind Mills even more efficient and cost-effective, furthering their role in the transition to renewable energy.

Case Studies of Successful Horizontal Axis Wind Mill Implementations

Several successful implementations of Horizontal Axis Wind Mills highlight their effectiveness and versatility:

Gansu Wind Farm, China: One of the largest wind farms in the world, featuring thousands of HAWMs generating massive amounts of clean energy.
Whitelee Windfarm, Scotland: A large onshore wind farm that provides a significant portion of Scotland's renewable energy needs.
London Array, UK: An offshore wind farm that demonstrates the potential of Horizontal Axis Wind Mills in marine environments.

These case studies illustrate the scalability and impact of HAWMs in various settings.

Challenges and Solutions in Horizontal Axis Wind Mill Deployment

Despite their benefits, deploying Horizontal Axis Wind Mills comes with several challenges:

Site Selection: Finding suitable locations with consistent wind speeds and minimal environmental impact.
Grid Integration: Ensuring that the generated energy can be efficiently integrated into the existing power grid.
Public Acceptance: Addressing concerns from local communities about visual impact and noise pollution.

Solutions to these challenges include advanced site assessment tools, improved grid management technologies, and community engagement strategies.

💡 Note: Effective planning and community involvement are key to overcoming deployment challenges and ensuring the success of Horizontal Axis Wind Mill projects.

Economic Considerations of Horizontal Axis Wind Mills

The economic viability of Horizontal Axis Wind Mills is influenced by several factors:

Initial Investment: The upfront cost of purchasing and installing the wind turbines.
Operational Costs: Ongoing expenses for maintenance and repairs.
Energy Prices: The cost of electricity generated by the wind turbines compared to traditional sources.
Government Incentives: Tax credits, subsidies, and other financial incentives that can reduce the overall cost.

While the initial investment can be high, the long-term benefits and cost savings make Horizontal Axis Wind Mills a financially sound choice for many.

Comparing Horizontal Axis Wind Mills with Vertical Axis Wind Mills

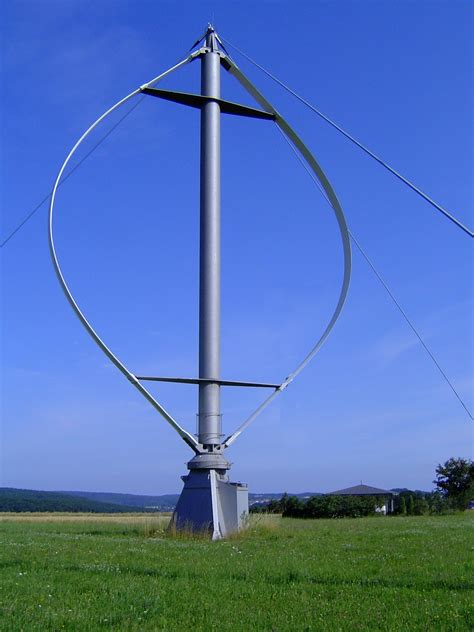

While Horizontal Axis Wind Mills are the most common, Vertical Axis Wind Mills (VAWMs) offer an alternative design:

Horizontal Axis Wind Mills	Vertical Axis Wind Mills
Rotor shaft is horizontal	Rotor shaft is vertical
Higher efficiency in consistent wind conditions	Can operate in variable wind directions
Larger size and higher cost	Smaller size and lower cost
More suitable for large-scale wind farms	More suitable for urban and residential areas

Each type has its own advantages, and the choice between them depends on specific requirements and site conditions.

In conclusion, Horizontal Axis Wind Mills represent a significant advancement in renewable energy technology. Their efficiency, scalability, and environmental benefits make them a cornerstone of modern wind energy generation. As technology continues to evolve, HAWMs will play an increasingly crucial role in the global transition to sustainable energy sources. The future of wind power looks bright, with ongoing innovations promising even greater efficiency and cost-effectiveness. The successful implementation of Horizontal Axis Wind Mills in various settings around the world underscores their potential to meet the growing demand for clean, renewable energy.
