Ip Static Ubuntu

Configuring an IP static Ubuntu setup is a crucial task for many network administrators and system users. Whether you're setting up a server, a desktop, or any other device running Ubuntu, having a static IP address can provide stability and predictability in network communications. This guide will walk you through the process of configuring a static IP address on Ubuntu, covering both graphical and command-line methods. By the end, you'll have a clear understanding of how to set up an IP static Ubuntu configuration that suits your needs.

Table of Contents

Understanding Static IP Addresses

A static IP address is a fixed IP address assigned to a device. Unlike dynamic IP addresses, which can change over time, a static IP address remains constant. This is particularly useful for servers, network devices, and any system that needs to be consistently accessible from the network.

Prerequisites

Before you begin, ensure you have the following:

Administrative access to the Ubuntu system.
Basic knowledge of networking concepts.
Network configuration details, such as the desired IP address, subnet mask, gateway, and DNS servers.

Configuring a Static IP Address Using the Graphical Interface

If you prefer using a graphical interface, Ubuntu’s Network Manager makes it easy to configure a static IP address. Follow these steps:

Step 1: Open Network Settings

Click on the network icon in the system tray and select “Settings” or “Network Settings.”

Step 2: Select the Network Interface

In the Network settings window, select the network interface you want to configure (e.g., Ethernet or Wi-Fi).

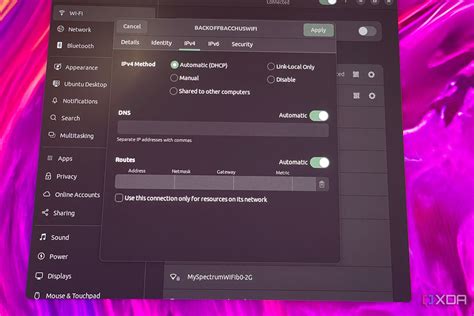

Step 3: Configure IP Address

Click on the gear icon next to the network interface to open the settings for that interface. In the IPv4 tab, select the “Manual” option. Then, enter the following details:

Address: The static IP address you want to assign (e.g., 192.168.1.100).
Netmask: The subnet mask (e.g., 255.255.255.0).
Gateway: The default gateway (e.g., 192.168.1.1).
DNS: The DNS servers (e.g., 8.8.8.8 and 8.8.4.4).

Step 4: Apply the Changes

Click “Apply” to save the changes. Your network interface should now be configured with a static IP address.

💡 Note: If you encounter any issues, ensure that the IP address you are assigning is not already in use on the network.

Configuring a Static IP Address Using the Command Line

For those who prefer the command line, configuring a static IP address on Ubuntu can be done using the netplan configuration tool. Follow these steps:

Step 1: Open a Terminal

Open a terminal window. You can do this by pressing Ctrl + Alt + T.

Step 2: Edit the Netplan Configuration File

Netplan configuration files are typically located in the /etc/netplan/ directory. The file name usually ends with .yaml. Use a text editor like nano to open the configuration file. For example:

sudo nano /etc/netplan/01-netcfg.yaml

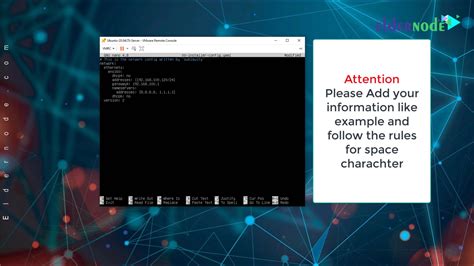

Step 3: Modify the Configuration File

Edit the configuration file to include the static IP settings. Here is an example configuration:

network:
  version: 2
  ethernets:
    eth0:
      dhcp4: no
      addresses:
        - 192.168.1.¹⁰⁰⁄₂₄
      gateway4: 192.168.1.1
      nameservers:
        addresses:
          - 8.8.8.8
          - 8.8.4.4

Replace `eth0` with the name of your network interface. You can find the interface name using the `ip link` command.

Step 4: Apply the Changes

Save the file and exit the text editor. Then, apply the changes using the following command:

sudo netplan apply

💡 Note: Ensure that the YAML syntax is correct. Indentation and spacing are crucial in YAML files.

Verifying the Static IP Configuration

After configuring the static IP address, it’s important to verify that the settings have been applied correctly. You can do this using the following commands:

Using the Command Line

Open a terminal and use the following commands to check the IP configuration:

ip addr show

This command will display the current IP address configuration for all network interfaces. Look for the interface you configured and verify that it has the static IP address you assigned.

Using the Graphical Interface

Click on the network icon in the system tray and select “Connection Information” or a similar option. This will display the current network settings, including the IP address.

Troubleshooting Common Issues

If you encounter issues with your IP static Ubuntu configuration, here are some common problems and solutions:

IP Address Conflict

If another device on the network is using the same IP address, you will encounter an IP address conflict. Ensure that the IP address you are assigning is unique on the network.

Incorrect Gateway or DNS Settings

If you cannot access the internet or other network resources, double-check the gateway and DNS settings. Ensure that they are correct and that the DNS servers are reachable.

Netplan Configuration Errors

If you encounter errors when applying the Netplan configuration, check the syntax of the YAML file. Ensure that the indentation and spacing are correct.

Advanced Configuration: Multiple Network Interfaces

If your system has multiple network interfaces and you need to configure static IP addresses for each, you can do so by adding multiple entries in the Netplan configuration file. Here is an example:

network:
  version: 2
  ethernets:
    eth0:
      dhcp4: no
      addresses:
        - 192.168.1.¹⁰⁰⁄₂₄
      gateway4: 192.168.1.1
      nameservers:
        addresses:
          - 8.8.8.8
          - 8.8.4.4
    eth1:
      dhcp4: no
      addresses:
        - 192.168.2.¹⁰⁰⁄₂₄
      gateway4: 192.168.2.1
      nameservers:
        addresses:
          - 8.8.8.8
          - 8.8.4.4

In this example, `eth0` and `eth1` are configured with different static IP addresses and gateways. Adjust the settings according to your network requirements.

Configuring Static IP for Wi-Fi

Configuring a static IP address for a Wi-Fi interface follows a similar process. Here is an example Netplan configuration for a Wi-Fi interface:

network:
  version: 2
  wifis:
    wlan0:
      dhcp4: no
      addresses:
        - 192.168.1.¹⁰⁰⁄₂₄
      gateway4: 192.168.1.1
      nameservers:
        addresses:
          - 8.8.8.8
          - 8.8.4.4
      access-points:
        “your_SSID”:
          password: “your_password”

Replace `wlan0` with the name of your Wi-Fi interface, and provide the correct SSID and password for your Wi-Fi network.

Configuring Static IP for Virtual Machines

If you are configuring a static IP address for a virtual machine running Ubuntu, the process is similar to configuring a physical machine. However, you may need to adjust the network settings in your virtualization software (e.g., VMware, VirtualBox) to ensure that the virtual machine can communicate with the host network.

Configuring Static IP for Docker Containers

Configuring a static IP address for Docker containers involves setting up a custom network. Here is a step-by-step guide:

Step 1: Create a Custom Network

Create a custom network with a specific subnet:

docker network create –subnet=192.168.1.0/24 my_network

Step 2: Run a Container with a Static IP

Run a Docker container and assign it a static IP address within the custom network:

docker run -d –name my_container –network my_network –ip 192.168.1.100 my_image

Replace `my_network` with the name of your custom network, `192.168.1.100` with the desired static IP address, and `my_image` with the name of your Docker image.

💡 Note: Ensure that the IP address you assign to the container is within the subnet of the custom network.

Configuring Static IP for Kubernetes Pods

Configuring a static IP address for Kubernetes pods involves using a combination of Kubernetes services and persistent volumes. Here is a high-level overview of the process:

Step 1: Create a Persistent Volume

Create a persistent volume with a specific IP address:

apiVersion: v1
kind: PersistentVolume
metadata:
  name: my-pv
spec:
  capacity:
    storage: 1Gi
  accessModes:
    - ReadWriteOnce
  hostPath:
    path: “/mnt/data”
  persistentVolumeReclaimPolicy: Retain

Step 2: Create a Persistent Volume Claim

Create a persistent volume claim to use the persistent volume:

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: my-pvc
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 1Gi

Step 3: Create a Pod with a Static IP

Create a pod that uses the persistent volume claim and assigns a static IP address:

apiVersion: v1
kind: Pod
metadata:
  name: my-pod
spec:
  containers:
  - name: my-container
    image: my_image
    volumeMounts:
    - mountPath: “/mnt/data”
      name: my-storage
  volumes:
  - name: my-storage
    persistentVolumeClaim:
      claimName: my-pvc

Replace `my-pv`, `my-pvc`, `my-pod`, `my-container`, and `my_image` with appropriate names and values for your setup.

💡 Note: Configuring static IP addresses for Kubernetes pods can be complex and may require additional configuration depending on your network setup.

Configuring Static IP for Cloud Instances

If you are configuring a static IP address for a cloud instance running Ubuntu, the process will vary depending on the cloud provider. However, the general steps involve:

Allocating a static IP address from the cloud provider’s console.
Associating the static IP address with the cloud instance.
Configuring the instance’s network settings to use the static IP address.

Refer to your cloud provider's documentation for specific instructions on configuring a static IP address for cloud instances.

Best Practices for Configuring Static IP Addresses

When configuring a static IP address on Ubuntu, follow these best practices to ensure a smooth and reliable setup:

Use a Consistent Naming Convention

Use a consistent naming convention for your network interfaces and configuration files. This makes it easier to manage and troubleshoot your network settings.

Document Your Configuration

Document your network configuration, including IP addresses, subnet masks, gateways, and DNS servers. This will help you quickly resolve any issues that arise.

Test Your Configuration

After configuring a static IP address, test your network connectivity to ensure that the settings are correct. Use tools like ping and traceroute to verify connectivity to other devices on the network and the internet.

Backup Your Configuration

Regularly backup your network configuration files. This will allow you to quickly restore your settings in case of any issues or changes.

Monitor Network Activity

Monitor network activity to detect any potential issues or security threats. Use tools like iftop and nload to monitor network traffic and identify any anomalies.

Use Firewalls and Security Groups

Configure firewalls and security groups to protect your network from unauthorized access. Ensure that only necessary ports and services are exposed to the network.

Regularly Update Your System

Keep your Ubuntu system up to date with the latest security patches and updates. This will help protect your system from vulnerabilities and ensure optimal performance.

Conclusion

Configuring an IP static Ubuntu setup is a fundamental task for network administrators and system users. Whether you prefer using the graphical interface or the command line, Ubuntu provides flexible and powerful tools to manage your network settings. By following the steps outlined in this guide, you can ensure that your Ubuntu system has a stable and predictable network configuration. Understanding the importance of static IP addresses and best practices for configuration will help you maintain a reliable and secure network environment.
