If you're an iPhone 5S user, you might find yourself in need of an iPhone 5S screen replacement at some point. Whether it's due to a cracked screen, unresponsive touch, or other display issues, replacing the screen can restore your device to its former glory. This guide will walk you through the process of replacing the screen on an iPhone 5S, including the tools and parts you'll need, step-by-step instructions, and important tips to ensure a successful repair.

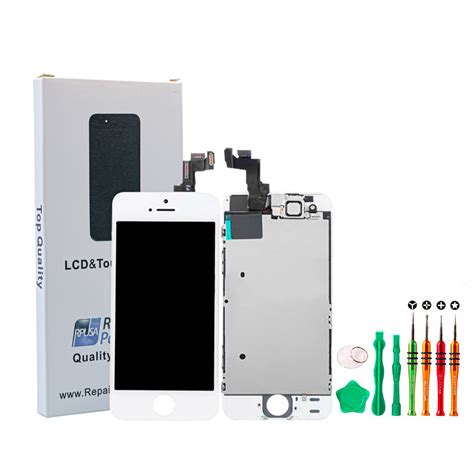

Tools and Parts Needed for iPhone 5S Screen Replacement
Before you begin, gather the necessary tools and parts. Having everything ready will make the process smoother and more efficient.
- Replacement iPhone 5S screen: Ensure you get a high-quality screen that is compatible with your iPhone 5S model.
- Pentalobe screwdriver: This is used to open the iPhone's case.
- Phillips #000 screwdriver: Needed for removing various screws inside the device.
- Suction cup: Helps in lifting the screen from the device.
- Plastic pry tools: Useful for gently prying open the device without causing damage.
- Tweezers: For handling small components and cables.
- Anti-static wrist strap: Protects the device from static discharge.
Step-by-Step Guide to iPhone 5S Screen Replacement
Follow these detailed steps to replace the screen on your iPhone 5S. Make sure to work in a well-lit area and take your time to avoid mistakes.
Step 1: Power Off and Prepare the Device
Before starting the repair, power off your iPhone 5S and remove the SIM card tray. This ensures that no data is lost and that you have easy access to the interior components.
Step 2: Remove the Pentalobe Screws
Using the Pentalobe screwdriver, remove the two screws at the bottom of the iPhone. These screws secure the back panel to the device.
Step 3: Open the iPhone
Insert the suction cup near the bottom of the screen, close to the home button. Gently pull up to create a small gap between the screen and the back panel. Insert a plastic pry tool into the gap and carefully slide it around the edges to disconnect the screen from the back panel. Be cautious not to damage any cables or connectors.
🔧 Note: Be gentle when using the suction cup and pry tool to avoid damaging the screen or the back panel.

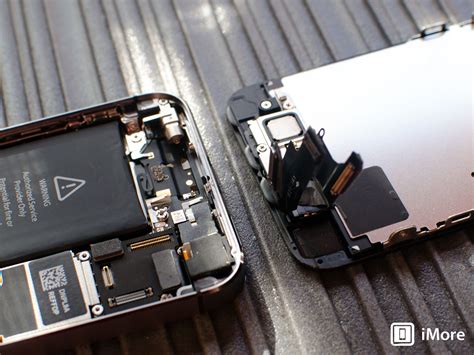

Step 4: Disconnect the Screen Cables
Once the screen is lifted, you will see several cables connecting it to the logic board. Use the Phillips #000 screwdriver to remove the screws securing the cables. Gently lift the cables using tweezers and set them aside.
Step 5: Remove the Screen
With the cables disconnected, carefully lift the screen out of the device. Be mindful of any remaining connectors or adhesives that might still be attached.
Step 6: Transfer Components to the New Screen
Before installing the new screen, transfer the following components from the old screen to the new one:
- Home button assembly
- Front-facing camera
- Ear speaker
- Microphone
Use tweezers to carefully remove these components and attach them to the new screen. Ensure they are properly aligned and secured.
Step 7: Install the New Screen
Place the new screen into the device, aligning it with the connectors and ensuring it fits snugly. Reconnect the cables to the logic board and secure them with the Phillips #000 screwdriver.
Step 8: Reassemble the iPhone
Gently press the screen back into place, ensuring it is properly aligned with the back panel. Reinsert the two Pentalobe screws at the bottom of the device to secure the back panel.
Step 9: Power On and Test
Power on your iPhone 5S and test the new screen. Check for any responsiveness issues, dead pixels, or other display problems. If everything is working correctly, you have successfully completed the iPhone 5S screen replacement.
🔧 Note: If you encounter any issues, double-check all connections and ensure that the screen is properly seated.
Common Issues and Troubleshooting
Even with careful attention to detail, you might encounter some issues during or after the iPhone 5S screen replacement. Here are some common problems and their solutions:
Screen Not Responding
If the screen is not responding to touch, check the following:
- Ensure all cables are properly connected.
- Verify that the home button assembly is correctly installed.
- Check for any debris or damage to the screen.
Dead Pixels or Display Issues
If you notice dead pixels or other display issues, it could be due to:
- A faulty replacement screen.
- Damage during the installation process.
- Incompatible screen parts.
In such cases, consider returning the replacement screen and getting a new one from a reputable supplier.
Water Damage
If your iPhone 5S has water damage, it might affect the screen replacement process. Ensure the device is completely dry before attempting any repairs. If water damage is severe, consider professional repair services.
Important Considerations for iPhone 5S Screen Replacement
Before proceeding with the iPhone 5S screen replacement, keep the following considerations in mind:
- Warranty: If your iPhone is still under warranty, consider taking it to an authorized service center. Attempting a DIY repair might void the warranty.
- Backup Data: Always back up your data before performing any repairs. This ensures that you don't lose important information in case something goes wrong.
- Quality of Parts: Use high-quality replacement parts to ensure the longevity and performance of your device. Cheap or low-quality parts can lead to further issues.
- Professional Help: If you are not comfortable performing the repair yourself, seek professional help. A trained technician can ensure a successful repair without causing additional damage.
Additionally, here is a table summarizing the tools and parts needed for the iPhone 5S screen replacement:
| Item | Description |
|---|---|
| Replacement iPhone 5S screen | High-quality, compatible screen for iPhone 5S |
| Pentalobe screwdriver | Used to open the iPhone's case |
| Phillips #000 screwdriver | Needed for removing various screws inside the device |
| Suction cup | Helps in lifting the screen from the device |
| Plastic pry tools | Useful for gently prying open the device without causing damage |
| Tweezers | For handling small components and cables |
| Anti-static wrist strap | Protects the device from static discharge |
By following this comprehensive guide, you should be able to successfully perform an iPhone 5S screen replacement. The process requires patience, careful handling, and the right tools. With the correct approach, you can restore your iPhone 5S to its original condition and enjoy a fully functional device once again.
In conclusion, replacing the screen on an iPhone 5S is a manageable task with the right tools and knowledge. By following the steps outlined in this guide, you can ensure a successful repair and extend the life of your device. Always prioritize safety and use high-quality parts to achieve the best results. If you encounter any issues, don’t hesitate to seek professional assistance to avoid further damage.
