The Joule Thomson Cooling Effect, also known as the Joule-Kelvin effect, is a fundamental principle in thermodynamics that describes the temperature change of a gas when it is forced through a valve or porous plug while kept insulated so that no heat is exchanged with the environment. This phenomenon is crucial in various industrial applications, particularly in refrigeration and air conditioning systems. Understanding the Joule Thomson Cooling Effect is essential for engineers and scientists working in these fields, as it underpins the design and operation of many cooling devices.
The Science Behind the Joule Thomson Cooling Effect
The Joule Thomson Cooling Effect is named after James Prescott Joule and William Thomson (later Lord Kelvin), who conducted experiments in the mid-19th century to understand the behavior of gases under different conditions. The effect occurs when a gas is allowed to expand through a valve or porous plug, causing a change in temperature. This temperature change can be either an increase or a decrease, depending on the initial conditions of the gas.

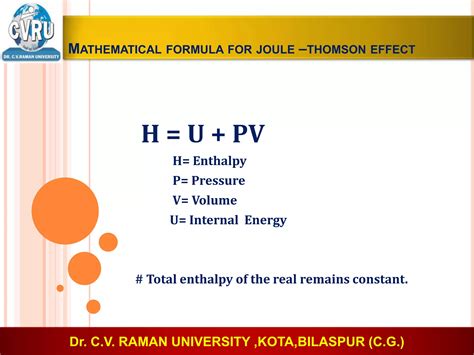

The key to understanding the Joule Thomson Cooling Effect lies in the concept of enthalpy. Enthalpy is a thermodynamic quantity that combines the internal energy of a system with the energy required to make room for it by displacing its environment. For an ideal gas, the enthalpy remains constant during an isenthalpic process, meaning no heat is exchanged with the surroundings. However, for real gases, the enthalpy can change, leading to a temperature change.
When a real gas expands through a valve, it does work against the external pressure, which can cause a change in its internal energy. If the gas is initially at a high pressure and temperature, the expansion can lead to a decrease in temperature, resulting in cooling. This is the principle behind the Joule Thomson Cooling Effect. Conversely, if the gas is initially at a low pressure and temperature, the expansion can lead to an increase in temperature, resulting in heating.
Applications of the Joule Thomson Cooling Effect

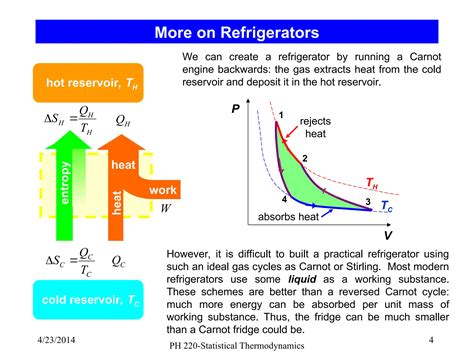

The Joule Thomson Cooling Effect has numerous applications in various industries. One of the most significant applications is in refrigeration and air conditioning systems. In these systems, a refrigerant gas is compressed and then allowed to expand through a valve, causing it to cool. This cooled gas is then used to absorb heat from the environment, effectively cooling it down.
Another important application is in the liquefaction of gases. The Joule Thomson Cooling Effect is used to cool gases to their liquefaction points, allowing them to be stored and transported in liquid form. This is particularly important for gases like oxygen, nitrogen, and hydrogen, which are commonly used in industrial processes.
In addition to these applications, the Joule Thomson Cooling Effect is also used in cryogenics, where extremely low temperatures are required. Cryogenic systems use the effect to cool gases to temperatures close to absolute zero, enabling the study of materials and phenomena at these extreme conditions.
Factors Affecting the Joule Thomson Cooling Effect
Several factors can affect the magnitude and direction of the temperature change in the Joule Thomson Cooling Effect. These factors include the initial pressure and temperature of the gas, the type of gas, and the design of the expansion valve or porous plug.
One of the most important factors is the initial pressure and temperature of the gas. For a given gas, there is a specific temperature below which the gas will cool upon expansion, and above which it will heat up. This temperature is known as the inversion temperature. Below the inversion temperature, the gas will cool upon expansion, while above it, the gas will heat up.
The type of gas also plays a crucial role in the Joule Thomson Cooling Effect. Different gases have different inversion temperatures and enthalpy changes upon expansion. For example, helium has a very low inversion temperature, making it unsuitable for use in refrigeration systems that operate at room temperature. On the other hand, gases like nitrogen and oxygen have higher inversion temperatures, making them more suitable for such applications.
The design of the expansion valve or porous plug can also affect the Joule Thomson Cooling Effect. The valve or plug must be designed to allow the gas to expand rapidly and efficiently, minimizing any heat exchange with the surroundings. This ensures that the enthalpy change is maximized, leading to a greater temperature change.
Experimental Setup for Demonstrating the Joule Thomson Cooling Effect

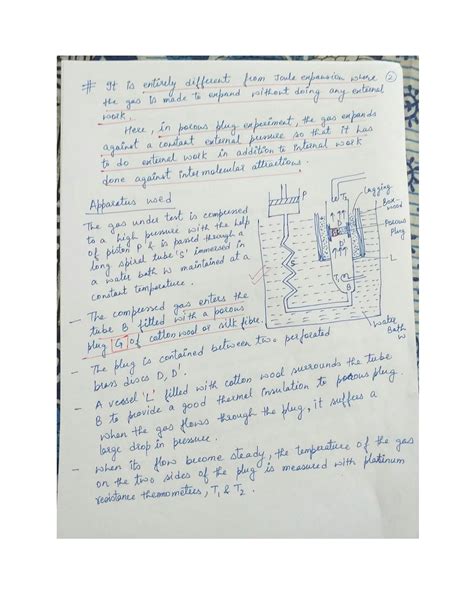

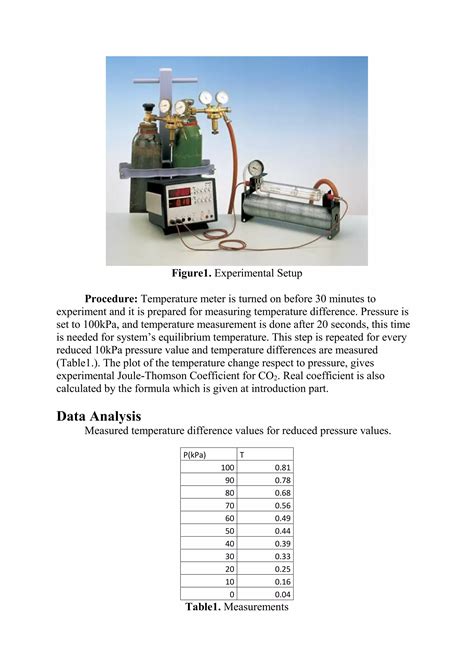

To demonstrate the Joule Thomson Cooling Effect, a simple experimental setup can be used. This setup typically consists of a high-pressure gas cylinder, a regulator, an expansion valve, and a thermometer. The gas is first compressed in the cylinder to a high pressure and then allowed to expand through the valve. The temperature change is measured using the thermometer.
Here is a step-by-step guide to setting up the experiment:
- Connect the high-pressure gas cylinder to the regulator and adjust the pressure to the desired level.
- Connect the regulator to the expansion valve and ensure that the valve is closed.
- Place the thermometer in the path of the expanding gas, just after the valve.
- Open the valve slowly to allow the gas to expand. Observe the temperature change using the thermometer.
- Record the initial and final temperatures, as well as the pressure and type of gas used.
🔍 Note: Ensure that the experimental setup is conducted in a well-ventilated area and that all safety precautions are followed, as high-pressure gases can be hazardous.
Mathematical Representation of the Joule Thomson Cooling Effect
The Joule Thomson Cooling Effect can be mathematically represented using the Joule Thomson coefficient, which is defined as the change in temperature with respect to the change in pressure at constant enthalpy. The coefficient is given by:
μ = (∂T/∂P)H
where μ is the Joule Thomson coefficient, T is the temperature, P is the pressure, and H is the enthalpy. The coefficient can be positive or negative, depending on the initial conditions of the gas and the type of gas used.
For an ideal gas, the Joule Thomson coefficient is zero, meaning that there is no temperature change upon expansion. However, for real gases, the coefficient is non-zero, and the temperature change can be significant. The coefficient can be calculated using thermodynamic properties of the gas, such as its specific heat capacity and compressibility factor.
Here is a table showing the Joule Thomson coefficients for some common gases at room temperature and atmospheric pressure:
| Gas | Joule Thomson Coefficient (K/Pa) |
|---|---|
| Helium | -0.0001 |
| Hydrogen | -0.0002 |
| Nitrogen | 0.0005 |
| Oxygen | 0.0006 |
| Carbon Dioxide | 0.001 |
The Joule Thomson coefficient provides a quantitative measure of the temperature change that can be expected upon expansion of a gas. This information is crucial for designing and optimizing cooling systems that rely on the Joule Thomson Cooling Effect.
Challenges and Limitations of the Joule Thomson Cooling Effect
While the Joule Thomson Cooling Effect is a powerful tool for cooling gases, it also has several challenges and limitations. One of the main challenges is the need for high-pressure gases, which can be expensive and hazardous to handle. Additionally, the efficiency of the cooling process can be limited by factors such as heat exchange with the surroundings and the design of the expansion valve.
Another limitation is the dependence of the effect on the initial conditions of the gas. For gases with low inversion temperatures, the Joule Thomson Cooling Effect may not be effective at room temperature. This limits the applicability of the effect to certain types of gases and operating conditions.
Furthermore, the Joule Thomson Cooling Effect is not suitable for all cooling applications. For example, it is not effective for cooling liquids, as the enthalpy change upon expansion is much smaller for liquids than for gases. In such cases, other cooling methods, such as evaporative cooling or mechanical refrigeration, may be more appropriate.
Despite these challenges and limitations, the Joule Thomson Cooling Effect remains an important principle in thermodynamics and has numerous applications in various industries. By understanding the factors that affect the effect and optimizing the design of cooling systems, engineers and scientists can overcome these challenges and harness the power of the Joule Thomson Cooling Effect for a wide range of applications.
In conclusion, the Joule Thomson Cooling Effect is a fundamental principle in thermodynamics that describes the temperature change of a gas upon expansion through a valve or porous plug. This effect has numerous applications in refrigeration, air conditioning, gas liquefaction, and cryogenics. By understanding the science behind the effect, the factors that influence it, and the challenges and limitations associated with it, engineers and scientists can design and optimize cooling systems that rely on the Joule Thomson Cooling Effect. This knowledge is essential for advancing the field of thermodynamics and developing more efficient and effective cooling technologies.
