Kirby Bauer Method

In the realm of microbiology, the identification and classification of bacteria are crucial for understanding their roles in various environments, including human health, agriculture, and industry. One of the most widely used methods for this purpose is the Kirby Bauer Method, also known as the disk diffusion method. This technique is essential for determining the susceptibility of bacteria to different antibiotics, aiding in the selection of appropriate treatments for bacterial infections.

Table of Contents

Understanding the Kirby Bauer Method

The Kirby Bauer Method is a standardized procedure that involves placing antibiotic-impregnated disks on a lawn of bacteria grown on an agar plate. The method was developed by William Kirby and colleagues in the 1940s and has since become a cornerstone of antimicrobial susceptibility testing. The primary goal is to measure the zone of inhibition around each disk, which indicates the effectiveness of the antibiotic against the bacterial strain.

Principles of the Kirby Bauer Method

The Kirby Bauer Method relies on the diffusion of antibiotics from the disks into the agar medium. The antibiotics create a concentration gradient, with the highest concentration directly under the disk and decreasing concentrations as the distance from the disk increases. Bacteria that are susceptible to the antibiotic will not grow in the area where the antibiotic concentration is high enough to inhibit their growth, resulting in a clear zone of inhibition.

The size of the zone of inhibition is measured in millimeters and compared to standardized charts provided by organizations such as the Clinical and Laboratory Standards Institute (CLSI). These charts categorize the bacteria as susceptible, intermediate, or resistant to the antibiotic based on the zone size.

Steps Involved in the Kirby Bauer Method

The Kirby Bauer Method involves several key steps, each crucial for accurate results. Here is a detailed overview of the process:

Preparation of Bacterial Suspension: A standardized bacterial suspension is prepared by adjusting the turbidity of the bacterial culture to match the 0.5 McFarland standard. This ensures a consistent inoculum density.
Inoculation of Agar Plate: The bacterial suspension is spread evenly across the surface of a Mueller-Hinton agar plate using a sterile swab. This creates a lawn of bacteria on which the antibiotic disks will be placed.

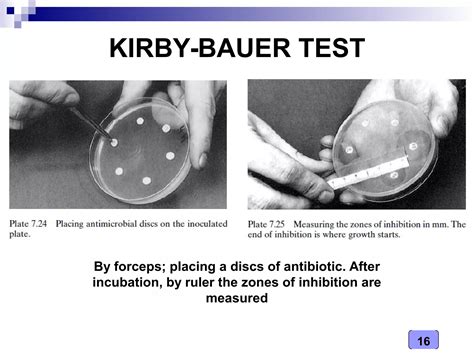

Placement of Antibiotic Disks: Antibiotic-impregnated disks are placed on the agar surface using sterile forceps. The disks are spaced evenly to prevent overlap of inhibition zones.
Incubation: The inoculated plate is incubated at 35-37°C for 16-18 hours. This allows the bacteria to grow and the antibiotics to diffuse into the agar.
Measurement of Zones of Inhibition: After incubation, the diameter of the zone of inhibition around each disk is measured using a caliper or ruler. The measurements are recorded and compared to the CLSI standards.

📝 Note: It is essential to use fresh, pure cultures of bacteria and to follow strict aseptic techniques throughout the procedure to avoid contamination.

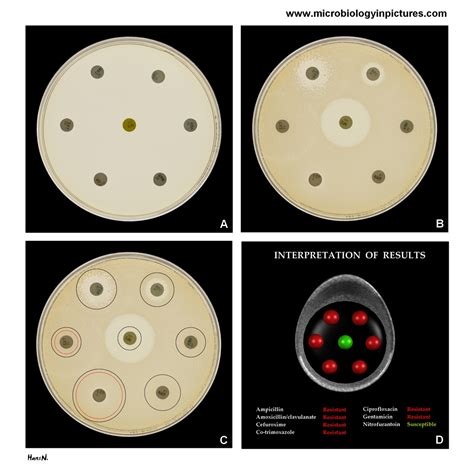

Interpreting Results

Interpreting the results of the Kirby Bauer Method involves comparing the measured zone of inhibition to the CLSI breakpoints. These breakpoints are determined based on extensive clinical data and provide guidelines for categorizing bacteria as susceptible, intermediate, or resistant to specific antibiotics.

For example, if the zone of inhibition around a disk containing a particular antibiotic is larger than the breakpoint for susceptibility, the bacterium is considered susceptible to that antibiotic. Conversely, if the zone is smaller than the breakpoint for resistance, the bacterium is considered resistant.

Intermediate results indicate that the bacterium may be inhibited by higher concentrations of the antibiotic, but further testing may be required to determine the most effective treatment.

Applications of the Kirby Bauer Method

The Kirby Bauer Method has numerous applications in clinical and research settings. Some of the key applications include:

Clinical Diagnosis: In hospitals and clinics, the method is used to guide the selection of appropriate antibiotics for treating bacterial infections. This helps in reducing the overuse of antibiotics and the development of antibiotic resistance.
Research and Development: In research laboratories, the method is employed to study the antimicrobial properties of new compounds and to develop novel antibiotics.
Epidemiological Studies: The method is used in epidemiological studies to monitor the prevalence of antibiotic-resistant bacteria in different populations and environments.
Quality Control: In pharmaceutical and biotechnology industries, the method is used for quality control of antibiotic products to ensure their efficacy and safety.

Advantages and Limitations

The Kirby Bauer Method offers several advantages, including its simplicity, cost-effectiveness, and widespread availability. However, it also has some limitations that researchers and clinicians should be aware of.

Advantages

Simplicity: The method is straightforward and requires minimal equipment, making it accessible to laboratories with limited resources.
Cost-Effective: The materials and reagents required for the method are relatively inexpensive, making it a cost-effective option for routine testing.
Widespread Availability: The method is standardized and widely accepted, ensuring consistency and comparability of results across different laboratories.

Limitations

Subjectivity: The measurement of zones of inhibition can be subjective, leading to variability in results between different technicians.
Limited Sensitivity: The method may not detect low-level resistance or heteroresistance, where a subpopulation of bacteria is resistant to the antibiotic.
Time-Consuming: The method requires overnight incubation, which can delay the availability of results.

📝 Note: To minimize variability, it is recommended to use standardized protocols and to train technicians in the proper measurement techniques.

Alternative Methods

While the Kirby Bauer Method is widely used, there are alternative methods for antimicrobial susceptibility testing that offer different advantages and limitations. Some of these methods include:

Etest: This method uses a plastic strip impregnated with a gradient of antibiotic concentrations. The strip is placed on an agar plate inoculated with bacteria, and the minimum inhibitory concentration (MIC) is read directly from the strip.
Broth Dilution: This method involves growing bacteria in liquid media containing serial dilutions of antibiotics. The MIC is determined by identifying the lowest concentration of antibiotic that inhibits bacterial growth.
Automated Systems: Automated systems, such as the VITEK 2 and MicroScan, use advanced technologies to perform antimicrobial susceptibility testing rapidly and accurately.

Each of these methods has its own strengths and weaknesses, and the choice of method depends on the specific requirements and resources of the laboratory.

Future Directions

The field of antimicrobial susceptibility testing is continually evolving, driven by the need to address the growing threat of antibiotic resistance. Future directions in this area may include the development of new technologies for rapid and accurate testing, as well as the integration of artificial intelligence and machine learning to improve data analysis and interpretation.

Additionally, there is a growing interest in the use of Kirby Bauer Method for testing the susceptibility of bacteria to non-antibiotic compounds, such as essential oils and plant extracts, which may offer alternative treatments for bacterial infections.

As our understanding of bacterial resistance mechanisms continues to grow, so too will our ability to develop effective strategies for combating antibiotic resistance and improving patient outcomes.

In conclusion, the Kirby Bauer Method remains a valuable tool in the arsenal of microbiologists and clinicians for determining the susceptibility of bacteria to antibiotics. Its simplicity, cost-effectiveness, and widespread availability make it an essential technique for guiding the selection of appropriate treatments and for monitoring the prevalence of antibiotic resistance. By understanding the principles and limitations of this method, researchers and clinicians can make informed decisions about its use and continue to develop new strategies for combating bacterial infections.
