Microscopes have revolutionized our understanding of the microscopic world, enabling scientists to explore realms invisible to the naked eye. One of the most critical aspects of microscopy is the magnification of the microscope, which determines the level of detail that can be observed. This blog post delves into the intricacies of microscope magnification, its importance, and how it is achieved.
Understanding Magnification
Magnification refers to the process of enlarging an object to make it appear larger than its actual size. In the context of microscopes, magnification is crucial for observing tiny structures such as cells, bacteria, and even smaller particles. The magnification power of a microscope is typically expressed as a ratio, such as 40x, 100x, or 400x, indicating how many times larger the image appears compared to its actual size.
Types of Microscopes and Their Magnification
Different types of microscopes offer varying levels of magnification, each suited to specific applications. The most common types include:
- Light Microscopes: These are the simplest and most widely used microscopes. They use visible light and a system of lenses to magnify images. Light microscopes typically offer magnification ranges from 40x to 1000x.
- Electron Microscopes: These microscopes use a beam of electrons instead of light to achieve much higher magnification. They can magnify objects up to 2 million times, making them ideal for studying very small structures like viruses and molecular details.
- Scanning Probe Microscopes: These include Atomic Force Microscopes (AFM) and Scanning Tunneling Microscopes (STM), which provide extremely high resolution and can magnify objects at the atomic level.
Components of Magnification in Light Microscopes
In light microscopes, the total magnification is determined by the combination of two main components: the objective lens and the eyepiece lens.
Objective Lens

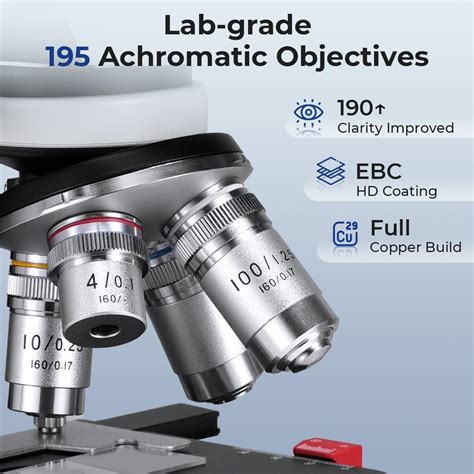

The objective lens is the lens closest to the specimen and is responsible for the primary magnification. Objective lenses come in various powers, typically ranging from 4x to 100x. The magnification power of the objective lens is usually engraved on the side of the lens.
Eyepiece Lens
The eyepiece lens, also known as the ocular lens, is the lens through which the observer looks. It typically has a fixed magnification power, usually 10x or 15x. The total magnification of the microscope is calculated by multiplying the magnification of the objective lens by the magnification of the eyepiece lens.
For example, if you are using a 40x objective lens and a 10x eyepiece lens, the total magnification would be 400x.
Calculating Total Magnification
To calculate the total magnification of a light microscope, use the following formula:
Total Magnification = Objective Lens Magnification × Eyepiece Lens Magnification
Here is a table illustrating the total magnification for different combinations of objective and eyepiece lenses:
| Objective Lens Magnification | Eyepiece Lens Magnification | Total Magnification |
|---|---|---|
| 4x | 10x | 40x |
| 10x | 10x | 100x |
| 40x | 10x | 400x |
| 100x | 10x | 1000x |
🔍 Note: The resolution of the microscope also plays a crucial role in determining the clarity of the image. Higher magnification does not always mean better resolution, especially if the microscope's optics are not of high quality.
Factors Affecting Magnification
Several factors can affect the magnification and overall performance of a microscope:
- Quality of Lenses: High-quality lenses with better optical properties can provide clearer and more detailed images at higher magnifications.
- Lighting: Proper illumination is essential for achieving optimal magnification. Insufficient or improper lighting can reduce the clarity of the image.
- Sample Preparation: The way the specimen is prepared can significantly impact the quality of the image. Proper staining and mounting techniques are crucial for clear observation.
- Resolution: The resolving power of the microscope determines the smallest detail that can be distinguished. Higher resolution allows for better detail at higher magnifications.
Applications of Microscope Magnification
The magnification of the microscope is utilized in various fields, including biology, medicine, materials science, and forensic analysis. Some key applications include:
- Cell Biology: Studying the structure and function of cells, including organelles and cellular processes.
- Microbiology: Observing bacteria, viruses, and other microorganisms to understand their characteristics and behaviors.
- Pathology: Examining tissue samples to diagnose diseases and understand their progression.
- Materials Science: Analyzing the microstructure of materials to improve their properties and performance.
- Forensic Analysis: Investigating trace evidence, such as fibers, hairs, and other microscopic particles, to solve crimes.
Advancements in Microscope Technology
Recent advancements in microscope technology have significantly enhanced the magnification of the microscope and its applications. Some notable developments include:
- Confocal Microscopy: This technique uses laser light to achieve high-resolution images of thick specimens, allowing for detailed 3D imaging.
- Super-Resolution Microscopy: Techniques like STED (Stimulated Emission Depletion) and PALM (Photoactivated Localization Microscopy) provide resolution beyond the diffraction limit, enabling the observation of structures smaller than 200 nanometers.
- Electron Microscopy: Advances in electron microscopy, such as the development of cryo-electron microscopy, have allowed for the visualization of biological molecules at near-atomic resolution.
These advancements have expanded the capabilities of microscopes, enabling scientists to explore the microscopic world with unprecedented detail and clarity.
In conclusion, the magnification of the microscope is a fundamental aspect of microscopy that enables the observation of tiny structures and details. Understanding the components and factors that affect magnification is crucial for achieving optimal results in various scientific and analytical applications. As technology continues to advance, the capabilities of microscopes will only improve, opening new avenues for exploration and discovery in the microscopic world.
