Megaohm In Ohm

Understanding electrical resistance is fundamental in electronics and electrical engineering. One of the key units used to measure resistance is the ohm, but when dealing with very high resistance values, the term megaohm in ohm comes into play. This unit is crucial for applications involving insulation testing, high-voltage systems, and semiconductor devices. Let's delve into the world of megaohms, their significance, and how they are measured and applied in various fields.

Table of Contents

What is a Megaohm?

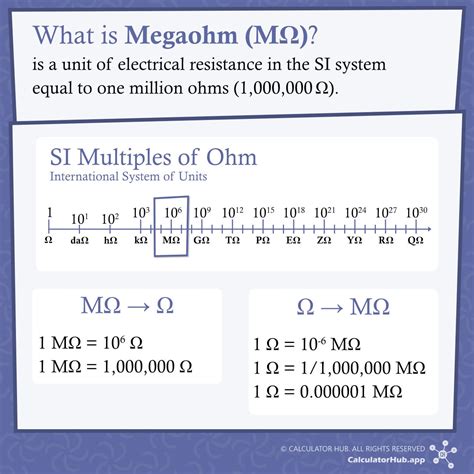

A megaohm (MΩ) is a unit of electrical resistance equal to one million ohms (Ω). It is used to describe very high resistance values, which are common in certain electrical components and systems. For instance, insulation materials, resistors used in high-voltage applications, and semiconductor devices often exhibit resistances in the megaohm range.

Understanding Resistance in Ohms and Megaohms

Resistance is a measure of how much an object opposes the flow of electric current. It is measured in ohms (Ω), where one ohm is the resistance between two points in a conductor when a constant potential difference of one volt, applied to these points, produces a current of one ampere.

When dealing with very high resistance values, it becomes impractical to express them in ohms. For example, a resistor with a resistance of 1,000,000 ohms is more conveniently expressed as 1 megaohm (1 MΩ). This simplification makes calculations and measurements easier to handle.

Applications of Megaohm in Ohm

The concept of megaohm in ohm is particularly relevant in several key areas:

Insulation Testing: In electrical systems, insulation resistance is a critical parameter. High insulation resistance ensures that the electrical current flows through the intended path rather than leaking through the insulation. Insulation resistance is typically measured in megaohms.
High-Voltage Systems: Components in high-voltage systems, such as transformers and power cables, require high resistance to prevent short circuits and ensure safety. These components are often tested using megaohm meters to verify their insulation integrity.
Semiconductor Devices: In semiconductor manufacturing, the resistance of materials and devices is often measured in megaohms. This is crucial for ensuring the proper functioning of transistors, diodes, and other semiconductor components.

Measuring Megaohm Resistance

Measuring high resistance values, such as those in the megaohm range, requires specialized equipment. Here are some common methods and tools used for measuring megaohm resistance:

Megaohmmeters: These are specialized multimeters designed to measure very high resistance values. They apply a high voltage to the component being tested and measure the resulting current to calculate the resistance.
Insulation Resistance Testers: These devices are used to test the insulation resistance of electrical systems. They apply a high voltage (typically 500V or 1000V) and measure the leakage current to determine the insulation resistance in megaohms.
Time-Domain Reflectometry (TDR): This method is used to locate faults in cables and wires by sending a pulse along the cable and analyzing the reflected signal. It can also be used to measure the resistance of the cable insulation.

Importance of Accurate Megaohm Measurements

Accurate measurement of megaohm resistance is crucial for several reasons:

Safety: High resistance values ensure that electrical systems are safe to operate. Low insulation resistance can lead to short circuits, electrical fires, and other hazards.
Reliability: Components with high resistance values are less likely to fail, ensuring the reliability of electrical systems. This is particularly important in critical applications such as medical equipment and aerospace systems.
Efficiency: High resistance values in insulation materials help to minimize energy losses, improving the overall efficiency of electrical systems.

Factors Affecting Megaohm Resistance

Several factors can affect the resistance of materials and components, especially when measured in megaohms:

Temperature: The resistance of most materials changes with temperature. For accurate measurements, it is important to control the temperature of the component being tested.
Humidity: High humidity can reduce the insulation resistance of materials, leading to inaccurate measurements. It is important to test components in a controlled environment.
Voltage: The applied voltage can affect the measured resistance, especially in non-linear materials. It is important to use the appropriate voltage for the component being tested.
Time: The resistance of some materials can change over time due to factors such as aging and environmental conditions. Regular testing is necessary to ensure the continued reliability of electrical systems.

Common Mistakes in Megaohm Measurements

When measuring megaohm resistance, it is important to avoid common mistakes that can lead to inaccurate results:

Incorrect Voltage: Using the wrong voltage can lead to inaccurate measurements. Always use the recommended voltage for the component being tested.
Poor Connections: Loose or dirty connections can introduce errors into the measurement. Ensure that all connections are clean and secure.
Environmental Factors: Temperature, humidity, and other environmental factors can affect the measurement. Test components in a controlled environment to minimize these effects.
Incorrect Calibration: Ensure that the measuring equipment is properly calibrated. Regular calibration is necessary to maintain the accuracy of the measurements.

🔍 Note: Always follow the manufacturer's guidelines for testing and measuring high resistance values to ensure accurate and reliable results.

Calculating Megaohm Resistance

Calculating resistance in megaohms involves converting the resistance value from ohms to megaohms. The conversion factor is 1 megaohm = 1,000,000 ohms. Here is a simple example:

If a resistor has a resistance of 5,000,000 ohms, the resistance in megaohms can be calculated as follows:

5,000,000 ohms ÷ 1,000,000 = 5 megaohms

Practical Examples of Megaohm Resistance

To better understand the concept of megaohm in ohm, let’s look at some practical examples:

Insulation Resistance of a Cable: A power cable with a length of 100 meters might have an insulation resistance of 100 megaohms. This means that the insulation can withstand a high voltage without allowing significant current to leak through.
Resistance of a High-Voltage Resistor: A resistor used in a high-voltage circuit might have a resistance of 5 megaohms. This high resistance ensures that the current flowing through the resistor is very low, preventing overheating and potential damage.
Semiconductor Device Resistance: A semiconductor device, such as a diode, might have a reverse bias resistance of 10 megaohms. This high resistance ensures that the device does not conduct current in the reverse direction, maintaining its proper functioning.

Conclusion

Understanding the concept of megaohm in ohm is essential for anyone working in the field of electronics or electrical engineering. Megaohm resistance plays a crucial role in ensuring the safety, reliability, and efficiency of electrical systems. By accurately measuring and managing megaohm resistance, engineers can design and maintain systems that operate safely and efficiently. Whether in insulation testing, high-voltage applications, or semiconductor devices, the concept of megaohm resistance is fundamental to modern electrical engineering.
