Molecular Orbital Drawing

Understanding the intricacies of molecular orbital drawing is crucial for anyone delving into the world of chemistry, particularly in the realms of quantum chemistry and molecular structure. Molecular orbital theory provides a framework for understanding how electrons are distributed within molecules, which is fundamental to predicting molecular properties and behaviors. This post will guide you through the basics of molecular orbital drawing, from understanding the theory to practical steps for creating accurate diagrams.

Understanding Molecular Orbital Theory

Molecular orbital theory is a method for determining molecular structure in which electrons are not assigned to individual bonds between atoms but are treated as moving under the influence of the nuclei in the whole molecule. This theory combines atomic orbitals from individual atoms to form molecular orbitals that extend over the entire molecule.

There are two primary types of molecular orbitals:

• Bonding Molecular Orbitals: These orbitals have lower energy than the atomic orbitals from which they are formed. Electrons in bonding orbitals stabilize the molecule.
• Antibonding Molecular Orbitals: These orbitals have higher energy than the atomic orbitals. Electrons in antibonding orbitals destabilize the molecule.

Additionally, there are non-bonding molecular orbitals, which have energy levels similar to the atomic orbitals and do not significantly affect the bonding within the molecule.

Steps for Molecular Orbital Drawing

Creating a molecular orbital diagram involves several steps. Here’s a detailed guide to help you through the process:

Step 1: Identify the Atomic Orbitals

The first step is to identify the atomic orbitals of the individual atoms that will form the molecule. For example, in a hydrogen molecule (H2), each hydrogen atom contributes a 1s orbital.

Step 2: Determine the Molecular Orbitals

Next, determine the molecular orbitals that will be formed by the combination of the atomic orbitals. For the hydrogen molecule, the 1s orbitals combine to form a bonding molecular orbital (σ1s) and an antibonding molecular orbital (σ*1s).

Step 3: Arrange the Molecular Orbitals

Arrange the molecular orbitals in order of increasing energy. The bonding orbitals will have lower energy than the antibonding orbitals. For the hydrogen molecule, the σ1s orbital will be lower in energy than the σ*1s orbital.

Step 4: Fill the Molecular Orbitals with Electrons

Fill the molecular orbitals with electrons according to the Aufbau principle, the Pauli exclusion principle, and Hund’s rule. The Aufbau principle states that electrons fill the lowest energy orbitals first. The Pauli exclusion principle states that no two electrons in the same orbital can have the same spin. Hund’s rule states that electrons fill degenerate orbitals singly before pairing.

Step 5: Draw the Molecular Orbital Diagram

Finally, draw the molecular orbital diagram. This diagram should include:

• The atomic orbitals of the individual atoms.
• The molecular orbitals formed by the combination of the atomic orbitals.
• The energy levels of the molecular orbitals.
• The electrons filled into the molecular orbitals.

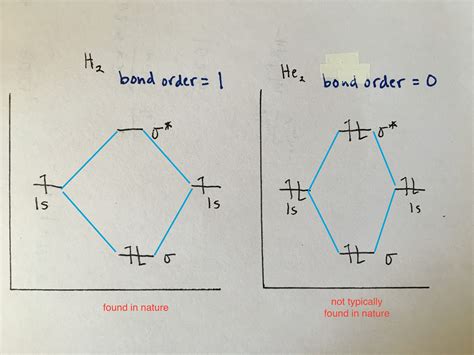

Here is an example of a molecular orbital diagram for the hydrogen molecule (H2):

Common Molecular Orbital Diagrams

Let’s look at a few common molecular orbital diagrams for different molecules:

Hydrogen Molecule (H2)

The hydrogen molecule is the simplest example. It has two 1s atomic orbitals that combine to form one bonding (σ1s) and one antibonding (σ*1s) molecular orbital. The two electrons fill the bonding orbital, resulting in a stable molecule.

Helium Molecule (He2)

The helium molecule is a hypothetical example. It has two 1s atomic orbitals that combine to form one bonding (σ1s) and one antibonding (σ*1s) molecular orbital. However, the four electrons fill both the bonding and antibonding orbitals, resulting in a net bond order of zero and an unstable molecule.

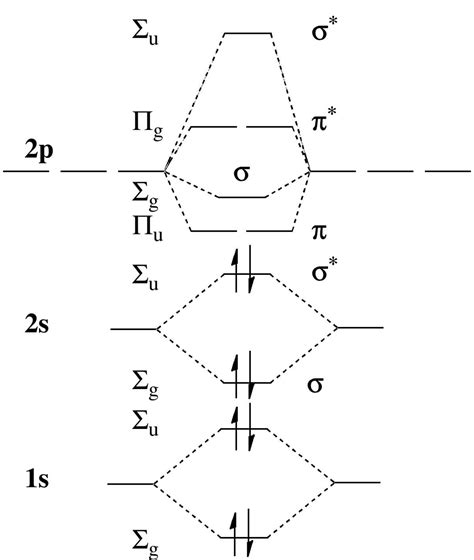

Lithium Molecule (Li2)

The lithium molecule has two 2s atomic orbitals that combine to form one bonding (σ2s) and one antibonding (σ*2s) molecular orbital. The four electrons fill the bonding orbital and the non-bonding 1s orbitals, resulting in a stable molecule.

Advanced Molecular Orbital Drawing

For more complex molecules, the process of molecular orbital drawing becomes more intricate. Here are some additional considerations:

Multiple Atoms and Orbitals

When dealing with molecules that have more than two atoms, the number of atomic orbitals and the resulting molecular orbitals increases. For example, in a water molecule (H2O), the oxygen atom has 2s and 2p orbitals that combine with the 1s orbitals of the hydrogen atoms to form a complex set of molecular orbitals.

Hybridization

Hybridization is the concept of mixing atomic orbitals to form new hybrid orbitals that can better explain the bonding in molecules. For example, in methane (CH4), the carbon atom undergoes sp3 hybridization, forming four sp3 hybrid orbitals that bond with the 1s orbitals of the hydrogen atoms.

Delocalized Electrons

In molecules with delocalized electrons, such as benzene (C6H6), the electrons are not confined to specific bonds but are spread out over the entire molecule. This results in a unique set of molecular orbitals that are delocalized over the π system of the molecule.

Practical Applications of Molecular Orbital Drawing

Molecular orbital drawing has numerous practical applications in various fields of chemistry and materials science. Some of the key applications include:

• Predicting Molecular Properties: Molecular orbital theory can be used to predict the properties of molecules, such as their stability, reactivity, and spectroscopic properties.
• Designing New Materials: Understanding the molecular orbitals of a material can help in designing new materials with desired properties, such as conductivity, magnetism, and optical properties.
• Drug Design: In pharmaceutical chemistry, molecular orbital theory is used to understand the interactions between drugs and their targets, aiding in the design of more effective medications.
• Catalysis: Molecular orbital theory can help in understanding the mechanisms of catalytic reactions, leading to the development of more efficient catalysts.

Here is a table summarizing the key points of molecular orbital drawing:

📝 Note: When drawing molecular orbital diagrams for complex molecules, it is often helpful to use computational chemistry software to assist with the calculations and visualizations.

Molecular orbital drawing is a powerful tool for understanding the electronic structure of molecules. By following the steps outlined in this post, you can create accurate molecular orbital diagrams that provide insights into the properties and behaviors of molecules. Whether you are a student, researcher, or professional in the field of chemistry, mastering molecular orbital drawing is essential for advancing your knowledge and skills.

Molecular orbital drawing is a fundamental skill in chemistry that provides a deep understanding of molecular structure and behavior. By following the steps and considerations outlined in this post, you can create accurate and informative molecular orbital diagrams. Whether you are studying simple molecules like H2 or complex systems like benzene, molecular orbital theory offers a comprehensive framework for analyzing and predicting molecular properties. The practical applications of molecular orbital drawing are vast, ranging from materials science to drug design, making it an invaluable tool for chemists and researchers alike.
