In the realm of mechanical engineering, the needle roller bearing stands out as a critical component in various machinery and equipment. These bearings are designed to handle high loads and provide smooth, efficient operation in a wide range of applications. Whether you're an engineer, a mechanic, or simply curious about the inner workings of machinery, understanding the role and functionality of needle roller bearings is essential.
What is a Needle Roller Bearing?
A needle roller bearing is a type of roller bearing that uses small, cylindrical rollers, known as needles, to reduce friction between moving parts. These bearings are characterized by their long, thin rollers, which are typically 2 to 8 times longer than their diameter. This unique design allows them to support high radial loads while occupying minimal space, making them ideal for applications where space is limited.
Types of Needle Roller Bearings

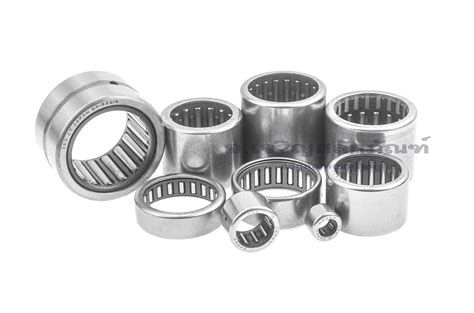

Needle roller bearings come in various types, each designed for specific applications. The most common types include:
- Cylindrical Needle Roller Bearings: These are the most basic type, featuring a cylindrical outer ring and a cage that holds the needles in place.

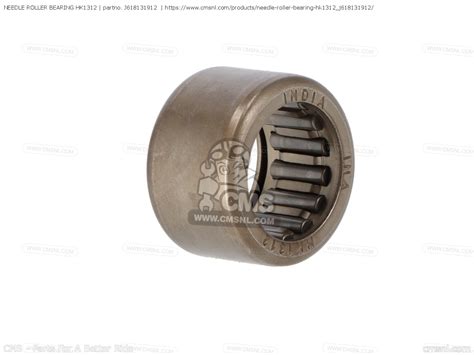

- Drawn Cup Needle Roller Bearings: These bearings have a thin-walled outer ring that is drawn from sheet metal, making them lightweight and cost-effective.
- Molded Needle Roller Bearings: These bearings have a molded outer ring, often made from plastic or composite materials, which can be customized for specific applications.

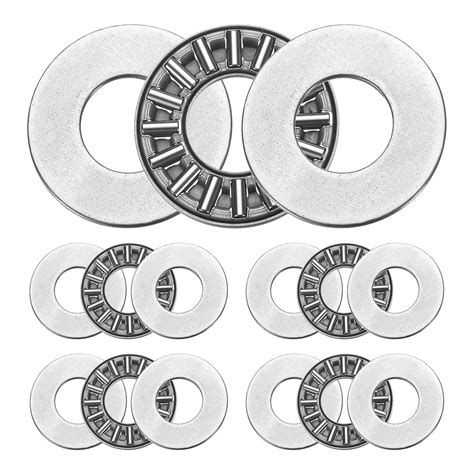

- Thrust Needle Roller Bearings: Designed to handle axial loads, these bearings feature needles that are oriented perpendicular to the shaft.
Applications of Needle Roller Bearings
Needle roller bearings are used in a wide range of applications due to their compact size and high load-carrying capacity. Some of the most common applications include:
- Automotive Industry: Used in transmissions, engines, and steering systems to reduce friction and wear.
- Aerospace Industry: Employed in aircraft engines and landing gear to handle high loads and extreme conditions.
- Industrial Machinery: Utilized in gearboxes, pumps, and compressors to ensure smooth operation and longevity.
- Construction Equipment: Found in excavators, cranes, and other heavy machinery to support heavy loads and harsh environments.
Advantages of Needle Roller Bearings
Needle roller bearings offer several advantages that make them a preferred choice in many applications:
- High Load-Carrying Capacity: Despite their small size, needle roller bearings can handle significant radial loads.
- Compact Design: Their thin, elongated rollers allow for a more compact design, saving space in tight applications.
- Low Friction: The use of needles reduces friction, leading to smoother operation and less wear.
- Durability: Made from high-quality materials, these bearings are designed to withstand harsh conditions and provide long-lasting performance.
How Needle Roller Bearings Work
Needle roller bearings operate on the principle of rolling contact, where the needles roll between the inner and outer races. This rolling motion reduces friction and wear, allowing for smooth and efficient operation. The key components of a needle roller bearing include:
- Needles: The small, cylindrical rollers that carry the load.
- Cage: A structure that holds the needles in place and maintains their spacing.
- Inner Race: The inner ring that rotates with the shaft.
- Outer Race: The outer ring that is typically stationary.
When the shaft rotates, the needles roll between the inner and outer races, distributing the load evenly and reducing friction. This design allows for high load-carrying capacity and smooth operation, even in demanding conditions.
Selection Criteria for Needle Roller Bearings
Choosing the right needle roller bearing for your application involves considering several factors:
- Load Capacity: Ensure the bearing can handle the radial and axial loads in your application.
- Speed: Consider the rotational speed of the shaft to ensure the bearing can operate efficiently.
- Environment: Assess the operating conditions, including temperature, humidity, and contamination, to select a bearing that can withstand these factors.
- Space Constraints: Measure the available space to ensure the bearing fits within the design constraints.
- Material: Choose a bearing made from materials that are compatible with your application, such as stainless steel for corrosive environments.
By carefully considering these factors, you can select a needle roller bearing that meets the specific needs of your application, ensuring optimal performance and longevity.
Maintenance and Care
Proper maintenance and care are essential to ensure the longevity and performance of needle roller bearings. Here are some key points to consider:
- Lubrication: Regularly lubricate the bearings to reduce friction and prevent wear. Use a high-quality lubricant suitable for your application.
- Cleaning: Keep the bearings clean and free from contaminants such as dirt, dust, and debris. Regular cleaning can prevent premature wear and failure.
- Inspection: Periodically inspect the bearings for signs of wear, damage, or misalignment. Early detection of issues can prevent costly repairs and downtime.
- Alignment: Ensure proper alignment of the shaft and bearing to prevent uneven wear and reduce the risk of failure.
By following these maintenance practices, you can extend the life of your needle roller bearings and ensure reliable performance in your machinery.
🛠️ Note: Always refer to the manufacturer's guidelines for specific maintenance and care instructions tailored to your bearing type and application.
Common Issues and Troubleshooting
Despite their durability, needle roller bearings can encounter issues that affect their performance. Some common problems and their solutions include:
| Issue | Cause | Solution |
|---|---|---|
| Excessive Noise | Misalignment, contamination, or insufficient lubrication | Check alignment, clean the bearing, and ensure proper lubrication |
| Premature Wear | Overloading, contamination, or inadequate lubrication | Reduce load, clean the bearing, and use appropriate lubricant |
| Seizure | Lack of lubrication, contamination, or excessive heat | Lubricate the bearing, clean it, and ensure proper cooling |
| Vibration | Misalignment, unbalanced load, or worn-out components | Check alignment, balance the load, and replace worn-out parts |
By addressing these issues promptly, you can prevent further damage and ensure the continued performance of your needle roller bearings.
Needle roller bearings are a vital component in many mechanical systems, offering high load-carrying capacity, compact design, and low friction. Understanding their types, applications, advantages, and maintenance requirements can help you select the right bearing for your needs and ensure optimal performance. Whether you're working in the automotive, aerospace, industrial, or construction sectors, needle roller bearings play a crucial role in the smooth and efficient operation of machinery.
By carefully considering the selection criteria, maintaining proper care, and addressing common issues, you can maximize the lifespan and performance of your needle roller bearings. This ensures that your machinery operates reliably and efficiently, reducing downtime and maintenance costs.
