Northing And Easting

Understanding the concepts of Northing and Easting is fundamental for anyone involved in geospatial analysis, surveying, or navigation. These terms are integral to the Universal Transverse Mercator (UTM) coordinate system, which is widely used for mapping and positioning on the Earth's surface. This blog post will delve into the intricacies of Northing and Easting, explaining their significance, how they are calculated, and their applications in various fields.

Table of Contents

Understanding Northing and Easting

Northing and Easting are coordinates used to specify a location within a UTM zone. The UTM system divides the Earth into 60 zones, each 6 degrees of longitude wide. Within each zone, coordinates are given in meters, with the origin (0,0) located at the equator and the central meridian of the zone.

Northing refers to the distance north of the equator, measured in meters. It increases as you move northward from the equator. Easting, on the other hand, refers to the distance east of the central meridian of the UTM zone, also measured in meters. It increases as you move eastward from the central meridian.

The UTM Coordinate System

The UTM coordinate system is a grid-based method of specifying locations on the Earth’s surface. It is particularly useful for large-scale maps and GPS systems because it provides a consistent and accurate way to represent positions. The system is based on a transverse Mercator projection, which minimizes distortion over small areas.

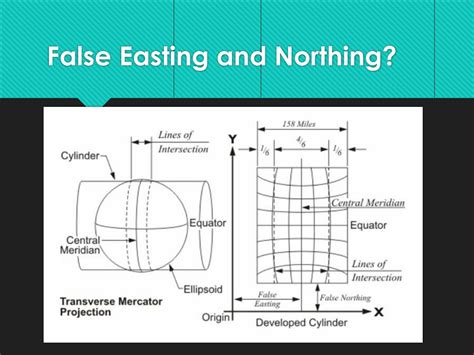

The UTM system uses a false origin to avoid negative coordinates. The false origin is typically set at the intersection of the equator and the central meridian of the zone. This means that all coordinates within a zone are positive, making it easier to work with.

Calculating Northing and Easting

Calculating Northing and Easting involves converting geographic coordinates (latitude and longitude) into UTM coordinates. This process can be complex and is typically done using specialized software or algorithms. However, the basic steps involve:

Determining the UTM zone for the given latitude and longitude.
Converting the latitude and longitude to a Cartesian coordinate system.
Applying the transverse Mercator projection to convert the Cartesian coordinates to UTM coordinates.

Here is a simplified example of how the conversion might look:

Latitude	Longitude	UTM Zone	Northing	Easting
40.7128° N	74.0060° W	18T	4509777.78	549377.78

In this example, the geographic coordinates (40.7128° N, 74.0060° W) are converted to UTM coordinates within zone 18T, resulting in a Northing of 4509777.78 meters and an Easting of 549377.78 meters.

📌 Note: The conversion process can be affected by the specific ellipsoid model used (e.g., WGS84, NAD83). Ensure that the same model is used for both the input coordinates and the conversion process.

Applications of Northing and Easting

Northing and Easting coordinates are used in a wide range of applications, including:

Surveying: Surveyors use UTM coordinates to accurately measure and map land features. The precision of UTM coordinates makes them ideal for legal descriptions and boundary determinations.
Navigation: GPS devices and other navigation tools often display coordinates in the UTM system. This is particularly useful for outdoor activities like hiking, where precise location information is crucial.
Geospatial Analysis: In fields such as urban planning, environmental science, and disaster management, UTM coordinates are used to analyze spatial data. The consistent grid system makes it easier to overlay different datasets and perform accurate measurements.
Military Operations: The military uses UTM coordinates for precise targeting and navigation. The system’s accuracy and simplicity make it a reliable tool for tactical operations.

Advantages of Using Northing and Easting

There are several advantages to using Northing and Easting coordinates in the UTM system:

Accuracy: UTM coordinates provide high accuracy over small areas, making them suitable for detailed mapping and surveying.
Consistency: The grid-based system ensures that coordinates are consistent and easy to understand, regardless of the location.
Simplicity: The use of meters for both Northing and Easting makes calculations straightforward and avoids the complexities of degrees, minutes, and seconds.
Interoperability: UTM coordinates are widely accepted and used, making it easy to share data across different systems and platforms.

Challenges and Limitations

While the UTM system has many advantages, it also has some challenges and limitations:

Distortion: The transverse Mercator projection can introduce distortion, particularly at the edges of each UTM zone. This can affect the accuracy of measurements over large areas.
Zone Boundaries: Coordinates near the boundaries of UTM zones can be problematic, as they may fall into adjacent zones. This requires careful management of zone transitions.
Complexity: Converting between geographic coordinates and UTM coordinates can be complex and requires specialized software or algorithms.

📌 Note: It is important to understand the limitations of the UTM system and to use it appropriately for the scale and scope of the project. For large-scale projects, consider using other coordinate systems or projections that may be more suitable.

Future Trends in Geospatial Coordinates

The field of geospatial analysis is continually evolving, with new technologies and methods emerging to improve accuracy and efficiency. Some future trends in the use of Northing and Easting coordinates include:

Integration with GIS: Geographic Information Systems (GIS) are becoming more integrated with UTM coordinates, allowing for more sophisticated spatial analysis and visualization.
Real-Time Data: The use of real-time data and sensors is increasing, providing up-to-date information on locations and movements. This requires accurate and reliable coordinate systems like UTM.
Automation: Automation tools and algorithms are being developed to streamline the conversion and management of UTM coordinates, reducing the need for manual calculations.

As technology advances, the use of Northing and Easting coordinates will continue to play a crucial role in geospatial analysis, surveying, and navigation. The accuracy, consistency, and simplicity of the UTM system make it a valuable tool for a wide range of applications.

In summary, Northing and Easting coordinates are essential for understanding and working with the UTM coordinate system. They provide a precise and consistent way to specify locations on the Earth’s surface, making them invaluable for surveying, navigation, geospatial analysis, and military operations. While there are challenges and limitations to consider, the advantages of using UTM coordinates make them a reliable and widely accepted tool in the field of geospatial analysis. As technology continues to evolve, the use of Northing and Easting coordinates will remain a cornerstone of accurate and efficient spatial data management.
