Understanding the intricacies of battery wiring is crucial for anyone working with electrical systems, especially in applications requiring high power output. One of the key concepts in this area is Parallel Battery Wiring. This method involves connecting multiple batteries in parallel to increase the overall capacity while maintaining the same voltage. This approach is particularly useful in scenarios where a longer runtime is needed without increasing the voltage.
Understanding Parallel Battery Wiring

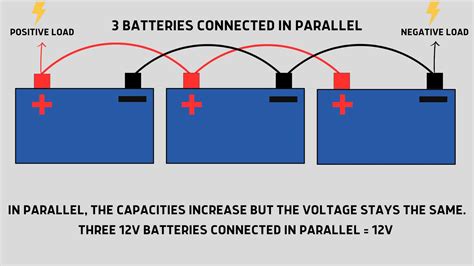

Parallel Battery Wiring is a configuration where the positive terminals of all batteries are connected together, and the negative terminals are also connected together. This setup ensures that the voltage remains the same as that of a single battery, but the total capacity (measured in amp-hours) is the sum of the capacities of all the batteries connected in parallel.
For example, if you have two 12V batteries, each with a capacity of 100 amp-hours, connecting them in parallel will give you a total capacity of 200 amp-hours at 12V. This is ideal for applications that require a steady voltage but need more power over a longer period.
Advantages of Parallel Battery Wiring
There are several advantages to using Parallel Battery Wiring:
- Increased Capacity: The total capacity of the system is increased, allowing for longer runtime.
- Maintained Voltage: The voltage remains the same as that of a single battery, which is crucial for many electrical systems.
- Redundancy: If one battery fails, the others can still provide power, ensuring continuous operation.
- Ease of Expansion: Adding more batteries to the system is straightforward, making it easy to scale up the capacity as needed.
Disadvantages of Parallel Battery Wiring
While Parallel Battery Wiring has its benefits, it also comes with some drawbacks:
- Complexity in Management: Managing multiple batteries can be more complex than managing a single battery.
- Potential for Imbalance: Batteries may discharge at different rates, leading to imbalances that can affect performance.
- Higher Cost: More batteries mean higher initial and maintenance costs.
Applications of Parallel Battery Wiring
Parallel Battery Wiring is commonly used in various applications, including:
- Electric Vehicles: To provide the necessary power for extended driving ranges.
- Solar Power Systems: To store excess energy generated during the day for use at night.
- Backup Power Systems: To ensure continuous power supply during outages.
- Marine and RV Systems: To power appliances and electronics over extended periods.
How to Wire Batteries in Parallel
Wiring batteries in parallel involves a few simple steps. Here’s a step-by-step guide:
- Gather Your Batteries: Ensure all batteries are of the same type, voltage, and capacity.
- Prepare the Wiring: Use appropriate gauge wires to connect the batteries. The wire gauge should be able to handle the current flow.
- Connect the Positive Terminals: Connect the positive terminal of each battery to a common positive bus bar.
- Connect the Negative Terminals: Connect the negative terminal of each battery to a common negative bus bar.
- Secure the Connections: Ensure all connections are secure and free of corrosion.
- Test the System: Use a multimeter to check the voltage and ensure all batteries are properly connected.
🔧 Note: Always wear protective gear and follow safety protocols when handling batteries to avoid short circuits and potential hazards.
Safety Considerations
When working with batteries, especially in a Parallel Battery Wiring setup, safety is paramount. Here are some key considerations:
- Use Proper Wiring: Ensure the wires are rated for the current and voltage of the batteries.
- Avoid Short Circuits: Be cautious to avoid any short circuits, which can cause fires or explosions.
- Ventilation: Work in a well-ventilated area to avoid the buildup of harmful gases.
- Regular Maintenance: Regularly check the batteries for any signs of damage or corrosion.
Troubleshooting Parallel Battery Wiring
Even with careful setup, issues can arise in a Parallel Battery Wiring system. Here are some common problems and their solutions:
| Problem | Solution |
|---|---|
| Uneven Discharge | Check for differences in battery capacities or internal resistances. Replace any faulty batteries. |
| Low Voltage | Ensure all connections are secure and free of corrosion. Check for any short circuits. |
| Overheating | Reduce the load on the batteries or increase ventilation. Check for any faulty batteries. |
🛠️ Note: Regularly monitoring the system can help prevent many of these issues before they become significant problems.
Maintaining Parallel Battery Wiring Systems
To ensure the longevity and efficiency of your Parallel Battery Wiring system, regular maintenance is essential. Here are some tips:
- Regular Inspections: Check the batteries and connections for any signs of wear or damage.
- Cleaning: Keep the batteries and terminals clean to prevent corrosion.
- Balancing: Use a battery balancer to ensure all batteries are charged evenly.
- Storage: Store batteries in a cool, dry place when not in use.
By following these maintenance tips, you can extend the life of your batteries and ensure your system runs smoothly.
Parallel Battery Wiring is a powerful technique for increasing the capacity of your battery system while maintaining a consistent voltage. Whether you’re powering an electric vehicle, a solar power system, or a backup power supply, understanding and properly implementing Parallel Battery Wiring can significantly enhance the performance and reliability of your electrical system. By following the guidelines and safety considerations outlined above, you can ensure a safe and efficient battery setup that meets your power needs.
