Archery is a sport that combines precision, skill, and a deep understanding of the equipment used. One of the most essential pieces of equipment in archery is the arrow. Understanding the parts of an arrow is crucial for any archer, whether you are a beginner or an experienced shooter. This knowledge not only enhances your performance but also ensures safety and longevity of your equipment.

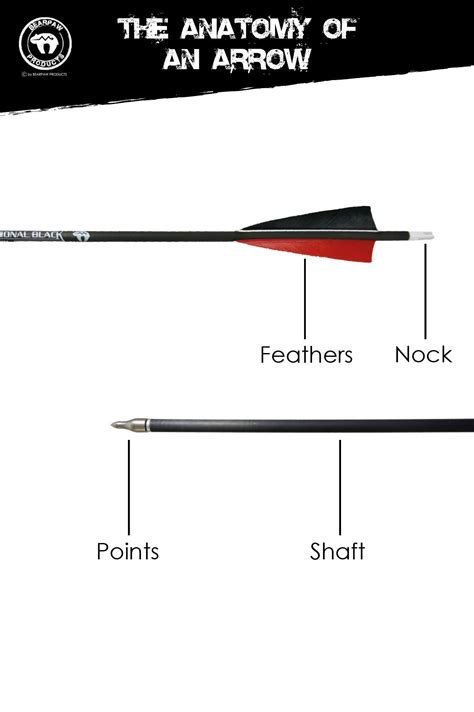

Understanding the Anatomy of an Arrow
An arrow is composed of several key components, each serving a specific function. Familiarizing yourself with these parts of an arrow will help you make informed decisions when selecting and maintaining your arrows.
The Shaft
The shaft is the central part of the arrow, providing the backbone and structural integrity. It is typically made from materials like aluminum, carbon fiber, or a combination of both. The shaft's flexibility and weight significantly impact the arrow's flight characteristics.
There are different types of shafts available, each suited to different styles of archery:
- Aluminum Shafts: Known for their durability and affordability, aluminum shafts are a popular choice for beginners.
- Carbon Fiber Shafts: These are lighter and more rigid, offering better performance but at a higher cost.
- Composite Shafts: Made from a combination of materials, these shafts offer a balance between performance and cost.
The Nock
The nock is the small plastic piece located at the rear end of the arrow. It is designed to fit securely onto the string of the bow. The nock ensures that the arrow is properly aligned with the bowstring, which is crucial for accurate shooting.
There are different types of nocks available, including:
- Standard Nocks: These are the most common and are suitable for most types of bows.
- Indexed Nocks: These have a small tab that helps in aligning the arrow with the bowstring, reducing the risk of dry firing.
- Press-Fit Nocks: These are designed to be pressed onto the shaft, providing a secure fit.
The Fletching
The fletching, often referred to as the feathers or vanes, is attached near the rear end of the arrow. It plays a critical role in stabilizing the arrow's flight by creating drag and reducing wobble. The fletching ensures that the arrow flies straight and true to the target.
Fletching comes in various shapes and sizes, including:
- Feathers: Traditional and often preferred by traditional archers, feathers provide a natural feel and are lightweight.
- Plastic Vanes: These are more durable and consistent in performance, making them popular among compound bow users.
Fletching can be arranged in different configurations, such as:
- Three-Feather Configuration: The most common setup, providing good stability and accuracy.
- Four-Vane Configuration: Often used with compound bows, offering enhanced stability and reduced wind drift.
The Arrowhead
The arrowhead, also known as the point, is the front end of the arrow. It is designed to penetrate the target and can vary significantly depending on the type of archery and the intended use. Arrowheads come in different shapes and sizes, each serving a specific purpose.
Some common types of arrowheads include:
- Field Points: These are blunt and used for target practice, reducing the risk of injury or damage.
- Broadheads: Designed for hunting, these have sharp blades that expand upon impact, causing maximum damage.
- Blunt Points: Used for small game hunting or practice, these points have a rounded tip to minimize penetration.
The Insert
The insert is a small metal or plastic piece that fits into the front end of the shaft. It provides a secure attachment point for the arrowhead. The insert ensures that the arrowhead is properly aligned and can withstand the impact of shooting.
Inserts come in different sizes and types, including:
- Standard Inserts: These are the most common and are suitable for most types of arrowheads.
- Threaded Inserts: These have a threaded design that allows for easy attachment and removal of the arrowhead.
The Cresting
The cresting is the colored band or marking on the shaft of the arrow. It serves both aesthetic and functional purposes. Cresting helps archers identify their arrows quickly, especially in competitive settings where multiple arrows may be used. Additionally, it can indicate the spine or stiffness of the arrow, which is crucial for matching the arrow to the bow.
Cresting can be applied in various ways, including:
- Painted Cresting: This involves painting the shaft with specific colors or patterns.
- Tape Cresting: Using colored tape to wrap around the shaft, providing a durable and easy-to-apply option.
Spine and Spine Weight
The spine of an arrow refers to its stiffness or flexibility. It is a critical factor in determining the arrow's performance and accuracy. The spine weight is measured in pounds per inch (lb/in) and indicates how much force is required to bend the arrow a certain distance.
Choosing the correct spine for your arrow is essential for optimal performance. An arrow that is too stiff or too flexible can result in poor accuracy and inconsistent flight. Matching the spine to your bow's draw weight and draw length is crucial for achieving the best results.
Here is a table to help you understand the relationship between draw weight, draw length, and spine weight:
| Draw Weight (lbs) | Draw Length (inches) | Recommended Spine Weight (lb/in) |
|---|---|---|
| 30-40 | 26-28 | 0.340 |
| 40-50 | 28-30 | 0.390 |
| 50-60 | 30-32 | 0.440 |
| 60-70 | 32-34 | 0.490 |
📝 Note: These are general guidelines, and individual preferences may vary. Always consult with an archery expert to determine the best spine weight for your specific setup.
Arrow Length
The length of an arrow is measured from the base of the nock to the tip of the arrowhead. It is an essential factor in ensuring that the arrow fits properly on the bow and performs well. The correct arrow length depends on the draw length of the archer and the type of bow being used.
To determine the correct arrow length, follow these steps:
- Measure your draw length by extending your arms fully and measuring the distance from the tip of your middle finger to the tip of your other middle finger.
- Add 1 to 2 inches to your draw length to account for the nock and the arrowhead.
- Choose an arrow that is at least 1 inch longer than your calculated length to ensure a proper fit on the bow.
For example, if your draw length is 28 inches, you would add 1 to 2 inches, resulting in an arrow length of 29 to 30 inches. However, it's essential to consult with an archery expert to ensure the correct arrow length for your specific setup.
📝 Note: Always double-check the arrow length before purchasing to avoid any issues with fit and performance.
Arrow Weight
The weight of an arrow is determined by the combined weight of all its parts of an arrow. It is typically measured in grains (gr) and can significantly impact the arrow's flight characteristics and penetration power. A heavier arrow generally provides better penetration and stability but may sacrifice speed and energy.
Choosing the correct arrow weight depends on several factors, including:
- The type of bow being used.
- The intended use of the arrow (target practice, hunting, etc.).
- The archer's draw weight and draw length.
Here is a general guideline for selecting arrow weight based on draw weight:
| Draw Weight (lbs) | Recommended Arrow Weight (gr) |
|---|---|
| 30-40 | 400-500 |
| 40-50 | 500-600 |
| 50-60 | 600-700 |
| 60-70 | 700-800 |
📝 Note: These are general guidelines, and individual preferences may vary. Always consult with an archery expert to determine the best arrow weight for your specific setup.
Arrow Tuning
Arrow tuning is the process of adjusting the arrow and bow to ensure optimal performance and accuracy. It involves fine-tuning various parts of an arrow and bow components to achieve the best possible flight characteristics. Proper arrow tuning can significantly improve your shooting accuracy and consistency.
Some key aspects of arrow tuning include:
- Spine Tuning: Ensuring the arrow's spine matches the bow's draw weight and draw length.
- Nock Tuning: Adjusting the nock to ensure proper alignment with the bowstring.
- Fletching Tuning: Ensuring the fletching is properly aligned and balanced.
- Arrow Length Tuning: Adjusting the arrow length to fit the bow and archer's draw length.
Arrow tuning is an ongoing process that requires patience and attention to detail. It is essential to consult with an archery expert to ensure proper tuning and achieve the best results.
📝 Note: Regularly inspect and maintain your arrows to ensure they remain in good condition and perform optimally.
Understanding the parts of an arrow and their functions is crucial for any archer. By familiarizing yourself with the shaft, nock, fletching, arrowhead, insert, cresting, spine, arrow length, and arrow weight, you can make informed decisions when selecting and maintaining your arrows. Proper arrow tuning and regular maintenance will ensure that your arrows perform optimally and provide years of enjoyment.
In conclusion, the parts of an arrow play a vital role in the performance and accuracy of your shots. Whether you are a beginner or an experienced archer, understanding these components will enhance your archery skills and ensure a safe and enjoyable experience. By selecting the right arrows and maintaining them properly, you can achieve consistent and accurate shooting, making your archery journey more rewarding.
