Pfsense With Router

In the realm of network security and management, having a robust and reliable firewall solution is paramount. One of the most popular choices among network administrators is pfSense, an open-source firewall and router software that offers a comprehensive suite of features. When combined with a physical router, pfSense can transform a basic network into a highly secure and efficient environment. This post will delve into the intricacies of setting up and configuring pfSense with a router, highlighting the benefits, steps, and best practices to ensure optimal performance.

Table of Contents

Understanding pfSense

pfSense is a powerful, open-source firewall and router software based on FreeBSD. It provides a wide range of features, including stateful packet filtering, network address translation (NAT), virtual private network (VPN) support, and intrusion detection and prevention. When integrated with a physical router, pfSense can enhance network security, manage traffic efficiently, and provide advanced routing capabilities.

Benefits of Using pfSense with a Router

Using pfSense with a router offers several advantages:

Enhanced Security: pfSense provides robust firewall capabilities, including stateful packet inspection, which helps in detecting and blocking malicious traffic.
Advanced Routing: pfSense supports multiple routing protocols, allowing for complex network configurations and efficient traffic management.
VPN Support: With built-in VPN capabilities, pfSense enables secure remote access to your network, ensuring data privacy and integrity.
Intrusion Detection and Prevention: pfSense includes Snort, an open-source intrusion detection system, which helps in identifying and mitigating network threats.
Traffic Shaping: pfSense allows for traffic shaping, ensuring that critical applications receive the necessary bandwidth while limiting less important traffic.

Setting Up pfSense with a Router

Setting up pfSense with a router involves several steps, from hardware selection to configuration. Below is a detailed guide to help you through the process.

Hardware Requirements

Before you begin, ensure you have the necessary hardware:

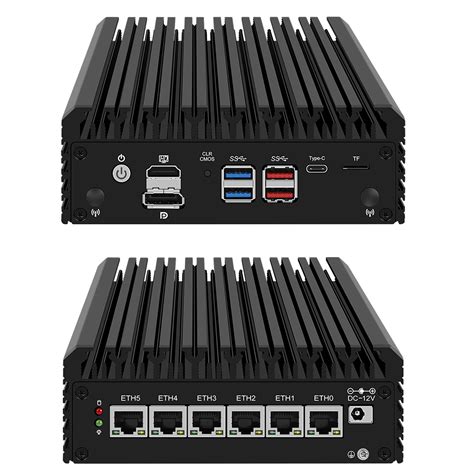

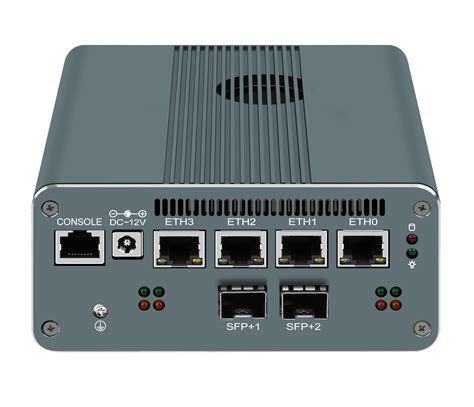

A compatible computer or appliance to run pfSense. This can be an old PC, a dedicated firewall appliance, or even a virtual machine.
A physical router that supports pfSense. This can be a dedicated router or a multi-functional device.
Network cables and switches as needed.

Installing pfSense

Follow these steps to install pfSense on your hardware:

Download the pfSense installation image from the official website.
Create a bootable USB drive using tools like Rufus or UNetbootin.
Insert the bootable USB drive into your hardware and boot from it.
Follow the on-screen instructions to install pfSense. This includes selecting the installation media, partitioning the disk, and configuring the initial settings.
Once the installation is complete, reboot the system and log in to the pfSense web interface using the default credentials (username: admin, password: pfsense).

Configuring pfSense

After installing pfSense, the next step is to configure it to work with your router. Here are the key configuration steps:

Initial Setup: Log in to the pfSense web interface and complete the initial setup wizard. This includes setting the hostname, domain name, and time zone.
Network Interfaces: Configure the network interfaces. Typically, you will have at least two interfaces: WAN (Wide Area Network) and LAN (Local Area Network). Assign the appropriate interfaces and configure IP addresses.
Firewall Rules: Set up firewall rules to control incoming and outgoing traffic. By default, pfSense blocks all incoming traffic and allows all outgoing traffic. Customize these rules based on your network requirements.

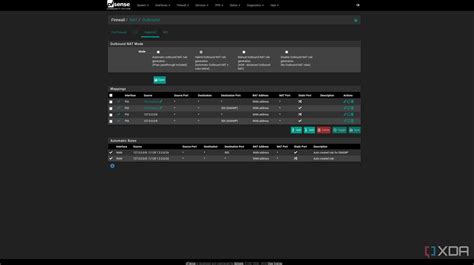

NAT Configuration: Configure Network Address Translation (NAT) to allow devices on your LAN to access the internet. This involves setting up outbound NAT rules and port forwarding as needed.
VPN Setup: If you need VPN access, configure the VPN settings. pfSense supports various VPN protocols, including IPsec, OpenVPN, and L2TP.
Traffic Shaping: Implement traffic shaping to prioritize critical applications and limit bandwidth for less important traffic. This can be done using the pfSense traffic shaper.

🔍 Note: Ensure that your router is configured to work in bridge mode or as a switch when using pfSense. This allows pfSense to handle all routing and firewall functions.

Advanced Configuration Options

Once you have the basic setup in place, you can explore advanced configuration options to further enhance your network security and performance.

Intrusion Detection and Prevention

pfSense includes Snort, an open-source intrusion detection system. To enable Snort:

Navigate to Services > Intrusion Detection in the pfSense web interface.
Enable Snort and configure the rulesets based on your network requirements.
Monitor the alerts and take appropriate actions to mitigate threats.

Multi-WAN Configuration

If you have multiple internet connections, you can configure pfSense to use them simultaneously for load balancing or failover. To set up Multi-WAN:

Navigate to Interfaces > (assign) and assign additional interfaces for your WAN connections.
Configure the gateway settings for each WAN interface.
Navigate to System > Routing and configure the gateway groups for load balancing or failover.

VPN Configuration

pfSense supports various VPN protocols, allowing for secure remote access. To configure a VPN:

Navigate to VPN > IPsec or VPN > OpenVPN depending on your chosen protocol.
Configure the VPN settings, including the tunnel interface, encryption algorithms, and authentication methods.
Set up the client settings and distribute the configuration files to your remote users.

Best Practices for pfSense with Router

To ensure optimal performance and security, follow these best practices:

Regular Updates: Keep pfSense and its packages up to date to benefit from the latest security patches and features.
Strong Passwords: Use strong, unique passwords for all administrative accounts.
Firewall Rules: Regularly review and update firewall rules to ensure they are effective and not overly permissive.
Backup Configuration: Regularly back up your pfSense configuration to prevent data loss in case of hardware failure or misconfiguration.
Monitoring: Use pfSense’s monitoring tools to keep an eye on network traffic, performance, and security alerts.

🔍 Note: Regularly review and update your pfSense configuration to adapt to changing network requirements and security threats.

Troubleshooting Common Issues

Even with careful configuration, you may encounter issues. Here are some common problems and their solutions:

Connectivity Issues

If you experience connectivity issues, check the following:

Ensure that the network interfaces are correctly configured and assigned.
Verify that the firewall rules are not blocking necessary traffic.
Check the physical connections and cables.

VPN Connection Problems

If your VPN connection is not working, consider the following:

Verify the VPN settings on both the pfSense and client sides.
Check the firewall rules to ensure they allow VPN traffic.
Ensure that the encryption algorithms and authentication methods are compatible.

Performance Issues

If you notice performance issues, try the following:

Review the traffic shaping settings to ensure they are optimized.
Check for any resource-intensive processes or services running on pfSense.
Consider upgrading the hardware if necessary.

🔍 Note: Regularly monitor your network performance and security to identify and address issues promptly.

Conclusion

Using pfSense with a router can significantly enhance your network’s security, performance, and management capabilities. By following the steps outlined in this post, you can set up and configure pfSense to meet your specific network requirements. Regular updates, strong security practices, and proactive monitoring are essential to maintain a robust and secure network environment. Whether you are a small business owner, a network administrator, or a home user, pfSense with a router offers a powerful solution for managing and securing your network.
