Plate Heat Exchangers are essential components in various industrial processes, facilitating efficient heat transfer between two fluids. These devices are widely used in industries such as chemical processing, food and beverage, HVAC, and power generation. Their design and functionality make them a preferred choice for applications requiring high thermal efficiency and compact size.

Table of Contents

Understanding Plate Heat Exchangers

Plate Heat Exchangers consist of a series of thin, corrugated plates arranged in a frame. The plates are typically made of materials like stainless steel, titanium, or other corrosion-resistant alloys. The fluids to be heated or cooled flow through alternate channels formed by the plates. The heat is transferred from one fluid to the other through the plates, which act as a barrier between the two fluids.

There are several types of Plate Heat Exchangers, each designed for specific applications:

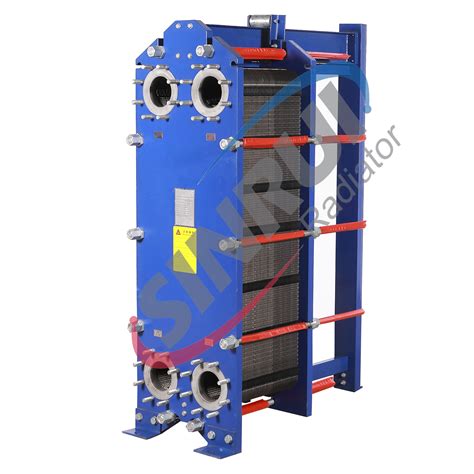

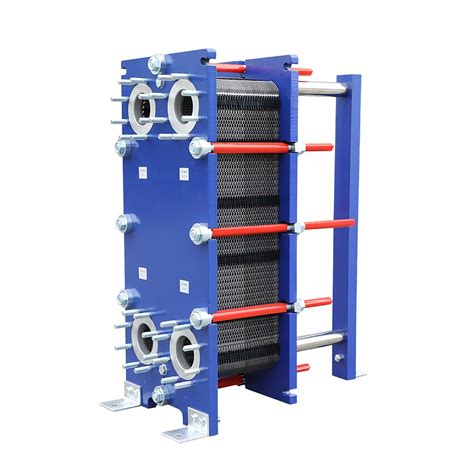

Gasketed Plate Heat Exchangers: These are the most common type, featuring gaskets between the plates to seal the channels. They are easy to disassemble for cleaning and maintenance.

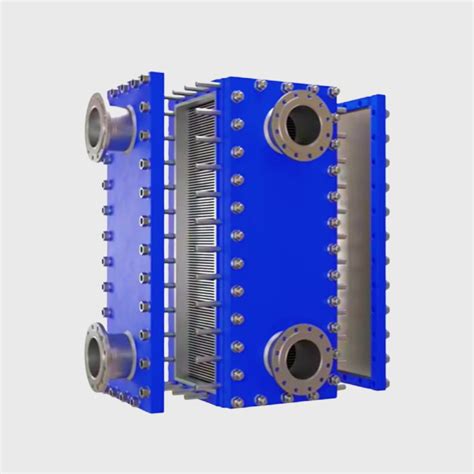

Welded Plate Heat Exchangers: These have the plates welded together, eliminating the need for gaskets. They are suitable for high-pressure applications and corrosive fluids.

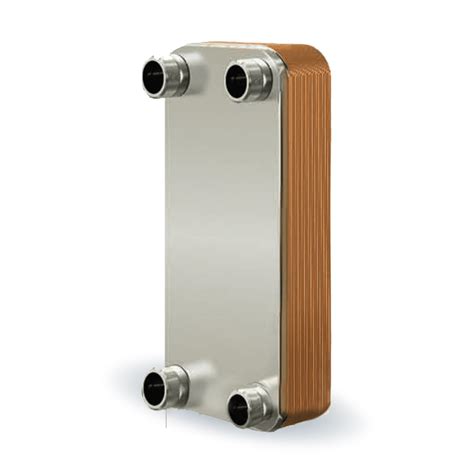

Brazed Plate Heat Exchangers: These use brazing to join the plates, making them ideal for applications requiring high thermal efficiency and compact size.

Advantages of Plate Heat Exchangers

Plate Heat Exchangers offer numerous advantages over other types of heat exchangers, such as shell and tube heat exchangers. Some of the key benefits include:

High Thermal Efficiency: The large surface area and thin plates of Plate Heat Exchangers provide excellent heat transfer rates, making them highly efficient.
Compact Size: Due to their design, Plate Heat Exchangers require less space compared to other types of heat exchangers, making them ideal for applications with space constraints.
Flexibility: Plate Heat Exchangers can be easily configured to handle different flow rates and temperatures, making them versatile for various applications.
Easy Maintenance: Gasketed Plate Heat Exchangers can be disassembled for cleaning and maintenance, ensuring long-term performance and reliability.
Cost-Effective: The initial cost and operating costs of Plate Heat Exchangers are generally lower compared to other types of heat exchangers, making them a cost-effective solution.

Applications of Plate Heat Exchangers

Plate Heat Exchangers are used in a wide range of industries and applications. Some of the most common uses include:

Chemical Processing: Plate Heat Exchangers are used to heat or cool chemical solutions, ensuring precise temperature control and efficient heat transfer.
Food and Beverage: In the food and beverage industry, Plate Heat Exchangers are used for pasteurization, sterilization, and cooling of products. Their hygienic design makes them suitable for handling food-grade fluids.
HVAC Systems: Plate Heat Exchangers are used in heating, ventilation, and air conditioning (HVAC) systems to transfer heat between different fluids, improving energy efficiency.
Power Generation: In power plants, Plate Heat Exchangers are used for cooling and heating processes, enhancing the overall efficiency of the power generation system.
Pharmaceuticals: Plate Heat Exchangers are used in the pharmaceutical industry for heating and cooling processes, ensuring precise temperature control and maintaining the integrity of pharmaceutical products.

Design and Selection of Plate Heat Exchangers

Selecting the right Plate Heat Exchanger for a specific application involves considering several factors. These include the type of fluids, flow rates, temperatures, pressure, and the required heat transfer rate. The design of the Plate Heat Exchanger should also consider the material of construction, gasket type, and the number of plates required.

Here are some key factors to consider when designing and selecting Plate Heat Exchangers:

Fluid Properties: The properties of the fluids, such as viscosity, density, and thermal conductivity, affect the heat transfer rate and the design of the Plate Heat Exchanger.
Flow Rates: The flow rates of the fluids determine the size and number of plates required to achieve the desired heat transfer rate.
Temperatures: The operating temperatures of the fluids influence the material selection and the design of the Plate Heat Exchanger.
Pressure: The operating pressure of the fluids affects the design and material selection of the Plate Heat Exchanger, especially for high-pressure applications.
Heat Transfer Rate: The required heat transfer rate determines the size and number of plates, as well as the configuration of the Plate Heat Exchanger.

When selecting a Plate Heat Exchanger, it is essential to consider the specific requirements of the application and consult with experts to ensure the best performance and reliability.

🔍 Note: Always refer to the manufacturer's guidelines and specifications when selecting and designing Plate Heat Exchangers to ensure optimal performance and safety.

Maintenance and Cleaning of Plate Heat Exchangers

Maintaining and cleaning Plate Heat Exchangers is crucial for ensuring their long-term performance and reliability. Regular maintenance helps prevent fouling, corrosion, and other issues that can affect the heat transfer efficiency. Here are some key maintenance and cleaning practices:

Regular Inspection: Inspect the Plate Heat Exchanger regularly for signs of wear, corrosion, or leaks. Check the gaskets, plates, and frame for any damage.
Cleaning: Clean the plates and channels to remove any fouling or deposits. Use appropriate cleaning solutions and methods based on the type of fouling and the material of the plates.
Gasket Replacement: Replace the gaskets periodically to ensure proper sealing and prevent leaks. Follow the manufacturer's recommendations for gasket replacement intervals.
Pressure Testing: Conduct pressure testing to check for leaks and ensure the integrity of the Plate Heat Exchanger. This is especially important for high-pressure applications.
Lubrication: Lubricate the moving parts, such as the tightening bolts and frame, to ensure smooth operation and prevent wear.

Proper maintenance and cleaning practices help extend the lifespan of Plate Heat Exchangers and ensure their efficient operation. Regular inspections and timely repairs can prevent costly downtime and maintenance issues.

🛠️ Note: Always follow the manufacturer's guidelines for maintenance and cleaning procedures to ensure the safety and performance of the Plate Heat Exchanger.

Common Issues and Troubleshooting

Despite their reliability, Plate Heat Exchangers can encounter various issues that affect their performance. Understanding these common problems and their solutions can help maintain the efficiency and longevity of the equipment. Here are some common issues and troubleshooting tips:

Fouling: Fouling occurs when deposits build up on the plates, reducing heat transfer efficiency. Regular cleaning and using appropriate cleaning solutions can help prevent fouling.
Leaks: Leaks can occur due to damaged gaskets, corroded plates, or loose bolts. Inspect the Plate Heat Exchanger for leaks and replace damaged gaskets or bolts as needed.
Corrosion: Corrosion can affect the plates and other components, leading to reduced performance and leaks. Use corrosion-resistant materials and apply protective coatings to prevent corrosion.
Flow Imbalances: Flow imbalances can occur due to uneven distribution of fluids, leading to reduced heat transfer efficiency. Ensure proper flow distribution and balance the flow rates of the fluids.
Temperature Variations: Temperature variations can affect the performance of the Plate Heat Exchanger. Monitor the temperatures of the fluids and adjust the flow rates or heat input as needed.

Regular maintenance and timely troubleshooting can help prevent these issues and ensure the efficient operation of Plate Heat Exchangers.

🔧 Note: Always consult the manufacturer's guidelines for troubleshooting and maintenance procedures to ensure the safety and performance of the Plate Heat Exchanger.

Case Studies: Successful Implementation of Plate Heat Exchangers

Plate Heat Exchangers have been successfully implemented in various industries, demonstrating their effectiveness and reliability. Here are a few case studies highlighting the successful use of Plate Heat Exchangers:

Case Study 1: Chemical Processing

A chemical processing plant needed to heat a corrosive chemical solution efficiently. They selected a Welded Plate Heat Exchanger due to its ability to handle corrosive fluids and high-pressure conditions. The Plate Heat Exchanger provided excellent heat transfer rates and improved the overall efficiency of the process. Regular maintenance and cleaning ensured the long-term performance of the equipment.

Case Study 2: Food and Beverage Industry

A food processing company required a hygienic and efficient solution for pasteurizing milk. They chose a Gasketed Plate Heat Exchanger, which offered easy disassembly for cleaning and maintenance. The Plate Heat Exchanger ensured precise temperature control and improved the pasteurization process, resulting in higher product quality and safety.

Case Study 3: HVAC Systems

An HVAC system needed to transfer heat between different fluids to improve energy efficiency. A Brazed Plate Heat Exchanger was selected for its high thermal efficiency and compact size. The Plate Heat Exchanger enhanced the overall performance of the HVAC system, reducing energy consumption and operating costs.

These case studies demonstrate the versatility and effectiveness of Plate Heat Exchangers in various applications. Their ability to provide efficient heat transfer, compact size, and easy maintenance makes them a preferred choice for many industries.

📊 Note: Always consider the specific requirements of your application and consult with experts to select the most suitable Plate Heat Exchanger for your needs.

Future Trends in Plate Heat Exchangers

The technology and design of Plate Heat Exchangers continue to evolve, driven by advancements in materials, manufacturing processes, and industry demands. Some of the future trends in Plate Heat Exchangers include:

Advanced Materials: The use of advanced materials, such as composite materials and high-performance alloys, can enhance the durability and thermal efficiency of Plate Heat Exchangers.
Smart Technology: Integration of smart sensors and IoT (Internet of Things) technology can provide real-time monitoring and control of Plate Heat Exchangers, improving their performance and reliability.
Energy Efficiency: Innovations in design and manufacturing processes can further enhance the energy efficiency of Plate Heat Exchangers, reducing operating costs and environmental impact.
Customization: Customizable Plate Heat Exchangers can be tailored to meet the specific needs of different applications, offering greater flexibility and performance.

These trends highlight the ongoing development and improvement of Plate Heat Exchangers, ensuring their continued relevance and effectiveness in various industries.

🌟 Note: Stay updated with the latest advancements in Plate Heat Exchanger technology to leverage the benefits of new materials, smart technology, and energy-efficient designs.

Conclusion

Plate Heat Exchangers are indispensable components in various industrial processes, offering high thermal efficiency, compact size, and easy maintenance. Their versatility and reliability make them suitable for a wide range of applications, from chemical processing to food and beverage, HVAC, and power generation. Understanding the design, selection, maintenance, and troubleshooting of Plate Heat Exchangers is crucial for ensuring their optimal performance and longevity. By staying informed about the latest trends and advancements, industries can continue to benefit from the efficiency and effectiveness of Plate Heat Exchangers, driving innovation and sustainability in their operations.
