Pressure Sensors And Transducers

Pressure sensors and transducers are essential components in various industries, from automotive and aerospace to medical and industrial automation. These devices play a crucial role in measuring and converting pressure into an electrical signal, enabling precise monitoring and control of systems. Understanding the types, applications, and selection criteria for pressure sensors and transducers is vital for engineers and technicians working in these fields.

Table of Contents

Understanding Pressure Sensors and Transducers

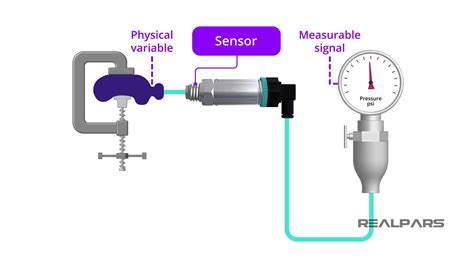

Pressure sensors and transducers are devices that detect and measure pressure, converting it into an electrical signal that can be read by an instrument. The term "pressure transducer" is often used interchangeably with "pressure sensor," but there is a subtle difference. A pressure sensor detects the pressure and converts it into a signal, while a pressure transducer additionally converts this signal into a standardized output, such as voltage or current.

Types of Pressure Sensors and Transducers

There are several types of pressure sensors and transducers, each suited to different applications and environments. The most common types include:

Piezoelectric Pressure Sensors: These sensors use the piezoelectric effect to generate an electrical charge in response to applied pressure. They are highly sensitive and suitable for dynamic measurements.
Strain Gauge Pressure Sensors: These sensors use a strain gauge to measure the deformation of a diaphragm under pressure. They are widely used in industrial applications due to their robustness and accuracy.
Capacitive Pressure Sensors: These sensors measure changes in capacitance caused by the deflection of a diaphragm. They are known for their high sensitivity and stability.
Resistive Pressure Sensors: These sensors use a resistive element that changes resistance in response to pressure. They are simple and cost-effective but may have lower accuracy compared to other types.
Optical Pressure Sensors: These sensors use optical fibers to measure pressure changes. They are immune to electromagnetic interference and suitable for harsh environments.

Applications of Pressure Sensors and Transducers

Pressure sensors and transducers are used in a wide range of applications across various industries. Some of the key applications include:

Automotive Industry: Pressure sensors are used in engine management systems, tire pressure monitoring, and fuel injection systems to ensure optimal performance and safety.
Aerospace Industry: In aircraft, pressure sensors monitor cabin pressure, fuel pressure, and hydraulic systems to ensure safe and efficient operation.
Medical Industry: Pressure sensors are used in medical devices such as blood pressure monitors, ventilators, and infusion pumps to provide accurate and reliable measurements.
Industrial Automation: Pressure sensors are essential in process control systems, hydraulic and pneumatic systems, and machinery monitoring to maintain efficiency and safety.
Environmental Monitoring: Pressure sensors are used in weather stations, oceanographic research, and environmental monitoring to measure atmospheric pressure, water depth, and other parameters.

Selection Criteria for Pressure Sensors and Transducers

Choosing the right pressure sensor or transducer depends on several factors, including the type of pressure to be measured, the environment in which it will operate, and the required accuracy and response time. Key selection criteria include:

Pressure Range: The sensor must be capable of measuring the full range of pressures expected in the application.
Accuracy: The sensor's accuracy should meet the requirements of the application, ensuring reliable measurements.
Response Time: The sensor's response time should be fast enough to capture dynamic changes in pressure.
Environmental Conditions: The sensor must be able to withstand the environmental conditions, such as temperature, humidity, and vibration, in which it will operate.
Output Signal: The sensor's output signal should be compatible with the measurement system, such as voltage, current, or digital output.
Cost: The cost of the sensor should be within the budget constraints of the project.

Additionally, consider the following factors when selecting pressure sensors and transducers:

Calibration: Ensure the sensor can be easily calibrated to maintain accuracy over time.
Compatibility: The sensor should be compatible with existing systems and equipment.
Reliability: Choose sensors from reputable manufacturers with a proven track record of reliability.

Calibration and Maintenance of Pressure Sensors and Transducers

Regular calibration and maintenance are essential to ensure the accuracy and reliability of pressure sensors and transducers. Calibration involves comparing the sensor's output to a known standard and adjusting it as necessary. Maintenance includes cleaning, inspecting, and replacing components as needed.

Here are some steps for calibrating and maintaining pressure sensors and transducers:

Initial Calibration: Calibrate the sensor upon installation to ensure it is accurate and reliable.
Periodic Calibration: Perform periodic calibration to maintain accuracy over time. The frequency of calibration depends on the application and environmental conditions.
Cleaning: Regularly clean the sensor to remove dirt, dust, and other contaminants that can affect its performance.
Inspection: Inspect the sensor for signs of wear, damage, or corrosion. Replace any damaged components promptly.
Environmental Protection: Protect the sensor from extreme temperatures, humidity, and vibration to extend its lifespan.

🔧 Note: Always follow the manufacturer's guidelines for calibration and maintenance to ensure the sensor's performance and longevity.

Common Challenges and Solutions

Despite their importance, pressure sensors and transducers can face several challenges. Understanding these challenges and their solutions is crucial for effective use. Some common challenges include:

Interference: Electromagnetic interference (EMI) and radio frequency interference (RFI) can affect the accuracy of pressure sensors. Using shielded cables and proper grounding can mitigate these issues.
Temperature Effects: Temperature changes can affect the performance of pressure sensors. Using temperature-compensated sensors or applying temperature correction algorithms can address this challenge.
Drift: Over time, pressure sensors can experience drift, leading to inaccurate measurements. Regular calibration and maintenance can help minimize drift.
Harsh Environments: Pressure sensors used in harsh environments, such as high temperatures, corrosive chemicals, or high vibrations, require robust construction and materials. Choosing sensors designed for these conditions can ensure reliability.

Future Trends in Pressure Sensors and Transducers

The field of pressure sensors and transducers is continually evolving, driven by advancements in technology and increasing demand for precision and reliability. Some future trends include:

Miniaturization: Smaller, more compact pressure sensors are being developed to meet the needs of portable and wearable devices.
Wireless Connectivity: Wireless pressure sensors enable remote monitoring and data collection, improving convenience and efficiency.
Integration with IoT: Pressure sensors integrated with the Internet of Things (IoT) allow for real-time data analysis and predictive maintenance.
Advanced Materials: The use of advanced materials, such as graphene and nanotechnology, is enhancing the sensitivity and durability of pressure sensors.
Artificial Intelligence: AI and machine learning algorithms are being used to improve the accuracy and reliability of pressure sensors by analyzing data patterns and predicting failures.

These trends are shaping the future of pressure sensors and transducers, making them more versatile, accurate, and reliable for a wide range of applications.

Pressure sensors and transducers are indispensable tools in modern industries, enabling precise measurement and control of pressure. By understanding the types, applications, and selection criteria, as well as the importance of calibration and maintenance, engineers and technicians can ensure the optimal performance of these devices. As technology continues to advance, the future of pressure sensors and transducers looks promising, with innovations that will further enhance their capabilities and applications.
