Pulse Pressure Variation

In the realm of critical care and anesthesia, monitoring hemodynamic parameters is crucial for ensuring patient safety and optimizing treatment outcomes. One of the key metrics that healthcare professionals rely on is Pulse Pressure Variation (PPV). This parameter provides valuable insights into a patient's fluid responsiveness and cardiovascular status, making it an essential tool in the management of critically ill patients.

Table of Contents

Understanding Pulse Pressure Variation

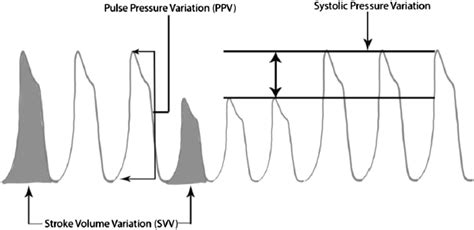

Pulse Pressure Variation (PPV) is a dynamic indicator of fluid responsiveness, particularly useful in mechanically ventilated patients. It measures the changes in pulse pressure (the difference between systolic and diastolic blood pressure) during the respiratory cycle. PPV is calculated as the percentage change in pulse pressure between inspiration and expiration.

PPV is defined by the formula:

📝 Note: PPV = [(PPmax - PPmin) / ((PPmax + PPmin) / 2)] * 100

Where:

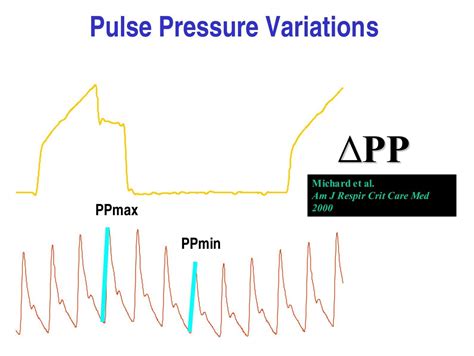

PPmax is the maximum pulse pressure during the respiratory cycle.
PPmin is the minimum pulse pressure during the respiratory cycle.

PPV is influenced by several factors, including:

Ventilator Settings: Tidal volume, respiratory rate, and positive end-expiratory pressure (PEEP) can affect PPV.
Cardiac Function: Patients with impaired cardiac function may have altered PPV values.
Vascular Tone: Changes in vascular tone can influence PPV.
Intra-abdominal Pressure: Elevated intra-abdominal pressure can affect PPV.

Clinical Significance of Pulse Pressure Variation

PPV is a critical parameter in the assessment of fluid responsiveness in mechanically ventilated patients. It helps clinicians determine whether a patient will benefit from fluid administration. A high PPV (typically greater than 12-13%) suggests that the patient is likely to be fluid responsive, meaning that fluid administration may improve cardiac output and blood pressure. Conversely, a low PPV indicates that the patient is less likely to benefit from fluid administration.

PPV is particularly useful in scenarios such as:

Septic Shock: Where fluid resuscitation is a cornerstone of treatment.
Hemorrhagic Shock: Where rapid fluid administration is crucial.
Post-operative Care: Where fluid management is essential for maintaining hemodynamic stability.

Measuring Pulse Pressure Variation

Measuring PPV involves continuous monitoring of arterial blood pressure using an arterial line. The arterial line provides beat-to-beat blood pressure readings, which are essential for calculating PPV. The steps involved in measuring PPV are as follows:

Insert an Arterial Line: Place an arterial catheter in a suitable artery, typically the radial artery.
Connect to a Monitoring System: Attach the arterial line to a hemodynamic monitoring system that can display continuous blood pressure readings.
Ensure Proper Ventilator Settings: Optimize ventilator settings to ensure accurate PPV measurements. This includes setting an appropriate tidal volume and respiratory rate.
Calculate PPV: Use the monitoring system to calculate PPV based on the formula provided earlier.

📝 Note: Ensure that the patient is in a steady state and that there are no significant changes in ventilator settings or hemodynamic parameters during the measurement period.

Interpreting Pulse Pressure Variation

Interpreting PPV involves understanding the clinical context and considering other hemodynamic parameters. Here are some key points to consider:

High PPV (>12-13%): Suggests fluid responsiveness. Fluid administration may improve cardiac output and blood pressure.
Low PPV (<12-13%): Indicates that the patient is less likely to be fluid responsive. Fluid administration may not improve hemodynamic parameters and could potentially lead to fluid overload.
Borderline PPV (10-12%): May require further evaluation and consideration of other hemodynamic parameters.

It is important to note that PPV is just one of many parameters used to assess fluid responsiveness. Other dynamic parameters, such as stroke volume variation (SVV) and systolic pressure variation (SPV), can also provide valuable information. Additionally, static parameters like central venous pressure (CVP) and pulmonary artery occlusion pressure (PAOP) should be considered in the overall assessment.

Limitations of Pulse Pressure Variation

While PPV is a useful tool, it has several limitations that clinicians should be aware of:

Ventilator Dependency: PPV is most reliable in mechanically ventilated patients with a tidal volume of at least 8 mL/kg and a respiratory rate of 8-10 breaths per minute.
Arrhythmias: The presence of arrhythmias can affect the accuracy of PPV measurements.
Spontaneous Breathing: PPV is less reliable in patients who are breathing spontaneously or have significant spontaneous breathing efforts.
Intra-abdominal Pressure: Elevated intra-abdominal pressure can affect PPV measurements.

Given these limitations, it is essential to use PPV in conjunction with other hemodynamic parameters and clinical assessments to make informed decisions about fluid management.

Pulse Pressure Variation in Special Populations

PPV can be particularly challenging to interpret in certain patient populations. For example, in patients with right ventricular dysfunction or pulmonary hypertension, PPV may not accurately reflect fluid responsiveness. Similarly, in patients with severe sepsis or septic shock, the hemodynamic response to fluid administration can be complex and multifaceted.

In these special populations, clinicians may need to rely on additional monitoring tools and hemodynamic parameters to guide fluid management. For example, echocardiography can provide valuable information about cardiac function and volume status. Additionally, advanced hemodynamic monitoring systems, such as pulse contour analysis and transpulmonary thermodilution, can offer more detailed insights into fluid responsiveness.

Future Directions in Pulse Pressure Variation

As our understanding of hemodynamic monitoring continues to evolve, so too will the role of PPV in clinical practice. Future research may focus on refining the use of PPV in specific patient populations and developing new technologies to enhance its accuracy and reliability. For example, the integration of PPV with other dynamic parameters and advanced hemodynamic monitoring tools could provide a more comprehensive assessment of fluid responsiveness.

Additionally, the development of non-invasive methods for measuring PPV could expand its use beyond the intensive care unit and operating room. For example, wearable devices and continuous non-invasive blood pressure monitoring systems could potentially provide real-time PPV measurements in a variety of clinical settings.

In conclusion, Pulse Pressure Variation (PPV) is a valuable tool in the assessment of fluid responsiveness in mechanically ventilated patients. By providing insights into a patient’s hemodynamic status, PPV helps clinicians make informed decisions about fluid management and optimize treatment outcomes. However, it is essential to consider the limitations of PPV and use it in conjunction with other hemodynamic parameters and clinical assessments. As our understanding of hemodynamic monitoring continues to evolve, the role of PPV in clinical practice is likely to expand, offering new opportunities for improving patient care and outcomes.
