Building a retaining wall is a significant undertaking that requires careful planning and execution. One of the most critical aspects of this process is the construction of the retaining wall footing. This foundation ensures the stability and longevity of the wall, preventing it from shifting or collapsing under pressure. Understanding the importance of a well-constructed retaining wall footing is essential for any DIY enthusiast or professional contractor.
Understanding Retaining Wall Footings
A retaining wall footing serves as the base upon which the entire wall is built. It distributes the weight of the wall and the soil it retains, ensuring that the structure remains stable over time. The footing is typically wider than the wall itself, providing a broader base for support. The depth and width of the footing depend on various factors, including the height of the wall, the type of soil, and the expected load.
Types of Retaining Wall Footings
There are several types of retaining wall footings, each suited to different conditions and requirements. The most common types include:
- Spread Footings: These are the most basic type, consisting of a concrete slab that spreads the load over a large area. They are suitable for walls up to 4 feet in height.
- Strip Footings: These are long, narrow footings that run the length of the wall. They are ideal for walls that are longer than they are tall.

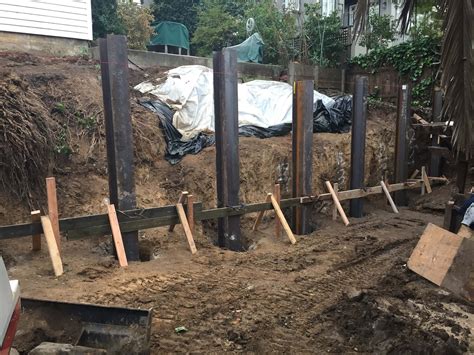

- Pile Footings: These are used in areas with poor soil conditions. Piles are driven deep into the ground to provide a stable base.
- Mat Footings: These are large, thick slabs that cover the entire area under the wall. They are used for very heavy walls or in areas with unstable soil.
Designing a Retaining Wall Footing
Designing a retaining wall footing involves several key considerations. The first step is to determine the height and length of the wall. This will help you calculate the necessary width and depth of the footing. The soil type and load-bearing capacity are also crucial factors. For example, sandy soil may require a deeper footing than clay soil.

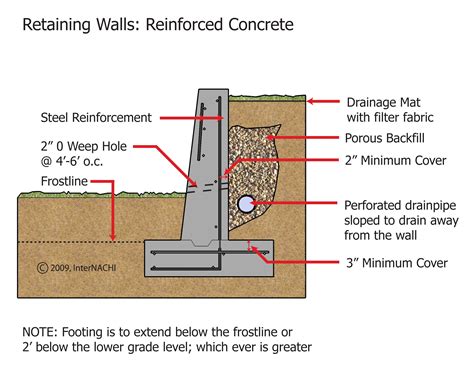

Additionally, you need to consider the drainage requirements. Proper drainage is essential to prevent water buildup behind the wall, which can lead to instability. This often involves installing a drainage system, such as a perforated pipe, behind the wall.
Here is a simple table to help you determine the appropriate footing dimensions based on wall height:
| Wall Height (feet) | Footing Width (feet) | Footing Depth (feet) |
|---|---|---|
| 3 | 1.5 | 1 |
| 4 | 2 | 1.5 |
| 5 | 2.5 | 2 |
| 6 | 3 | 2.5 |
Note that these are general guidelines and may vary based on specific conditions. It is always best to consult with a structural engineer for precise calculations.
Constructing a Retaining Wall Footing
Constructing a retaining wall footing involves several steps. Here is a detailed guide to help you through the process:
Site Preparation
Begin by clearing the site of any debris or vegetation. Use a string line and stakes to mark the exact location and dimensions of the footing. Ensure that the area is level and compacted to provide a stable base.
Excavation
Excavate the area to the required depth and width. Use a shovel or excavator to remove the soil. Ensure that the excavation is uniform and that the sides are vertical. Compact the soil at the bottom of the excavation to prevent settling.
Formwork
Construct formwork around the excavation to hold the concrete in place. Use 2x4 lumber or plywood to create the forms. Ensure that the forms are level and securely fastened. Apply a release agent to the forms to prevent the concrete from sticking.

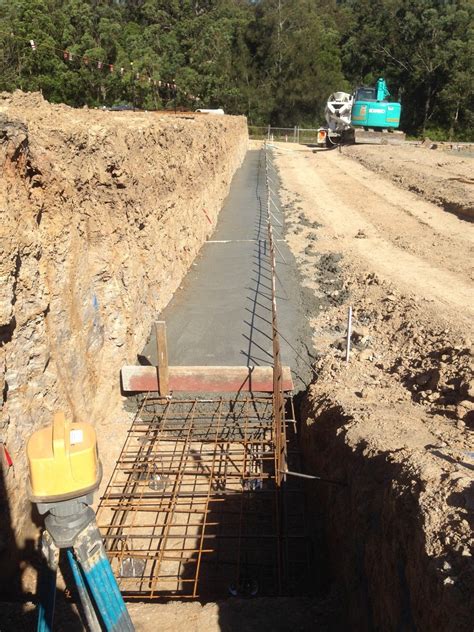

Reinforcement
Place reinforcement bars (rebar) within the formwork to strengthen the footing. The rebar should be placed in a grid pattern, with the bars spaced evenly apart. Use wire ties to secure the rebar in place.
Pouring Concrete
Mix the concrete according to the manufacturer's instructions. Pour the concrete into the formwork, ensuring that it fills the entire area evenly. Use a screed board to level the surface of the concrete. Allow the concrete to cure for at least 24 hours before removing the forms.
🛠️ Note: Ensure that the concrete is properly cured by keeping it moist for the first few days. This will help it achieve its maximum strength.
Common Mistakes to Avoid
Building a retaining wall footing can be challenging, and there are several common mistakes to avoid:
- Inadequate Compaction: Failing to compact the soil at the bottom of the excavation can lead to settling, which can cause the wall to shift or collapse.
- Improper Drainage: Poor drainage behind the wall can lead to water buildup, which can weaken the footing and cause the wall to fail.
- Insufficient Reinforcement: Not using enough rebar or placing it incorrectly can result in a weak footing that is unable to support the wall.
- Incorrect Concrete Mix: Using a concrete mix that is too weak can lead to a footing that cracks or crumbles over time.
Maintaining Your Retaining Wall Footing
Maintaining your retaining wall footing is essential to ensure its longevity. Regular inspections can help identify any issues early, allowing you to address them before they become major problems. Look for signs of cracking, settling, or water damage. Address any drainage issues promptly to prevent water buildup behind the wall.
Additionally, keep the area around the footing clear of debris and vegetation. This will help prevent water from pooling and ensure that the footing remains stable.
If you notice any significant issues, such as large cracks or significant settling, it is best to consult with a professional. They can assess the situation and recommend the appropriate repairs.
In some cases, you may need to reinforce the footing or install additional drainage systems. These repairs can be costly, but they are necessary to ensure the stability and safety of the wall.
Regular maintenance can help extend the life of your retaining wall footing and prevent costly repairs. By taking care of your footing, you can ensure that your retaining wall remains stable and functional for years to come.
In conclusion, constructing a retaining wall footing is a critical step in building a stable and durable retaining wall. By understanding the importance of a well-constructed footing, choosing the right type, and following proper construction techniques, you can ensure that your wall will stand the test of time. Regular maintenance and inspections will help identify any issues early, allowing you to address them before they become major problems. With the right approach, your retaining wall can provide years of reliable service, enhancing the beauty and functionality of your outdoor space.
