Ripple Carry Adder

In the realm of digital electronics, the Ripple Carry Adder stands as a fundamental building block for arithmetic operations. This adder is widely used in various digital systems due to its simplicity and efficiency. Understanding the Ripple Carry Adder is crucial for anyone delving into the world of digital design and computer architecture. This post will explore the intricacies of the Ripple Carry Adder, its working principles, advantages, disadvantages, and applications.

Table of Contents

Understanding the Ripple Carry Adder

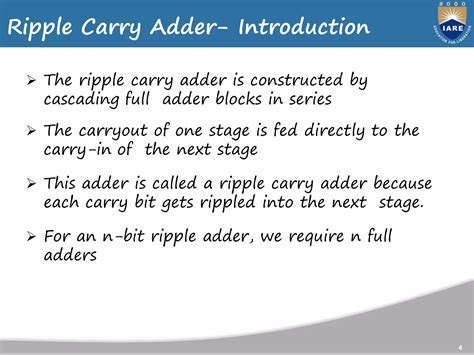

A Ripple Carry Adder is a type of binary adder where each bit is added along with the carry from the previous bit. This carry propagation from one bit to the next creates a ripple effect, hence the name. The basic structure of a Ripple Carry Adder consists of multiple full adders connected in series.

Working Principles of the Ripple Carry Adder

The Ripple Carry Adder operates on the principle of binary addition. Each full adder takes three inputs: two bits to be added and a carry bit from the previous stage. It produces two outputs: the sum bit and the carry bit. The carry bit from one full adder is fed as the carry input to the next full adder, creating a chain reaction or "ripple" effect.

Here is a simple breakdown of the process:

Each full adder performs the addition of two bits and a carry bit.
The sum bit is the result of the addition.
The carry bit is passed to the next full adder in the chain.

This process continues until all bits are added, resulting in the final sum and carry.

Structure of a Ripple Carry Adder

The structure of a Ripple Carry Adder can be visualized as a series of full adders. Each full adder is connected to the next, with the carry output of one full adder serving as the carry input to the next. The basic components of a full adder include:

Two input bits (A and B).
One carry input (Cin).
One sum output (S).
One carry output (Cout).

The truth table for a full adder is as follows:

A	B	Cin	S	Cout
0	0	0	0	0
0	0	1	1	0
0	1	0	1	0
0	1	1	0	1
1	0	0	1	0
1	0	1	0	1
1	1	0	0	1
1	1	1	1	1

This truth table illustrates how the sum and carry outputs are determined based on the input bits and the carry input.

Advantages of the Ripple Carry Adder

The Ripple Carry Adder offers several advantages that make it a popular choice in digital design:

Simplicity: The design is straightforward, making it easy to implement and understand.
Low Component Count: It requires fewer components compared to other types of adders, reducing the overall cost and complexity.
Ease of Scalability: The Ripple Carry Adder can be easily scaled to handle larger bit widths by simply adding more full adders.

These advantages make the Ripple Carry Adder an ideal choice for applications where simplicity and cost-effectiveness are paramount.

Disadvantages of the Ripple Carry Adder

Despite its advantages, the Ripple Carry Adder also has some notable disadvantages:

Slow Speed: The carry propagation delay can be significant, especially for larger bit widths, leading to slower overall performance.
Propagation Delay: The ripple effect causes a delay in the propagation of the carry bit, which can affect the speed of arithmetic operations.

These disadvantages make the Ripple Carry Adder less suitable for high-speed applications where performance is critical.

💡 Note: The speed limitations of the Ripple Carry Adder can be mitigated by using alternative adder designs, such as the Carry Lookahead Adder or the Carry Select Adder, which offer faster carry propagation.

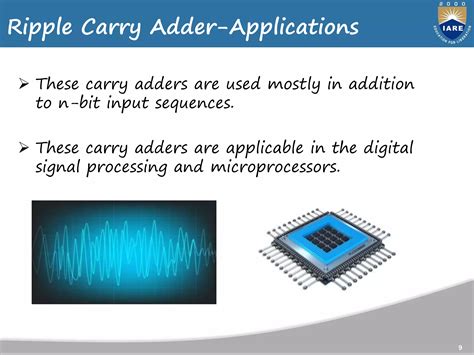

Applications of the Ripple Carry Adder

The Ripple Carry Adder finds applications in various digital systems where arithmetic operations are required. Some common applications include:

Microprocessors: Used in the arithmetic logic unit (ALU) for performing addition and subtraction operations.
Digital Signal Processing (DSP): Employed in DSP systems for signal processing tasks that involve arithmetic operations.
Embedded Systems: Utilized in embedded systems for various arithmetic computations.

These applications highlight the versatility and importance of the Ripple Carry Adder in modern digital electronics.

Comparison with Other Adder Types

To better understand the Ripple Carry Adder, it is useful to compare it with other types of adders. Some common alternatives include:

Carry Lookahead Adder: This adder reduces the carry propagation delay by using additional logic to predict the carry bits in advance.
Carry Select Adder: This adder divides the bits into smaller groups and selects the correct sum based on the carry bits, reducing the overall delay.
Carry Skip Adder: This adder skips over groups of bits that do not affect the carry, reducing the propagation delay.

Each of these adders has its own advantages and disadvantages, making them suitable for different applications. The choice of adder depends on the specific requirements of the system, such as speed, power consumption, and complexity.

Here is a comparison table highlighting the key differences between these adders:

Adder Type	Speed	Complexity	Power Consumption
Ripple Carry Adder	Slow	Low	Low
Carry Lookahead Adder	Fast	High	High
Carry Select Adder	Moderate	Moderate	Moderate
Carry Skip Adder	Moderate	Moderate	Moderate

This comparison illustrates the trade-offs between speed, complexity, and power consumption for different types of adders.

In conclusion, the Ripple Carry Adder is a fundamental component in digital electronics, offering simplicity and cost-effectiveness at the expense of speed. Its working principles, advantages, disadvantages, and applications make it a versatile tool in various digital systems. Understanding the Ripple Carry Adder is essential for anyone involved in digital design and computer architecture, providing a solid foundation for more advanced adder designs and arithmetic operations.
