Understanding the intricacies of networking can be daunting, especially when it comes to the physical layer, which involves the actual wiring and connectors. One of the most fundamental aspects of networking is the RJ45 coding color scheme, which is crucial for creating reliable and functional Ethernet cables. This guide will delve into the details of RJ45 coding color, its importance, and how to properly wire an Ethernet cable using the T568A and T568B standards.
What is RJ45 Coding Color?
The RJ45 coding color scheme refers to the standardized color coding used for the wires within an RJ45 connector. This coding ensures that the wires are correctly aligned and terminated, which is essential for the proper functioning of Ethernet cables. The RJ45 connector is an 8-position, 8-contact (8P8C) modular connector commonly used for Ethernet networking.
Understanding the T568A and T568B Standards
There are two primary standards for RJ45 coding color: T568A and T568B. Both standards use the same colors but in different orders. Understanding these standards is crucial for wiring Ethernet cables correctly.
T568A Standard
The T568A standard is the most commonly used wiring scheme for Ethernet cables. The color coding for T568A is as follows:
| Position | Color |
|---|---|
| 1 | White/Green |
| 2 | Green |
| 3 | White/Orange |
| 4 | Blue |
| 5 | White/Blue |
| 6 | Orange |
| 7 | White/Brown |
| 8 | Brown |
T568B Standard
The T568B standard is less commonly used but is still important to know. The color coding for T568B is as follows:
| Position | Color |
|---|---|
| 1 | White/Orange |
| 2 | Orange |
| 3 | White/Green |
| 4 | Blue |
| 5 | White/Blue |
| 6 | Green |
| 7 | White/Brown |
| 8 | Brown |
Importance of Correct RJ45 Coding Color
Correct RJ45 coding color is essential for several reasons:
- Signal Integrity: Proper wiring ensures that the electrical signals are transmitted correctly, reducing the risk of data loss or corruption.
- Compatibility: Using the correct wiring scheme ensures compatibility with network devices and standards.
- Reliability: Correctly wired cables are less likely to fail, providing a more reliable network connection.
- Troubleshooting: Standardized wiring makes it easier to troubleshoot network issues, as technicians can quickly identify and correct wiring problems.
Wiring an Ethernet Cable
Wiring an Ethernet cable involves several steps. Here’s a detailed guide on how to wire an Ethernet cable using the T568A and T568B standards.
Materials Needed
- Cat5e, Cat6, or Cat7 Ethernet cable
- RJ45 connectors
- Crimping tool
- Cable cutter or scissors
- Cable tester (optional)
Steps to Wire an Ethernet Cable
Follow these steps to wire an Ethernet cable:
- Prepare the Cable: Cut the Ethernet cable to the desired length. Strip about 1-2 inches of the outer jacket to expose the inner wires.
- Untwist the Wires: Untwist the pairs of wires, but be careful not to untwist them too much, as this can affect signal quality.
- Arrange the Wires: Arrange the wires according to the T568A or T568B standard. Ensure that the wires are straight and aligned correctly.
- Trim the Wires: Trim the wires so that they are all the same length and flush with the end of the cable jacket.
- Insert into RJ45 Connector: Insert the wires into the RJ45 connector, ensuring that each wire goes into the correct position. The wires should be fully inserted into the connector.
- Crimp the Connector: Use the crimping tool to crimp the RJ45 connector onto the cable. Apply firm and even pressure to ensure a secure connection.
- Test the Cable: Use a cable tester to verify that the cable is wired correctly and that all connections are secure.
🔧 Note: Always ensure that the wires are fully inserted into the RJ45 connector before crimping. Incomplete insertion can result in poor connections and signal loss.
Straight-Through vs. Crossover Cables
Understanding the difference between straight-through and crossover cables is important for networking. Both types of cables use the same RJ45 coding color but are wired differently.

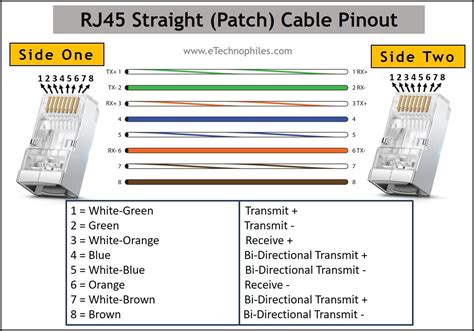

Straight-Through Cable
A straight-through cable is the most common type of Ethernet cable. It is used to connect a computer to a switch or router. Both ends of the cable are wired using the same standard (either T568A or T568B).
Crossover Cable
A crossover cable is used to connect two devices of the same type directly, such as two computers or two switches. One end of the cable is wired using the T568A standard, and the other end is wired using the T568B standard. This allows the devices to communicate directly without the need for a switch or router.
🔧 Note: Modern network devices often support Auto MDI/MDI-X, which automatically detects and adjusts for crossover connections, making crossover cables less necessary.
Common Mistakes to Avoid
When wiring Ethernet cables, there are several common mistakes to avoid:
- Incorrect Wire Order: Ensure that the wires are arranged in the correct order according to the T568A or T568B standard.
- Incomplete Insertion: Make sure that all wires are fully inserted into the RJ45 connector before crimping.
- Over-Twisting: Avoid over-twisting the wires, as this can affect signal quality.
- Poor Crimping: Apply firm and even pressure when crimping the connector to ensure a secure connection.
Troubleshooting Ethernet Cable Issues
If you encounter issues with your Ethernet cable, here are some troubleshooting steps to follow:
- Check Connections: Ensure that all connections are secure and that the wires are fully inserted into the RJ45 connectors.
- Test with a Cable Tester: Use a cable tester to verify that the cable is wired correctly and that all connections are secure.
- Inspect for Damage: Check the cable for any visible damage, such as cuts or frayed wires.
- Replace the Cable: If the cable is damaged or not functioning correctly, consider replacing it with a new one.
🔧 Note: Always use high-quality cables and connectors to ensure reliable performance.
Understanding the RJ45 coding color scheme is fundamental for anyone involved in networking. Whether you are setting up a home network or managing a large enterprise network, knowing how to wire Ethernet cables correctly is essential for ensuring reliable and efficient network performance. By following the T568A and T568B standards and avoiding common mistakes, you can create high-quality Ethernet cables that will support your networking needs. Proper wiring not only ensures signal integrity but also enhances compatibility and reliability, making it easier to troubleshoot and maintain your network.
