Understanding the Rockwell Hardness Hrc scale is crucial for anyone involved in materials science, metallurgy, or manufacturing. This scale is widely used to measure the hardness of materials, particularly metals, and provides valuable insights into their mechanical properties. Whether you are a professional engineer, a student, or an enthusiast, grasping the fundamentals of Rockwell Hardness Hrc can significantly enhance your knowledge and skills.
What is Rockwell Hardness Hrc?
The Rockwell Hardness Hrc scale is a specific method within the Rockwell hardness testing system. Developed by Stanley P. Rockwell and Hugh M. Rockwell in the early 20th century, this system measures the hardness of materials by determining the depth of penetration of an indenter under a specific load. The Hrc scale is particularly useful for harder materials, such as hardened steel and other alloys.
How Does the Rockwell Hardness Hrc Scale Work?

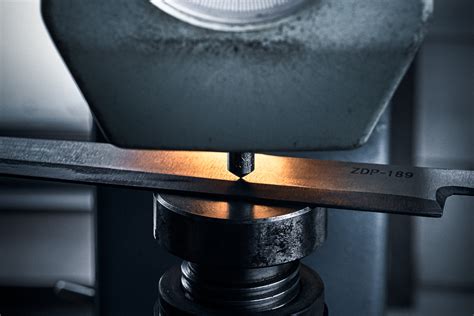

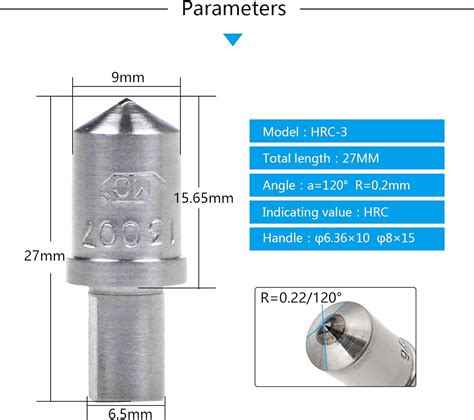

The Rockwell Hardness Hrc scale uses a diamond cone-shaped indenter and a minor load followed by a major load. The process involves the following steps:
- Preload Application: A minor load (preload) is applied to the material to ensure proper seating of the indenter.
- Major Load Application: A major load is then applied, causing the indenter to penetrate the material.
- Measurement: The depth of penetration is measured, and the Rockwell hardness number is calculated based on the difference between the penetration depths under the minor and major loads.
The formula for calculating the Rockwell hardness number (HRC) is:
📝 Note: The formula for calculating the Rockwell hardness number (HRC) is HRC = 100 - (h - h0) * 500 / s, where h is the depth of penetration under the major load, h0 is the depth of penetration under the minor load, and s is the scale factor.
Applications of Rockwell Hardness Hrc
The Rockwell Hardness Hrc scale is extensively used in various industries for quality control and material selection. Some of the key applications include:
- Aerospace Industry: Ensuring the hardness of critical components like turbine blades and landing gear.
- Automotive Industry: Verifying the hardness of engine parts, gears, and shafts.
- Tool and Die Making: Assessing the hardness of cutting tools, dies, and molds.
- Manufacturing: Quality control of hardened steel parts and other alloys.
Advantages of Using the Rockwell Hardness Hrc Scale
The Rockwell Hardness Hrc scale offers several advantages over other hardness testing methods:
- Speed and Efficiency: The test is quick and can be performed with minimal preparation.
- Non-Destructive: The test is generally non-destructive, allowing the material to be used after testing.
- Versatility: The scale can be used on a wide range of materials, including metals, alloys, and some plastics.
- Accuracy: Provides precise and repeatable results, making it reliable for quality control.
Limitations of the Rockwell Hardness Hrc Scale
While the Rockwell Hardness Hrc scale is highly effective, it does have some limitations:
- Surface Finish: The surface finish of the material can affect the results, requiring careful preparation.
- Material Thickness: The material must be thick enough to avoid the influence of the supporting surface.
- Anisotropy: The hardness can vary depending on the direction of measurement in anisotropic materials.
Interpreting Rockwell Hardness Hrc Values
Rockwell Hardness Hrc values are expressed as a number followed by the scale designation (HRC). For example, a value of 50 HRC indicates a hardness of 50 on the Rockwell C scale. Higher values correspond to harder materials. Here is a general guide to interpreting Rockwell Hardness Hrc values:
| HRC Value | Material Hardness |
|---|---|
| 20-30 | Soft to Medium Hard |
| 30-40 | Medium Hard |
| 40-50 | Hard |
| 50-60 | Very Hard |
| 60+ | Extremely Hard |
Comparing Rockwell Hardness Hrc with Other Scales
The Rockwell Hardness Hrc scale is just one of several hardness testing methods. Other commonly used scales include:
- Rockwell A Scale (HRA): Used for softer materials like aluminum alloys.
- Rockwell B Scale (HRB): Used for softer materials like copper and brass.
- Vickers Hardness (HV): Uses a diamond pyramid indenter and is suitable for a wide range of materials.
- Brinell Hardness (HB): Uses a hardened steel or carbide ball indenter and is suitable for larger, softer materials.
Each scale has its own advantages and is chosen based on the material and the specific requirements of the test.
Factors Affecting Rockwell Hardness Hrc Measurements
Several factors can influence the accuracy of Rockwell Hardness Hrc measurements:
- Surface Preparation: The surface must be clean, flat, and free of defects.
- Load Application: Consistent and accurate application of the minor and major loads is crucial.
- Indenter Condition: The indenter must be in good condition and properly calibrated.
- Material Thickness: The material must be thick enough to avoid the influence of the supporting surface.
- Anisotropy: The hardness can vary depending on the direction of measurement in anisotropic materials.

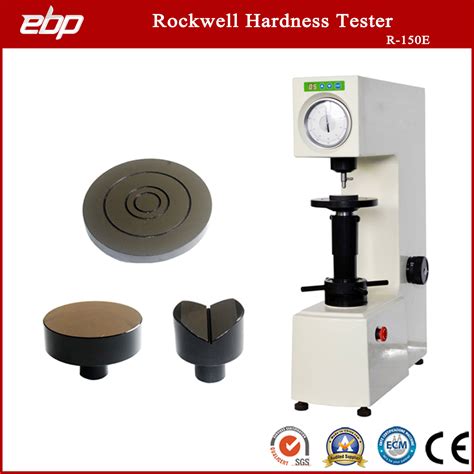

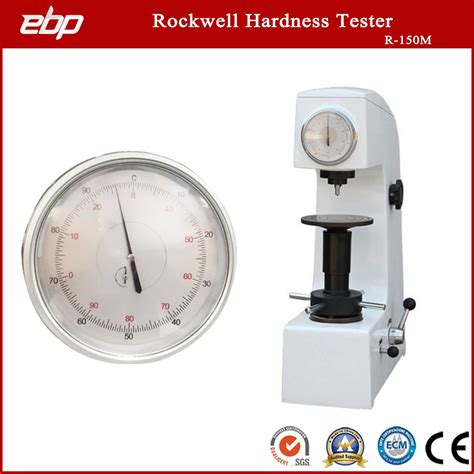

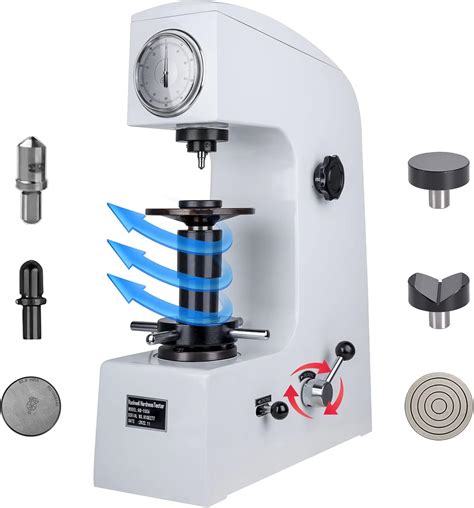

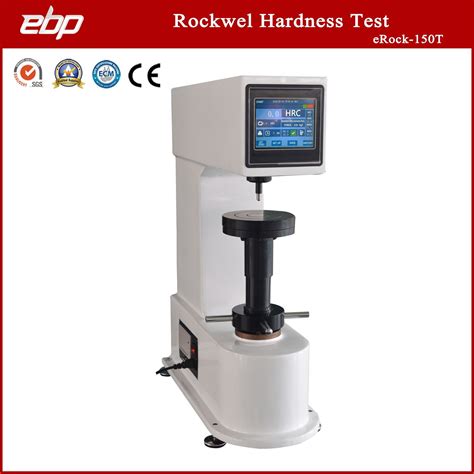

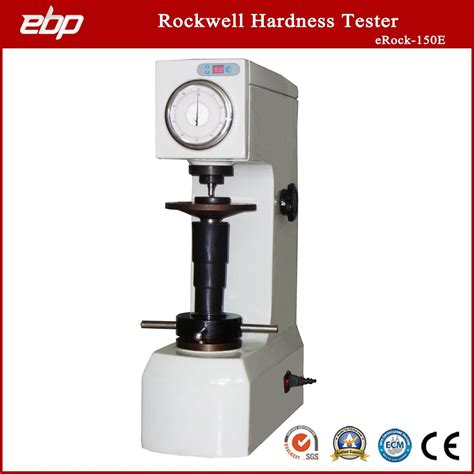

Calibration and Maintenance of Rockwell Hardness Testers
To ensure accurate and reliable Rockwell Hardness Hrc measurements, regular calibration and maintenance of the testing equipment are essential. Key steps include:
- Calibration: Regularly calibrate the tester using certified reference blocks to ensure accuracy.
- Indenter Maintenance: Inspect and maintain the indenter to ensure it is in good condition.
- Load Verification: Verify the accuracy of the applied loads using a load cell or other calibration devices.
- Environmental Control: Maintain a stable testing environment to minimize the effects of temperature and humidity.
Best Practices for Rockwell Hardness Hrc Testing
To achieve accurate and reliable Rockwell Hardness Hrc measurements, follow these best practices:
- Prepare the Surface: Ensure the surface is clean, flat, and free of defects.
- Use the Correct Scale: Select the appropriate Rockwell scale based on the material and its hardness range.
- Apply Consistent Loads: Ensure consistent and accurate application of the minor and major loads.
- Maintain Equipment: Regularly calibrate and maintain the testing equipment.
- Document Results: Record and document the test results for future reference and quality control.
By adhering to these best practices, you can ensure that your Rockwell Hardness Hrc measurements are accurate and reliable.
In conclusion, the Rockwell Hardness Hrc scale is a valuable tool for measuring the hardness of materials, particularly metals and alloys. Understanding its principles, applications, and limitations can help you make informed decisions in materials selection and quality control. Whether you are a professional engineer, a student, or an enthusiast, mastering the Rockwell Hardness Hrc scale can significantly enhance your knowledge and skills in materials science and engineering.
