Understanding the intricacies of roller chain sizing is crucial for anyone involved in mechanical engineering, manufacturing, or maintenance. A Roller Chain Sizing Chart is an essential tool that helps in selecting the right chain for specific applications. This guide will walk you through the importance of a roller chain sizing chart, how to read and use it, and the key factors to consider when selecting a roller chain.
Understanding Roller Chains
Roller chains are mechanical components used to transmit power between two rotating shafts. They consist of a series of interconnected links, each containing a roller that engages with the teeth of a sprocket. Roller chains are widely used in various industries, including automotive, agricultural, and industrial machinery, due to their durability and efficiency.
The Importance of a Roller Chain Sizing Chart
A Roller Chain Sizing Chart is a comprehensive guide that provides detailed information on the dimensions and specifications of different types of roller chains. It is essential for ensuring that the selected chain meets the requirements of the application, including load capacity, speed, and environmental conditions. Using a sizing chart helps in:
- Selecting the appropriate chain size for a given application.
- Ensuring compatibility with sprockets and other components.
- Optimizing performance and longevity of the chain.
- Preventing premature wear and failure.
Key Factors to Consider When Selecting a Roller Chain
When using a Roller Chain Sizing Chart, several factors must be considered to ensure the selected chain is suitable for the application. These factors include:
Chain Pitch
The chain pitch is the distance between the centers of two adjacent rollers. It is a critical factor in determining the compatibility of the chain with the sprockets. Common chain pitches include:
- 0.25 inches (6.35 mm)
- 0.375 inches (9.525 mm)
- 0.5 inches (12.7 mm)
- 0.625 inches (15.875 mm)
- 0.75 inches (19.05 mm)
Chain Width
The chain width is the distance between the inner plates of the chain. It affects the load-carrying capacity and the overall strength of the chain. The width is typically specified in inches or millimeters and is an essential parameter in the Roller Chain Sizing Chart.
Roller Diameter
The roller diameter is the size of the rollers that engage with the sprocket teeth. It influences the chain’s ability to transmit power and its resistance to wear. The roller diameter is usually specified in inches or millimeters and is crucial for ensuring smooth operation and longevity.
Tensile Strength
The tensile strength of a roller chain is the maximum load it can withstand before breaking. It is an essential factor in determining the chain’s suitability for heavy-duty applications. The tensile strength is typically specified in pounds or kilograms and is a key parameter in the Roller Chain Sizing Chart.
Working Load Limit
The working load limit is the maximum load that the chain can safely carry under normal operating conditions. It is usually a fraction of the tensile strength and is specified in the sizing chart. Exceeding the working load limit can lead to premature wear and failure.
Environmental Conditions
The operating environment, including temperature, humidity, and exposure to corrosive substances, can affect the performance and longevity of the roller chain. Specialized chains, such as stainless steel or corrosion-resistant chains, may be required for harsh environments.

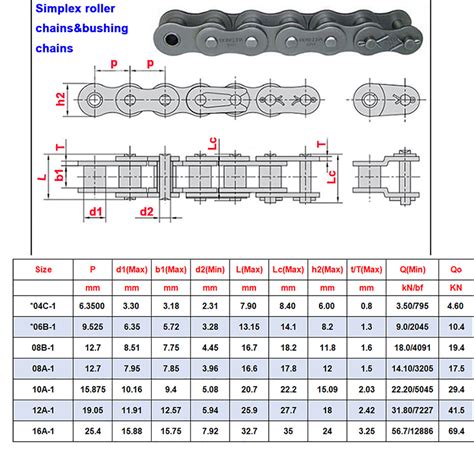

Reading a Roller Chain Sizing Chart
A Roller Chain Sizing Chart typically includes the following information:
| Parameter | Description |
|---|---|
| Chain Number | The standard designation for the chain, such as ANSI 40, 50, 60, etc. |
| Pitch | The distance between the centers of two adjacent rollers. |
| Roller Diameter | The size of the rollers that engage with the sprocket teeth. |
| Width | The distance between the inner plates of the chain. |
| Tensile Strength | The maximum load the chain can withstand before breaking. |
| Working Load Limit | The maximum load the chain can safely carry under normal operating conditions. |
| Maximum Speed | The maximum speed at which the chain can operate safely. |
To use a Roller Chain Sizing Chart, follow these steps:
- Identify the application requirements, including load, speed, and environmental conditions.
- Select the appropriate chain pitch based on the sprocket specifications.
- Determine the required tensile strength and working load limit.
- Choose a chain with a roller diameter that matches the sprocket teeth.
- Verify the chain width to ensure compatibility with other components.
- Check the maximum speed to ensure it meets the application requirements.
🔍 Note: Always refer to the manufacturer's specifications for detailed information on chain dimensions and performance characteristics.
Common Roller Chain Standards
Roller chains are manufactured according to various standards to ensure consistency and compatibility. Some of the most common standards include:
ANSI Standards
The American National Standards Institute (ANSI) sets standards for roller chains, including dimensions, tolerances, and performance characteristics. ANSI standards are widely used in the United States and are recognized internationally.
ISO Standards
The International Organization for Standardization (ISO) provides global standards for roller chains, ensuring compatibility and interchangeability across different regions. ISO standards are essential for international trade and manufacturing.
DIN Standards
The German Institute for Standardization (DIN) sets standards for roller chains used in European markets. DIN standards are known for their precision and quality, making them a preferred choice for many European manufacturers.
Maintenance and Care of Roller Chains
Proper maintenance and care are essential for extending the lifespan of roller chains and ensuring optimal performance. Regular inspection, lubrication, and adjustment are key to preventing premature wear and failure. Here are some tips for maintaining roller chains:
- Inspect the chain regularly for signs of wear, such as elongation, corrosion, or damaged rollers.
- Lubricate the chain according to the manufacturer’s recommendations to reduce friction and wear.
- Adjust the chain tension to ensure proper engagement with the sprockets and prevent excessive wear.
- Replace worn or damaged components promptly to avoid further damage to the chain and other components.
🛠️ Note: Always follow the manufacturer's guidelines for maintenance and care to ensure the longevity and performance of the roller chain.
Roller chains are essential components in many mechanical systems, and selecting the right chain is crucial for optimal performance and longevity. A Roller Chain Sizing Chart is an invaluable tool that provides detailed information on chain dimensions, specifications, and performance characteristics. By understanding the key factors to consider and how to read a sizing chart, you can ensure that the selected chain meets the requirements of your application. Regular maintenance and care are also essential for extending the lifespan of roller chains and preventing premature wear and failure.
