Understanding the RS232C pin configuration is crucial for anyone working with serial communication in electronics and computing. RS232C, often simply referred to as RS232, is a standard for serial binary data interchange between a DTE (Data Terminal Equipment) such as a computer terminal, and a DCE (Data Communication Equipment) such as a modem. This standard has been widely used for decades and remains relevant in many applications today.
What is RS232C?
RS232C is a standard for serial communication that defines the electrical characteristics and timing of signals, the meaning of signals, and the physical size and pinout of connectors. It was originally introduced by the Electronics Industries Association (EIA) and has undergone several revisions, with RS232C being one of the most commonly referenced versions.
RS232C Pin Configuration
The RS232C standard specifies a 25-pin D-sub connector, although a 9-pin version is also commonly used. The pin configuration for both types is essential for proper communication. Below is a detailed breakdown of the RS232C pin configuration for both the 25-pin and 9-pin connectors.
25-Pin RS232C Pin Configuration
The 25-pin D-sub connector is the original standard and includes the following pins:
| Pin Number | Signal Name | Description |
|---|---|---|
| 1 | Protected Ground | Ground for protective purposes |
| 2 | Transmitted Data (TD) | Data transmitted from DTE to DCE |
| 3 | Received Data (RD) | Data received by DTE from DCE |
| 4 | Request to Send (RTS) | Signal from DTE to DCE indicating readiness to send data |
| 5 | Clear to Send (CTS) | Signal from DCE to DTE indicating readiness to receive data |
| 6 | Data Set Ready (DSR) | Signal from DCE to DTE indicating that the DCE is ready |
| 7 | Signal Ground | Ground for signal reference |
| 8 | Data Carrier Detect (DCD) | Signal from DCE to DTE indicating the presence of a carrier |
| 20 | Data Terminal Ready (DTR) | Signal from DTE to DCE indicating that the DTE is ready |
| 22 | Ring Indicator (RI) | Signal from DCE to DTE indicating an incoming call |

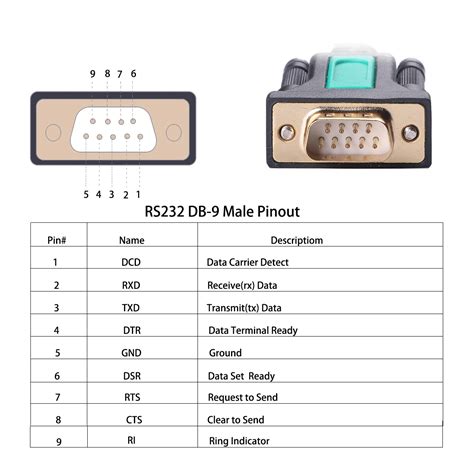

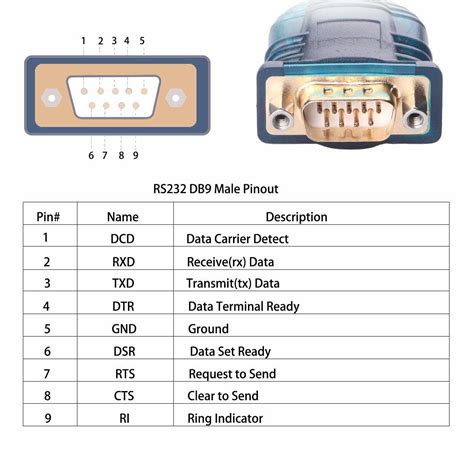

9-Pin RS232C Pin Configuration
The 9-pin D-sub connector is a more compact version and is often used in modern applications. The pin configuration for the 9-pin connector is as follows:
| Pin Number | Signal Name | Description |
|---|---|---|
| 1 | Carrier Detect (CD) | Signal from DCE to DTE indicating the presence of a carrier |
| 2 | Received Data (RD) | Data received by DTE from DCE |
| 3 | Transmitted Data (TD) | Data transmitted from DTE to DCE |
| 4 | Data Terminal Ready (DTR) | Signal from DTE to DCE indicating that the DTE is ready |
| 5 | Signal Ground | Ground for signal reference |
| 6 | Data Set Ready (DSR) | Signal from DCE to DTE indicating that the DCE is ready |
| 7 | Request to Send (RTS) | Signal from DTE to DCE indicating readiness to send data |
| 8 | Clear to Send (CTS) | Signal from DCE to DTE indicating readiness to receive data |
| 9 | Ring Indicator (RI) | Signal from DCE to DTE indicating an incoming call |
Understanding the Signals
The RS232C pin configuration involves several key signals that facilitate communication between the DTE and DCE. Here is a brief overview of the most important signals:
- Transmitted Data (TD): This signal carries data from the DTE to the DCE. It is essential for sending information over the serial link.
- Received Data (RD): This signal carries data from the DCE to the DTE. It is crucial for receiving information over the serial link.
- Request to Send (RTS): This signal is sent from the DTE to the DCE to indicate that the DTE is ready to send data. It is part of the handshaking process.
- Clear to Send (CTS): This signal is sent from the DCE to the DTE to indicate that the DCE is ready to receive data. It is also part of the handshaking process.
- Data Set Ready (DSR): This signal is sent from the DCE to the DTE to indicate that the DCE is ready and operational.
- Data Terminal Ready (DTR): This signal is sent from the DTE to the DCE to indicate that the DTE is ready and operational.
- Data Carrier Detect (DCD): This signal is sent from the DCE to the DTE to indicate the presence of a carrier signal, which means the DCE is connected to a remote device.
- Ring Indicator (RI): This signal is sent from the DCE to the DTE to indicate an incoming call. It is often used in modem applications.
Applications of RS232C
The RS232C pin configuration is used in a variety of applications, including:
- Modem Communication: RS232C is commonly used for connecting modems to computers, allowing for dial-up internet access and other forms of remote communication.
- Serial Ports on Computers: Many older computers and some modern devices still use RS232C for serial communication, such as connecting to printers, scanners, and other peripherals.
- Industrial Automation: RS232C is used in industrial settings for communication between controllers, sensors, and other devices.
- Embedded Systems: Many embedded systems use RS232C for debugging and configuration purposes.
🔍 Note: While RS232C is still used in many applications, it is important to note that newer standards such as USB and Ethernet have largely replaced it in modern systems due to their higher data rates and more robust communication protocols.
Setting Up RS232C Communication
Setting up RS232C communication involves several steps, including configuring the RS232C pin configuration, setting the correct parameters, and ensuring proper wiring. Here is a basic guide to setting up RS232C communication:
- Choose the Correct Connector: Decide whether you will use a 25-pin or 9-pin connector based on your application.

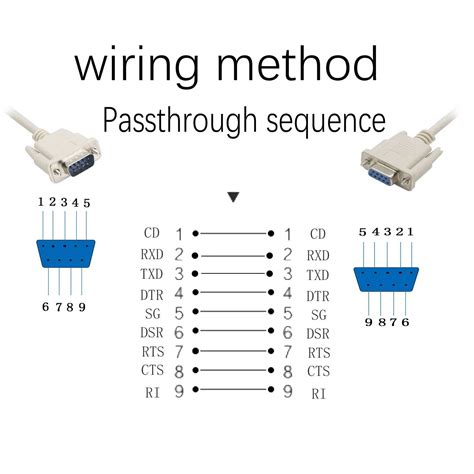

- Wire the Connections: Connect the appropriate pins on the DTE and DCE according to the RS232C pin configuration tables provided earlier.
- Set Communication Parameters: Configure the baud rate, data bits, parity, and stop bits on both the DTE and DCE to ensure proper communication. Common settings include 9600 baud, 8 data bits, no parity, and 1 stop bit.
- Test the Connection: Use a terminal program or other software to test the connection and ensure that data is being transmitted and received correctly.
🛠️ Note: Always double-check your wiring and settings to avoid damaging your equipment. Incorrect wiring can lead to short circuits or other issues.
Troubleshooting RS232C Issues
If you encounter issues with RS232C communication, there are several steps you can take to troubleshoot the problem:
- Check Wiring: Ensure that all connections are secure and that the correct pins are connected according to the RS232C pin configuration.
- Verify Settings: Make sure that the communication parameters (baud rate, data bits, parity, stop bits) are set correctly on both the DTE and DCE.
- Use a Multimeter: Check for continuity and proper voltage levels on the signal lines to ensure that the signals are being transmitted correctly.
- Test with a Loopback Plug: A loopback plug can be used to test the serial port by connecting the transmitted data pin to the received data pin, allowing you to send and receive data on the same port.
🔧 Note: If you are still experiencing issues, consult the documentation for your specific devices or seek assistance from a professional.
RS232C remains a vital standard for serial communication, and understanding the RS232C pin configuration is essential for anyone working with legacy systems or specific applications that require this type of communication. By following the guidelines and troubleshooting steps outlined above, you can ensure reliable and effective RS232C communication in your projects.
