Embarking on an RV adventure is an exciting journey, but ensuring your RV's electrical system is properly set up is crucial for a safe and enjoyable trip. One of the most important aspects of this setup is understanding and correctly performing RV plug wiring. This process involves connecting your RV to a power source, whether it's a campground hookup or a generator. Proper RV plug wiring ensures that your RV's electrical systems function correctly and safely.
Understanding RV Electrical Systems
Before diving into RV plug wiring, it's essential to understand the basics of RV electrical systems. RVs typically use a 12-volt DC system for interior lighting, water pumps, and other low-power devices. However, for higher-power appliances like air conditioners, microwaves, and refrigerators, a 120-volt AC system is required. This AC system is what you'll be connecting to an external power source using RV plug wiring.
Types of RV Power Cords
There are several types of power cords used for RV plug wiring, each designed for different power requirements. The most common types are:

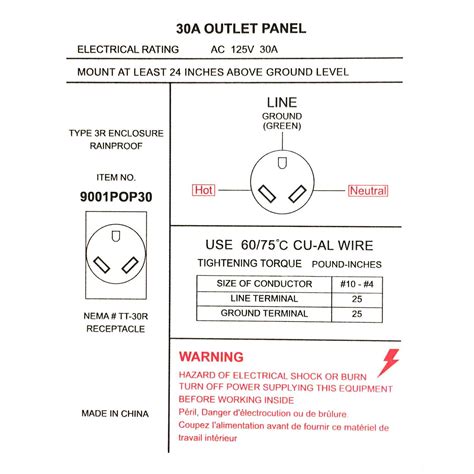

- 30-Amp Power Cord: This is the standard for many RVs and travel trailers. It provides 3,600 watts of power and uses a three-prong plug.

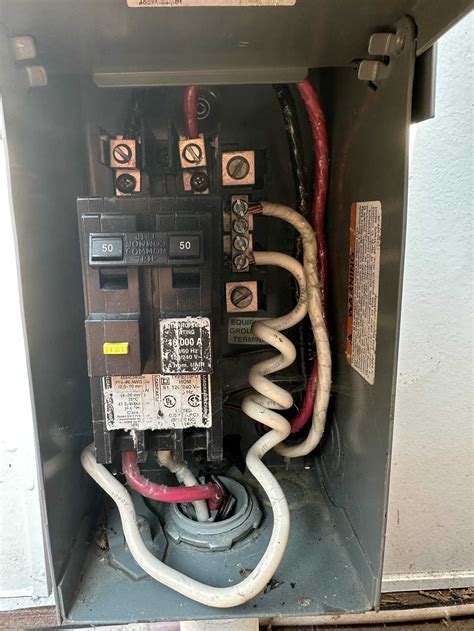

- 50-Amp Power Cord: Larger RVs and motorhomes often use a 50-amp power cord, which provides 12,000 watts of power and uses a four-prong plug.
- 20-Amp Power Cord: Some smaller RVs and trailers use a 20-amp power cord, which provides 2,400 watts of power and uses a three-prong plug.
Tools and Materials Needed for RV Plug Wiring
To perform RV plug wiring, you'll need the following tools and materials:
- Appropriate power cord for your RV (30-amp, 50-amp, or 20-amp)
- Wire strippers
- Crimping tool
- Electrical tape
- Screwdriver
- Voltage tester
Step-by-Step Guide to RV Plug Wiring
Performing RV plug wiring involves several steps. Follow this guide to ensure a safe and proper connection:
Step 1: Identify the Power Source
Determine the type of power source you'll be connecting to. This could be a campground pedestal, a generator, or a transfer switch. Ensure that the power source matches the amperage of your RV's power cord.
Step 2: Prepare the Power Cord
If you're using a new power cord, you may need to prepare it by stripping the outer insulation to expose the internal wires. Use wire strippers to carefully remove about 1/2 inch of insulation from each wire. Be sure to strip only the outer insulation, not the individual wires inside.
Step 3: Connect the Wires
Connect the wires to the appropriate terminals on the power cord plug. The wiring configuration will depend on the type of power cord you're using. Here are the typical configurations:
| Wire Color | Terminal |
|---|---|
| Black (Hot) | Brass or gold terminal |
| White (Neutral) | Silver terminal |
| Green (Ground) | Green terminal |
| Red (Hot, for 50-amp cords) | Brass or gold terminal |
Use a crimping tool to secure the wires to the terminals. Ensure that the connections are tight and secure.
Step 4: Test the Connection
Before plugging in your RV, use a voltage tester to ensure that the power cord is wired correctly. This step is crucial for safety and to prevent any electrical issues. Test each wire to ensure it is connected to the correct terminal.
Step 5: Plug In and Secure
Once you've confirmed that the RV plug wiring is correct, plug the power cord into the power source and secure it. Ensure that the connection is tight and that the plug is fully inserted. Then, plug the other end of the power cord into your RV's power inlet.
🔧 Note: Always double-check your connections before plugging in your RV. Incorrect wiring can cause electrical fires or damage to your RV's electrical system.
Common Issues with RV Plug Wiring
Even with careful RV plug wiring, issues can arise. Here are some common problems and their solutions:
No Power
If your RV isn't receiving power, check the following:
- Ensure the power source is active and providing the correct voltage.
- Check the circuit breaker or fuse in your RV to ensure it hasn't tripped or blown.
- Inspect the power cord for any visible damage or loose connections.
Overheating
If your power cord or plug is overheating, it could be due to:
- An incorrect amperage rating for the power cord.
- Loose or corroded connections.
- Excessive power draw from your RV's appliances.
To resolve overheating, ensure that your power cord is rated for the correct amperage and that all connections are secure and free of corrosion. Consider using a power management system to monitor and control your RV's power usage.
GFCI Tripping
If your Ground Fault Circuit Interrupter (GFCI) is tripping frequently, it could indicate a ground fault in your RV's electrical system. Check for:
- Damaged or exposed wires.
- Water intrusion into electrical components.
- Faulty appliances or devices.
Address any issues you find and reset the GFCI. If the problem persists, consult a professional electrician to inspect your RV's electrical system.
Maintaining Your RV's Electrical System
Regular maintenance of your RV's electrical system is essential for safe and reliable operation. Here are some tips for maintaining your RV plug wiring and electrical components:
- Inspect your power cord regularly for any signs of damage, such as frayed wires or cracked insulation.
- Keep your power cord and plug clean and free of debris.
- Store your power cord properly when not in use to prevent kinks and damage.
- Test your GFCI and circuit breakers regularly to ensure they are functioning correctly.
- Avoid overloading your RV's electrical system by using power management devices to monitor and control power usage.
By following these maintenance tips, you can extend the life of your RV's electrical system and ensure safe and reliable operation during your travels.
Proper RV plug wiring is a critical aspect of RV ownership and maintenance. By understanding your RV’s electrical system, using the correct tools and materials, and following a step-by-step guide, you can ensure a safe and reliable connection to an external power source. Regular maintenance and troubleshooting common issues will help you avoid electrical problems and enjoy your RV adventures to the fullest.
