Shell And Tube

Heat exchangers are essential components in various industrial processes, facilitating the transfer of heat between two or more fluids. Among the different types of heat exchangers, the Shell and Tube heat exchanger stands out due to its efficiency and versatility. This type of heat exchanger is widely used in industries such as chemical processing, oil refining, and power generation. Understanding the design, operation, and maintenance of Shell and Tube heat exchangers is crucial for optimizing their performance and ensuring reliable operation.

Table of Contents

Understanding Shell and Tube Heat Exchangers

A Shell and Tube heat exchanger consists of a shell (a large pressure vessel) with a bundle of tubes inside it. One fluid runs through the tubes, while the other fluid flows over the tubes within the shell. The heat is transferred from one fluid to the other through the tube walls. This design allows for efficient heat transfer and is suitable for high-pressure applications.

Components of a Shell and Tube Heat Exchanger

The primary components of a Shell and Tube heat exchanger include:

Shell: The outer casing that contains the tube bundle.
Tubes: The inner tubes through which one of the fluids flows.
Tube Sheets: Plates that hold the tubes in place at both ends of the shell.

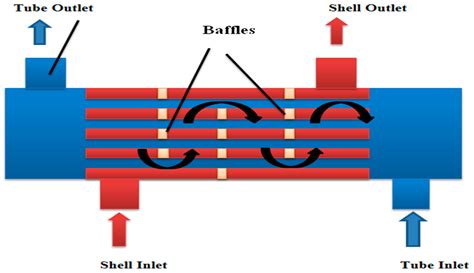

Baffles: Plates or discs that direct the flow of the shell-side fluid across the tubes.
Nozzles: Openings for the inlet and outlet of the fluids.
Tie Rods and Spacers: Components that support the tube bundle and maintain the spacing between the tubes.

Types of Shell and Tube Heat Exchangers

Shell and Tube heat exchangers can be classified based on their flow arrangements and the number of passes. The most common types include:

Single-Pass Heat Exchangers: The fluid flows through the tubes in one direction.
Multi-Pass Heat Exchangers: The fluid makes multiple passes through the tubes, enhancing heat transfer efficiency.
Counter-Flow Heat Exchangers: The fluids flow in opposite directions, maximizing heat transfer.
Cross-Flow Heat Exchangers: The fluids flow perpendicular to each other.

Design Considerations for Shell and Tube Heat Exchangers

Designing a Shell and Tube heat exchanger involves several key considerations to ensure optimal performance:

Material Selection: Choosing the right materials for the shell, tubes, and other components based on the fluids being used and the operating conditions.
Tube Configuration: Determining the number, size, and arrangement of the tubes to maximize heat transfer and minimize pressure drop.
Baffle Design: Selecting the type and spacing of baffles to enhance fluid flow and heat transfer.
Pressure and Temperature Ratings: Ensuring the design can withstand the operating pressures and temperatures.
Corrosion and Fouling Resistance: Incorporating features to minimize corrosion and fouling, which can reduce heat transfer efficiency.

Operation and Maintenance of Shell and Tube Heat Exchangers

Proper operation and maintenance are essential for the longevity and efficiency of Shell and Tube heat exchangers. Regular inspections, cleaning, and maintenance can prevent issues such as fouling, corrosion, and tube leaks. Key maintenance tasks include:

Inspection: Regularly inspecting the heat exchanger for signs of wear, corrosion, or leaks.
Cleaning: Removing fouling deposits from the tubes and shell to maintain heat transfer efficiency.
Repair: Repairing or replacing damaged tubes, gaskets, or other components as needed.
Testing: Conducting performance tests to ensure the heat exchanger is operating within design specifications.

🔧 Note: Regular maintenance can extend the lifespan of a Shell and Tube heat exchanger and prevent costly downtime.

Applications of Shell and Tube Heat Exchangers

Shell and Tube heat exchangers are used in a wide range of industries due to their versatility and efficiency. Some common applications include:

Chemical Processing: Used for heating, cooling, and condensing various chemicals.
Oil Refining: Employed in processes such as crude oil distillation and product cooling.
Power Generation: Utilized in steam generators, condensers, and other heat transfer applications.
Food and Beverage: Used for pasteurization, sterilization, and cooling of products.
HVAC Systems: Employed in heating and cooling systems for buildings and industrial facilities.

Advantages and Disadvantages of Shell and Tube Heat Exchangers

Shell and Tube heat exchangers offer several advantages, including:

High Heat Transfer Efficiency: Effective in transferring heat between fluids.
Versatility: Suitable for a wide range of applications and fluid types.
Durability: Can withstand high pressures and temperatures.
Compact Design: Requires less space compared to other types of heat exchangers.

However, there are also some disadvantages to consider:

Complexity: The design and manufacturing process can be complex and costly.
Maintenance Requirements: Regular cleaning and maintenance are necessary to prevent fouling and corrosion.
Weight: Can be heavy and bulky, making installation and transportation challenging.

Future Trends in Shell and Tube Heat Exchanger Technology

The technology behind Shell and Tube heat exchangers continues to evolve, driven by the need for greater efficiency and sustainability. Some emerging trends include:

Advanced Materials: The use of new materials that offer improved corrosion resistance and thermal conductivity.
Enhanced Designs: Innovations in tube and baffle designs to optimize heat transfer and reduce pressure drop.
Smart Monitoring: Integration of sensors and IoT technology for real-time monitoring and predictive maintenance.
Sustainable Practices: Emphasis on eco-friendly materials and processes to reduce environmental impact.

As industries strive for greater efficiency and sustainability, Shell and Tube heat exchangers will continue to play a crucial role in various applications. By understanding their design, operation, and maintenance, engineers and operators can maximize their performance and ensure reliable operation.

In conclusion, Shell and Tube heat exchangers are indispensable in many industrial processes due to their efficiency and versatility. From chemical processing to power generation, these heat exchangers facilitate essential heat transfer operations. By adhering to best practices in design, operation, and maintenance, industries can leverage the full potential of Shell and Tube heat exchangers, ensuring optimal performance and longevity. The ongoing advancements in technology promise even greater efficiency and sustainability, making Shell and Tube heat exchangers a cornerstone of modern industrial processes.
