Stainless Mig Welding

Stainless steel is a versatile and durable material widely used in various industries due to its corrosion resistance and strength. One of the most effective methods for joining stainless steel components is Stainless Mig Welding. This technique offers numerous advantages, making it a popular choice for both professional welders and DIY enthusiasts. This blog post will delve into the intricacies of Stainless Mig Welding, covering everything from the basics to advanced techniques and best practices.

Understanding Stainless Mig Welding

Stainless Mig Welding, also known as Gas Metal Arc Welding (GMAW), is a process that uses a continuously fed solid wire electrode and an inert or semi-inert gas mixture to shield the weld area from contaminants. This method is particularly suitable for welding stainless steel due to its ability to produce high-quality, clean welds with minimal post-weld cleanup.

Equipment Needed for Stainless Mig Welding

To get started with Stainless Mig Welding, you will need the following equipment:

MIG welder capable of welding stainless steel
Stainless steel welding wire (ER308L, ER309L, or ER316L)
Shielding gas (typically a mixture of argon and CO2)
Welding helmet with appropriate shade
Welding gloves and protective clothing
Wire brush for cleaning the weld area
Angle grinder for removing slag and smoothing welds

Setting Up Your MIG Welder for Stainless Steel

Proper setup is crucial for successful Stainless Mig Welding. Follow these steps to configure your MIG welder:

Select the appropriate wire feed speed and voltage settings for the thickness of the stainless steel you are welding.
Choose the correct shielding gas mixture. For stainless steel, a mixture of 98% argon and 2% CO2 is commonly used.
Ensure the wire feed mechanism is properly aligned and the wire is feeding smoothly.
Set the wire feed speed to match the thickness of the material. Thicker materials require higher wire feed speeds.
Adjust the voltage to achieve a stable arc. Typically, a voltage range of 18-24 volts is suitable for stainless steel welding.

🔧 Note: Always refer to your welder's manual for specific settings and adjustments.

Preparing the Stainless Steel for Welding

Preparation is key to achieving a strong and clean weld. Follow these steps to prepare your stainless steel:

Clean the weld area thoroughly to remove any dirt, oil, or rust. Use a wire brush or solvent to ensure the surface is free of contaminants.
Remove any mill scale or oxidation from the surface. This can be done using an angle grinder with a wire brush attachment.
Ensure the edges to be welded are square and fit tightly together. Use clamps or jigs to hold the pieces in place.

🔧 Note: Proper preparation can significantly reduce the risk of porosity and other weld defects.

Welding Techniques for Stainless Steel

There are several welding techniques that can be employed for Stainless Mig Welding. The choice of technique depends on the thickness of the material and the desired weld appearance.

Stringer Bead Technique

The stringer bead technique involves laying down a continuous bead of weld metal along the joint. This method is suitable for welding thin to medium-thickness stainless steel. It produces a clean, narrow weld bead with minimal spatter.

Weave Bead Technique

The weave bead technique involves moving the welding torch in a side-to-side motion while laying down the weld bead. This method is ideal for welding thicker stainless steel and produces a wider, more uniform weld bead. It also helps to distribute heat more evenly, reducing the risk of warping.

Pulsed MIG Welding

Pulsed MIG welding is a technique that uses a pulsed current to control the heat input and reduce spatter. This method is particularly useful for welding thin stainless steel, as it minimizes the risk of burn-through and distortion. It also produces a cleaner, more precise weld bead.

Common Issues and Troubleshooting

Even with proper setup and technique, issues can arise during Stainless Mig Welding. Here are some common problems and their solutions:

Porosity

Porosity occurs when gas is trapped in the weld, creating small holes or voids. This can be caused by contamination on the surface, improper shielding gas flow, or incorrect wire feed speed.

To address porosity:

Ensure the weld area is clean and free of contaminants.
Check the shielding gas flow rate and adjust as necessary.
Verify that the wire feed speed is set correctly for the material thickness.

Warping

Warping occurs when the heat from welding causes the stainless steel to distort. This is more common with thicker materials and can be minimized by using proper welding techniques and heat management.

To reduce warping:

Use a weave bead technique to distribute heat more evenly.
Clamp the material securely to prevent movement during welding.
Consider using a backing strip or tack welds to stabilize the joint.

Spatter

Spatter is the small droplets of molten metal that are ejected from the weld pool. Excessive spatter can be caused by incorrect wire feed speed, voltage settings, or shielding gas flow.

To minimize spatter:

Adjust the wire feed speed and voltage settings to achieve a stable arc.
Ensure the shielding gas flow rate is sufficient to protect the weld area.
Use a pulsed MIG welding technique for thinner materials.

Post-Weld Cleaning and Finishing

After completing the weld, it is important to clean and finish the weld area to ensure a smooth and corrosion-resistant surface. Follow these steps:

Allow the weld to cool to room temperature.
Use a wire brush or grinder to remove any slag or spatter from the weld area.
Clean the weld area with a solvent or degreaser to remove any remaining contaminants.
Apply a passivation solution to restore the protective oxide layer on the stainless steel.
Polish the weld area to achieve the desired finish.

🔧 Note: Proper post-weld cleaning and finishing can enhance the appearance and durability of the weld.

Safety Precautions for Stainless Mig Welding

Safety is paramount when performing Stainless Mig Welding. Always follow these precautions:

Wear appropriate personal protective equipment (PPE), including a welding helmet, gloves, and protective clothing.
Ensure the welding area is well-ventilated to avoid inhalation of fumes.
Keep a fire extinguisher nearby in case of emergencies.
Avoid welding in confined spaces without proper ventilation.
Follow all manufacturer guidelines for your welding equipment.

Applications of Stainless Mig Welding

Stainless Mig Welding is used in a wide range of applications due to its versatility and reliability. Some common applications include:

Automotive industry for exhaust systems and fuel tanks
Food and beverage industry for equipment and storage tanks
Construction industry for structural components and architectural features
Marine industry for boat hulls and other components
Aerospace industry for aircraft components and structures

Choosing the Right Filler Wire for Stainless Steel

Selecting the appropriate filler wire is crucial for achieving a strong and corrosion-resistant weld. The most common types of filler wire for Stainless Mig Welding include:

Filler Wire Type	Composition	Applications
ER308L	18% chromium, 8% nickel	General-purpose welding of 304 and 304L stainless steel

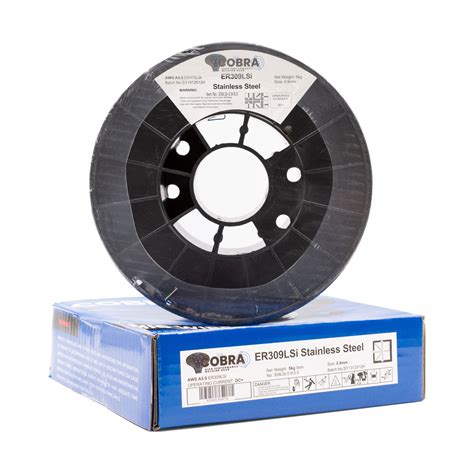

ER309L	23% chromium, 13% nickel	Welding dissimilar metals and high-temperature applications

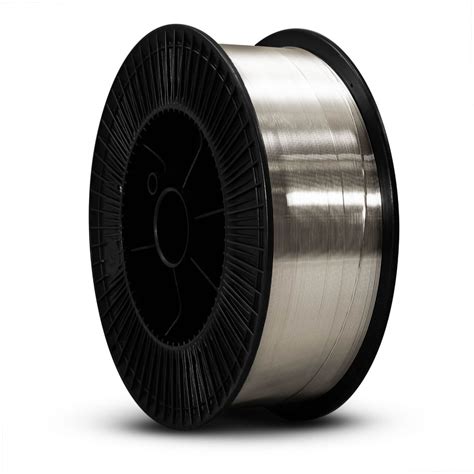

ER316L	17% chromium, 12% nickel, 2% molybdenum	Welding 316 and 316L stainless steel for improved corrosion resistance

🔧 Note: Always match the filler wire composition to the base metal to ensure compatibility and optimal weld properties.

Advanced Techniques for Stainless Mig Welding

For those looking to enhance their Stainless Mig Welding skills, there are several advanced techniques to explore:

Multi-Pass Welding

Multi-pass welding involves laying down multiple layers of weld metal to build up the weld bead. This technique is useful for welding thicker materials and achieving a stronger, more durable weld.

Root Pass Welding

The root pass is the first layer of weld metal applied to the joint. Proper root pass welding is crucial for ensuring a strong and leak-free weld. Techniques such as back-purging with an inert gas can help achieve a clean and corrosion-resistant root pass.

Hot Wire TIG Welding

Hot wire TIG welding combines the precision of TIG welding with the efficiency of MIG welding. This technique uses a heated filler wire to increase deposition rates and improve weld quality. It is particularly useful for welding thick stainless steel sections.

In conclusion, Stainless Mig Welding is a versatile and effective method for joining stainless steel components. By understanding the equipment, techniques, and best practices, you can achieve high-quality welds that are strong, durable, and corrosion-resistant. Whether you are a professional welder or a DIY enthusiast, mastering Stainless Mig Welding can open up a world of possibilities for your projects.
