Supercritical Fluid Co2

Supercritical Fluid CO2 (SF-CO2) is a revolutionary technology that has gained significant attention in various industries due to its unique properties and wide range of applications. This technology leverages the supercritical state of carbon dioxide, where it exhibits both liquid-like and gas-like properties, making it an ideal solvent for numerous processes. In this blog post, we will delve into the fundamentals of Supercritical Fluid CO2, its applications, benefits, and the future prospects of this innovative technology.

Table of Contents

Understanding Supercritical Fluid CO2

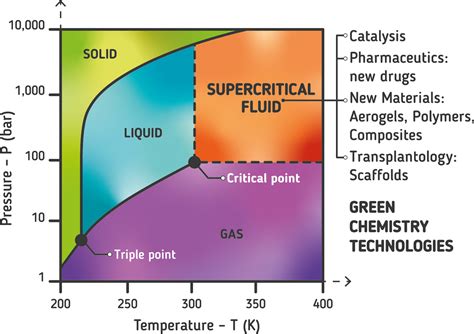

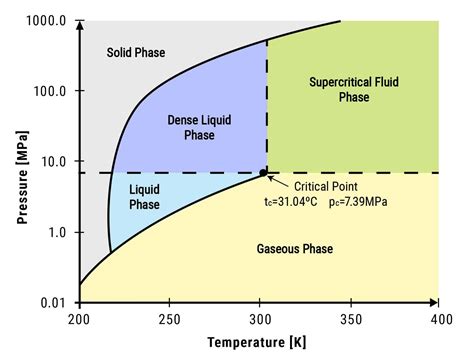

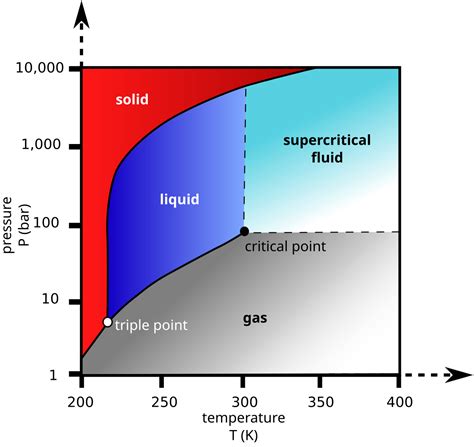

Supercritical Fluid CO2 is a state of carbon dioxide that occurs above its critical temperature and pressure. At these conditions, CO2 behaves neither like a gas nor a liquid but exhibits properties of both. The critical point for CO2 is approximately 31.1°C and 73.8 bar. In this supercritical state, CO2 has a low viscosity and high diffusivity, making it an excellent solvent for various substances.

One of the key advantages of using Supercritical Fluid CO2 is its tunable solubility. By adjusting the temperature and pressure, the solubility of CO2 can be fine-tuned to selectively dissolve specific compounds. This property makes SF-CO2 highly versatile and suitable for a wide range of applications, from extraction and purification to chemical reactions and material processing.

Applications of Supercritical Fluid CO2

Supercritical Fluid CO2 has found applications in various industries due to its unique properties. Some of the most prominent applications include:

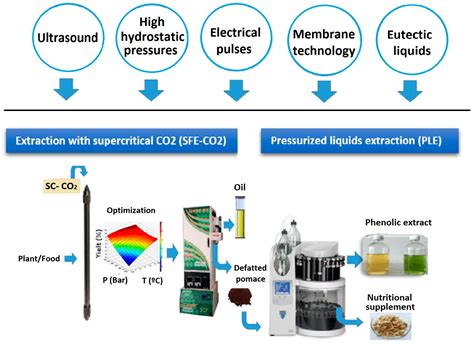

Extraction and Purification: SF-CO2 is widely used for the extraction of valuable compounds from natural sources. For example, it is commonly used to extract caffeine from coffee beans, essential oils from plants, and flavors from spices. The process is efficient, environmentally friendly, and preserves the quality of the extracted compounds.
Chemical Reactions: Supercritical Fluid CO2 can act as a reaction medium for various chemical processes. Its tunable solubility and low viscosity make it an ideal solvent for reactions that require precise control over reaction conditions. This includes polymerization reactions, hydrogenation, and oxidation processes.

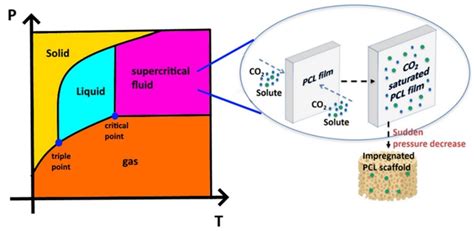

Material Processing: SF-CO2 is used in the processing of materials such as polymers, ceramics, and metals. It can be used for impregnation, coating, and foaming processes. For instance, SF-CO2 can be used to create microcellular foams with controlled porosity, which are useful in various applications, including insulation and packaging.

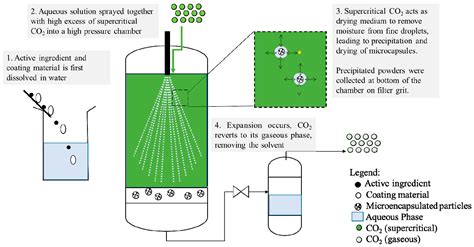

Pharmaceuticals: In the pharmaceutical industry, Supercritical Fluid CO2 is used for the production of drug particles with controlled size and morphology. This is achieved through processes such as rapid expansion of supercritical solutions (RESS) and supercritical antisolvent (SAS) precipitation. These techniques enable the production of drugs with enhanced bioavailability and solubility.

Benefits of Supercritical Fluid CO2

Supercritical Fluid CO2 offers several benefits that make it a preferred choice for many industrial processes. Some of the key advantages include:

Environmentally Friendly: CO2 is a non-toxic, non-flammable, and naturally occurring compound. Its use as a solvent reduces the reliance on harmful organic solvents, making processes more environmentally friendly.
Efficient and Cost-Effective: SF-CO2 processes are often more efficient and cost-effective compared to traditional methods. The high diffusivity and low viscosity of SF-CO2 enable faster mass transfer, reducing processing times and energy consumption.
Selective Solubility: The tunable solubility of SF-CO2 allows for selective extraction and purification of compounds. This selectivity can be adjusted by changing the temperature and pressure, making it possible to target specific compounds with high precision.
Preservation of Quality: SF-CO2 processes are gentle and do not involve high temperatures, which can degrade heat-sensitive compounds. This ensures that the quality and integrity of the extracted or processed materials are preserved.

Challenges and Considerations

While Supercritical Fluid CO2 offers numerous benefits, there are also challenges and considerations that need to be addressed. Some of the key challenges include:

High Pressure Requirements: Operating in the supercritical state requires high pressures, which can be challenging and costly to maintain. Specialized equipment and safety measures are necessary to handle these conditions.
Complexity of Process Control: Controlling the temperature and pressure to achieve the desired solubility and selectivity can be complex. Precise control systems and monitoring are essential to ensure consistent and reliable results.
Scalability: Scaling up SF-CO2 processes from laboratory to industrial scale can be challenging. Ensuring uniform conditions and efficient mass transfer in larger systems requires careful design and optimization.

Despite these challenges, ongoing research and development efforts are focused on overcoming these limitations and expanding the applications of Supercritical Fluid CO2.

Future Prospects of Supercritical Fluid CO2

The future of Supercritical Fluid CO2 looks promising, with continued advancements in technology and increasing demand for sustainable and efficient processes. Some of the emerging trends and future prospects include:

Advanced Materials: SF-CO2 is expected to play a crucial role in the development of advanced materials with unique properties. This includes nanomaterials, composites, and functional materials for various applications, such as electronics, energy storage, and biomedical devices.
Green Chemistry: The principles of green chemistry emphasize the use of environmentally friendly solvents and processes. SF-CO2 aligns well with these principles, and its adoption is likely to increase as industries strive for more sustainable practices.
Integration with Other Technologies: Combining SF-CO2 with other advanced technologies, such as nanotechnology, biotechnology, and artificial intelligence, can lead to innovative solutions and enhanced performance. For example, integrating SF-CO2 with nanotechnology can enable the production of nanomaterials with controlled size and morphology.

As research continues to uncover new applications and improve existing processes, the use of Supercritical Fluid CO2 is expected to grow, driving innovation and sustainability across various industries.

📝 Note: The information provided in this blog post is for educational purposes only and should not be considered as professional advice. Always consult with experts in the field for specific applications and processes.

Supercritical Fluid CO2 represents a groundbreaking technology with immense potential. Its unique properties, wide range of applications, and environmental benefits make it a valuable tool for industries seeking sustainable and efficient solutions. As research and development continue to advance, the future of Supercritical Fluid CO2 looks bright, with exciting possibilities on the horizon. By embracing this technology, industries can achieve greater efficiency, reduce environmental impact, and drive innovation in various fields.
