Tangential Flow Filtration

In the realm of industrial and laboratory processes, the efficiency and purity of filtration systems are paramount. One such method that has gained significant attention is Tangential Flow Filtration (TFF). This technique is widely used in various applications, from bioprocessing to water treatment, due to its ability to handle large volumes of fluid with high efficiency and minimal fouling. This blog post delves into the intricacies of Tangential Flow Filtration, its applications, advantages, and the key factors to consider when implementing this technology.

Table of Contents

Understanding Tangential Flow Filtration

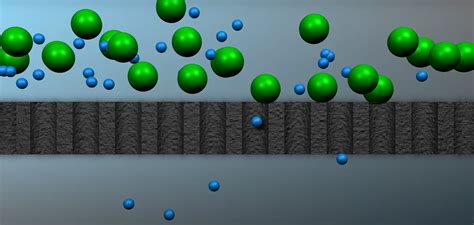

Tangential Flow Filtration, often abbreviated as TFF, is a type of cross-flow filtration where the feed flow is parallel to the membrane surface. This design allows for continuous operation and reduces the buildup of solids on the membrane, which is a common issue in traditional dead-end filtration methods. The process involves pumping the feed solution tangentially across the membrane, allowing the permeate (the filtered liquid) to pass through the membrane while retaining the retentate (the concentrated solution).

How Tangential Flow Filtration Works

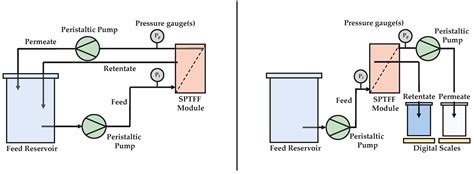

The basic principle of Tangential Flow Filtration involves several key components:

Feed Solution: The liquid that needs to be filtered.
Membrane: A semi-permeable barrier that allows certain molecules to pass through while retaining others.
Permeate: The filtered liquid that passes through the membrane.
Retentate: The concentrated solution that does not pass through the membrane.

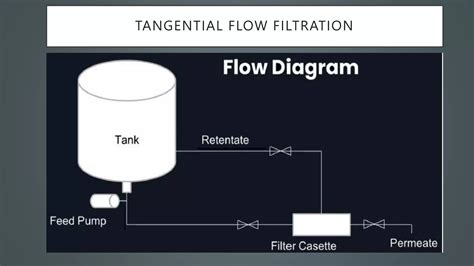

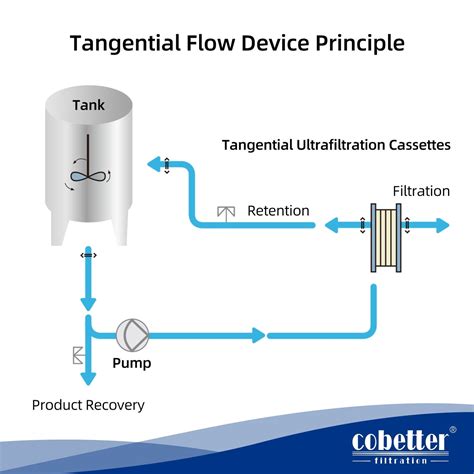

The feed solution is pumped through a series of channels or tubes that contain the membrane. The tangential flow creates a shear force that helps to sweep away particles and prevent them from accumulating on the membrane surface. This continuous flow ensures that the membrane remains clean and efficient over extended periods.

Applications of Tangential Flow Filtration

Tangential Flow Filtration is utilized in a wide range of industries due to its versatility and effectiveness. Some of the most common applications include:

Biopharmaceuticals: TFF is extensively used in the purification of biopharmaceutical products, such as monoclonal antibodies, vaccines, and recombinant proteins. It helps in concentrating and diafiltering these products to achieve the desired purity and concentration.
Food and Beverage: In the food and beverage industry, TFF is employed for clarifying juices, wines, and other liquids. It removes impurities and microorganisms, ensuring a high-quality end product.
Water Treatment: TFF is used in water treatment processes to remove contaminants and impurities from water. It is particularly effective in desalination and wastewater treatment.
Chemical Processing: In chemical industries, TFF is utilized for separating and purifying various chemicals and solvents. It helps in recovering valuable components and reducing waste.

Advantages of Tangential Flow Filtration

Tangential Flow Filtration offers several advantages over traditional filtration methods:

High Efficiency: TFF can handle large volumes of fluid with high efficiency, making it suitable for industrial-scale applications.
Reduced Fouling: The tangential flow design minimizes the buildup of solids on the membrane, reducing the need for frequent cleaning and maintenance.
Continuous Operation: TFF allows for continuous operation, which is beneficial for processes that require uninterrupted filtration.
Versatility: TFF can be used with a variety of membranes and is suitable for a wide range of applications.
Cost-Effective: The reduced need for membrane replacement and cleaning makes TFF a cost-effective solution in the long run.

Key Factors to Consider in Tangential Flow Filtration

When implementing Tangential Flow Filtration, several key factors need to be considered to ensure optimal performance:

Membrane Selection: Choosing the right membrane is crucial for achieving the desired filtration results. Factors such as pore size, material, and surface properties should be carefully considered.
Flow Rate: The flow rate of the feed solution affects the efficiency of the filtration process. It is important to maintain an optimal flow rate to prevent membrane fouling and ensure high throughput.
Pressure: The pressure applied to the feed solution influences the permeate flux and the overall performance of the system. It is essential to monitor and control the pressure to avoid membrane damage.
Temperature: The temperature of the feed solution can affect the viscosity and filtration characteristics. Maintaining a consistent temperature is important for achieving stable and reproducible results.
pH and Ionic Strength: The pH and ionic strength of the feed solution can impact the performance of the membrane. It is important to consider these factors when selecting the membrane and optimizing the filtration process.

Additionally, the design of the filtration system, including the configuration of the membrane modules and the layout of the piping, plays a crucial role in the overall efficiency and performance of the TFF process.

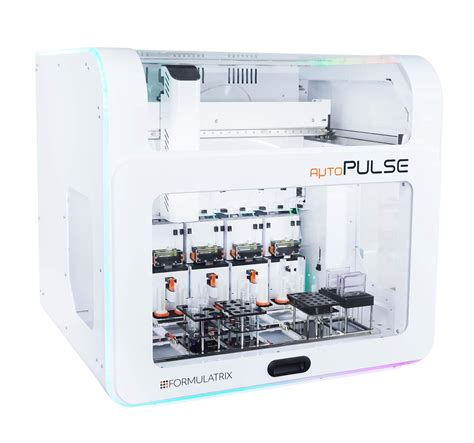

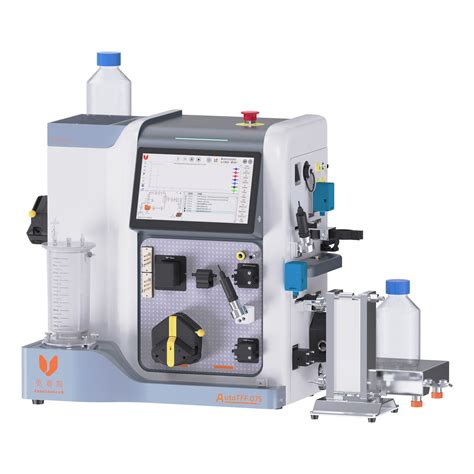

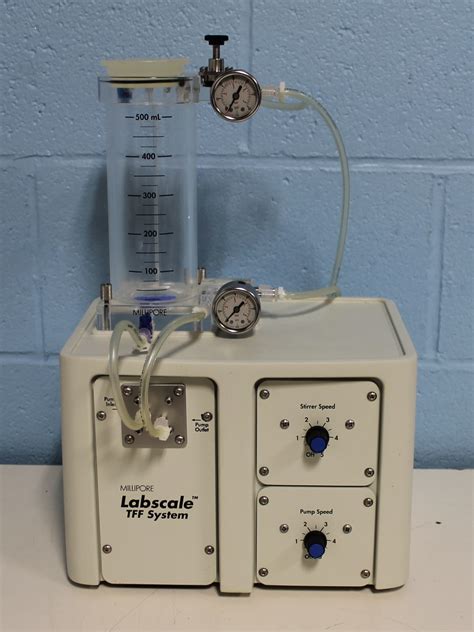

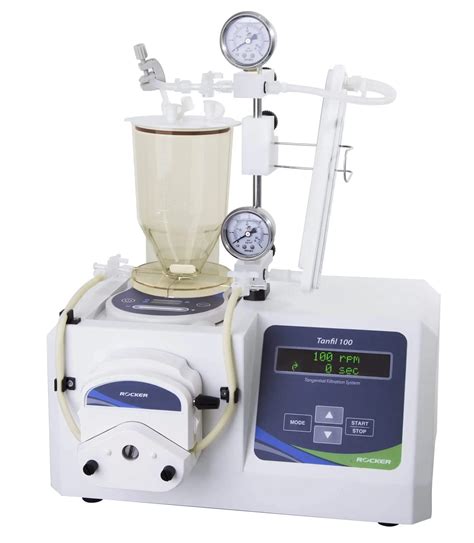

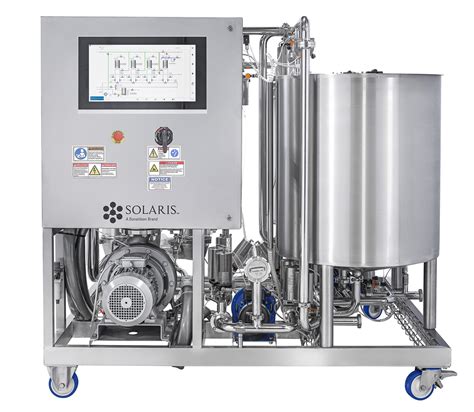

Tangential Flow Filtration Systems

Tangential Flow Filtration systems come in various configurations to suit different applications. Some of the common types include:

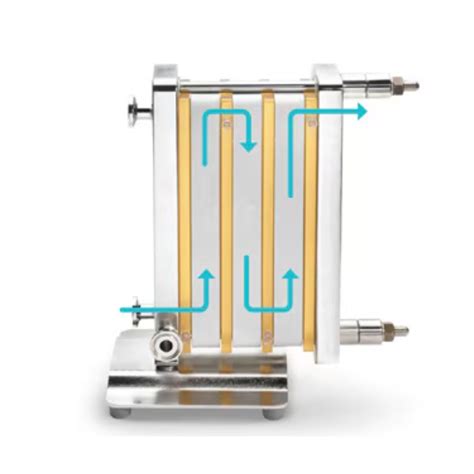

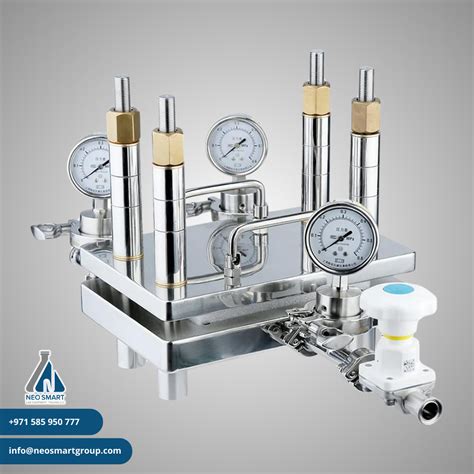

Plate and Frame Modules: These modules consist of flat membranes stacked in a frame. They are easy to clean and maintain but may have lower throughput compared to other configurations.
Spiral Wound Modules: These modules have membranes wound around a central core. They offer high surface area and are suitable for high-volume applications.
Hollow Fiber Modules: These modules consist of bundles of hollow fibers with membranes on the inner or outer surface. They are compact and offer high surface area per unit volume.
Tubular Modules: These modules have membranes in the form of tubes. They are robust and suitable for applications with high solids content.

Each type of module has its own advantages and limitations, and the choice of module depends on the specific requirements of the application.

Optimizing Tangential Flow Filtration

To achieve optimal performance in Tangential Flow Filtration, several strategies can be employed:

Pre-Filtration: Using a pre-filtration step to remove large particles and contaminants can help reduce membrane fouling and extend the lifespan of the membrane.
Backflushing: Periodically reversing the flow direction to clean the membrane can help remove accumulated solids and restore membrane performance.
Chemical Cleaning: Using chemical agents to clean the membrane can help remove stubborn fouling and restore membrane efficiency.
Monitoring and Control: Continuous monitoring of key parameters such as flow rate, pressure, and temperature can help identify and address issues promptly, ensuring optimal performance.

Regular maintenance and inspection of the filtration system are also essential for maintaining its efficiency and longevity.

🔍 Note: Regular calibration of sensors and monitoring equipment is crucial for accurate data collection and system performance.

Case Studies in Tangential Flow Filtration

To illustrate the effectiveness of Tangential Flow Filtration, let's examine a few case studies from different industries:

Biopharmaceutical Purification

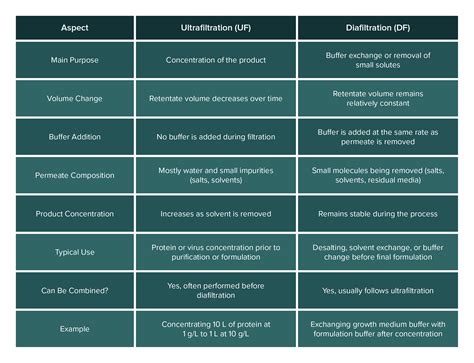

In the biopharmaceutical industry, Tangential Flow Filtration is used to purify monoclonal antibodies. A typical process involves concentrating the antibody solution and removing impurities through diafiltration. The use of TFF ensures high purity and yield, making it a preferred method for large-scale production.

Water Treatment

In water treatment applications, TFF is employed to remove contaminants and impurities from water. For example, in a desalination plant, TFF is used to pre-treat seawater before it undergoes reverse osmosis. This step helps to remove suspended solids and organic matter, improving the overall efficiency of the desalination process.

Food and Beverage Clarification

In the food and beverage industry, TFF is used to clarify juices and wines. For instance, apple juice is clarified using TFF to remove pulp and other solids, resulting in a clear and stable product. The tangential flow design ensures that the membrane remains clean, allowing for continuous operation and high throughput.

Future Trends in Tangential Flow Filtration

The field of Tangential Flow Filtration is continually evolving, driven by advancements in membrane technology and process optimization. Some of the emerging trends include:

Advanced Membrane Materials: The development of new membrane materials with improved selectivity and durability is enhancing the performance of TFF systems.
Automation and Control: The integration of automation and advanced control systems is improving the efficiency and reliability of TFF processes.
Sustainability: There is a growing focus on sustainability, with efforts to reduce energy consumption and waste in TFF processes.
Scalability: The development of scalable TFF systems is enabling their use in a wider range of applications, from small-scale laboratory processes to large-scale industrial operations.

These trends are shaping the future of Tangential Flow Filtration, making it an even more powerful tool for various industries.

Tangential Flow Filtration is a versatile and efficient method for separating and purifying liquids. Its ability to handle large volumes with minimal fouling makes it ideal for a wide range of applications, from biopharmaceuticals to water treatment. By understanding the key factors and optimizing the process, industries can achieve high efficiency and cost-effectiveness. As technology continues to advance, the future of Tangential Flow Filtration looks promising, with new developments enhancing its performance and applicability.
